干簧继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3572-1220-123RELAY REED DIP DPST .5A 12V W/DI |
156 |
|
数据手册 |
3572 | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 150VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
SIL24-1A72-71LRELAY REED SPST 0.5A 24V |
414 |
|
数据手册 |
SIL | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C | - |
|
3570-1419-122RELAY REED SIP SPST 1A 12V W/EM |
397 |
|
数据手册 |
3570 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 200VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C | - |
|
DIP05-1A72-13LRELAY REED SPST 1A 5V |
134 |
|
数据手册 |
DIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
DIP05-1A72-12LRELAY REED SPST 1A 5V |
235 |
|
数据手册 |
DIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
DIP05-1A72-11DRELAY REED SPST 1A 5V |
712 |
|
数据手册 |
DIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
DIP12-1A72-12LRELAY REED SPST 1A 12V |
198 |
|
数据手册 |
DIP | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
8L02-24-00RELAY REED DPST 500MA 24V |
2,099 |
|
数据手册 |
8L | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 19.2 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
8L01-05-101RELAY REED SPST 500MA 5V |
366 |
|
数据手册 |
8L | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
8L01-24-011RELAY REED SPST 500MA 24V |
925 |
|
数据手册 |
8L | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 11 mA | Non Latching | Diode | PC Pin | - | 19.2 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
8L02-05-10RELAY REED DPST 500MA 5V |
7,643 |
|
数据手册 |
8L | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
8L02-12-11RELAY REED DPST 500MA 12V |
17,353 |
|
数据手册 |
8L | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
3563-1231-051RELAY REED DIP SPDT .4A 5V |
166 |
|
数据手册 |
3563 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 400 mA | 100VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.6 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
|
8L02-24-11RELAY REED DPST 500MA 24V |
1,020 |
|
数据手册 |
8L | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 19.2 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
D31A3100REED RELAY 1A/5V |
251 |
|
数据手册 |
- | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.8 VDC | 1 ms | 50 µs | -40°C ~ 70°C | Rhodium (Rh) |
|
|
3563-1231-053RELAY REED DIP SPDT .4A 5V W/DIO |
121 |
|
数据手册 |
3563 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 400 mA | 100VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.6 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
3570-1421-052RELAY REED SIP DPST .5A 5V W/EMI |
138 |
|
数据手册 |
3570 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 13.3 mA | Non Latching | EMI Shielded | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.5 ms | -40°C ~ 85°C | - |
|
|
8L02-12-00RELAY REED DPST 500MA 12V |
638 |
|
数据手册 |
8L | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
3563-1231-052RELAY REED DIP SPDT .4A 5V W/ES |
147 |
|
数据手册 |
3563 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 400 mA | 100VDC - Max | 25 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.6 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|

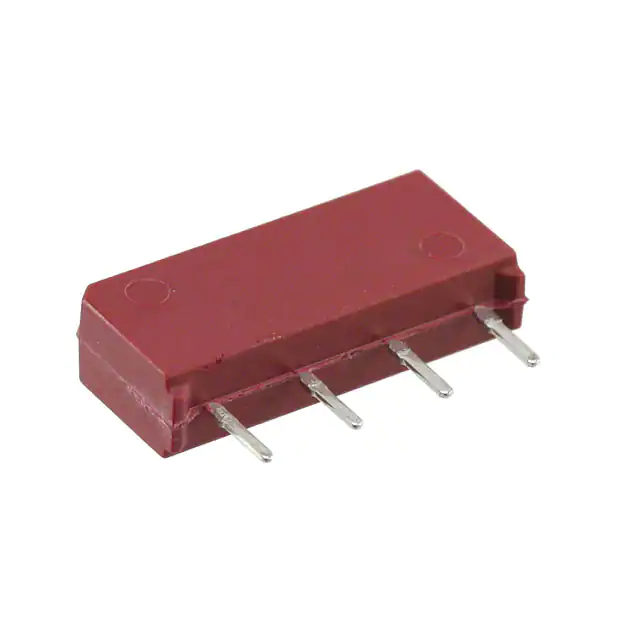

9094-05-00RELAY REED SPST 500MA 5V |
1,703 |
|
数据手册 |
9094 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 40 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C | - |
