直流直流转换器（DC DC Converters）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PKR2221ASIDC DC CONVERTER +/-12V 15W Flex Power Modules |
1,417 |
|
数据手册 |
PKR 2000A (15W) | 18-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 620mA, 620mA | 15 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -45°C ~ 110°C (With Derating) | 87.1% | - | - | Surface Mount | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PMN5118USRDC DC CONVERTER 0.7-3.6V 108W Flex Power Modules |
1,801 |
|
数据手册 |
PMN 5000 (108W) | 14-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.7 ~ 3.6V | - | - | - | 30A | 108 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 96.4% | - | - | Surface Mount | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PMN8118UWPDC DC CONVERTER 0.7-3.6V 108W Flex Power Modules |
2,484 |
|
数据手册 |
PMN 8000 (108W) | 14-DIP Module | Tray | Last Time Buy | Non-Isolated PoL Module | 1 | 5.5V | 14V | 0.7 ~ 3.6V | - | - | - | 30A | 108 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 92.6% | - | - | Through Hole | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PMN8118UWSRDC DC CONVERTER 0.7-3.6V 108W Flex Power Modules |
2,016 |
|
数据手册 |
PMN 8000 (108W) | 14-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 5.5V | 14V | 0.7 ~ 3.6V | - | - | - | 30A | 108 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 92.6% | - | - | Surface Mount | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PMN5118UPDC DC CONVERTER 0.7-3.6V 108W Flex Power Modules |
1,627 |
|
数据手册 |
PMN 5000 (108W) | 14-DIP Module | Tray | Last Time Buy | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.7 ~ 3.6V | - | - | - | 30A | 108 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 96.4% | - | - | Through Hole | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PKR4211ASIDC DC CONVERTER 5V 15W Flex Power Modules |
3,332 |
|
数据手册 |
PKR 4000A (15W) | 18-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -45°C ~ 110°C (With Derating) | 84% | - | - | Surface Mount | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PKE5213PIDC DC CONVERTER 12V 15W Flex Power Modules |
3,883 |
|
数据手册 |
PKE 5000 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 1.25A | 15 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 110°C (With Derating) | 89.6% | - | - | Through Hole | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PKE5215PIDC DC CONVERTER 15V 15W Flex Power Modules |
1,195 |
|
数据手册 |
PKE 5000 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 1A | 15 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 110°C (With Derating) | 89.6% | - | - | Through Hole | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
PKE3215PIDC DC CONVERTER 15V 15W Flex Power Modules |
1,330 |
|
数据手册 |
PKE 3000 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1A | 15 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 110°C (With Derating) | 88.8% | - | - | Through Hole | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|

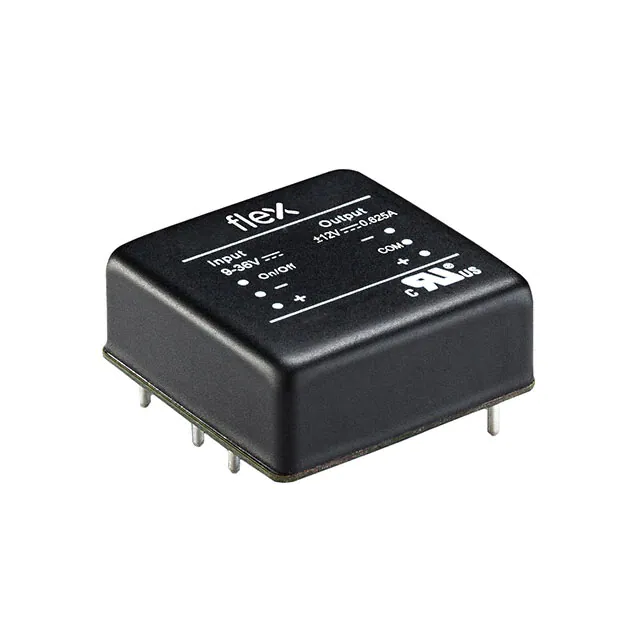

PKE3221PIDC DC CONVERTER +/-12V 15W Flex Power Modules |
3,705 |
|
数据手册 |
PKE 3220 (15W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 625mA, 625mA | 15 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 115°C (With Derating) | 90% | - | - | Through Hole | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
