直流直流转换器（DC DC Converters）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

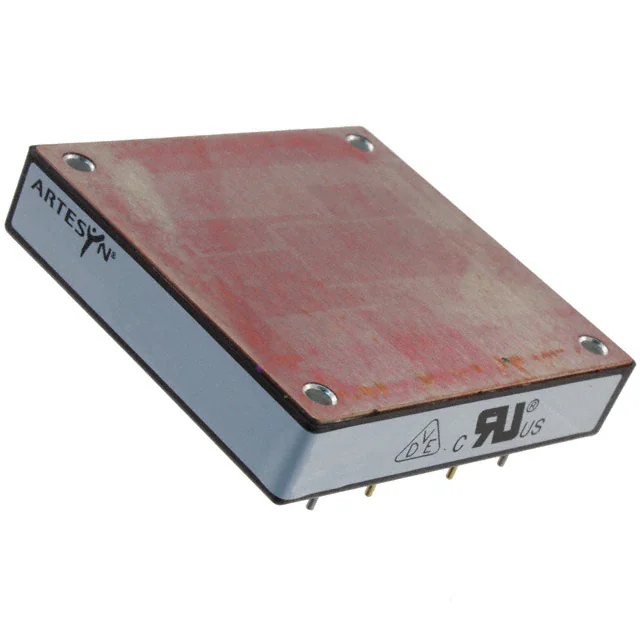

RFB300-48S28-R5JDC DC CONVERTER 16.8-29.4V 300W ARTESYN / Advanced Energy |
2,640 |
|
数据手册 |
RFB300 (300W) | 9-DIP Module, 1/2 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 16.8 ~ 29.4V | - | - | - | 11A | 300 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C | 91% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
SIL40C2-00SADJ-HJDC DC CONVERTER 0.6-5V 200W ARTESYN / Advanced Energy |
1,194 |
|
数据手册 |
SIL40C2 (200W) | 13-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 13.8V | 0.6 ~ 5V | - | - | - | 40A | 200 W | - | ITE (Commercial) | Remote On/Off, OVP, SCP | 0°C ~ 70°C | 94% | - | - | Through Hole | - | - | - | - |
|
ADQ600B-48S12B-6LK600W, 36 - 75VIN, 12V@50A, QUART ARTESYN / Advanced Energy |
4,807 |
|
数据手册 |
ADQ600 (600W) | Quarter Brick | Box | Active | Isolated Module | 1 | 40V | 60V | 12V | - | - | - | 50A | 600 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 85°C | 95.6% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CE, cUL, TUV, UL | 60950-1; 62368-1 |
|
SIL20C2-00SADJ-HJDC DC CONVERTER 0.59-5.1V 100W ARTESYN / Advanced Energy |
4,969 |
|
数据手册 |
SIL20C2 (100W) | 9-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 13.8V | 0.59 ~ 5.1V | - | - | - | 20A | 100 W | - | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | 0°C ~ 70°C | 93% | - | - | Through Hole, Right Angle | - | - | - | - |
|
ATA00CC18S-LDC DC CONVERTER +/-15V 3W ARTESYN / Advanced Energy |
3,297 |
|
数据手册 |
ATA (3W) | 16-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C | 80% | - | - | Surface Mount | - | - | - | - |
|
ATA01C18-LDC DC CONVERTER 15V 6W ARTESYN / Advanced Energy |
2,727 |
|
数据手册 |
ATA (6W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 400mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 85% | - | - | Through Hole | - | - | - | - |
|
AYA01C24-LDC DC CONVERTER 15V 3W ARTESYN / Advanced Energy |
4,371 |
|
数据手册 |
AYA (3W) | 7-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 87% | - | - | Through Hole | - | - | - | - |
|
AEE01AA18-LSDC DC CONVERTER +/-5V 15W ARTESYN / Advanced Energy |
3,386 |
|
数据手册 |
AEE (15W) | 5-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 1.5A, 1.5A | 15 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 71°C | 84% | - | - | Through Hole | - | - | - | - |
|
AXA00BB36-LDC DC CONVERTER +/-12V 20W ARTESYN / Advanced Energy |
1,216 |
|
数据手册 |
AXA (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 835mA, 835mA | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP | -40°C ~ 85°C | 89% | - | - | Through Hole | - | - | - | - |
|
AYA00B24-LDC DC CONVERTER 12V 2W ARTESYN / Advanced Energy |
3,378 |
|
数据手册 |
AYA (2W) | 7-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 167mA | 2 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | - | - |
