直流直流转换器（DC DC Converters）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

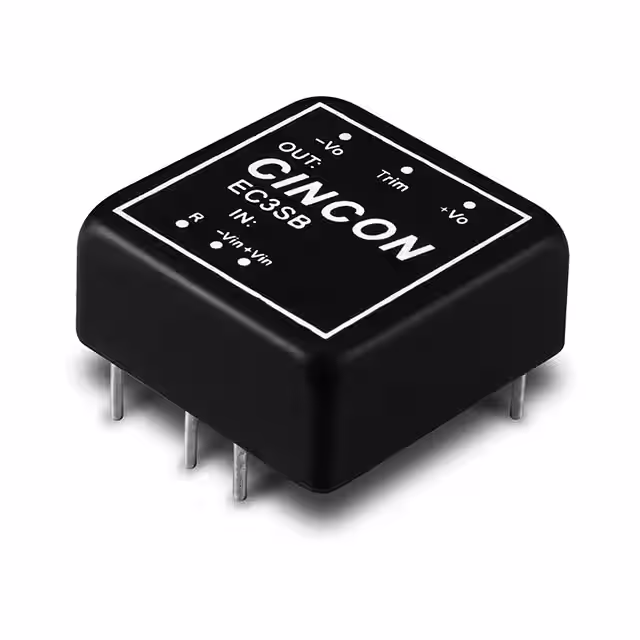

EC3SB-12D05DC DC CONVERTER +/-5V 15W Cincon Electronics Co. LTD |
3,259 |
|
数据手册 |
EC3SB (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 1.5A, 1.5A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | - | Enable, Active High | CE | 60950-1 |
|
|
EC3SB-24S05DC DC CONVERTER 5V 15W Cincon Electronics Co. LTD |
4,633 |
|
数据手册 |
EC3SB (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | - | Enable, Active High | CE | 60950-1 |
|

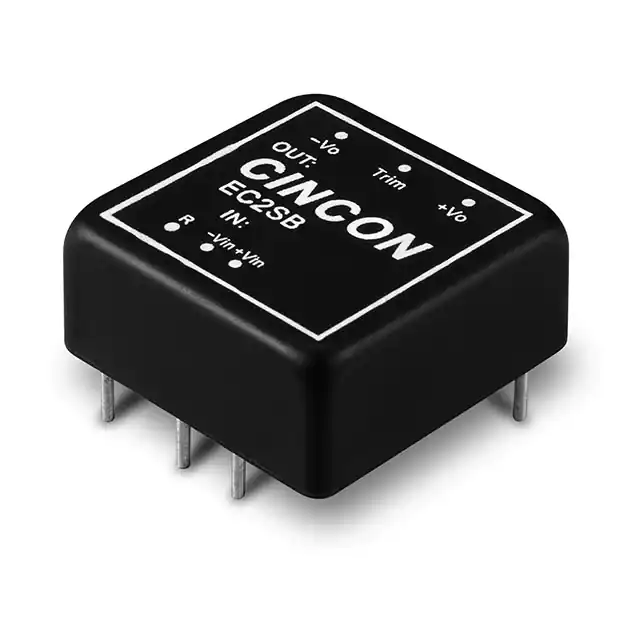

EC2SB-12S33DC DC CONVERTER 3.3V 8.3W Cincon Electronics Co. LTD |
1,221 |
|
数据手册 |
EC2SB (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 2.5A | 8.3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | CE | 60950-1 |
|
EC7AW-24S12DC-DC CONVERTER Cincon Electronics Co. LTD |
2,015 |
|
数据手册 |
EC7AW (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 833mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | - | Enable, Active High | CE | 62368-1 |
|

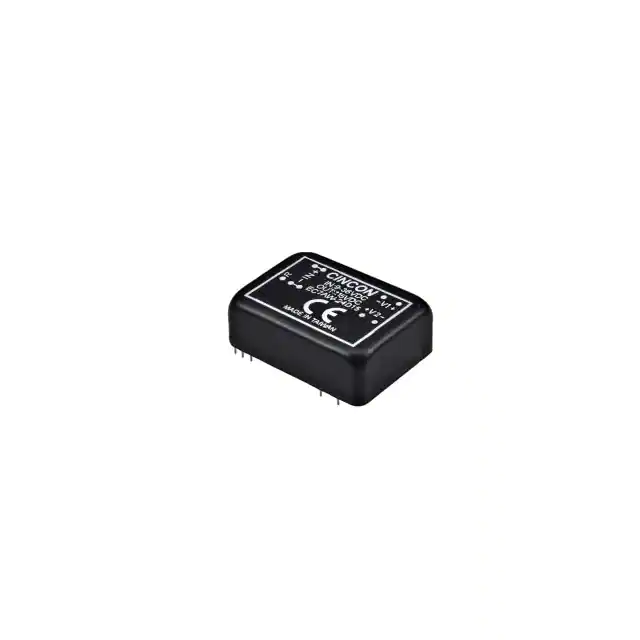

EC7AW-48S12NDC-DC CONVERTER Cincon Electronics Co. LTD |
2,288 |
|
数据手册 |
EC7AW (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 74V | 12V | - | - | - | 833mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | - | Enable, Active Low | CE | 62368-1 |
|
|
EC7AW-24S15DC-DC CONVERTER Cincon Electronics Co. LTD |
1,484 |
|
数据手册 |
EC7AW (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 666mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 89.5% | - | - | Through Hole | - | Enable, Active High | CE | 62368-1 |
|
|
EC7AW-48S12DC-DC CONVERTER Cincon Electronics Co. LTD |
4,865 |
|
数据手册 |
EC7AW (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 74V | 12V | - | - | - | 833mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | - | Enable, Active High | CE | 62368-1 |
|
|
EC7AW-24S05NDC-DC CONVERTER Cincon Electronics Co. LTD |
3,542 |
|
数据手册 |
EC7AW (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 2A | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | - | Enable, Active Low | CE | 62368-1 |
|
|
EC2SB-24S05DC DC CONVERTER 5V 10W Cincon Electronics Co. LTD |
3,551 |
|
数据手册 |
EC2SB (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | - | CE | 60950-1 |
|
|
EC2SB-48D15DC DC CONVERTER +/-15V 10W Cincon Electronics Co. LTD |
3,500 |
|
数据手册 |
EC2SB (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 36V | 75V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | CE | 60950-1 |
