直流直流转换器（DC DC Converters）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFB600-300S24DC DC CONVERTER 24V 600W Cincon Electronics Co. LTD |
2,909 |
|
数据手册 |
CFB600-300S (600W) | Full Brick | Box | Active | Isolated Module | 1 | 180V | 425V | 24V | - | - | - | 25A | 600 W | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 90.5% | - | - | Through Hole | Full Brick | Enable, Active High | CE, cURus | 60950-1 |
|
EC3SAW-24S33PDC DC CONVERTER 3.3V 2.3W Cincon Electronics Co. LTD |
1,406 |
|
数据手册 |
EC3SAW (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 700mA | 2.3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | - | Enable, Active High | CE | 60950-1 |
|
EC3A01DC DC CONVERTER 5V 3W Cincon Electronics Co. LTD |
3,542 |
|
数据手册 |
EC3A (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 6V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 75% | - | - | Through Hole | - | - | - | - |
|
EC4SAW-24S05HNDC/DC CONVERTER Cincon Electronics Co. LTD |
3,417 |
|
数据手册 |
EC4SAW (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1.2A | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | Enable, Active Floating | CE | - |
|

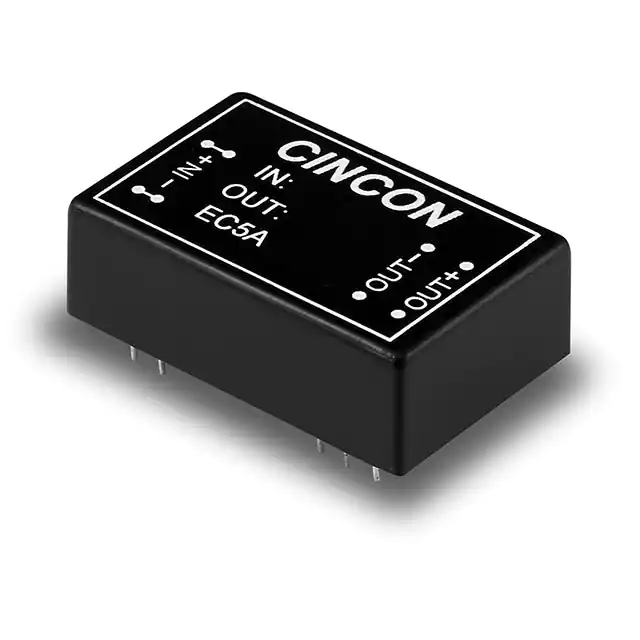

EC5A-12S05DC DC CONVERTER 5V 10W Cincon Electronics Co. LTD |
4,799 |
|
数据手册 |
EC5A (24W) | 24-DIP Module, 14 Leads | Tube | Active | Non-Isolated PoL Module | 1 | 9V | 32V | 5V | - | - | - | 2A | 10 W | - | ITE (Commercial) | OCP | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | - | - | CE | - |
|
EC4SAW-48S15NDC DC CONVERTER 15V 6W Cincon Electronics Co. LTD |
4,649 |
|
数据手册 |
EC4SAW (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 400mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | Enable, Active Low | CE | - |
|

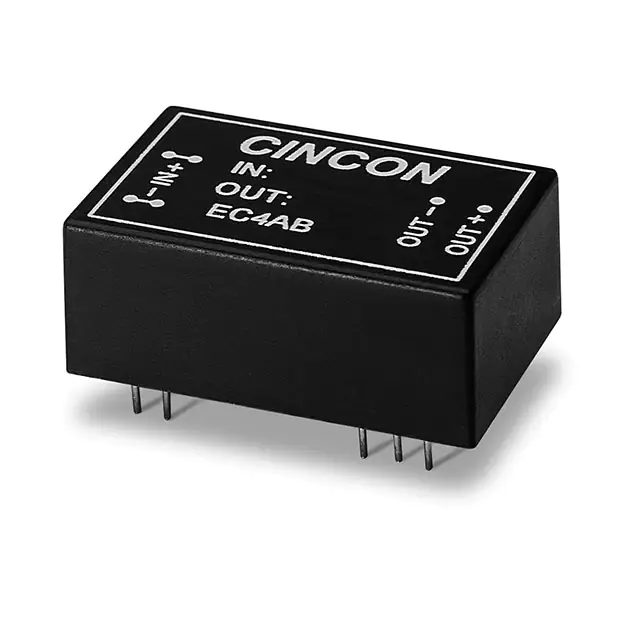

EC4AB11DC DC CONVERTER 5V 5W Cincon Electronics Co. LTD |
1,452 |
|
数据手册 |
EC4AB (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1A | 5 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 79% | - | - | Through Hole | - | - | - | - |
|
|
EC4AB15HDC DC CONVERTER +/-15V 5.7W Cincon Electronics Co. LTD |
3,456 |
|
数据手册 |
EC4AB (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 190mA, 190mA | 5.7 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 82% | - | - | Through Hole | - | - | CE, cURus | - |
|

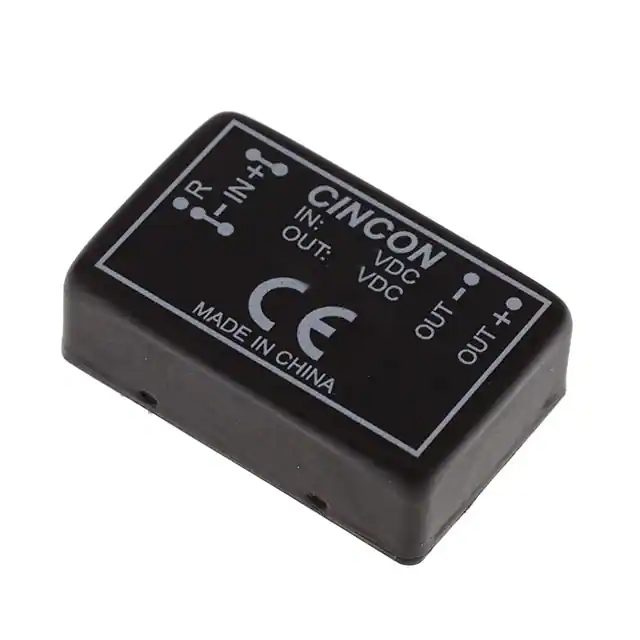

EC7AW-24S05DC-DC CONVERTER Cincon Electronics Co. LTD |
3,623 |
|
数据手册 |
EC7AW (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 2A | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | - | Enable, Active High | CE | 62368-1 |
|

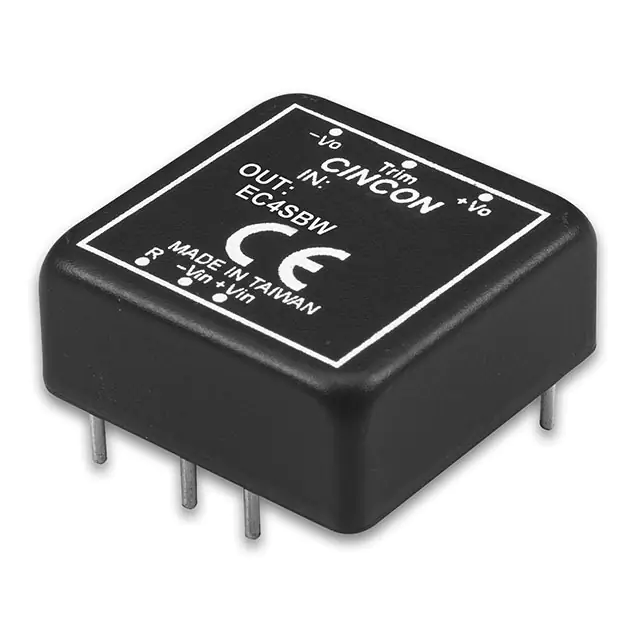

EC4SBW-24D15DC DC CONVERTER +/-15V 20W Cincon Electronics Co. LTD |
2,434 |
|
数据手册 |
EC4SBW (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 660mA, 660mA | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | Enable, Active High | CE | 62368-1 |
