直流直流转换器（DC DC Converters）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20IMX15-05-8RGDC DC CONVERTER 5.1V 15W Bel Power Solutions |
4,605 |
|
数据手册 |
Melcher IMX15 (15W) | 17-DIP Module | Bulk | Active | Isolated Module, Conformal Coated | 1 | 8.4V | 36V | 5.1V | - | - | - | 3.5A | 15 W | 2.1 kV | ITE (Commercial), Railway | OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole | - | - | - | - |
|
40IMX35D05D05-8GDC DC CONVERTER 5V 5V 5V 35W Bel Power Solutions |
4,762 |
|
数据手册 |
Melcher IMX35 (35W) | 19-DIP Module, 17 Leads | Tube | Active | Isolated Module, Conformal Coated | 4 | 18V | 75V | 5V | 5V | 5V | - | 1.4A, 1.4A, 1.4A | 35 W | 1.5 kV | ITE (Commercial), Railway | OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | - | - | - | - |
|

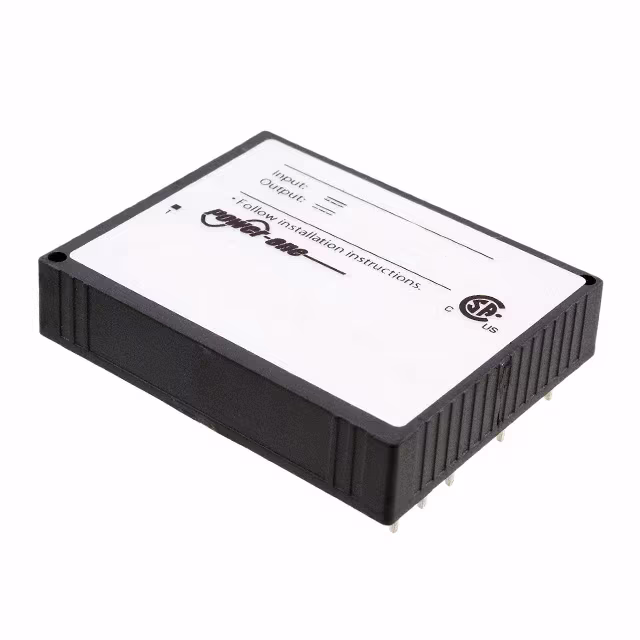

40IMX15-15-15-8GDC DC CONVERTER 15V 15V 15W Bel Power Solutions |
100 |
|
数据手册 |
Melcher IMX15 (15W) | 17-DIP Module, 9 Leads | Bulk | Active | Isolated Module, Conformal Coated | 2 | 16.8V | 75V | 15V | 15V | - | - | 560mA, 560mA | 15 W | 2.1 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole | - | - | - | - |
|
40IMX15-24-24-8GDC DC CONVERTER 24V 24V 15W Bel Power Solutions |
2,914 |
|
数据手册 |
Melcher IMX15 (15W) | 17-DIP Module, 11 Leads | Bulk | Active | Isolated Module, Conformal Coated | 2 | 16.8V | 75V | 24V | 24V | - | - | 350mA, 350mA | 15 W | 2.1 kV | ITE (Commercial), Railway | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole | - | - | - | - |
|
|
20IMX15-05-05-8GDC DC CONVERTER 5V 5V 15W Bel Power Solutions |
3,237 |
|
数据手册 |
Melcher IMX15 (15W) | 17-DIP Module | Tube | Active | Isolated Module, Conformal Coated | 2 | 8.4V | 36V | 5V | 5V | - | - | 1.3A, 1.3A | 15 W | 2.1 kV | ITE (Commercial), Railway | OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole | - | - | - | - |
|

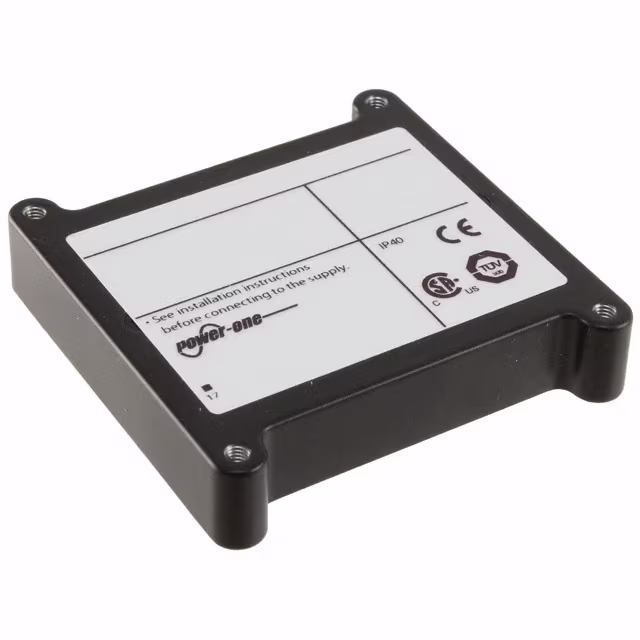

36IBX15-50-0GDC DC CONVERTER 80V Bel Power Solutions |
1,133 |
|
数据手册 |
Melcher IBX15 | 17-DIP Module, 10 Leads | Bulk | Active | Non-Isolated PoL Module, Conformal Coated | 1 | 25.2V | 80V | 80V | - | - | - | 2.2A | - | - | ITE (Commercial) | OTP, UVLO | -40°C ~ 70°C | 95% | - | - | Through Hole | - | - | - | - |
|

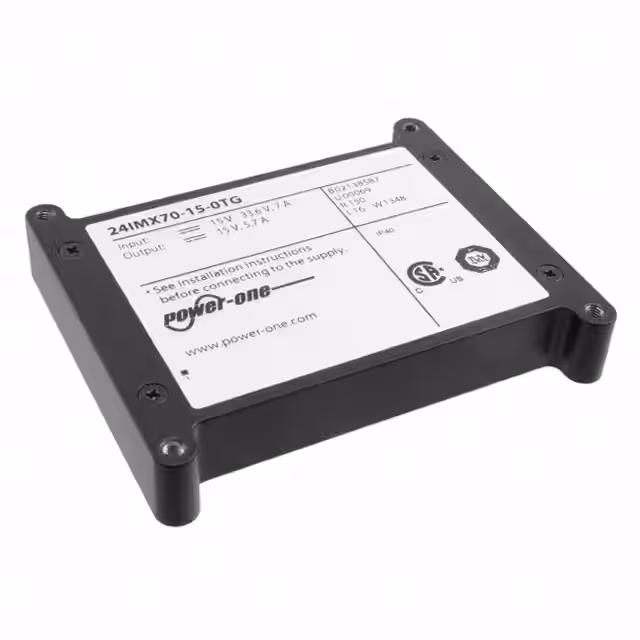

24IMX70-15-0TGDC DC CONVERTER 15V 90W Bel Power Solutions |
3,113 |
|
数据手册 |
Melcher IMX70 (70W) | 19-DIP Module, 17 Leads | Bulk | Active | Isolated Module, Conformal Coated | 1 | 15V | 33.6V | 15V | - | - | - | 6A | 90 W | 1.5 kV | ITE (Commercial) | OCP, OTP, SCP | -40°C ~ 95°C | 90% | - | - | Through Hole | - | - | - | - |
|
|
110IMY15-05-8RG-GDC DC CONVERTER 5.1V 15W Bel Power Solutions |
1,568 |
|
数据手册 |
IMY15 (15W) | 17-DIP Module, 6 Leads | Bulk | Active | Isolated Module | 1 | 50V | 150V | 5.1V | - | - | - | 3.5A | 15 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | cCSAus, CE | 60950-1; 62368-1 |
|
|
110IMY15-05-8RGZ-GDC DC CONVERTER 5.1V 15W Bel Power Solutions |
1,825 |
|
数据手册 |
Melcher IMY15 (15W) | 17-DIP Module, 6 Leads | Bulk | Active | Isolated Module, Conformal Coated | 1 | 50V | 150V | 5.1V | - | - | - | 2.5A | 15 W | 4.2 kV | ITE (Commercial), Railway | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | - | - |
|
|
110IMY15-24-24-8GDC DC CONVERTER 24V 24V 15W Bel Power Solutions |
2,783 |
|
数据手册 |
Melcher IMY15 (15W) | 17-DIP Module, 9 Leads | Bulk | Active | Isolated Module, Conformal Coated | 2 | 50V | 150V | 24V | 24V | - | - | 350mA, 350mA | 15 W | 4.2 kV | ITE (Commercial), Railway | OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 85% | - | - | Through Hole | - | - | - | - |
