直流直流转换器（DC DC Converters）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IH1205SDC DC CONVERTER +/-5V 2W XP Power |
2,801 |
|
数据手册 |
IH (2W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | - | - | - | - |
|
IHL0224S3V3DC DC CONVERTER 3.3V 2W XP Power |
1,010 |
|
数据手册 |
IHL02 (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 3.3V | - | - | - | 500mA | 2 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C | 73% | - | - | Through Hole | - | - | - | - |
|

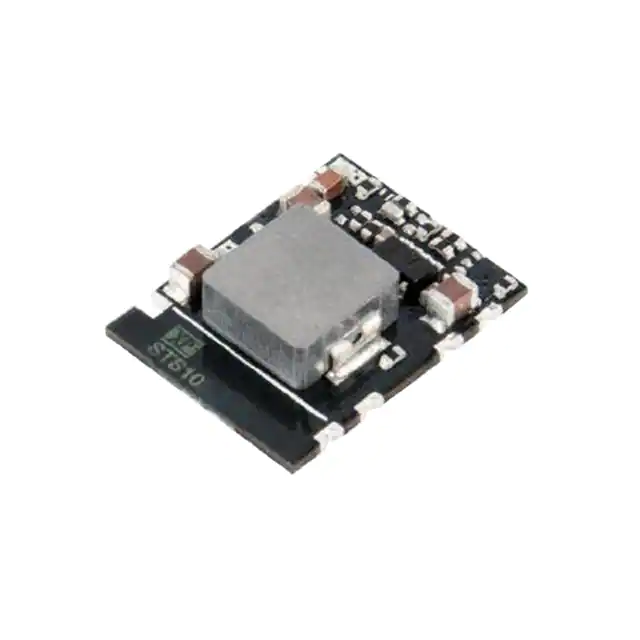

STS1024S3V3DC DC CONVERTER 3.3V XP Power |
3,009 |
|
数据手册 |
STS10 | 10-SMD Module, 6 Leads | Tube | Active | Non-Isolated PoL Module | 1 | 4.75V | 36V | 3.3V | - | - | - | 1A | - | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C (With Derating) | 94% | - | - | Surface Mount | - | - | - | - |
|
SRH05S15DC DC CONVERTER 15V XP Power |
1,747 |
|
数据手册 |
SRH05 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 21V | 72V | 15V | - | - | - | 400mA | - | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 3-SIP Module | - | - | - |
|
|
IHL0215D15DC DC CONVERTER +/-15V 2W XP Power |
1,448 |
|
数据手册 |
IHL02 (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 15V | -15V | - | - | 66.7mA, 66.7mA | 2 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C | 82% | - | - | Through Hole | - | - | - | - |
|
|
SRH05S7V2DC DC CONVERTER 7.2V XP Power |
1,101 |
|
数据手册 |
SRH05 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 14V | 72V | 7.2V | - | - | - | 500mA | - | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 3-SIP Module | - | - | - |
|
IW0505SADC DC CONVERTER 5V 1W XP Power |
3,250 |
|
数据手册 |
IW (1W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C (With Derating) | 67% | - | - | Through Hole | - | - | - | 62368-1 |
|
|
IW2412SADC DC CONVERTER 12V 1W XP Power |
3,676 |
|
数据手册 |
IW (1W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C (With Derating) | 75% | - | - | Through Hole | - | - | - | 62368-1 |
|
|
IW1215SADC DC CONVERTER 15V 1W XP Power |
4,144 |
|
数据手册 |
IW (1W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C (With Derating) | 77% | - | - | Through Hole | - | - | - | 62368-1 |
|
IL1224SDC DC CONVERTER 24V 2W XP Power |
1,218 |
|
数据手册 |
IL (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 84mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - |
