直流直流转换器（DC DC Converters）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JTL6048D15DC DC CONVERTER +/-15V 60W XP Power |
2,305 |
|
数据手册 |
JTL60 (60W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 2A, 2A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 85°C | 91% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 |
|
ICH10024S2V5DC DC CONVERTER 2.5V 50W XP Power |
4,218 |
|
数据手册 |
ICH (200W) | 9-DIP Module | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 2.5V | - | - | - | 20A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 100°C | 77% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
JTA1548S05SINGLE O/P 4:1 DC-DC CONVERTER, XP Power |
2,666 |
|
数据手册 |
JTA (15W) | 8-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | - | Enable, Active High | CE, UKCA, UL | 60950-1 |
|

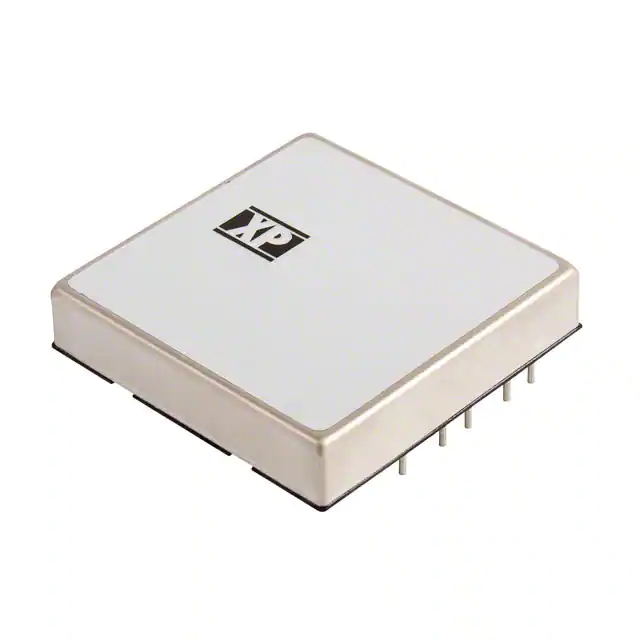

JTL4048D15DC DC CONVERTER +/-15V 40W XP Power |
4,922 |
|
数据手册 |
JTL (40W) | 8-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 1.35A, 1.35A | 40 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 90% | - | - | Through Hole | - | Enable, Active High | - | - |
|

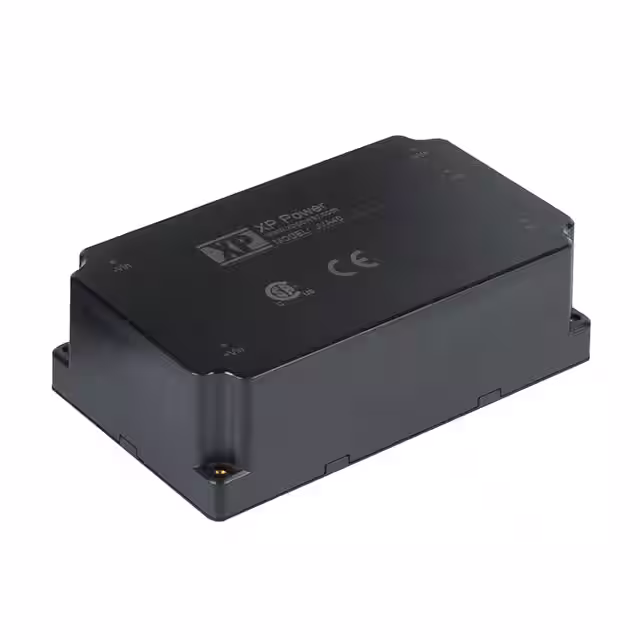

JVA401500S12DC DC CONVERTER 12V 40W XP Power |
1,163 |
|
数据手册 |
JVA40 (40W) | 5-DIP Module | Box | Obsolete | Isolated Module | 1 | 200V | 1500V | 12V | - | - | - | 3.33A | 40 W | 4 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 70°C (With Derating) | 72% | - | - | Through Hole | - | - | - | - |
|
|
JVA401500S15DC DC CONVERTER 15V 40W XP Power |
1,602 |
|
数据手册 |
JVA40 (40W) | 5-DIP Module | Box | Obsolete | Isolated Module | 1 | 200V | 1500V | 15V | - | - | - | 2.67A | 40 W | 4 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 70°C (With Derating) | 72% | - | - | Through Hole | - | - | - | - |
|
|
JVA401500S24DC DC CONVERTER 24V 40W XP Power |
3,523 |
|
数据手册 |
JVA40 (40W) | 5-DIP Module | Box | Obsolete | Isolated Module | 1 | 200V | 1500V | 24V | - | - | - | 1.67A | 40 W | 4 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 70°C (With Derating) | 72% | - | - | Through Hole | - | - | - | - |
|
|
Q02-5TRSINGLE O/P DC-HV DC PCB MNT 0.5W XP Power |
1,975 |
|
数据手册 |
XP EMCO - Q (0.5W) | 6-DIP Module, 4 Leads | Tube | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | 0 ~ 200V | - | - | - | 2.5mA | 500 mW | 500 V | ITE (Commercial) | Adjustable Output | -55°C ~ 75°C | - | - | - | Through Hole | - | - | CE, UL | 62368-1 |
|
A01P-12DC DC CONVERTER 100V 1W XP Power |
3,709 |
|
数据手册 |
XP EMCO - A (1W) | 5-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | 100V | - | - | - | 10mA | 1 W | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | - | - | - | Through Hole | - | - | CE, cURus | - |
|
ICH7524WS12DC DC CONVERTER 12V 75W XP Power |
3,430 |
|
数据手册 |
ICH (200W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 6.25A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 100°C | 83% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 |
