直流直流转换器（DC DC Converters）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

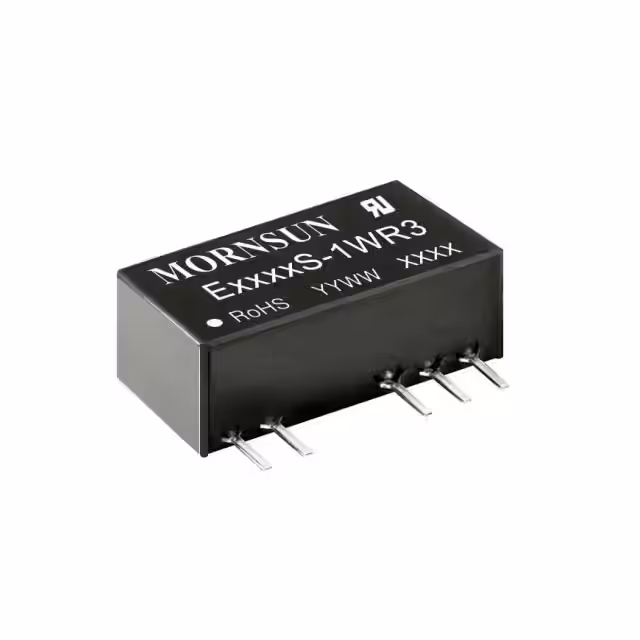

E1524S-1WR3DC DC CONVERTER +/-24V 1W Mornsun America, LLC |
349 |
|
数据手册 |
E1524S-1WR3 (1W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 13.5V | 16.5V | 24V | -24V | - | - | 21mA, 21mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | - | - | CB, CE, cURus, UL | 62368-1 |
|

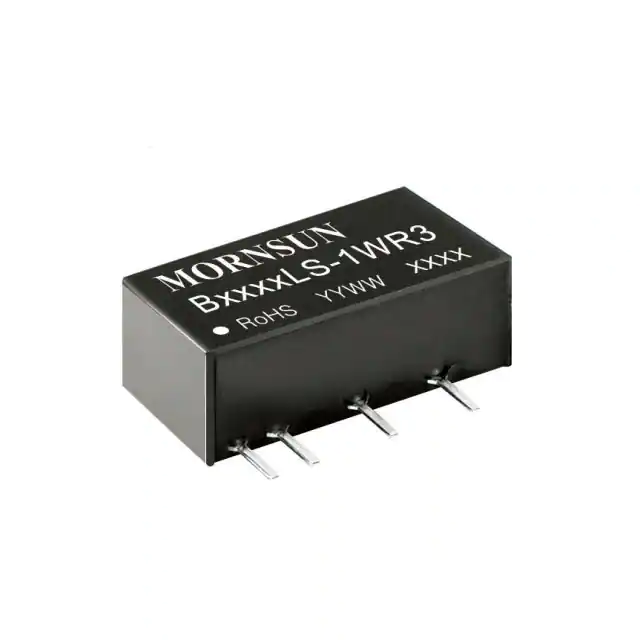

B0312LS-1WR3DC DC CONVERTER 12V 1W Mornsun America, LLC |
232 |
|
数据手册 |
B0324LS-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 12V | - | - | - | 83mA | 996 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - |
|
IB1209LS-1WR3DC-DC ISOLATED 1 W 11.4~12.6V Mornsun America, LLC |
225 |
|
数据手册 |
IB_LS-1WR3 | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 11.4V | 12.6V | 9V | - | - | - | 111mA | 999 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 73% | - | - | Through Hole | - | - | CE, cURus, UL | 62368-1 |
|
B0315LS-1WR3DC DC CONVERTER 15V 1W Mornsun America, LLC |
224 |
|
数据手册 |
B0315LS-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - |
|
IB0509LS-1WR3DC DC CONVERTER 9V 990MW Mornsun America, LLC |
175 |
|
数据手册 |
IB05_LS-1WR3 | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.75V | 5.25V | 9V | - | - | - | 111mA | 999 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 71% | - | - | Through Hole | - | - | CB, CE, cURus, UKCA | 62368-1 |
|
|
E0505XT-1WR3-TRDC DC CONVERTER 1W 5V DIP SMD Mornsun America, LLC |
473 |
|
数据手册 |
E_XT-1WR3 (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | - | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | - | - | CE, cURus, UL | - |
|
|
F0509XT-1WR3-TRDC DC CONVERTER 1W 9V DIP SMD Mornsun America, LLC |
471 |
|
数据手册 |
F_XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | - | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | - | - | CB, CE, cURus, UL | - |
|
B0505LS-1WR3DC DC CONVERTER 5V 1W Mornsun America, LLC |
20,507 |
|
数据手册 |
B_LS-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C | 82% | - | - | Through Hole | - | - | CB, CE, cURus | - |
|

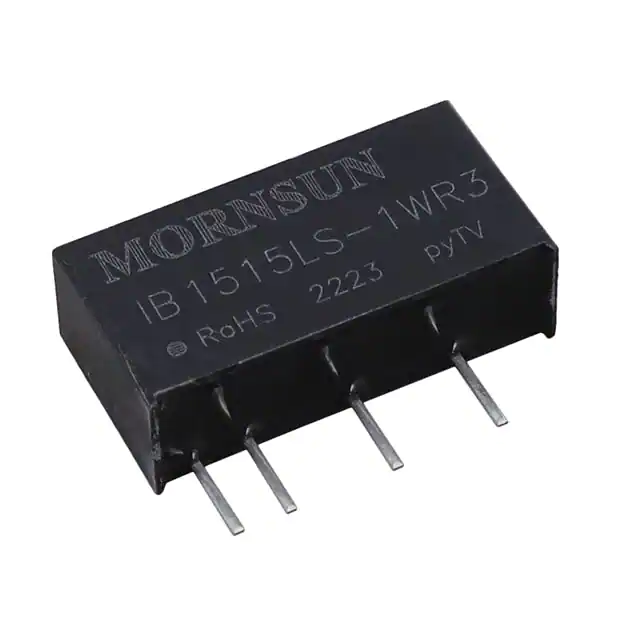

IB1515LS-1WR3DC-DC ISOLATED 1 W 14.25-15.75V Mornsun America, LLC |
795 |
|
数据手册 |
IB_LS-1WR3 | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 14.25V | 15.75V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 75% | - | - | Through Hole | - | - | CE, cURus | 62368-1 |
|
K78L05-1000R3DC DC CONVERTER 5V Mornsun America, LLC |
201 |
|
数据手册 |
K78Lxx-1000R3 | 3-SIP Module | Tray | Not For New Designs | Non-Isolated PoL Module | 1 | 8V | 27V, 36V | 5V, -5V | - | - | - | 1A, 500mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | - | - | CB, CE, cURus | 60950-1; 62368-1 |
