直流直流转换器（DC DC Converters）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F0309XT-1WR3DC DC CONVERTER 9V 1W Mornsun America, LLC |
271 |
|
数据手册 |
F0309XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 9V | - | - | - | 111mA | 999 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 84% | - | - | Surface Mount | - | - | - | - |
|

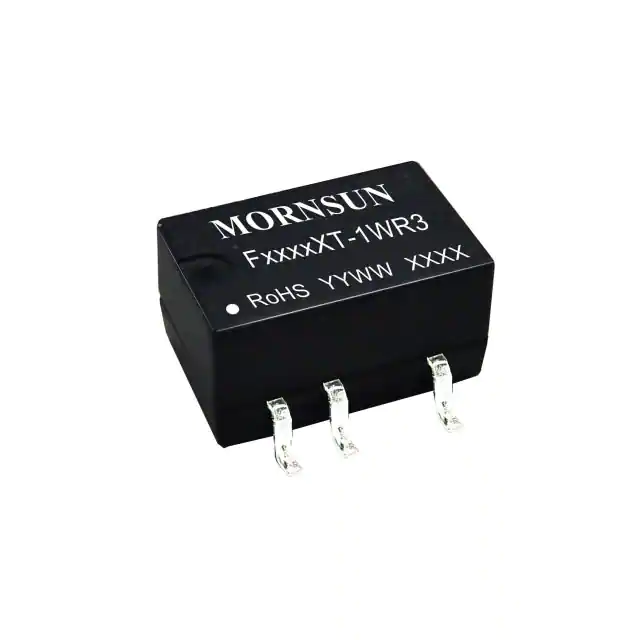

F0305XT-1WR3DC DC CONVERTER 5V 1W Mornsun America, LLC |
146 |
|
数据手册 |
F0315XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | - | - | - | - |
|

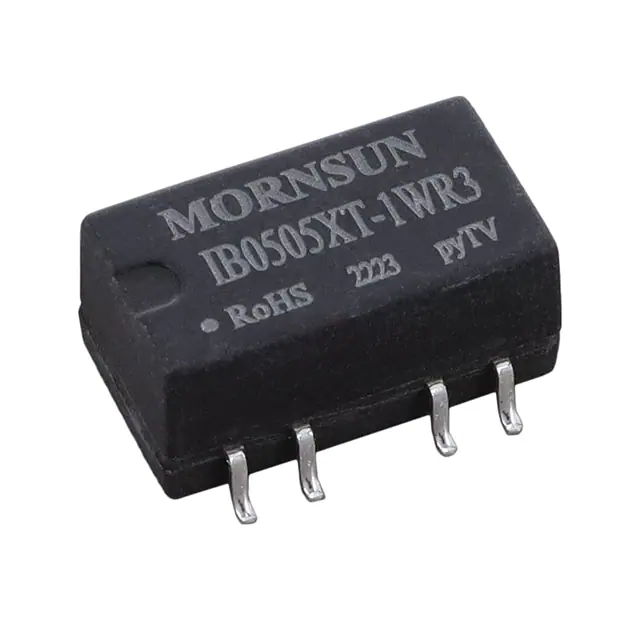

IB0505XT-1WR3DC-DC ISOLATED 1 W 4.75~5.25V Mornsun America, LLC |
1,205 |
|
数据手册 |
IB05_XT-1WR3 | 10-SMD Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.75V | 5.25V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 69% | - | - | Surface Mount | - | - | - | 62368-1 |
|
B1515D-2WR3DC DC CONVERTER 15V 2W Mornsun America, LLC |
160 |
|
数据手册 |
B1515D-2WR3 (2W) | 14-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 133mA | 1.9 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 79% | - | - | Through Hole | - | - | - | - |
|
B1224D-2WR3DC DC CONVERTER 24V 2W Mornsun America, LLC |
147 |
|
数据手册 |
B1224D-2WR3 (2W) | 14-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 83mA | 1.9 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - |
|
D121212S-1WR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
131 |
|
数据手册 |
D_(N)S-1WR3 (1W) | 7-SIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 12V | 12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 78% | - | - | Through Hole | - | - | - | - |
|
|
D241515S-1WR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
125 |
|
数据手册 |
D_(N)S-1WR3 (1W) | 7-SIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 21.6V | 26.4V | 15V | 15V | - | - | 33mA, 33mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 78% | - | - | Through Hole | - | - | - | - |
|
|
D240505S-1WR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
124 |
|
数据手册 |
D_(N)S-1WR3 (1W) | 7-SIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 21.6V | 26.4V | 5V | 5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 78% | - | - | Through Hole | - | - | - | - |
|
A0312XT-1WR3DC DC CONVERTER +/-12V 1W Mornsun America, LLC |
153 |
|
数据手册 |
A03_XT-1WR3 (1W) | 10-SMD Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 2.97V | 3.63V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | - | - | - | - |
|
F0512XT-1WR3DC DC CONVERTER 12V 1W Mornsun America, LLC |
20,579 |
|
数据手册 |
F_XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | - | - | CB, CE, cURus | - |
