直流直流转换器（DC DC Converters）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMR 1-0511DC DC CONVERTER 5V 1W Traco Power |
282 |
|
数据手册 |
TMR 1 (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C | 76% | - | - | Through Hole | Module | - | CB, CSA | - |
|

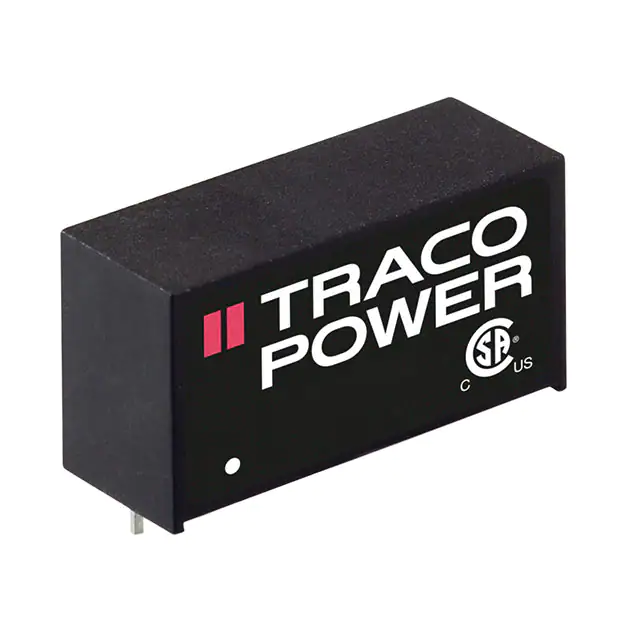

TMV 0505SHIDC DC CONVERTER 5V 1W Traco Power |
468 |
|
数据手册 |
TMV-HI (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 70% | - | - | Through Hole | - | - | - | - |
|
TRN 1-0511DC DC CONVERTER 5V 1W Traco Power |
981 |
|
数据手册 |
TRN 1 (1W) | 5-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1.6 kV | ITE (Commercial) | SCP | -40°C ~ 90°C | 79% | - | - | Through Hole | - | - | - | - |
|
TSR 1-2450SMDC DC CONVERTER 5V 5W Traco Power |
893 |
|
数据手册 |
TSR 1SM | 10-SMD Module, 6 Leads | Tube | Active | Linear Regulator Replacement | 1 | 6.5V | 36V | 5V | - | - | - | 1A | 5 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 94% | - | - | Surface Mount | - | - | - | - |
|
TSR 1-2433SMDC DC CONVERTER 3.3V 3.3W Traco Power |
775 |
|
数据手册 |
TSR 1SM | 10-SMD Module, 6 Leads | Tube | Active | Linear Regulator Replacement | 1 | 4.75V | 36V | 3.3V | - | - | - | 1A | 3.3 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 91% | - | - | Surface Mount | - | - | - | - |
|
TSR 1-24150DC DC CONVERTER 15V 15W Traco Power |
2,199 |
|
数据手册 |
TSR 1 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 18V | 36V | 15V | - | - | - | 1A | 15 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | - | - | - | - |
|

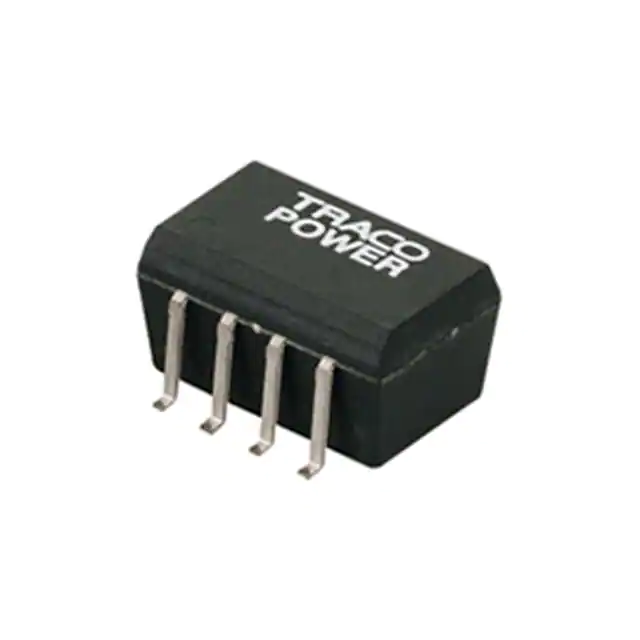

TSM 0512SDC DC CONVERTER 12V 960MW Traco Power |
594 |
|
数据手册 |
TSM (1W) | 14-SMD Module, 8 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 80mA | 960 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Surface Mount | - | - | - | - |
|
TSR 2-2450DC DC CONVERTER 5V 10W Traco Power |
5,213 |
|
数据手册 |
TSR 2 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 6.5V | 36V | 5V | - | - | - | 2A | 10 W | - | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | - | - | - | - |
|
|
TSR 2-24120DC DC CONVERTER 12V 24W Traco Power |
1,004 |
|
数据手册 |
TSR 2 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 15V | 36V | 12V | - | - | - | 2A | 24 W | - | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | - | - | - | - |
|
TSR 2-2433DC DC CONVERTER 3.3V 6.6W Traco Power |
2,838 |
|
数据手册 |
TSR 2 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 4.75V | 36V | 3.3V | - | - | - | 2A | 6.6 W | - | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | - | - | - | - |
