直流直流转换器（DC DC Converters）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CCG30-24-15DDC DC CONVERTER +/-15V 30W TDK-Lambda |
485 |
|
数据手册 |
CCG30 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 1A, 1A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C | 91% | - | - | Through Hole | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG30-24-15SDC DC CONVERTER 15V 30W TDK-Lambda |
276 |
|
数据手册 |
CCG30 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 85°C | 89% | - | - | Through Hole | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG30-48-05SDC DC CONVERTER 5V 30W TDK-Lambda |
194 |
|
数据手册 |
CCG30 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 76V | 5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 85°C | 90% | - | - | Through Hole | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG30-48-12SDC DC CONVERTER 12V 30W TDK-Lambda |
172 |
|
数据手册 |
CCG30 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 76V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 85°C | 90% | - | - | Through Hole | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|

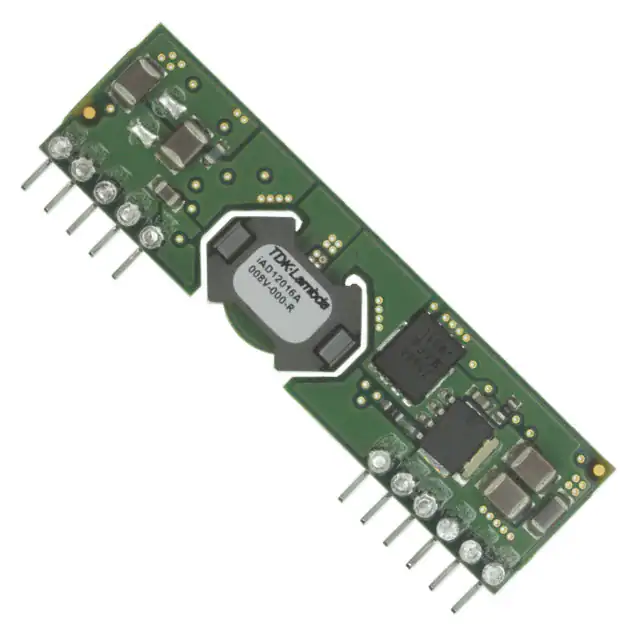

IAD12016A008V-000-RDC DC CONVERTER 0.8-5.5V 80W TDK-Lambda |
114 |
|
数据手册 |
IAD (80W) | 11-SIP Module | Bulk | Not For New Designs | Non-Isolated PoL Module | 1 | 6V | 14V | 0.8 ~ 5.5V | - | - | - | 16A | 80 W | - | ITE (Commercial) | - | -40°C ~ 125°C | 94% | - | - | Through Hole | - | - | - | - |
|

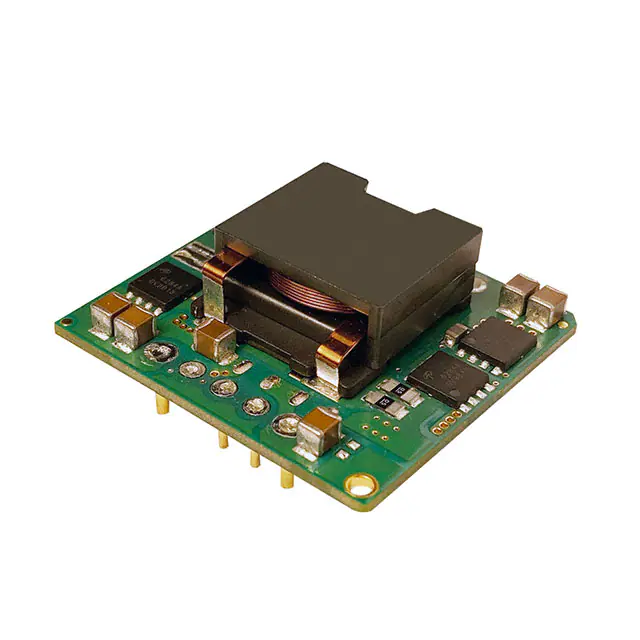

I7C4W008A120V-001-RDC DC CONVERTER 9.6-48V 300W TDK-Lambda |
1,078 |
|
数据手册 |
I7c (300W) | Sixteenth Brick | Box | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 9.6 ~ 48V | - | - | - | 8A | 300 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | 96% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | CE, cURus, IEC | 62368-1; 60950-1 |
|
|
I7C4W008A120V-003-RDC DC CONVERTER 9.6-48V 300W TDK-Lambda |
279 |
|
数据手册 |
I7c (300W) | Sixteenth Brick | Box | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 9.6 ~ 48V | - | - | - | 8A | 300 W | - | ITE (Commercial) | Adjustable Output, Imon, PGood, Remote On/Off, Sync | -40°C ~ 125°C | 96% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | CE, cURus, IEC | 62368-1; 60950-1 |
|
PXD10-48WS05DC DC CONVERTER 5V 10W TDK-Lambda |
559 |
|
数据手册 |
PXD (10W) | 6-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 2A | 10 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | - | 80% | - | - | Through Hole | - | - | - | - |
|

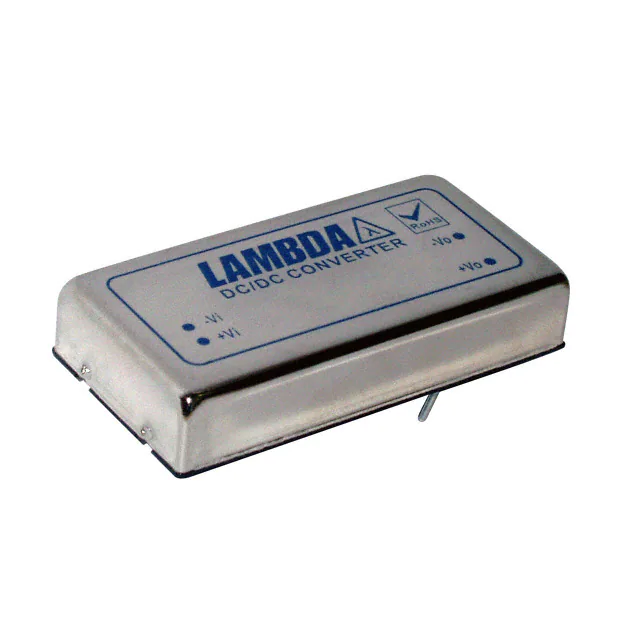

PXD10-24WS05DC DC CONVERTER 5V 10W TDK-Lambda |
2,201 |
|
数据手册 |
PXD (10W) | 6-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 2A | 10 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | - | 80% | - | - | Through Hole | - | - | - | - |
|
PXB15-24WS05/NTDC DC CONVERTER 5V 15W TDK-Lambda |
752 |
|
数据手册 |
PXB (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 3A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 86% | - | - | Through Hole | - | Enable, Active Low | - | - |
