交流直流转换器（AC DC Converters）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 应用 | 特性 | 工作温度 | 效率 | 安装类型 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM130M120-PAC/DC CONVERTER 12V 130W |
4,168 |
|
数据手册 |
CFM130M (130W) | - | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 12V | - | - | - | 10.8A | 130 W | Medical | Universal Input | -30°C ~ 70°C (With Derating) | 93% | - | - | - | - |
|
TPP 40-136E-DAC/DC CONVERTER 36V 40W |
2,682 |
|
数据手册 |
TPP 40E-D (40W) | 6-DIP Module, 5 Leads | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 36V | - | - | - | 1.12A | 40 W | ITE (Commercial), Medical | DC Input Capable, Universal Input | -40°C ~ 85°C (With Derating) | 92% | Through Hole | 3.20" L x 2.20" W x 1.20" H (81.3mm x 55.9mm x 30.5mm) | CB, CE, CSA, cURus, UKCA | 60601-1; 62368-1 |
|
ECL30UD03-EAC/DC CONVERTER 5V 12V 30W |
3,474 |
|
数据手册 |
ECL (30W) | 6-DIP Module | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 5V | - | - | - | 3A, 1.3A | 30 W | ITE (Commercial) | Universal Input | -20°C ~ 70°C (With Derating) | 81% | Through Hole | 3.10" L x 1.50" W x 1.10" H (78.7mm x 38.1mm x 27.9mm) | CSA, cUL, EN, IEC, UL | 62368-1 |
|
|
ECL30UD01-EAC/DC CONVERTER +/-12V 30W |
2,135 |
|
数据手册 |
ECL (30W) | 5-DIP Module | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 12V | - | - | - | 1.3A, 1.3A | 30 W | ITE (Commercial) | Universal Input | -20°C ~ 70°C (With Derating) | 84% | Through Hole | 3.10" L x 1.50" W x 1.10" H (78.7mm x 38.1mm x 27.9mm) | CSA, cUL, EN, IEC, UL | 62368-1 |
|
ECE40US05AC/DC CONVERTER 5V 40W |
3,705 |
|
数据手册 |
ECE (40W) | 4-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | 8A | 40 W | ITE (Commercial) | Universal Input | -25°C ~ 70°C (With Derating) | 77% | Through Hole | 3.10" L x 1.50" W x 1.10" H (78.7mm x 38.1mm x 27.9mm) | CSA, cUL, EN, UL | 62368-1 |
|
|
ECE40US09AC/DC CONVERTER 9V 40W |
3,094 |
|
数据手册 |
ECE (40W) | 4-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 9V | - | - | - | 4.44A | 40 W | ITE (Commercial) | Universal Input | -25°C ~ 70°C (With Derating) | 80% | Through Hole | 3.10" L x 1.50" W x 1.10" H (78.7mm x 38.1mm x 27.9mm) | CSA, cUL, EN, UL | 62368-1 |
|
|
ECE40US48AC/DC CONVERTER 48V 40W |
1,969 |
|
数据手册 |
ECE (40W) | 4-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | 830mA | 40 W | ITE (Commercial) | Universal Input | -25°C ~ 70°C (With Derating) | 86% | Through Hole | 3.10" L x 1.50" W x 1.10" H (78.7mm x 38.1mm x 27.9mm) | CSA, cUL, EN, UL | 62368-1 |
|
TML 20515AC/DC CONVERTER 5V +/-15V 20W |
1,577 |
|
数据手册 |
TML (20W) | 8-DIP Module | Box | Active | Enclosed | 3 | 90 ~ 264 VAC, 100 ~ 375 VDC | 5V | 15V | -15V | - | 2.8A, 200mA, 200mA | 20 W | ITE (Commercial) | Universal Input | -25°C ~ 70°C (With Derating) | 84% | Through Hole | 2.74" L x 1.87" W x 0.85" H (69.5mm x 47.5mm x 21.7mm) | CB, CE, cURus | - |
|
TMM 24124AC/DC CONVERTER 24V 24W |
3,964 |
|
数据手册 |
TMM 24 (24W) | 7-DIP Module, 5 Leads | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | 1A | 24 W | Industrial, ITE (Commercial), Medical | Universal Input | -40°C ~ 80°C (With Derating) | 85% | Through Hole | 2.91" L x 2.13" W x 0.77" H (74.0mm x 54.0mm x 19.5mm) | CB, CE, cULus, cURus | - |
|
|
TPP 40-115E-DAC/DC CONVERTER 15V 40W |
4,325 |
|
数据手册 |
TPP 40E-D (40W) | 6-DIP Module, 5 Leads | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 15V | - | - | - | 2.67A | 40 W | ITE (Commercial), Medical | DC Input Capable, Universal Input | -40°C ~ 85°C (With Derating) | 92% | Through Hole | 3.20" L x 2.20" W x 1.20" H (81.3mm x 55.9mm x 30.5mm) | CB, CE, CSA, cURus, UKCA | 60601-1; 62368-1 |
|
TPP 65-136E-DAC/DC CONVERTER 36V 65W |
2,979 |
|
数据手册 |
TPP 65E-D (65W) | 6-DIP Module, 5 Leads | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 36V | - | - | - | 1.81A | 65 W | ITE (Commercial), Medical | DC Input Capable, Universal Input | -40°C ~ 85°C (With Derating) | 93% | Through Hole | 3.20" L x 2.20" W x 1.20" H (81.3mm x 55.9mm x 30.5mm) | CB, CE, CSA, cURus, UKCA | 60601-1; 62368-1 |
|
|
TPP 65-148E-DAC/DC CONVERTER 48V 65W |
1,731 |
|
数据手册 |
TPP 65E-D (65W) | 6-DIP Module, 5 Leads | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 48V | - | - | - | 1.36A | 65 W | ITE (Commercial), Medical | DC Input Capable, Universal Input | -40°C ~ 85°C (With Derating) | 93% | Through Hole | 3.20" L x 2.20" W x 1.20" H (81.3mm x 55.9mm x 30.5mm) | CB, CE, CSA, cURus, UKCA | 60601-1; 62368-1 |
|
|
ECL30UT03-EAC/DC CONVERTER 5V +/-15V 30W |
4,038 |
|
数据手册 |
ECL (30W) | 7-DIP Module | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 5V | 15V | -15V | - | 3A, 500mA, 500mA | 30 W | ITE (Commercial) | Universal Input | -20°C ~ 70°C (With Derating) | 81% | Through Hole | 3.10" L x 1.50" W x 1.10" H (78.7mm x 38.1mm x 27.9mm) | CSA, cUL, EN, IEC, UL | 62368-1 |
|
|
TPP 65-115E-DAC/DC CONVERTER 15V 65W |
3,740 |
|
数据手册 |
TPP 65E-D (65W) | 6-DIP Module, 5 Leads | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 15V | - | - | - | 4.34A | 65 W | ITE (Commercial), Medical | DC Input Capable, Universal Input | -40°C ~ 85°C (With Derating) | 94% | Through Hole | 3.20" L x 2.20" W x 1.20" H (81.3mm x 55.9mm x 30.5mm) | CB, CE, CSA, cURus, UKCA | 60601-1; 62368-1 |
|
TMP 30512AC/DC CONVERTER 5V +/-12V 29W |
2,164 |
|
数据手册 |
TMP (30W) | 7-DIP Module | Box | Active | Enclosed | 3 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | 12V | -12V | - | 3A, 600mA, 600mA | 29 W | ITE (Commercial) | OTP, SCP, Universal Input | -25°C ~ 70°C (With Derating) | 76% | Through Hole | 3.50" L x 2.50" W x 0.85" H (88.9mm x 63.5mm x 21.7mm) | CB, CE, cULus, cURus | - |
|
|
TPP 65-105E-DAC/DC CONVERTER 5V 50W |
4,615 |
|
数据手册 |
TPP 65E-D (65W) | 6-DIP Module, 5 Leads | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 5V | - | - | - | 10A | 50 W | ITE (Commercial), Medical | DC Input Capable, Universal Input | -40°C ~ 85°C (With Derating) | 90% | Through Hole | 3.20" L x 2.20" W x 1.20" H (81.3mm x 55.9mm x 30.5mm) | CB, CE, CSA, cURus, UKCA | 60601-1; 62368-1 |
|
KMT15-51212AC/DC CONVERTER 5V +/-12V 15W |
4,694 |
|
数据手册 |
KM (15W) | 9-DIP Module, 7 Leads | Bulk | Not For New Designs | Enclosed | 3 | 90 ~ 264 VAC, 100 ~ 375 VDC | 5V | - | - | - | 2A, 200mA, 200mA | 15 W | Medical | Universal Input | -25°C ~ 70°C (With Derating) | 78% | Through Hole | 2.52" L x 1.80" W x 0.93" H (64.0mm x 45.6mm x 23.5mm) | CE, EN, IEC, UL | 60601-1; 60950-1; 62368-1 |
|

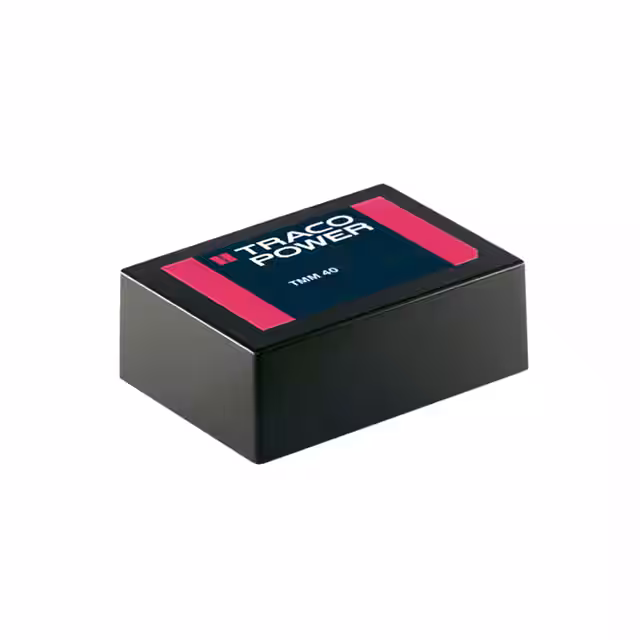

TMM 40124AC/DC CONVERTER 24V 40W |
2,565 |
|
数据手册 |
TMM 40 (40W) | 7-DIP Module, 5 Leads | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | 1.66A | 40 W | Industrial, ITE (Commercial), Medical | Universal Input | -40°C ~ 80°C (With Derating) | 84% | Through Hole | 3.50" L x 2.50" W x 1.18" H (88.9mm x 63.5mm x 30.0mm) | CB, CE, cULus, cURus | - |
|
|
TMM 40112AC/DC CONVERTER 12V 40W |
2,463 |
|
数据手册 |
TMM 40 (40W) | 7-DIP Module, 5 Leads | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | 3.33A | 40 W | Industrial, ITE (Commercial), Medical | Universal Input | -40°C ~ 80°C (With Derating) | 84% | Through Hole | 3.50" L x 2.50" W x 1.18" H (88.9mm x 63.5mm x 30.0mm) | CB, CE, cULus, cURus | - |
|
CBM70S480AC/DC CONVERTER 48V 70W |
1,135 |
|
数据手册 |
CBM70S (70W) | Half Brick | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 48V | - | - | - | 1.46A | 70 W | ITE (Commercial) | Baseplate, Universal Input | -40°C ~ 85°C (With Derating) | 89.5% | Through Hole | 2.40" L x 2.28" W x 0.67" H (61.0mm x 57.9mm x 17.0mm) | CE, cURus, FCC | 62368-1 |
