减震器、阻尼器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 技术 | 操作 | 行程长度 | 长度 - 延展 | 冲击速度 | 每循环冲击容量 | 驱动力 | 复位时间 | 复位力 | 特性 | 缓冲 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FWM-1410RBD-CSHOCK ABSORBER, ADJUSTABLE |
3,374 |
|
数据手册 |
FWM-1410RBD | Bag | Active | Shock Absorber | - | Single-Acting, Push | 0.394" (10.00mm) | 4.055" (103.00mm) | 6.56ft/s (2.0m/s) | 52.04inlb (5.88J) | 407.60lbf (1813.0N) | 1.000s | 2.20lbf (9.8N) | With Cap | Adjustable | -5°C ~ 70°C |
|
|
FA-1410RB-CSHOCK ABSORBER, ADJUSTABLE |
3,187 |
|
数据手册 |
FA-1410RB | Bag | Active | Shock Absorber | - | Single-Acting, Push | 0.394" (10.00mm) | 3.949" (100.30mm) | 3.28ft/s (1.0m/s) | 34.69inlb (3.92J) | 407.60lbf (1813.0N) | 1.000s | 2.20lbf (9.8N) | With Cap | Adjustable | -5°C ~ 70°C |
|

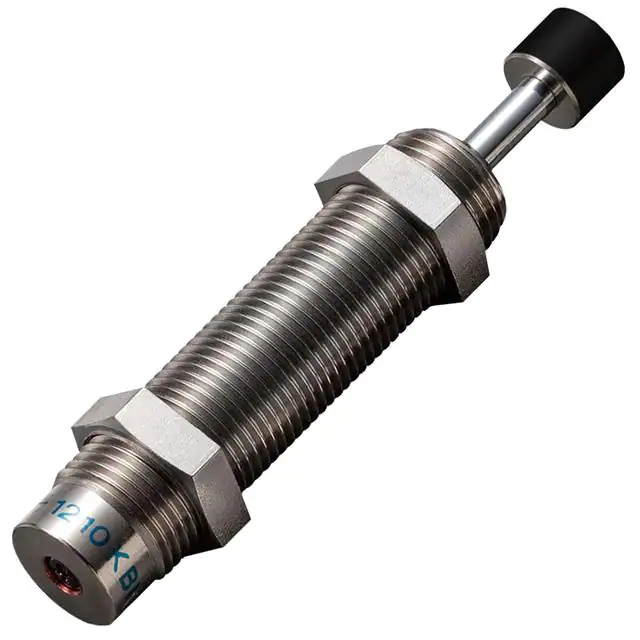

FA-1210KB2-CSHOCK ABSORBER - FIXED |
4,815 |
|
数据手册 |
- | Bag | Active | Shock Absorber | - | - | 0.394" (10.00mm) | 2.677" (68.00mm) | 3.28ft/s (1.0m/s) | 21.68inlb (2.45J) | - | 1.000s | 2.20lbf (9.8N) | With Black Cap | Fixed | -5°C ~ 70°C |
|

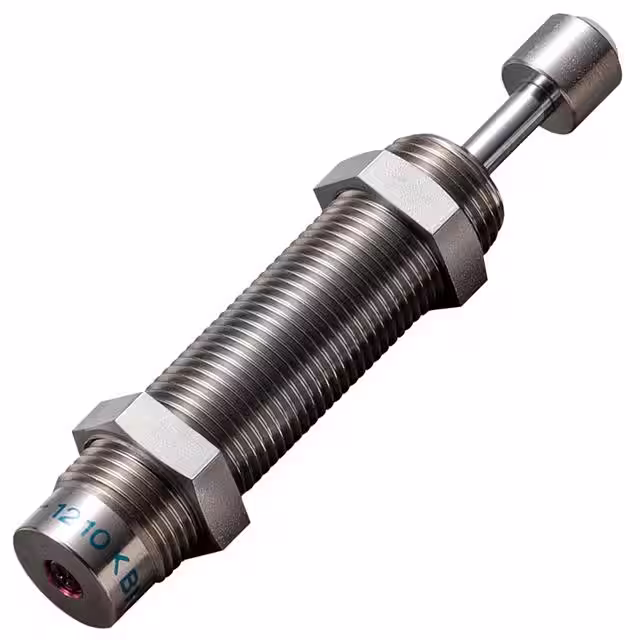

FA-1210KB1-CSHOCK ABSORBER - FIXED |
1,513 |
|
数据手册 |
- | Bag | Active | Shock Absorber | - | - | 0.394" (10.00mm) | 2.677" (68.00mm) | 3.28ft/s (1.0m/s) | 17.35inlb (1.96J) | - | 1.000s | 2.20lbf (9.8N) | With White Cap | Fixed | -5°C ~ 70°C |
|
A0A0N40-250-568-315NSTAINLESS STEEL GAS SPRING |
4,604 |
|
数据手册 |
- | Bag | Active | Gas Spring | Pneumatic | - | 9.843" (250.00mm) | 22.362" (568.00mm) | - | - | 70.82lbf (315.0N) | - | - | 316L Stainless Steel Rod and Cylinder | - | -40°C ~ 60°C |
|
|
B0N0N40-250-568-090NSTAINLESS STEEL GAS SPRING |
3,644 |
|
数据手册 |
- | Bag | Active | Gas Spring | Pneumatic | - | 9.843" (250.00mm) | 22.362" (568.00mm) | - | - | 20.23lbf (90.0N) | - | - | 316L Stainless Steel Rod and Cylinder | - | -40°C ~ 60°C |
|
|
B0N0N40-250-568-360NSTAINLESS STEEL GAS SPRING |
3,408 |
|
数据手册 |
- | Bag | Active | Gas Spring | Pneumatic | - | 9.843" (250.00mm) | 22.362" (568.00mm) | - | - | 80.94lbf (360.0N) | - | - | 316L Stainless Steel Rod and Cylinder | - | -40°C ~ 60°C |
|
|
B0N0N40-250-568-225NSTAINLESS STEEL GAS SPRING |
1,110 |
|
数据手册 |
- | Bag | Active | Gas Spring | Pneumatic | - | 9.843" (250.00mm) | 22.362" (568.00mm) | - | - | 50.58lbf (225.0N) | - | - | 316L Stainless Steel Rod and Cylinder | - | -40°C ~ 60°C |
|
|
B0N0N40-250-568-580NSTAINLESS STEEL GAS SPRING |
2,324 |
|
数据手册 |
- | Bag | Active | Gas Spring | Pneumatic | - | 9.843" (250.00mm) | 22.362" (568.00mm) | - | - | 130.40lbf (580.0N) | - | - | 316L Stainless Steel Rod and Cylinder | - | -40°C ~ 60°C |
|
|
B0N0N40-250-568-315NSTAINLESS STEEL GAS SPRING |
3,293 |
|
数据手册 |
- | Bag | Active | Gas Spring | Pneumatic | - | 9.843" (250.00mm) | 22.362" (568.00mm) | - | - | 70.82lbf (315.0N) | - | - | 316L Stainless Steel Rod and Cylinder | - | -40°C ~ 60°C |
|
|
A0A0N40-250-568-535NSTAINLESS STEEL GAS SPRING |
4,492 |
|
数据手册 |
- | Bag | Active | Gas Spring | Pneumatic | - | 9.843" (250.00mm) | 22.362" (568.00mm) | - | - | 120.28lbf (535.0N) | - | - | 316L Stainless Steel Rod and Cylinder | - | -40°C ~ 60°C |
|
|
A0A0N40-250-568-360NSTAINLESS STEEL GAS SPRING |
3,582 |
|
数据手册 |
- | Bag | Active | Gas Spring | Pneumatic | - | 9.843" (250.00mm) | 22.362" (568.00mm) | - | - | 80.94lbf (360.0N) | - | - | 316L Stainless Steel Rod and Cylinder | - | -40°C ~ 60°C |
|
|
B0N0N40-250-568-065NSTAINLESS STEEL GAS SPRING |
3,435 |
|
数据手册 |
- | Bag | Active | Gas Spring | Pneumatic | - | 9.843" (250.00mm) | 22.362" (568.00mm) | - | - | 14.61lbf (65.0N) | - | - | 316L Stainless Steel Rod and Cylinder | - | -40°C ~ 60°C |
|
|
B0N0N40-250-568-490NSTAINLESS STEEL GAS SPRING |
1,431 |
|
数据手册 |
- | Bag | Active | Gas Spring | Pneumatic | - | 9.843" (250.00mm) | 22.362" (568.00mm) | - | - | 110.16lbf (490.0N) | - | - | 316L Stainless Steel Rod and Cylinder | - | -40°C ~ 60°C |
|
|
A0A0N40-250-568-065NSTAINLESS STEEL GAS SPRING |
3,850 |
|
数据手册 |
- | Bag | Active | Gas Spring | Pneumatic | - | 9.843" (250.00mm) | 22.362" (568.00mm) | - | - | 14.61lbf (65.0N) | - | - | 316L Stainless Steel Rod and Cylinder | - | -40°C ~ 60°C |
|
|
B0N0N40-250-568-400NSTAINLESS STEEL GAS SPRING |
1,955 |
|
数据手册 |
- | Bag | Active | Gas Spring | Pneumatic | - | 9.843" (250.00mm) | 22.362" (568.00mm) | - | - | 89.93lbf (400.0N) | - | - | 316L Stainless Steel Rod and Cylinder | - | -40°C ~ 60°C |
|
|
B0N0N40-250-568-535NSTAINLESS STEEL GAS SPRING |
1,229 |
|
数据手册 |
- | Bag | Active | Gas Spring | Pneumatic | - | 9.843" (250.00mm) | 22.362" (568.00mm) | - | - | 120.28lbf (535.0N) | - | - | 316L Stainless Steel Rod and Cylinder | - | -40°C ~ 60°C |
|
|
A0A0N40-250-568-580NSTAINLESS STEEL GAS SPRING |
3,278 |
|
数据手册 |
- | Bag | Active | Gas Spring | Pneumatic | - | 9.843" (250.00mm) | 22.362" (568.00mm) | - | - | 130.40lbf (580.0N) | - | - | 316L Stainless Steel Rod and Cylinder | - | -40°C ~ 60°C |
|
|
A0A0N40-250-568-180NSTAINLESS STEEL GAS SPRING |
3,704 |
|
数据手册 |
- | Bag | Active | Gas Spring | Pneumatic | - | 9.843" (250.00mm) | 22.362" (568.00mm) | - | - | 40.47lbf (180.0N) | - | - | 316L Stainless Steel Rod and Cylinder | - | -40°C ~ 60°C |
|
|
A0A0N40-250-568-270NSTAINLESS STEEL GAS SPRING |
3,688 |
|
数据手册 |
- | Bag | Active | Gas Spring | Pneumatic | - | 9.843" (250.00mm) | 22.362" (568.00mm) | - | - | 60.70lbf (270.0N) | - | - | 316L Stainless Steel Rod and Cylinder | - | -40°C ~ 60°C |
