计数器、计时器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 工作模式 | 计数速率 | 时间格式 | 每行字符数量 | 显示类型 | 显示字符 - 高度 | 输入类型 | 输出类型 | 电压 - 电源 | 复位 | 面板开孔尺寸 | 安装类型 | 端接样式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM-HH2AS-H11COUNTER LCD 6 CHAR 9-64V PNL MT |
1,862 |
|
数据手册 |
LM | Bulk | Not For New Designs | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.275" (7.00mm) | - | - | 9 ~ 64VAC/DC | Non-Resettable | Rectangular - 36.58mm x 23.88mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof |
|
|
710-0018115 VAC, 60 HZ, 99999.9 MINS MAX |
2,015 |
|
数据手册 |
- | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
99776604COUNTER 6 CHAR 24V PANEL MOUNT |
3,491 |
|
数据手册 |
- | Box | Obsolete | Totalizer | Up | - | 999999hrs | 6 | Decade Wheel | 0.157" (4.00mm) | Voltage | - | 24VAC | Non-Resettable | Rectangular - 33.50mm x 24.00mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP40 |
|
|
99779715COUNTER 7 CHAR 100-130V PANEL MT |
2,409 |
|
数据手册 |
CMM48 | Box | Obsolete | Time Counter, Totalizer | Up | - | 99999.99hrs | 7 | Decade Wheel | 0.157" (4.00mm) | Voltage | - | 100 ~ 130VAC | Non-Resettable | Square - 45.00mm x 45.00mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP52 - Dust Protected |
|
CUB4L8W1COUNTER LCD 8 CHAR 3.6V PANEL MT |
4,572 |
|
数据手册 |
CUB4 | Box | Obsolete | Totalizer | Up | 50Hz, 5kHz | - | 8 | LCD - Green Characters, Backlight | 0.460" (11.70mm) | No Voltage, Voltage | - | Battery, 3.6VDC, 6 ~ 28VDC (Backlight) | External, Front Panel | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
CUB4L8W2COUNTER LCD 8 CHAR 3.6V PANEL MT |
2,634 |
|
数据手册 |
CUB4 | Box | Obsolete | Totalizer | Up | 50Hz, 5kHz | - | 8 | LCD - Red Characters, Backlight | 0.460" (11.70mm) | No Voltage, Voltage | - | Battery, 3.6VDC, 6 ~ 28VDC (Backlight) | External, Front Panel | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
KH-LCD-24-24VDCCOUNTERS |
2,456 |
|
数据手册 |
- | Box | Active | Timer | Up | 55Hz | 99999.99hrs | 7 | LCD - Black Characters | 0.315" (8.00mm) | Voltage | Relay | 10 ~ 30VDC | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant |
|
|
KC-LCD-24-24VDCCOUNTERS |
3,377 |
|
数据手册 |
- | Box | Active | Batch Counter | Up | 48Hz, 8kHz | 99999.99hrs | 7 | LCD - Black Characters | 0.315" (8.00mm) | Voltage | Relay | 10 ~ 30VDC | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant |
|
|
AKC2621COUNTER LCD 8 CHAR PANEL MOUNT |
4,518 |
|
数据手册 |
KC2S | Box | Active | Totalizer | Up | 2Hz | - | 8 | LCD - Black Characters | 0.343" (8.70mm) | No Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | - |
|
|
99776710COUNTER 5 CHAR 230V PANEL MOUNT |
3,459 |
|
数据手册 |
- | Box | Active | Totalizer | Up | - | 99999hrs | 5 | Decade Wheel | 0.157" (4.00mm) | Voltage | - | 230VAC | Front Panel | Rectangular - 44.00mm x 24.00mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP40 |
|
|
99776711COUNTER 5 CHAR 115V PANEL MOUNT |
2,741 |
|
数据手册 |
- | Box | Active | Totalizer | Up | - | 99999hrs | 5 | Decade Wheel | 0.157" (4.00mm) | Voltage | - | 115VAC | Front Panel | Rectangular - 44.00mm x 24.00mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP40 |
|
|
99776713COUNTER 5 CHAR 24V PANEL MOUNT |
2,331 |
|
数据手册 |
- | Box | Active | Totalizer | Up | - | 99999hrs | 5 | Decade Wheel | 0.157" (4.00mm) | Voltage | - | 24VAC | Front Panel | Rectangular - 44.00mm x 24.00mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP40 |
|
|
AKE2421COUNTER LCD 7 CHAR PANEL MOUNT |
2,430 |
|
数据手册 |
KE2S | Box | Active | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 7 | LCD - Black Characters | 0.343" (8.70mm) | No Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
AKE2621COUNTER LCD 7 CHAR PANEL MOUNT |
4,158 |
|
数据手册 |
KE2S | Box | Active | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 7 | LCD - Black Characters | 0.343" (8.70mm) | No Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
CSK6-YKW-DC24COUNTER 6 CHAR 24V PANEL MOUNT |
4,503 |
|
数据手册 |
CSK | Box | Obsolete | Totalizer | Up | 20Hz | - | 6 | Decade Wheel | 0.157" (4.00mm) | Voltage | - | 24VDC | Front Panel | Rectangular - 49.00mm x 28.00mm | Panel Mount | Wire Leads | - |
|
CUB4L010COUNTER LCD 6 CHAR 3.6V PANEL MT |
1,038 |
|
数据手册 |
CUB4 | Box | Obsolete | Totalizer | Up | 50Hz, 5kHz | - | 6 | LCD - Green Characters, Backlight | 0.480" (12.20mm) | No Voltage, Voltage | - | Battery, 3.6VDC, 6 ~ 26VDC (Backlight) | External, Front Panel | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

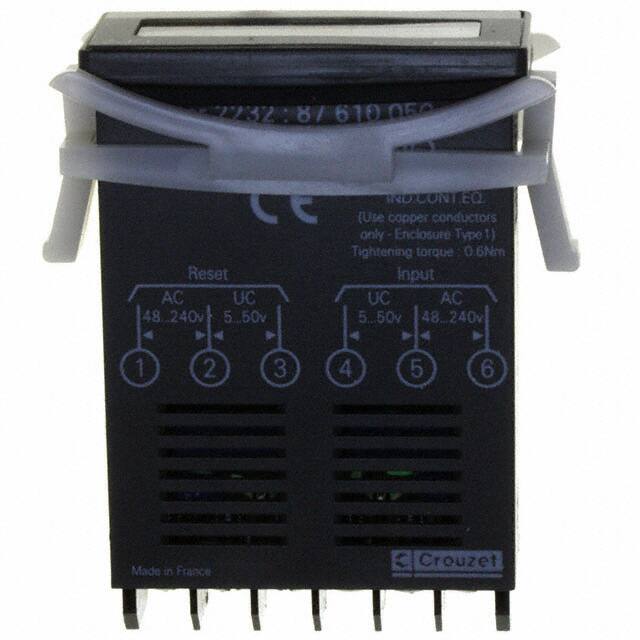

87610050COUNTER LCD 8 CHAR 3V PANEL MT |
2,685 |
|
数据手册 |
CP2 2232 | Bulk | Obsolete | Totalizer | Up | 40Hz | - | 8 | LCD - Black Characters | 0.275" (7.00mm) | Voltage | - | Battery, 3VDC | External, Front Panel | Rectangular - 44.80mm x 22.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
87610150COUNTER LCD 6 CHAR PANEL MOUNT |
1,310 |
|
数据手册 |
CP2 2214 | Bulk | Obsolete | Time Counter (Hour Meter) | Up | - | 99999.9hrs, min, sec; 9999hrs59min59sec | 6 | LCD - Black Characters | 0.275" (7.00mm) | Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 44.80mm x 22.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
87610140COUNTER LCD 6 CHAR PANEL MOUNT |
1,495 |
|
数据手册 |
CP2 2213 | Bulk | Obsolete | Time Counter (Hour Meter) | Up | - | 99999.9hrs, min, sec; 9999hrs59min59sec | 6 | LCD - Black Characters | 0.275" (7.00mm) | No Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 44.80mm x 22.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
87622090COUNTER LCD 8 CHAR PANEL MOUNT |
2,544 |
|
数据手册 |
CTR24 | Box | Active | Totalizer | Up, Down, Command | 30Hz | - | 8 | LCD - Black Characters, Orange Backlight | 0.314" (8.00mm) | Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
