三端双向可控硅、SCR 输出光隔离器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 输出类型 | 零交叉电路 | 通道数 | 电压 - 隔离 | 电压 - 关断状态 | 静态 dV/dt（最小值） | 电流 - LED 触发 (Ift)（最大值） | 电流 - 导通状态 (It (RMS))（最大值） | 电流 - 保持 (Ih) | 开启时间 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S2S3LY0FOPTOISOLATOR 3.75KV TRIAC 4SMD |
4,434 |
|
数据手册 |
- | 4-SMD | Tube | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 100V/µs | 5mA | 50 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-SMD | CSA, UR, VDE |
|
|
S2S3Y00FOPTOISOLATOR 3.75KV TRIAC 4SMD |
4,790 |
|
数据手册 |
- | 4-SMD | Tube | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 100V/µs | 10mA | 50 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-SMD | CSA, UR, VDE |
|
|
S2S4LY0FOPTOISOLATOR 3.75KV TRIAC 4SMD |
1,651 |
|
数据手册 |
- | 4-SMD | Tube | Obsolete | Triac | Yes | 1 | 3750Vrms | 600 V | 100V/µs | 5mA | 50 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-SMD | CSA, UR, VDE |
|
PC3SD21YXZCFOPTOISOLATOR 5KV TRIAC 6SMD |
4,885 |
|
数据手册 |
- | 6-SMD | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR, VDE |
|
PC3SD21YTZDFOPTOISOLATOR 5KV TRIAC 6DIP |
2,471 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 3mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR, VDE |
|
|
PC3SD21NXZCFOPTOISOLATOR 5KV TRIAC 6SMD |
4,702 |
|
数据手册 |
- | 6-SMD | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR |
|
|
PC3SD21NTZCFOPTOISOLATOR 5KV TRIAC 6DIP |
3,098 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
|
PC3SD21NTZBFOPTOISOLATOR 5KV TRIAC 6DIP |
4,384 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
|
PC3SD12NXZAFOPTOISOLATOR 5KV TRIAC 6SMD |
3,625 |
|
数据手册 |
- | 6-SMD | Tube | Obsolete | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR |
|
|
PC4SD21NTZDFOPTOISOLATOR 5KV TRIAC 6DIP |
3,973 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 3mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
|
PC4SD21NTZCFOPTOISOLATOR 5KV TRIAC 6DIP |
3,991 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
|
PC4SD11NTZBFOPTOISOLATOR 5KV TRIAC 6DIP |
3,038 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | No | 1 | 5000Vrms | 800 V | 50V/µs | 7mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
|
PC3SD11NTZCFOPTOISOLATOR 5KV TRIAC 6DIP |
2,217 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
|
PC3SD11NTZBFOPTOISOLATOR 5KV TRIAC 6DIP |
4,973 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|

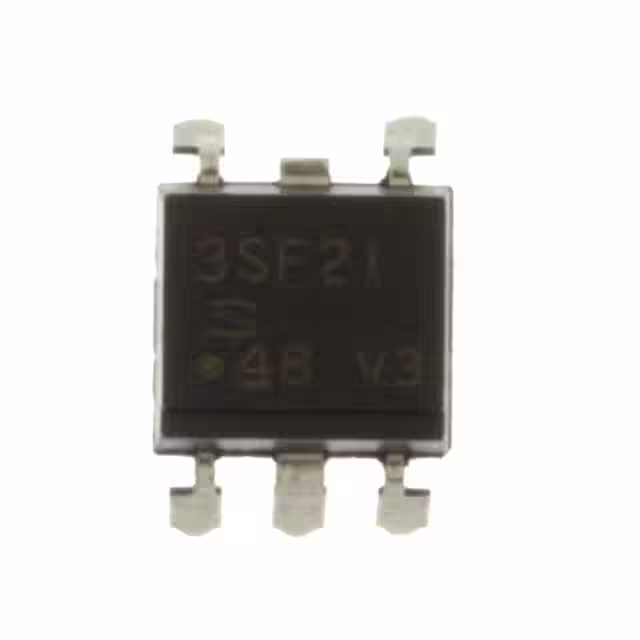

PC3SF21YVZBFOPTOISOLATOR 5KV TRIAC 6DIP |
1,214 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
PC3SF11YTZBFOPTOISOLATOR 5KV TRIAC 6DIP |
2,152 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
PC3SF11YVZAFOPTOISOLATOR 5KV TRIAC 6DIP |
2,116 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|

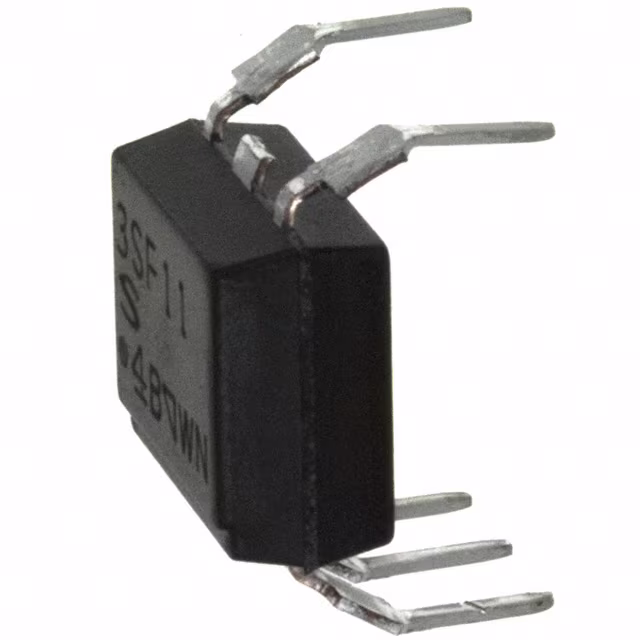

PC3SF11YVZBFOPTOISOLATOR 5KV TRIAC 6DIP |
3,127 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
PC3SF21YTZAFOPTOISOLATOR 5KV TRIAC 6DIP |
4,286 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
|
PC3SD11NXPCFOPTOISOLATOR 5KV TRIAC 6SMD |
3,052 |
|
数据手册 |
- | 6-SMD | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR |
