三端双向可控硅、SCR 输出光隔离器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 输出类型 | 零交叉电路 | 通道数 | 电压 - 隔离 | 电压 - 关断状态 | 静态 dV/dt（最小值） | 电流 - LED 触发 (Ift)（最大值） | 电流 - 导通状态 (It (RMS))（最大值） | 电流 - 保持 (Ih) | 开启时间 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT1221WAWOPTOISOLATOR 5KV TRIAC 4DIP |
2,931 |
|
数据手册 |
APT | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 600 V | 500V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 4-DIP Gull Wing | cUR, VDE |
|
|
APT1221WAYOPTOISOLATOR 5KV TRIAC 4DIP |
3,629 |
|
数据手册 |
APT | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 600 V | 500V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 4-DIP Gull Wing | cUR, VDE |
|
ELM3082(TA)-VOPTOISOLATOR 3.75KV TRIAC 4SOP |
4,355 |
|
数据手册 |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 800 V | 1kV/µs | 10mA | 70 mA | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -40°C ~ 110°C | Surface Mount | 4-SOP | DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE |
|
|
ELM3083(TA)-VOPTOISOLATOR 3.75KV TRIAC 4SOP |
1,889 |
|
数据手册 |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 800 V | 1kV/µs | 5mA | 70 mA | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -40°C ~ 110°C | Surface Mount | 4-SOP | DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE |
|
|
APT1211AZOPTOISOLATOR 5KV TRIAC 4DIP |
3,380 |
|
数据手册 |
APT | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 500V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 4-DIP Gull Wing | cUR, VDE |
|
FODM3063R1OPTOISOLATOR 3.75KV TRIAC 4MFP |
2,232 |
|
数据手册 |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 3750Vrms | 600 V | 600V/µs | 5mA | 70 mA | 300µA (Typ) | - | 1.5V (Max) | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | cUL, UL |
|
|
OR-M3052(L)-TP-GOPTOISOLATOR TRIAC OUTPUT 3750VR |
4,021 |
|
数据手册 |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
PC4SD21NTZCHSHARP PHOTOTRIAC COUPLER |
4,412 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UL, VDE |
|
|
APT1211WAWOPTOISOLATOR 5KV TRIAC 4DIP |
4,995 |
|
数据手册 |
APT | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 500V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 4-DIP | cUR, VDE |
|
EL3052M-VOPTOISOLATOR 5KV TRIAC 6DIP |
2,742 |
|
数据手册 |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | 100 mA | 250µA (Typ) | - | 1.18V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE |
.JPG)
|
EL3083S1(TB)-VOPTOISOLATOR 5KV TRIAC 6SMD |
1,722 |
|
数据手册 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 600V/µs | 5mA | 100 mA | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE |
|
|
EL3043OPTOISOLATOR 5KV TRIAC 6DIP |
3,388 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 400 V | 1kV/µs | 5mA | 100 mA | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
|
EL3082S(TA)-VOPTOISOLATOR 5KV TRIAC 6SMD |
2,772 |
|
数据手册 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 600V/µs | 10mA | 100 mA | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE |
|
|
EL3062-VOPTOISOLATOR 5KV TRIAC 6DIP |
2,698 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | 100 mA | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE |
|
PC3SG21YIZOPTOISOLATOR 3.75KV TRIAC 4SMD |
4,174 |
|
数据手册 |
* | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
,-Gull-Wing.jpg)
|

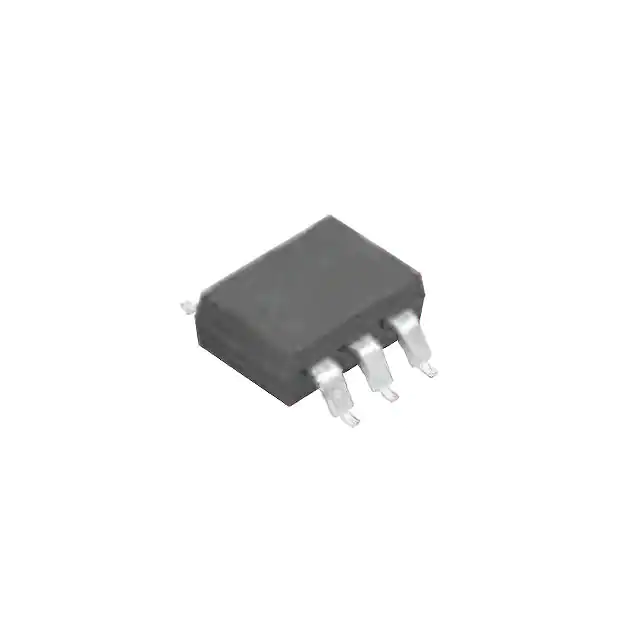

APT1222WAWOPTOISOLATOR 5KV TRIAC 6DIP |
3,775 |
|
数据手册 |
APT | 5-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 600 V | 500V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-DIP Gull Wing | cUR, VDE |
|
APT1212AZOPTOISOLATOR 5KV TRIAC 6DIP |
1,356 |
|
数据手册 |
APT | 5-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 500V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-DIP Gull Wing | cUR, VDE |
|
|
OR-MOC3063(L)S-TA1OPTOISOLATOR TRIAC OUTPUT 5000VR |
2,454 |
|
数据手册 |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
Q3062OPTOISOLATOR 5KV TRIAC 6DIP |
3,202 |
|
数据手册 |
Q306X | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | - | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | UR, VDE |
|
|
Q3063OPTOISOLATOR 5KV TRIAC 6DIP |
3,649 |
|
数据手册 |
Q306X | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | - | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | UR, VDE |
