三端双向可控硅、SCR 输出光隔离器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 输出类型 | 零交叉电路 | 通道数 | 电压 - 隔离 | 电压 - 关断状态 | 静态 dV/dt（最小值） | 电流 - LED 触发 (Ift)（最大值） | 电流 - 导通状态 (It (RMS))（最大值） | 电流 - 保持 (Ih) | 开启时间 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VO3021-X006OPTOCOUPLER, PHOTOTRIAC OUTPUT, |
3,245 |
|
数据手册 |
VO3021 | 6-DIP (0.400", 10.16mm) | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 400 V | 100V/µs | 15mA | 100 mA | 200µA (Typ) | - | 1.3V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CQC, CSA, cUL, FIMKO, UL, VDE |
.JPG)
|
EL3083S(TA)OPTOISOLATOR 5KV TRIAC 6SMD |
1,082 |
|
数据手册 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 600V/µs | 5mA | 100 mA | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
MOC3052MOPTOISOLATOR 5KV TRIAC 6DIP |
2,677 |
|
数据手册 |
MOC305x | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CSA, FIMKO, UL |
|
MOC3052S-TA1OPTOISOLATOR 5KV TRIAC 6SMD |
1,141 |
|
数据手册 |
MOC305x | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SMD | CSA, FIMKO, UL |
|
VO3023-X001OPTOCOUPLER, PHOTOTRIAC OUTPUT, |
4,672 |
|
数据手册 |
VO3023 | 6-DIP (0.300", 7.62mm) | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 400 V | 100V/µs | 5mA | 100 mA | 200µA (Typ) | - | 1.3V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CQC, CSA, cUL, FIMKO, UL, VDE |
|
|

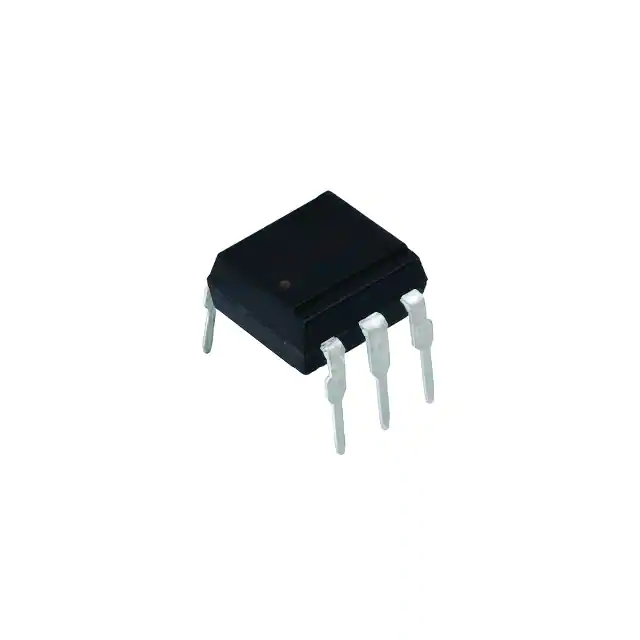

VO3022-X001OPTOCOUPLER, PHOTOTRIAC OUTPUT, |
2,940 |
|
数据手册 |
VO3022 | 6-DIP (0.300", 7.62mm) | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 400 V | 100V/µs | 10mA | 100 mA | 200µA (Typ) | - | 1.3V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CQC, CSA, cUL, FIMKO, UL, VDE |
|
|
MOC3083MOPTOISOLATOR 5KV TRIAC 6DIP |
3,684 |
|
数据手册 |
MOC308x | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 800V/µs | 5mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CSA, FIMKO, UL |
|
|
MOC3083SOPTOISOLATOR 5KV TRIAC 6SMD |
4,598 |
|
数据手册 |
MOC308x | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 800V/µs | 5mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SMD | CSA, FIMKO, UL |
|

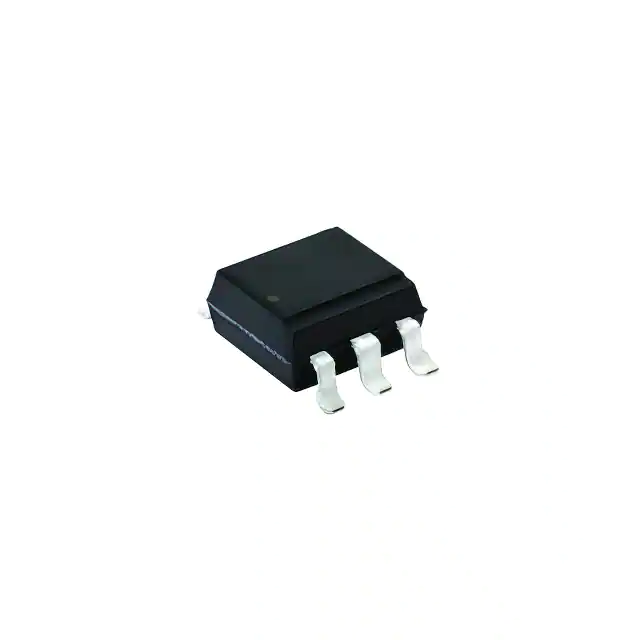

VO3023-X017TOPTOCOUPLER, PHOTOTRIAC OUTPUT, |
2,942 |
|
数据手册 |
VO3023 | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 400 V | 100V/µs | 5mA | 100 mA | 200µA (Typ) | - | 1.3V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SMD | CQC, CSA, cUL, FIMKO, UL, VDE |
|
FODM3011_NF098OPTOISOLATOR 3.75KV TRIAC 4SMD |
3,915 |
|
数据手册 |
- | 4-SMD, Gull Wing | Box | Obsolete | Triac | No | 1 | 3750Vrms | 250 V | 10V/µs (Typ) | 10mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | cUR, UR |
|
MOC3010TMOPTOISOLATOR 4.17KV TRIAC 6DIP |
1,748 |
|
数据手册 |
- | 6-DIP (0.400", 10.16mm) | Tube | Obsolete | Triac | No | 1 | 4170Vrms | 250 V | - | 15mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
|
MOC3011TMOPTOISOLATOR 4.17KV TRIAC 6DIP |
3,997 |
|
数据手册 |
- | 6-DIP (0.400", 10.16mm) | Tube | Obsolete | Triac | No | 1 | 4170Vrms | 250 V | - | 10mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
MOC3063STA1-VP/C MOC3063STA1-V TAPPING TYPE I |
1,740 |
|
数据手册 |
MOC306X | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 400µA | - | 1.2V | 50 mA | -40°C ~ 110°C | Surface Mount | 6-SMD | - |
|
FODM3010OPTOISOLATOR 3.75KV TRIAC 4MFP |
3,710 |
|
数据手册 |
- | 4-SMD, Gull Wing | Tube | Obsolete | Triac | No | 1 | 3750Vrms | 250 V | 10V/µs (Typ) | 15mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | BSI, CSA, UL |
|
|
MOC3012TMOPTOISOLATOR 4.17KV TRIAC 6DIP |
4,332 |
|
数据手册 |
- | 6-DIP (0.400", 10.16mm) | Tube | Obsolete | Triac | No | 1 | 4170Vrms | 250 V | - | 5mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
S2S5FA0FPHOTOTRIAC COUPLER |
1,530 |
|
数据手册 |
- | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 600 V | 500V/µs | - | 50 mA | 3.5mA | 100µs | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-SMD | UR |
|
MOC3010SVMOPTOISOLATOR 4.17KV TRIAC 6SMD |
1,654 |
|
数据手册 |
- | 6-SMD, Gull Wing | Tube | Obsolete | Triac | No | 1 | 4170Vrms | 250 V | - | 15mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | IEC/EN/DIN, UL |
|
|
MOC3010TVMOPTOISOLATOR 4.17KV TRIAC 6DIP |
2,681 |
|
数据手册 |
- | 6-DIP (0.400", 10.16mm) | Tube | Obsolete | Triac | No | 1 | 4170Vrms | 250 V | - | 15mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
|
MOC3011SVMOPTOISOLATOR 4.17KV TRIAC 6SMD |
3,443 |
|
数据手册 |
- | 6-SMD, Gull Wing | Tube | Obsolete | Triac | No | 1 | 4170Vrms | 250 V | - | 10mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | IEC/EN/DIN, UL |
|
|
MOC3011TVMOPTOISOLATOR 4.17KV TRIAC 6DIP |
4,174 |
|
数据手册 |
- | 6-DIP (0.400", 10.16mm) | Tube | Obsolete | Triac | No | 1 | 4170Vrms | 250 V | - | 10mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
