三端双向可控硅、SCR 输出光隔离器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 输出类型 | 零交叉电路 | 通道数 | 电压 - 隔离 | 电压 - 关断状态 | 静态 dV/dt（最小值） | 电流 - LED 触发 (Ift)（最大值） | 电流 - 导通状态 (It (RMS))（最大值） | 电流 - 保持 (Ih) | 开启时间 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOC3052TVMTRIAC OUTPUT OPTOCOUPLER, 7500V |
50,000 |
|
数据手册 |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | Triac | No | 1 | 4170Vrms | 600 V | 1kV/µs | 10mA | - | 220µA (Typ) | - | 1.18V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UR, VDE |
|
MOC3052SR2MTRIAC OUTPUT OPTOCOUPLER, 7500V |
1,790 |
|
数据手册 |
- | 6-SMD, Gull Wing | Bulk | Active | Triac | No | 1 | 4170Vrms | 600 V | 1kV/µs | 10mA | - | 220µA (Typ) | - | 1.18V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UR |
|
|
MOC3012SVMTRIAC OUTPUT OPTOCOUPLER |
2,000 |
|
数据手册 |
- | 6-SMD, Gull Wing | Tube | Obsolete | Triac | No | 1 | 4170Vrms | 250 V | - | 5mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | IEC/EN/DIN, UL |
|
TIL3009TRIAC OUTPUT OPTOCOUPLER |
2,850 |
|
数据手册 |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MOC3032VMOPTOISOLATOR 4.17KV TRIAC 6DIP |
4,390 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 4170Vrms | 250 V | 1kV/µs | 10mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
|
MOC3031SMTRIAC OUTPUT OPTOCOUPLER WITH ZE |
55,465 |
|
数据手册 |
- | 6-SMD, Gull Wing | Bulk | Active | Triac | Yes | 1 | 4170Vrms | 250 V | 1kV/µs | 15mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL, VDE |
|
FODM3021R4TRIAC OUTPUT OPTOCOUPLER |
2,500 |
|
数据手册 |
- | 4-SMD, Gull Wing | Bulk | Obsolete | Triac | No | 1 | 3750Vrms | 400 V | 10V/µs (Typ) | 15mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | BSI, CSA, UL |
|
|
FODM3021R2VTRIAC OUTPUT OPTOCOUPLER |
2,499 |
|
数据手册 |
- | 4-SMD, Gull Wing | Bulk | Obsolete | Triac | No | 1 | 3750Vrms | 400 V | 10V/µs (Typ) | 15mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | BSI, CSA, UL, VDE |
|
|
FODM3021R2TRIAC OUTPUT OPTOCOUPLER |
2,498 |
|
数据手册 |
- | 4-SMD, Gull Wing | Bulk | Obsolete | Triac | No | 1 | 3750Vrms | 400 V | 10V/µs (Typ) | 15mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | BSI, CSA, UL |
|
|
FODM3021R4VTRIAC OUTPUT OPTOCOUPLER |
2,490 |
|
数据手册 |
- | 4-SMD, Gull Wing | Bulk | Obsolete | Triac | No | 1 | 3750Vrms | 400 V | 10V/µs (Typ) | 15mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | BSI, CSA, UL, VDE |
|
|
FODM3051TRIAC OUTPUT OPTOCOUPLER |
5,954 |
|
数据手册 |
- | 4-SMD, Gull Wing | Tube | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 1kV/µs | 15mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | BSI, CSA, UL |
|
|
FODM3051VTRIAC OUTPUT OPTOCOUPLER |
3,000 |
|
数据手册 |
- | 4-SMD, Gull Wing | Tube | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 1kV/µs | 15mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | BSI, CSA, UL, VDE |
|
|
MOC3061TMTRIAC OUTPUT OPTOCOUPLER |
101,170 |
|
数据手册 |
- | 6-DIP (0.400", 10.16mm) | Tube | Obsolete | Triac | Yes | 1 | 4170Vrms | 600 V | 600V/µs | 15mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
|
FODM3051R2TRIAC OUTPUT OPTOCOUPLER |
2,495 |
|
数据手册 |
- | 4-SMD, Gull Wing | Bulk | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 1kV/µs | 15mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | BSI, CSA, UL |
|
|
FODM3051R3VTRIAC OUTPUT OPTOCOUPLER |
1,184 |
|
数据手册 |
- | 4-SMD, Gull Wing | Bulk | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 1kV/µs | 15mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | BSI, CSA, UL, VDE |
|
|
MOC3033VMTRIAC OUTPUT OPTOCOUPLER |
8,000 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | Yes | 1 | 4170Vrms | 250 V | 1kV/µs | 5mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
|
FODM3052R4TRIAC OUTPUT OPTOCOUPLER |
2,475 |
|
数据手册 |
- | 4-SMD, Gull Wing | Bulk | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 1kV/µs | 10mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | BSI, CSA, UL |
|

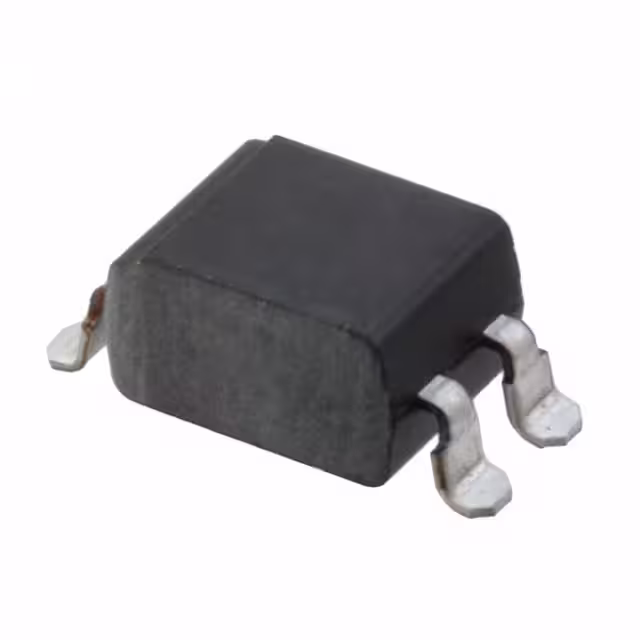

S21ME5PYOPTOISOLATOR 5KV TRIAC 4SMD |
5,391 |
|
数据手册 |
- | - | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 100V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | - | BSI, DEMKO, SEMKO, UR, VDE |
|
|
TIL3020TRIAC OUTPUT OPTOCOUPLER |
2,930 |
|
数据手册 |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
OR-M3053(L)-TP-GOPTOISOLATOR TRIAC OUTPUT 3750VR |
3,000 |
|
数据手册 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
