三端双向可控硅、SCR 输出光隔离器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 输出类型 | 零交叉电路 | 通道数 | 电压 - 隔离 | 电压 - 关断状态 | 静态 dV/dt（最小值） | 电流 - LED 触发 (Ift)（最大值） | 电流 - 导通状态 (It (RMS))（最大值） | 电流 - 保持 (Ih) | 开启时间 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IL420-X016OPTOISOLATOR 5.3KV TRIAC 6DIP |
660 |
|
数据手册 |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | No | 1 | 5300Vrms | 600 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CQC, CSA, cUR, UR, VDE |
|
VO4256D-X007TOPTOISOLATOR 5.3KV TRIAC 6SMD |
2,995 |
|
数据手册 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5300Vrms | 600 V | 5kV/µs | 1.6mA | 300 mA | - | - | 1.2V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUR, FIMKO, UR |
|
IL4108-X017OPTOISOLATOR 5.3KV TRIAC |
1,978 |
|
数据手册 |
- | 6-SMD | Tube | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Surface Mount | - | CSA, UR, VDE |
|
|
VO4154D-X007TOPTOISOLATOR 5.3KV TRIAC 6SMD |
1,000 |
|
数据手册 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 400 V | 5kV/µs | 1.6mA | 300 mA | 500µA | - | 1.2V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUR, UR |
|
|
VO4154M-X007TOPTOISOLATOR 5.3KV TRIAC 6SMD |
400 |
|
数据手册 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 400 V | 5kV/µs | 3mA | 300 mA | 500µA | - | 1.2V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUR, UR |
.jpg)
|
IL410-X001OPTOISOLATOR 5.3KV TRIAC |
3,859 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Through Hole | - | CSA, UR, VDE |
|
|
IL4218-X006OPTOISOLATOR 5.3KV TRIAC 6DIP |
1,988 |
|
数据手册 |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | No | 1 | 5300Vrms | 800 V | 10kV/µs | 700µA (Typ) | 300 mA | 200µA | - | 1.3V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, cUR, FIMKO, UR |
|
|
IL4218-X019OPTOISOLATOR 5.3KV TRIAC |
2,000 |
|
数据手册 |
- | 6-SMD | Tube | Active | Triac | No | 1 | 5300Vrms | 800 V | 10kV/µs | 700µA (Typ) | 300 mA | 200µA | - | 1.3V | 60 mA | -55°C ~ 100°C | Surface Mount | - | BSI, CSA, cUR, FIMKO, UR, VDE |
|
FOD4108SVOPTOISOLATOR 5KV TRIAC 6SMD |
1,774 |
|
数据手册 |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, UL, VDE |
|
|
IL4118-X017OPTOISOLATOR 5.3KV TRIAC |
959 |
|
数据手册 |
- | 6-SMD | Tube | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 10kV/µs | 1.3mA | 300 mA | 200µA | 35µs | 1.3V | 60 mA | -55°C ~ 100°C | Surface Mount | - | BSI, CSA, cUR, FIMKO, UR, VDE |
|
|
FOD410SOPTOISOLATOR 5KV TRIAC 6SMD |
985 |
|
数据手册 |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, UL |
|
|
IL420-X001OPTOISOLATOR 5.3KV TRIAC 6DIP |
1,498 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5300Vrms | 600 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CQC, CSA, cUR, UR, VDE |
|
VO4258D-X007TOPTOISOLATOR 5.3KV TRIAC 6SMD |
1,000 |
|
数据手册 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5300Vrms | 800 V | 5kV/µs | 1.6mA | 300 mA | - | - | 1.2V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | BSI, cUR, FIMKO, UR |
|
|
IL410-X019TOPTOISOLATOR 5.3KV TRIAC |
990 |
|
数据手册 |
- | 6-SMD | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Surface Mount | - | CSA, UR, VDE |
|
FOD420TVOPTOISOLATOR 5KV TRIAC 6DIP |
950 |
|
数据手册 |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUL, FIMKO, UL, VDE |
|
|
FOD420VOPTOISOLATOR 5KV TRIAC 6DIP |
532 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUL, FIMKO, UL, VDE |
|
FOD4216SVOPTOISOLATOR 5KV TRIAC 6SMD |
2,000 |
|
数据手册 |
- | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUL, FIMKO, UL, VDE |
|

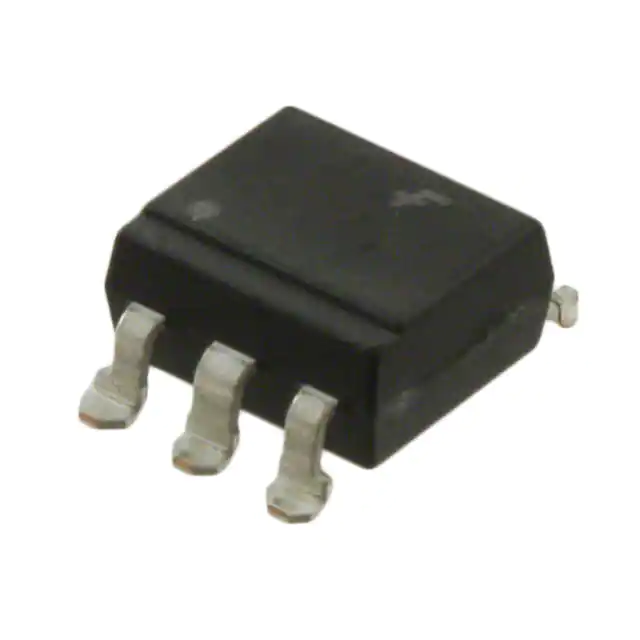

FOD4118SDOPTOISOLATOR 5KV TRIAC 6SMD |
944 |
|
数据手册 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, UL |
|
FOD410OPTOISOLATOR 5KV TRIAC 6DIP |
765 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL |
|
|
IL4218-X019TOPTOISOLATOR 5.3KV TRIAC |
929 |
|
数据手册 |
- | 6-SMD | Tape & Reel (TR) | Active | Triac | No | 1 | 5300Vrms | 800 V | 10kV/µs | 700µA (Typ) | 300 mA | 200µA | - | 1.3V | 60 mA | -55°C ~ 100°C | Surface Mount | - | BSI, CSA, cUR, FIMKO, UR, VDE |
