三端双向可控硅、SCR 输出光隔离器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 输出类型 | 零交叉电路 | 通道数 | 电压 - 隔离 | 电压 - 关断状态 | 静态 dV/dt（最小值） | 电流 - LED 触发 (Ift)（最大值） | 电流 - 导通状态 (It (RMS))（最大值） | 电流 - 保持 (Ih) | 开启时间 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOC3062XSMOPTOISOLATOR 5.3KV TRIAC 6SMD Isocom Components 2004 LTD |
2,435 |
|
数据手册 |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 600V/µs | 10mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | - | UR, VDE |
|
MOC3063XSMT&ROPTOISOLATOR 5.3KV TRIAC 6SMD Isocom Components 2004 LTD |
1,982 |
|
数据手册 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 600V/µs | 5mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | - | UR, VDE |
|
|
MOC3023XSMT&ROPTOISOLATOR 5.3KV TRIAC 6SMD Isocom Components 2004 LTD |
2,216 |
|
数据手册 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5300Vrms | 400 V | 10V/µs (Typ) | 5mA | - | 100µA | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | - | UR, VDE |
|
MOC3063XOPTOISOLATOR 5.3KV TRIAC 6DIP Isocom Components 2004 LTD |
1,027 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 600V/µs | 5mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | UR, VDE |
|
|
MOC3041XOPTOISOLATOR 5.3KV TRIAC 6DIP Isocom Components 2004 LTD |
623 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 400 V | 600V/µs | 15mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | UR, VDE |
|
|
MOC3062XOPTOISOLATOR 5.3KV TRIAC 6DIP Isocom Components 2004 LTD |
195 |
|
数据手册 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 600V/µs | 10mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | UR, VDE |
|

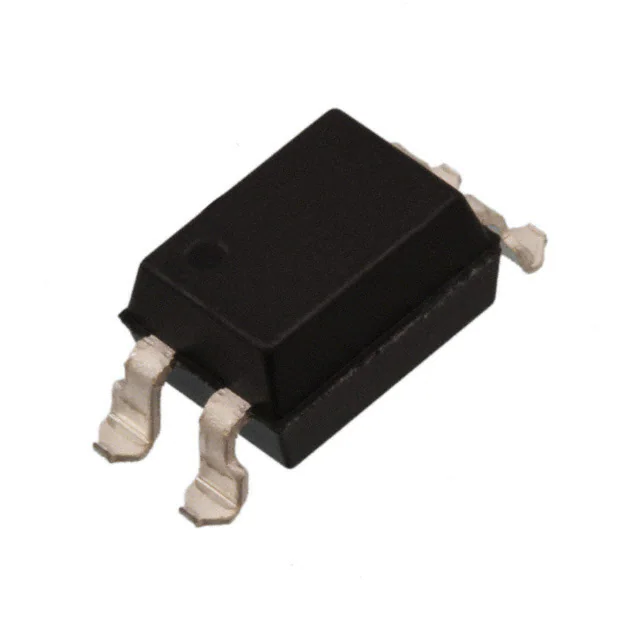

MF306#OPTOISOLATOR 3.75KV TRIAC Isocom Components 2004 LTD |
2,940 |
|
数据手册 |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 1kV/µs | 30mA | 70 mA | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -40°C ~ 110°C | Surface Mount | - | - |
|
|
MOC3041XSMOPTOISOLATOR 5.3KV TRIAC 6SMD Isocom Components 2004 LTD |
2,189 |
|
数据手册 |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 5300Vrms | 400 V | 600V/µs | 15mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | - | UR, VDE |
|
|
MOC3063XSMOPTOISOLATOR 5.3KV TRIAC 6SMD Isocom Components 2004 LTD |
1,227 |
|
数据手册 |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 600V/µs | 5mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | - | UR, VDE |
|
|
MOC3043XSMOPTOISOLATOR 5.3KV TRIAC 6SMD Isocom Components 2004 LTD |
1,057 |
|
数据手册 |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 5300Vrms | 400 V | 600V/µs | 5mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | - | UR, VDE |
