逻辑输出光隔离器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 通道数 | 输入 - 侧 1/侧 2 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 输入类型 | 输出类型 | 电流 - 输出/通道 | 数据速率 | 传播延迟 tpLH / tpHL（最大值） | 上升/下降时间（典型值） | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACPL-268KLOPTOISO 1.5KV 2CH OPEN COL 16DIP |
3,579 |
|
数据手册 |
- | 16-CDIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | - | - | -55°C ~ 125°C | Through Hole | 16-CDIP |
|
ACPL-268KL-100OPTOISO 1.5KV 2CH OPEN COL 16DIP |
1,426 |
|
数据手册 |
- | 16-DIP | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | - | - | -55°C ~ 125°C | Through Hole | 16-DIP |
|
|
ACPL-268KL-200OPTOISO 1.5KV 2CH OPEN COL 16DIP |
3,394 |
|
数据手册 |
- | 16-CDIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | - | - | -55°C ~ 125°C | Through Hole | 16-CDIP |
|
|
ACPL-268KL-300OPTOISO 1.5KV 2CH OPEN COL 16DIP |
3,690 |
|
数据手册 |
- | 16-DIP | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | - | - | -55°C ~ 125°C | Through Hole | 16-DIP |
|
HCPL-563KOPTOISO 1.5KV 2CH OPEN COLL 8DIP |
3,268 |
|
数据手册 |
- | 8-DIP (0.300", 7.62mm) | Bulk | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|
|
HCPL-563K-100OPTOISO 1.5KV 2CH OPEN COLL 8SMD |
4,269 |
|
数据手册 |
- | 8-SMD Butt Joint | Bulk | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount, Butt Joint | 8-SMD |
|

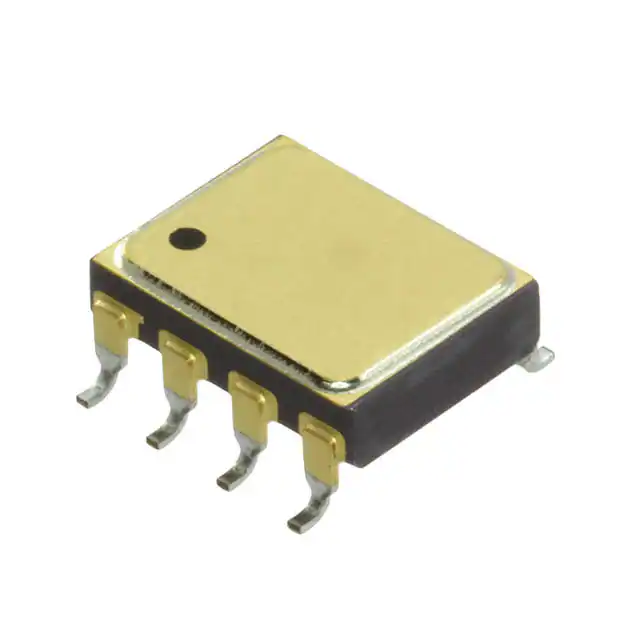

HCPL-563K-300OPTOISO 1.5KV OPEN COLL 8DIP GW |
2,545 |
|
数据手册 |
- | 8-CSMD, Gull Wing | Bulk | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-563K#200OPTOISO 1.5KV 2CH OPEN COLL 8DIP |
2,919 |
|
数据手册 |
- | 8-DIP (0.300", 7.62mm) | Bulk | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|
5962-0824203KEAOPTOISO 1.5KV 2CH OPN COLL 16DIP |
1,957 |
|
数据手册 |
- | 16-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | - | - | -55°C ~ 125°C | Through Hole | 16-DIP |
|
|
5962-0824203KECOPTOISO 1.5KV 2CH OPN COLL 16DIP |
4,031 |
|
数据手册 |
- | 16-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | - | - | -55°C ~ 125°C | Through Hole | 16-DIP |
|
5962-0824203KTAOPTOISO 1.5KV OPEN COLL 16SMD GW |
1,284 |
|
数据手册 |
- | 16-SMD, Gull Wing | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | - | - | -55°C ~ 125°C | Surface Mount | 16-SMD Gull Wing |
|
|
5962-0824203KUAOPTOISO 1.5KV 2CH OPN COLL 16SMD |
1,326 |
|
数据手册 |
- | 16-SMD, Butt Joint | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | - | - | -55°C ~ 125°C | Surface Mount | 16-SMD Butt Joint |
|
|
5962-0824203KUCOPTOISO 1.5KV 2CH OPN COLL 16SMD |
1,779 |
|
数据手册 |
- | 16-SMD, Butt Joint | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | - | - | -55°C ~ 125°C | Surface Mount | 16-SMD Butt Joint |
|
|
5962-9800102KPAOPTOISO 1.5KV 2CH OPEN COLL 8DIP |
3,916 |
|
数据手册 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|
|
5962-9800102KPCOPTOISO 1.5KV 2CH OPEN COLL 8DIP |
1,245 |
|
数据手册 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|
|
5962-9800102KYAOPTOISO 1.5KV 2CH OPEN COLL 8SMD |
1,479 |
|
数据手册 |
- | 8-SMD Butt Joint | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Butt Joint |
|
|
5962-9800102KYCOPTOISO 1.5KV 2CH OPEN COLL 8SMD |
2,660 |
|
数据手册 |
- | 8-SMD Butt Joint | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Butt Joint |
|
5962-9800102KZAOPTOISO 1.5KV OPEN COLL 8DIP GW |
3,862 |
|
数据手册 |
- | 8-SMD, Gull Wing | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Gull Wing |
|
|
ACPL-563KLOPTOISO 1.5KV 2CH OPEN COLL 8DIP |
2,331 |
|
数据手册 |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|
|
ACPL-563KL-100OPTOISO 1.5KV 2CH OPEN COLL 8SMD |
3,069 |
|
数据手册 |
- | 8-SMD Butt Joint | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Butt Joint |
