逻辑输出光隔离器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 通道数 | 输入 - 侧 1/侧 2 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 输入类型 | 输出类型 | 电流 - 输出/通道 | 数据速率 | 传播延迟 tpLH / tpHL（最大值） | 上升/下降时间（典型值） | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACPL-M61TOPTOISO 4KV OPN COLLECTOR 5SO |
1,775 |
|
数据手册 |
R²Coupler™ | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 4000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 5-SO |
|
PC4D10SNIP0FOPTOISO 3.75KV OPEN COLL 8MFLAT |
4,278 |
|
数据手册 |
OPIC™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-Miniflat |
|
|
HCPL-0720#560OPTOISO 3.75KV PUSH PULL 8SO |
3,069 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
FOD063LOPTOISO 3.75KV 2CH OPEN COLL 8SO |
1,508 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | 2 | 2/0 | 3750Vrms | 25kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 90ns, 75ns | - | 1.75V (Max) | 50mA | 2.7V ~ 3.3V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
HCPL-2400OPTOISO 3.75KV TRI-STATE 8DIP |
1,335 |
|
数据手册 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Tri-State | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
QTM601T1MINI-FLAT PACKAGE 10 MBITS HIGH |
1,152 |
|
数据手册 |
Optocoupler | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 3750Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 75ns, 75ns | 40ns, 10ns | 1.4V | 50mA | 7V | - | - | -55°C ~ 85°C | Surface Mount | 5-Mini-Flat |
|
ACSL-6420-56TEOPTOISO 2.5KV 4CH OPEN COLL 16SO |
4,753 |
|
数据手册 |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 4 | 2/2 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
|
ACSL-6420-06TEOPTOISO 2.5KV 4CH OPEN COLL 16SO |
3,312 |
|
数据手册 |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | 4 | 2/2 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
HCPL-2400#300OPTOISO 3.75KV TRI-STATE 8DIP GW |
1,300 |
|
数据手册 |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Tri-State | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|

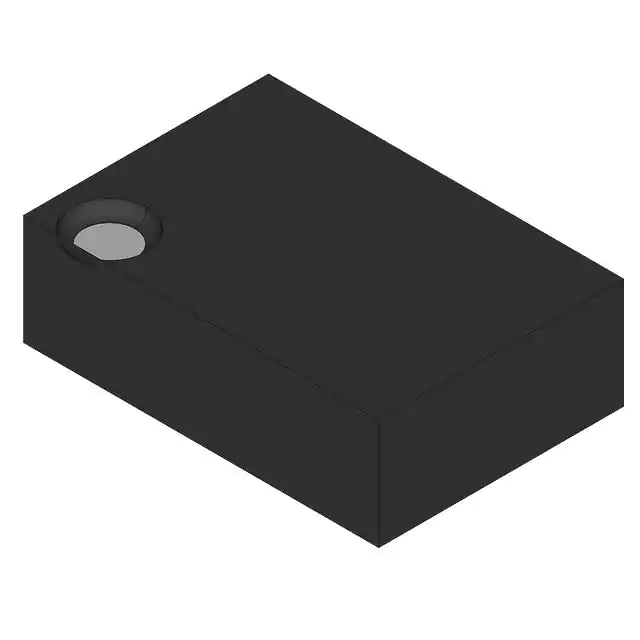

H11N2SR2MOPTOISO 4.17KV OPN COLL 6SMD |
3,563 |
|
数据手册 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | 7.5ns, 12ns | 1.4V | 30mA | 4V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 6-SMD |
|
H11N2SR2VMOPTOISO 4.17KV OPN COLL 6SMD |
4,917 |
|
数据手册 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | 7.5ns, 12ns | 1.4V | 30mA | 4V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 6-SMD |
|
|
ACSL-6410-06TEOPTOISO 2.5KV 4CH OPEN COLL 16SO |
4,895 |
|
数据手册 |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | 4 | 3/1 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
|
HCPL-0720#500OPTOISO 3.75KV PUSH PULL 8SO |
4,726 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
HCNW2201-500EOPTOISO 5KV PUSH PULL 8DIP GW |
3,944 |
|
数据手册 |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 180ns, 160ns (Typ) | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-7721OPTOISO 3.75KV PUSH PULL 8DIP |
4,545 |
|
数据手册 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
ACPL-K71T-500EOPTOISO 5KV PUSH PULL 8SO |
1,892 |
|
数据手册 |
- | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | - | - | 35ns, 35ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO Stretched |
|
|
HCPL-4661OPTOISO 3.75KV 2CH OPEN COL 8DIP |
2,827 |
|
数据手册 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-7723OPTOISO 3.75KV PUSH PULL 8DIP |
3,459 |
|
数据手册 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 50MBd | 22ns, 22ns | 8ns, 6ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-4661#300OPTOISO 3.75KV OPEN COLL 8DIP GW |
3,814 |
|
数据手册 |
- | 8-SMD, Gull Wing | Tube | Active | 2 | 2/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
RV1S9960ACCSP-10YC#KC0HI-SPD OPTCPLR 8PIN LSDIP |
3,695 |
|
数据手册 |
- | 8-SOIC (0.543", 13.80mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 7500Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15Mbps | 60ns, 60ns | 5ns, 5ns | 1.55V | 20mA | 2.7V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 8-LSDIP |
