逻辑输出光隔离器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 通道数 | 输入 - 侧 1/侧 2 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 输入类型 | 输出类型 | 电流 - 输出/通道 | 数据速率 | 传播延迟 tpLH / tpHL（最大值） | 上升/下降时间（典型值） | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-2200#300OPTOISO 3.75KV TRI-STATE 8DIP GW |
2,962 |
|
数据手册 |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Tri-State | 25 mA | 2.5MBd | 300ns, 300ns | 55ns, 15ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCNW2601#300OPTOISO 5KV OPEN COLL 8DIP GW |
2,759 |
|
数据手册 |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.64V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
PS9303L-AXOPTOISO 5KV PUSH PULL 6DIP GW |
3,907 |
|
数据手册 |
NEPOC | 6-SOIC (0.268", 6.80mm Width) | Bulk | Discontinued at Digi-Key | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 1Mbps | 500ns, 550ns | 120ns, 90ns | 1.6V | 20mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 6-SDIP Gull Wing |
.jpg)
|
HCNW137OPTOISO 5KV OPEN COLLECTOR 8DIP |
2,261 |
|
数据手册 |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.64V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
HCPL-0710-060EOPTOISO 3.75KV PUSH PULL 8SO |
2,585 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 12.5MBd | 40ns, 40ns | 13ns, 5ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO Tall |
|
|
HCPL-263L-520EOPTOISO 5KV 2CH OPEN COL 8DIP GW |
1,141 |
|
数据手册 |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 2/0 | 5000Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 15mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
HCPL-263L-060EOPTOISO 3.75KV 2CH OPEN COL 8DIP |
4,952 |
|
数据手册 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 15mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-263L-020EOPTOISO 5KV 2CH OPEN COLL 8DIP |
4,335 |
|
数据手册 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 5000Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 15mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-J456OPTOISO 3.75KV OPEN COLL 8DIP |
1,819 |
|
数据手册 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 480ns | - | 1.6V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
HCPL062NR1OPTOISO 2.5KV 2CH OPEN COLL 8SO |
3,093 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 2 | 2/0 | 2500Vrms | 25kV/µs | DC | Open Collector | 15 mA | 10Mbps | 90ns, 75ns | 16ns, 4ns | 1.75V (Max) | 50mA | 2.7V ~ 3.3V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
.jpg)
|
PS9313L2-AXOPTOISO 5KV OPEN COLL 6DIP GW |
1,008 |
|
数据手册 |
- | 6-SOIC (0.268", 6.80mm Width) | Bulk | Discontinued at Digi-Key | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.56V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 110°C | Surface Mount | 6-SDIP Gull Wing |
|
|
PS9817A-2-AXOPTOISO 2.5KV 2CH OPEN COL 8SSOP |
2,762 |
|
数据手册 |
NEPOC | 8-SOIC (0.154", 3.90mm Width) | Bulk | Discontinued at Digi-Key | 2 | 2/0 | 2500Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.65V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SSOP |
|
HCPL2630SDOPTOISO 2.5KV 2CH OPEN COLL 8SMD |
1,788 |
|
数据手册 |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 2 | 2/0 | 2500Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
HCPL2630SDVOPTOISO 2.5KV 2CH OPEN COLL 8SMD |
1,262 |
|
数据手册 |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 2 | 2/0 | 2500Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
PC410L0NIP0FOPTOISO 3.75KV OPEN COLL 5SOP |
3,651 |
|
数据手册 |
OPIC™ | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.6V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 5-SOP |
|
|
OR-2631S-TA1LOGIC OUTPUT OPTOISOLATOR 10MBPS |
3,894 |
|
数据手册 |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
HCPL-0201#560OPTOISO 3.75KV PUSH PULL 8SO |
3,518 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
PS9317L-AXOPTOISO 5KV OPEN COLL 6DIP GW |
4,909 |
|
数据手册 |
NEPOC | 6-SOIC (0.268", 6.80mm Width) | Bulk | Discontinued at Digi-Key | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.56V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 6-SDIP Gull Wing |
|

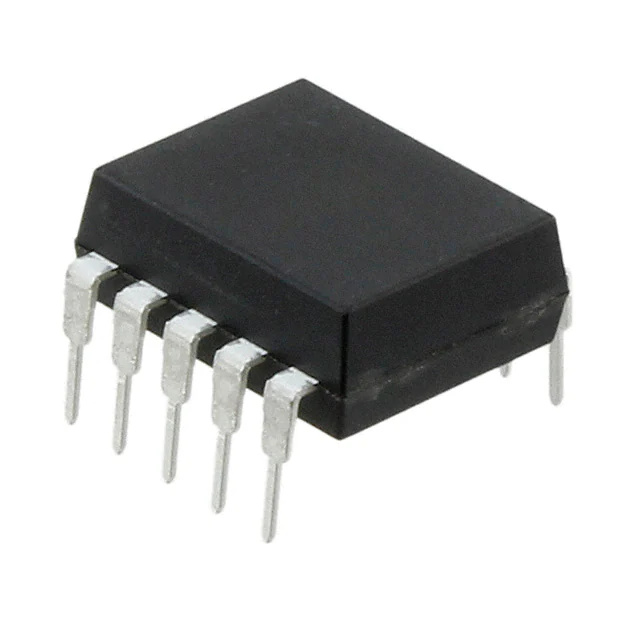

ACNV2601-000EOPTOISO 7.5KV OPEN COLL 10DIP |
4,992 |
|
数据手册 |
- | 10-DIP (0.512", 13.01mm) | Tube | Active | 1 | 1/0 | 7500Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 80ns, 80ns | 25ns, 10ns | 1.64V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Through Hole | 10-DIP |
|
|
HCPL-2212#500OPTOISO 3.75KV PUSH PULL 8DIP GW |
1,232 |
|
数据手册 |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
