逻辑输出光隔离器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 通道数 | 输入 - 侧 1/侧 2 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 输入类型 | 输出类型 | 电流 - 输出/通道 | 数据速率 | 传播延迟 tpLH / tpHL（最大值） | 上升/下降时间（典型值） | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RV1S9261ACCSP-10YV#KC0HI-SPD OPTOCPLR, LSSO5, UL, CSA, |
3,500 |
|
数据手册 |
- | 5-SMD, Gull Wing | Strip | Active | 1 | 1/0 | 5000Vrms | 100kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 15Mbps | 60ns, 60ns | - | 1.54V | 20mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSSO |
|
|
RV1S9262ACCSP-10YV#KC0HI-SPD OPTOCPLR, LSSO5, UL, CSA, |
3,500 |
|
数据手册 |
- | 5-SMD, Gull Wing | Strip | Active | 1 | 1/0 | 5000Vrms | 100kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 15Mbps | 60ns, 60ns | - | 1.54V | 20mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSSO |
|
|
TLP2762B(D4TP4,E(THIGH SPEED LOGIC COUPLER; ROHS, |
1,500 |
|
数据手册 |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Open Drain | 25 mA | 10Mbps | 100ns, 100ns | 14ns, 1ns | 1.57V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
|
TLP2762B(D4LF4,E(THIGH SPEED LOGIC COUPLER; ROHS, |
125 |
|
数据手册 |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Open Drain | 25 mA | 10Mbps | 100ns, 100ns | 14ns, 1ns | 1.57V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|

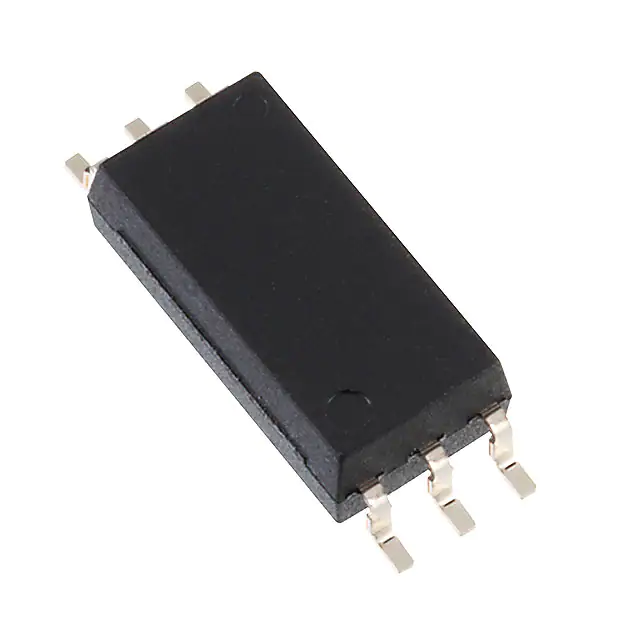

TLP2704(D4-TP,EHIGH SPEED LOGIC OUTPUT COUPLER; |
2,900 |
|
数据手册 |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector | 15 mA | - | 400ns, 550ns | - | 1.55V | 20mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
|
TLP2704(TP,EHIGH SPEED LOGIC OUTPUT COUPLER; |
1,448 |
|
数据手册 |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector | 15 mA | - | 400ns, 550ns | - | 1.55V | 20mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
|
TLP2704(D4,EHIGH SPEED LOGIC OUTPUT COUPLER; |
125 |
|
数据手册 |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector | 15 mA | - | 400ns, 550ns | - | 1.55V | 20mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
|
H11L1VSMT&R6PIN SCHMITT TRIGGER, SINGLE OPT |
579 |
|
数据手册 |
H11L1V | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | - | DC | - | 50 mA | 1MHz | - | 100ns, 100ns | 1.15V | 60mA | 16V | - | - | -55°C ~ 100°C | Surface Mount | 6-SMD |
.JPG)
|
TLP104(TPR,E)OPTOISO 3.75KV OPEN COLL SO6-5 |
2,773 |
|
数据手册 |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 8 mA | 1Mbps | 550ns, 400ns | - | 1.61V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP5702(TP4,EOPTOCOUPLER DRIVER SO6 |
1,467 |
|
数据手册 |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | - | - | 200ns, 200ns | 15ns, 8ns | 1.55V | 20mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO |
|
|
TLP5702(D4-TP4,EOPTOCOUPLER DRIVER SO6 |
1,406 |
|
数据手册 |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | - | - | 200ns, 200ns | 15ns, 8ns | 1.55V | 20mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO |
|
|
TLP5702(D4-LF4,EOPTOCOUPLER DRIVER SO6 |
115 |
|
数据手册 |
- | - | Tube | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | - | - | 200ns, 200ns | 15ns, 8ns | 1.55V | 20mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO |
|
|
TLP2710(D4-TP4,EHI SPEED LOGIC OUTPUT OPTOCOUPLE |
735 |
|
数据手册 |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 5MBd | 250ns, 250ns | 11ns, 13ns | 1.9V (Max) | 8mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
|
TLP2710(D4-TP,EHI SPEED LOGIC OUTPUT OPTOCOUPLE |
710 |
|
数据手册 |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 5MBd | 250ns, 250ns | 11ns, 13ns | 1.9V (Max) | 8mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
|
TLP2710(LF4,EHI SPEED LOGIC OUTPUT OPTOCOUPLE |
125 |
|
数据手册 |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | 1 | 1/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 5MBd | 250ns, 250ns | 11ns, 13ns | 1.9V (Max) | 8mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
|
TLP2710(D4-LF4,EHI SPEED LOGIC OUTPUT OPTOCOUPLE |
125 |
|
数据手册 |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | 1 | 1/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 5MBd | 250ns, 250ns | 11ns, 13ns | 1.9V (Max) | 8mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
|
TLP2710(D4,EHI SPEED LOGIC OUTPUT OPTOCOUPLE |
105 |
|
数据手册 |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | 1 | 1/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 5MBd | 250ns, 250ns | 11ns, 13ns | 1.9V (Max) | 8mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
|
RV1S9209ACCSP-10YC#KC0OPT2 CPLR HS LSSO5 5M NIPDAU |
6,990 |
|
数据手册 |
- | 5-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | 25 mA | - | 200ns, 200ns | 25ns, 5ns | 1.56V | 20mA | 4.5V ~ 20V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSSO |
|
|
VOH260A-X00610 MBD OPTOCOUPLER - SINGLE CHAN |
1,997 |
|
数据手册 |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | Logic | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 10ns | 1.38V | 20mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 110°C | Through Hole | 8-DIP |
|
|
VOH260A10 MBD OPTOCOUPLER - SINGLE CHAN |
1,947 |
|
数据手册 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | Logic | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 10ns | 1.38V | 20mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 110°C | Through Hole | 8-DIP |
