光电晶体管
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电压 - 集电极发射极击穿（最大值） | 电流 - 集电极 (Ic)（最大值） | 电流 - 暗电流（Id）（最大值） | 波长 | 视角 | 功率 - 最大值 | 安装类型 | 方向 | 工作温度 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT501SENSOR PHOTO 800NM TOP TO18-2 Sharp Microelectronics |
2,358 |
|
数据手册 |
- | TO-18-2 Metal Can | Tube | Obsolete | 45 V | 10 mA | 100 nA | 800nm | 12° | 75 mW | Through Hole | Top View | -25°C ~ 125°C | - | - |
|

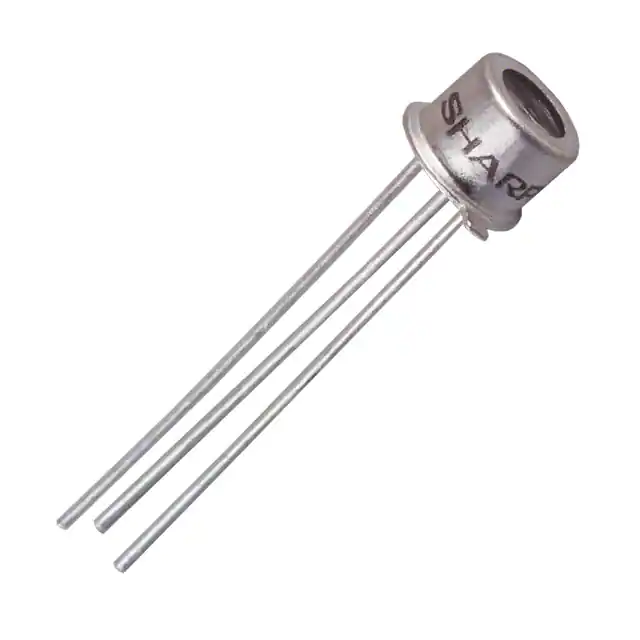

PT510SENSOR PHOTO 800NM TOP TO206AA Sharp Microelectronics |
1,147 |
|
数据手册 |
- | TO-206AA, TO-18-3 Metal Can | Tube | Obsolete | 35 V | 20 mA | 100 nA | 800nm | 12° | 75 mW | Through Hole | Top View | -25°C ~ 125°C | - | - |
|
|
PT550FSENSOR PHOTO 800NM TOP TO206AA Sharp Microelectronics |
1,410 |
|
数据手册 |
- | TO-206AA, TO-18-3 Metal Can | Tube | Obsolete | 35 V | 100 mA | 1 µA | 800nm | 100° | 150 mW | Through Hole | Top View | -25°C ~ 125°C | - | - |
|
|
PT550SENSOR PHOTO 800NM TOP TO206AA Sharp Microelectronics |
3,167 |
|
数据手册 |
- | TO-206AA, TO-18-3 Metal Can | Tube | Obsolete | 35 V | 100 mA | 1 µA | 800nm | 12° | 150 mW | Through Hole | Top View | -25°C ~ 125°C | - | - |
|

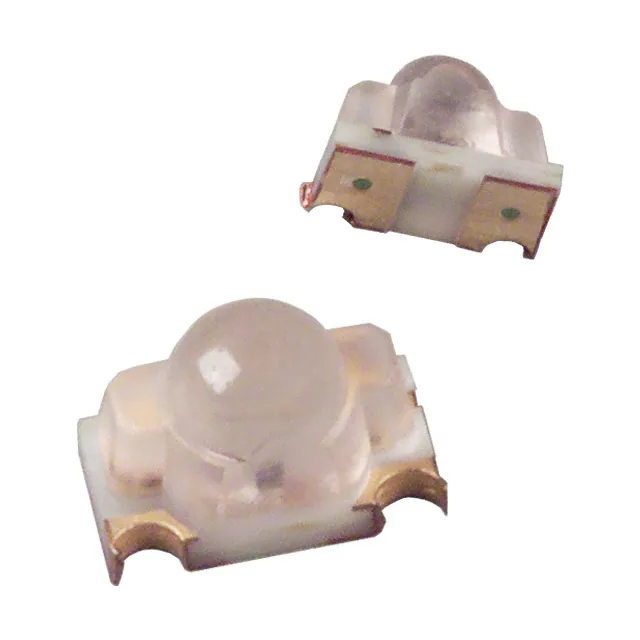

PT100MC0MPSENSOR PHOTO 900NM UNIVERSAL SMD Sharp Microelectronics |
2,571 |
|
数据手册 |
- | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | 35 V | 20 mA | 100 nA | 900nm | 30° | 75 mW | Surface Mount | Universal | -30°C ~ 85°C | - | - |
|
PT381SENSOR PHOTO 800NM TOP VIEW T1 Sharp Microelectronics |
2,027 |
|
数据手册 |
- | T-1 | Tube | Obsolete | 35 V | 20 mA | 100 nA | 800nm | 40° | 75 mW | Through Hole | Top View | -25°C ~ 85°C | - | - |
|
PT4810E0000FSENSOR PHOTO 800NM SIDE VIEW RAD Sharp Microelectronics |
1,429 |
|
数据手册 |
- | Radial | Tube | Obsolete | 35 V | 50 mA | 1 µA | 800nm | 70° | 75 mW | Through Hole | Side View | - | - | - |
|
PT4800E0000FSENSOR PHOTO 800NM SIDE VIEW RAD Sharp Microelectronics |
4,062 |
|
数据手册 |
- | Radial | Tube | Obsolete | 35 V | 20 mA | 100 nA | 800nm | 70° | 75 mW | Through Hole | Side View | -25°C ~ 85°C | - | - |
|
PT480E00000FSENSOR PHOTO 800NM SIDE VIEW RAD Sharp Microelectronics |
3,026 |
|
数据手册 |
- | Radial | Tube | Obsolete | 35 V | 20 mA | 100 nA | 800nm | 70° | 75 mW | Through Hole | Side View | -25°C ~ 85°C | - | - |
|

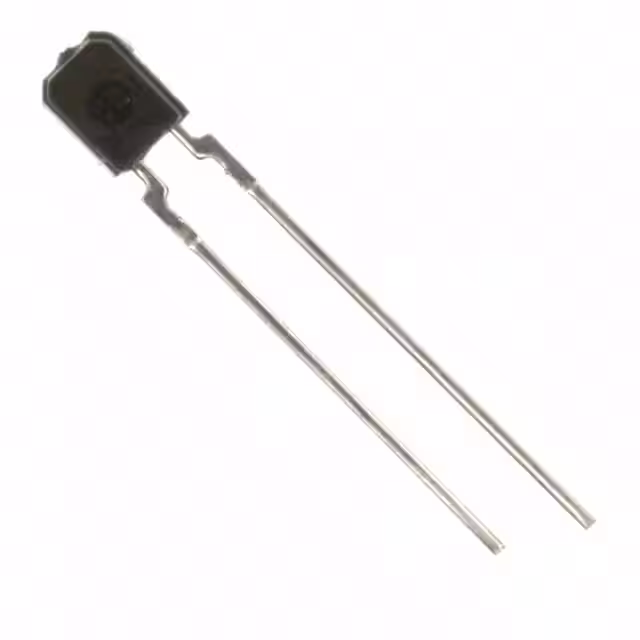

PT480FE0000FSENSOR PHOTO 860NM SIDE VIEW RAD Sharp Microelectronics |
1,942 |
|
数据手册 |
- | Radial | Bag | Obsolete | 35 V | 20 mA | 100 nA | 860nm | 70° | 75 mW | Through Hole | Side View | -25°C ~ 85°C | - | - |
