光电中断器 - 槽型 - 晶体管输出
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 感应距离 | 感应方法 | 输出配置 | 电流 - 直流正向（If）（最大值） | 电流 - 集电极 (Ic)（最大值） | 电压 - 集电极发射极击穿（最大值） | 响应时间 | 工作温度 | 等级 | 认证 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

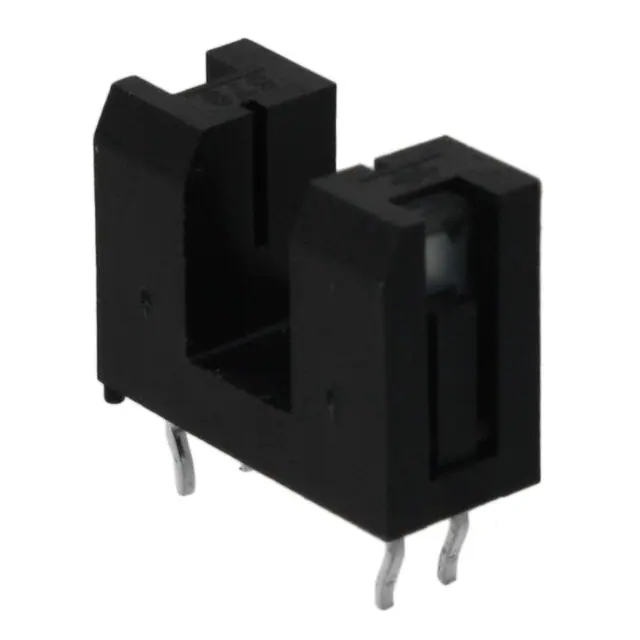

RPI-579N1ESENSOR OPT SLOT PHOTOTRAN PCB MT |
1,885 |
|
数据手册 |
- | PCB Mount | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | 10µs | -25°C ~ 85°C | - | - | Through Hole |
|

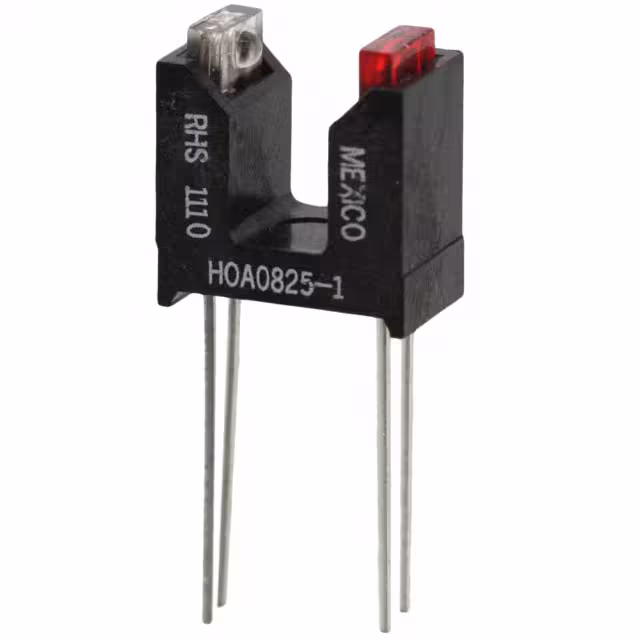

HOA0825-001SENSOR OPT SLOT TRANS PCB MT |
1,782 |
|
数据手册 |
- | PCB Mount | Bulk | Obsolete | 0.165" (4.2mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|
HOA0825-002SENSOR OPT SLOT TRANS PCB MT |
2,253 |
|
数据手册 |
- | PCB Mount | Bulk | Obsolete | 0.165" (4.2mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|

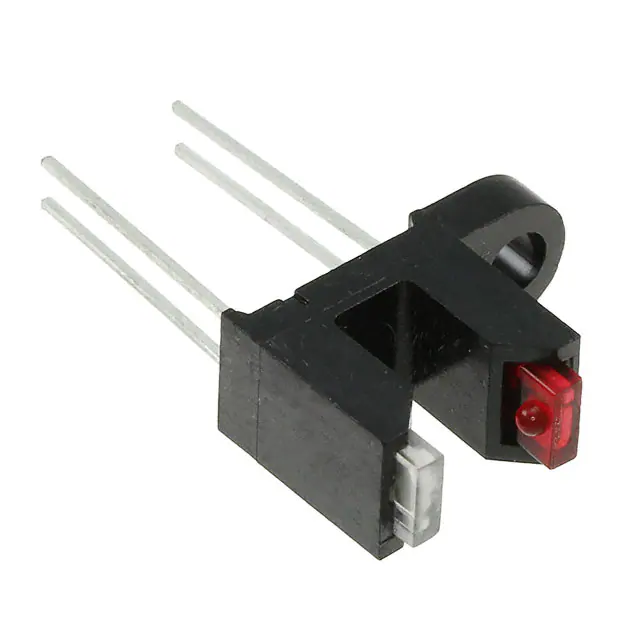

HOA0825-004SENSOR OPT SLOT TRANS PCB MT |
4,922 |
|
数据手册 |
- | PCB Mount | Bulk | Obsolete | 0.165" (4.2mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|
|
HOA0860-N51SENSOR OPT SLOT TRANS PCB MT |
4,852 |
|
数据手册 |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|
|
HOA0860-P51SENSOR OPT SLOT TRANS PCB MT |
4,495 |
|
数据手册 |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|
|
HOA0860-T51SENSOR OPT SLOT TRANS PCB MT |
2,917 |
|
数据手册 |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|
|
HOA0860-T55SENSOR OPT SLOT TRANS PCB MT |
4,100 |
|
数据手册 |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|

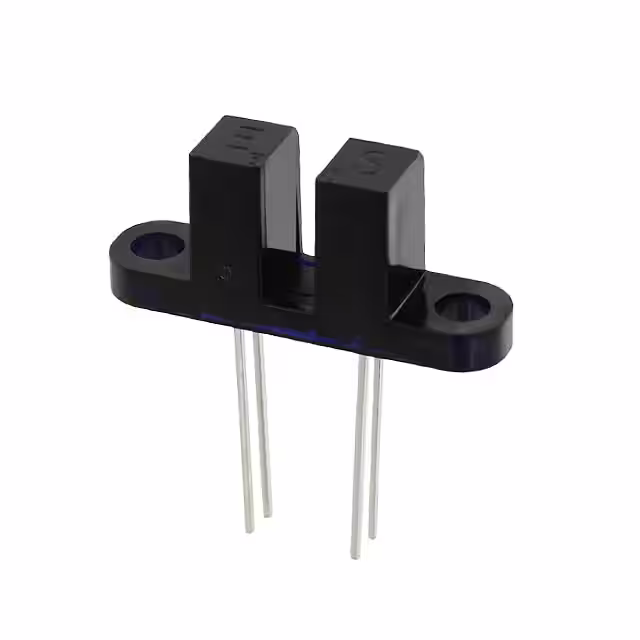

HOA0862-T55SENSOR OPT SLOT PHOTOTRAN PCB MT |
2,752 |
|
数据手册 |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|
|
HOA0865-L51SENSOR OPT SLOT TRANS PCB MT |
4,461 |
|
数据手册 |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|
|
HOA0865-N55SENSOR OPT SLOT TRANS PCB MT |
1,049 |
|
数据手册 |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|

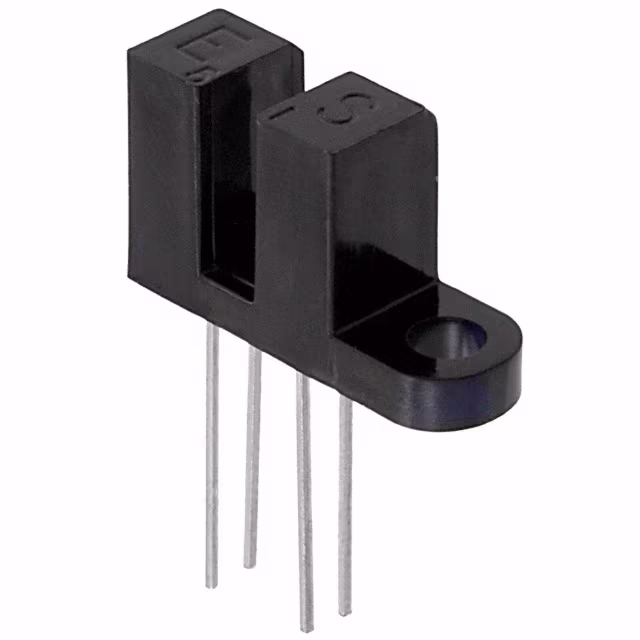

HOA0865-P51SENSOR OPT SLOT TRANS PCB MT |
2,863 |
|
数据手册 |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|
|
HOA0865-T51SENSOR OPT SLOT TRANS PCB MT |
2,170 |
|
数据手册 |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|

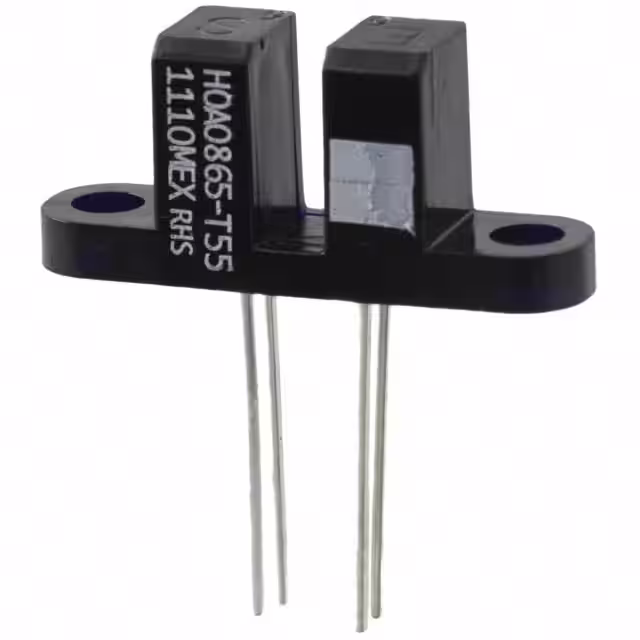

HOA0865-T55SENSOR OPT SLOT TRANS PCB MT |
1,260 |
|
数据手册 |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|
|
HOA0866-N55SENSOR OPT SLOT TRANS PCB MT |
2,789 |
|
数据手册 |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|
|
HOA0866-P55SENSOR OPT SLOT TRANS PCB MT |
1,167 |
|
数据手册 |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|

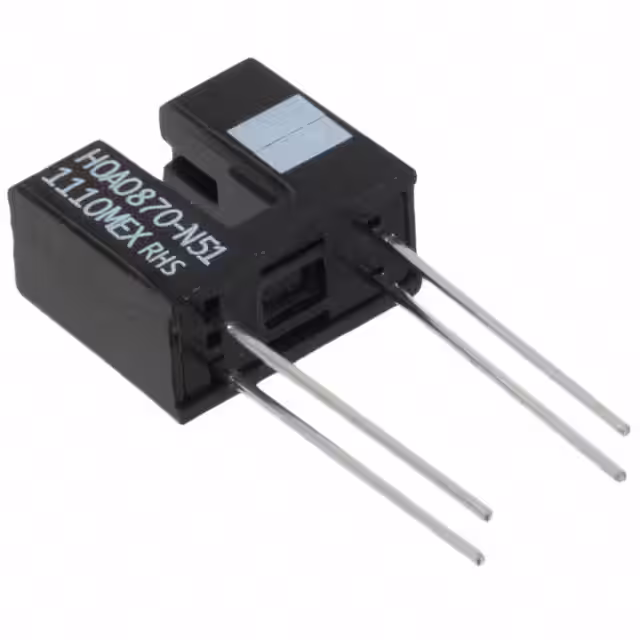

HOA0870-N51SENSOR OPT SLOT TRANS PCB MT |
4,467 |
|
数据手册 |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|
|
HOA0870-T51SENSOR OPT SLOT TRANS PCB MT |
1,835 |
|
数据手册 |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|
|
HOA0871-L55SENSOR OPT SLOT TRANS PCB MT |
2,777 |
|
数据手册 |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|
|
HOA0871-T55SENSOR OPT SLOT TRANS PCB MT |
3,378 |
|
数据手册 |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
