光电中断器 - 槽型 - 晶体管输出
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 感应距离 | 感应方法 | 输出配置 | 电流 - 直流正向（If）（最大值） | 电流 - 集电极 (Ic)（最大值） | 电压 - 集电极发射极击穿（最大值） | 响应时间 | 工作温度 | 等级 | 认证 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ITR8402-ATRANSMISSIVE ITR, DIP, 14X6X11.6 |
4,296 |
|
数据手册 |
- | Slotted Module | Bulk | Active | 0.236" (6mm) | Through-Beam | Transistor | 50 mA | 20 mA | 30 V | 15µs | -25°C ~ 85°C | - | - | Through Hole |
|

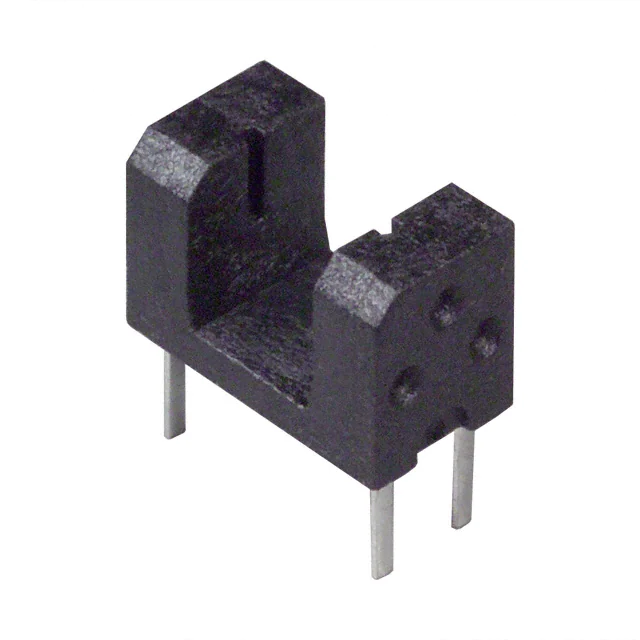

RPI-441C1SENSOR OPT SLOT PHOTOTRAN PCB MT |
4,766 |
|
数据手册 |
- | PCB Mount | Bulk | Active | 0.157" (4mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | 10µs, 10µs | -25°C ~ 85°C | - | - | Through Hole |
|

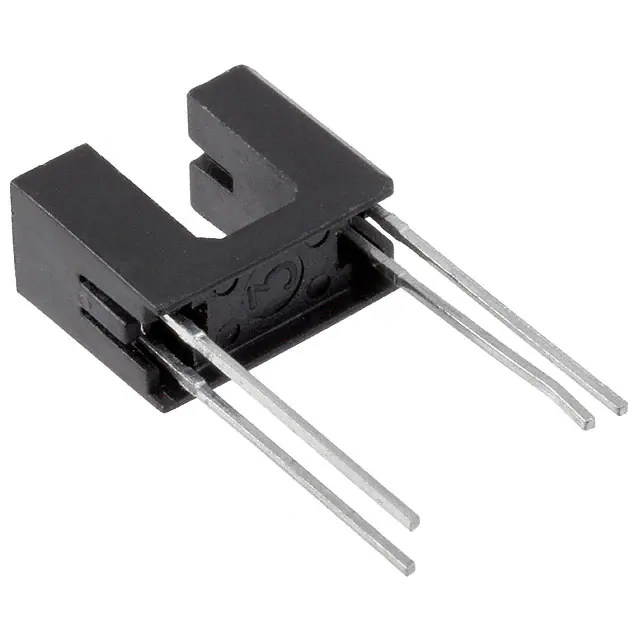

OPB200SENSOR OPT SLOT PHOTOTRAN PCB MT |
1,942 |
|
数据手册 |
- | PCB Mount | Bulk | Active | 0.201" (5.1mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Through Hole |
|

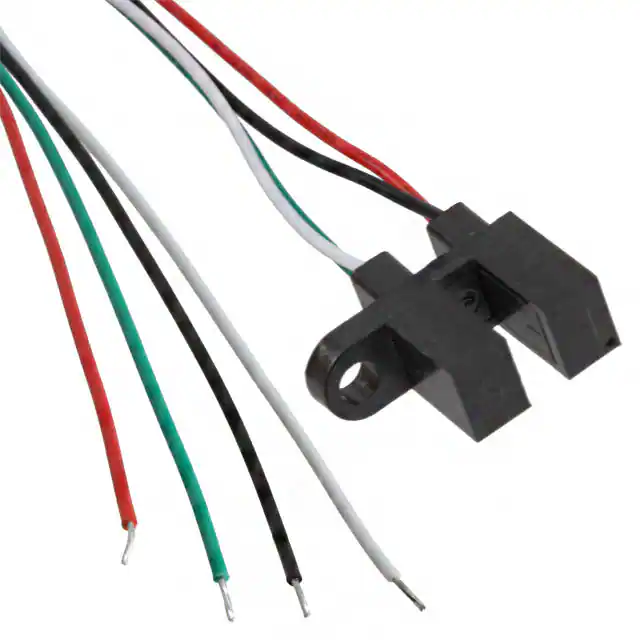

OPB890P11ZSENSOR OPT SLOT PHOTOTRANS MODUL |
2,416 |
|
数据手册 |
- | Module, Pre-Wired | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Chassis Mount |
|
EE-SX950P-W 1MSENSOR OPT SLOT PNP MODULE 1M |
1,251 |
|
数据手册 |
EE-SX95 | Module, Wire Leads, Slot Type | Bulk | Active | 0.197" (5mm) | Through-Beam | PNP - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 24 V | - | -25°C ~ 55°C | - | - | Chassis Mount |
|
EE-SX676SENSOR OPT SLOT NPN MODULE |
3,408 |
|
数据手册 |
EE-SX67 | Module, Pre-Wired | Bulk | Active | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | - | 50 mA | - | - | -25°C ~ 55°C (TA) | - | - | Chassis Mount |
|
EE-SX971P-C1SENSOR OPT SLOT MODULE L-SHAPE |
2,008 |
|
数据手册 |
- | Module, Slotted | Bulk | Active | 0.020" (0.5mm) | Through-Beam | - | 50 mA | 20 mA | 30 V | 4µs | -25°C ~ 85°C | - | - | Chassis Mount, M3 Screw |
|

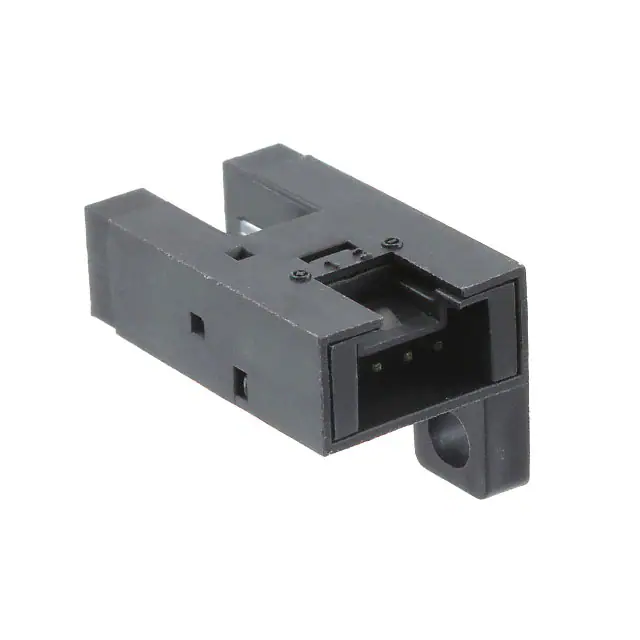

EE-SX976-C1SENSOR OPT SLOT MODULE F-SHAPE |
1,287 |
|
数据手册 |
- | Module, Slotted | Bulk | Active | 0.020" (0.5mm) | Through-Beam | - | 50 mA | 20 mA | 30 V | 4µs | -25°C ~ 85°C | - | - | Chassis Mount, M3 Screw |
|
EE-SX954-R 3MSENS OPT SLOT NPN MOD 3M ROBOTIC |
2,049 |
|
数据手册 |
EE-SX95 | Module, Wire Leads, Slot Type | Bulk | Active | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 24 V | - | -25°C ~ 55°C | - | - | Chassis Mount |
|

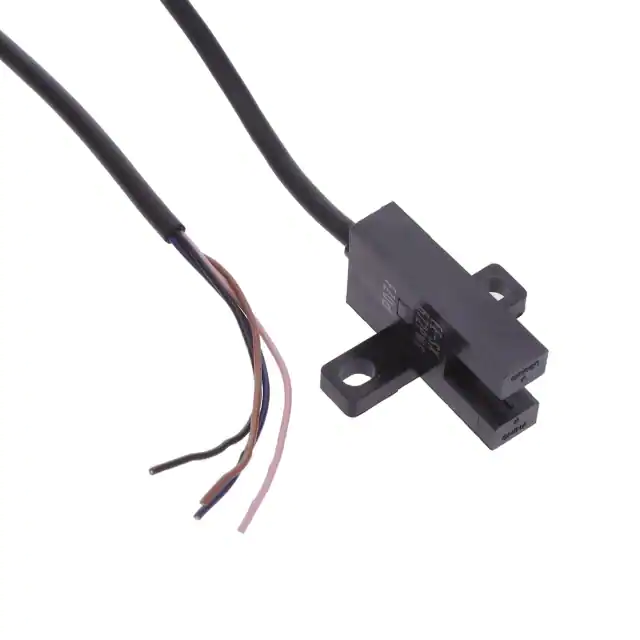

EE-SX672P-WR 1MSENSOR OPT SLOT PNP MODULE |
2,654 |
|
数据手册 |
EE-SX67 | Module, Pre-Wired | Bulk | Active | 0.197" (5mm) | Through-Beam | PNP - Dark-ON/Light-ON - Selectable | - | 50 mA | - | - | -25°C ~ 55°C (TA) | - | - | Chassis Mount |
|

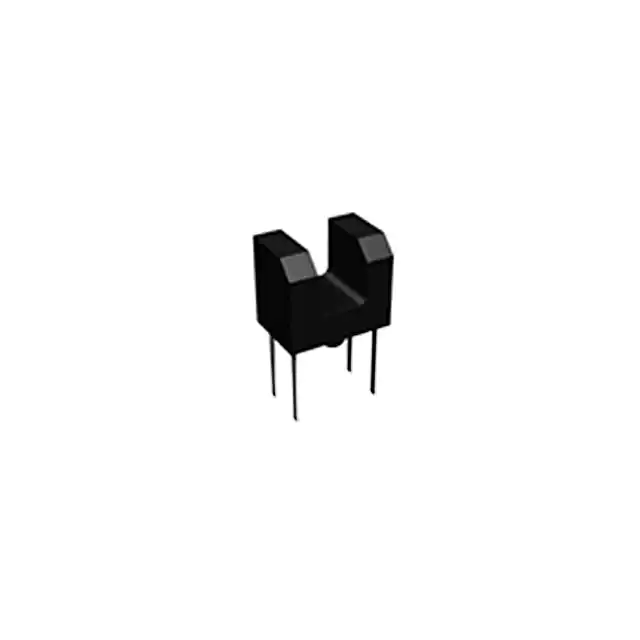

RPI-352C40NSENSOR OPT SLOT MODULE ULTRAMINI |
3,411 |
|
数据手册 |
- | Module, Slotted | Bulk | Not For New Designs | - | - | - | - | - | - | - | - | - | - | Through Hole |
|

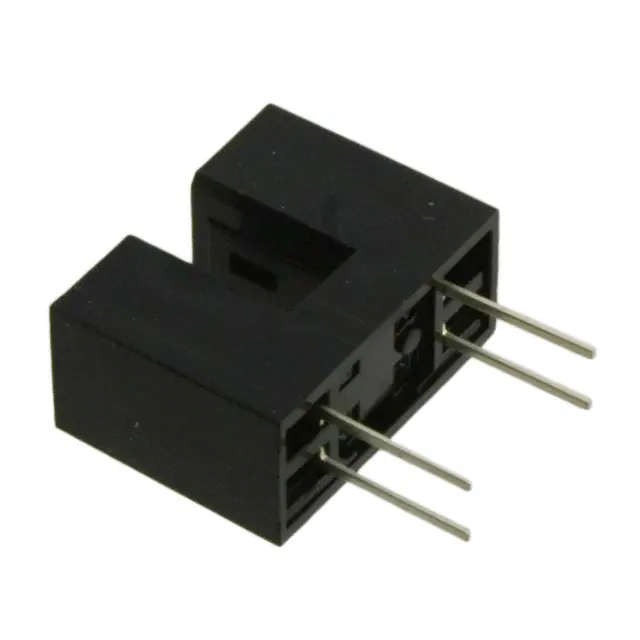

EE-SJ3-CSENSOR OPT SLOT PHOTOTRAN PCB MT |
4,197 |
|
数据手册 |
- | PCB Mount | Tube | Active | 0.134" (3.4mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 4µs, 4µs | -25°C ~ 85°C | - | - | Through Hole |
|
EE-SX1161-W11SENSOR OPT SLOT PHOTOTRANS MODUL |
2,127 |
|
数据手册 |
- | Module, PC Pins, Slot Type | Tray | Active | 0.126" (3.2mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 4µs | -25°C ~ 85°C | - | - | Through Hole |
|

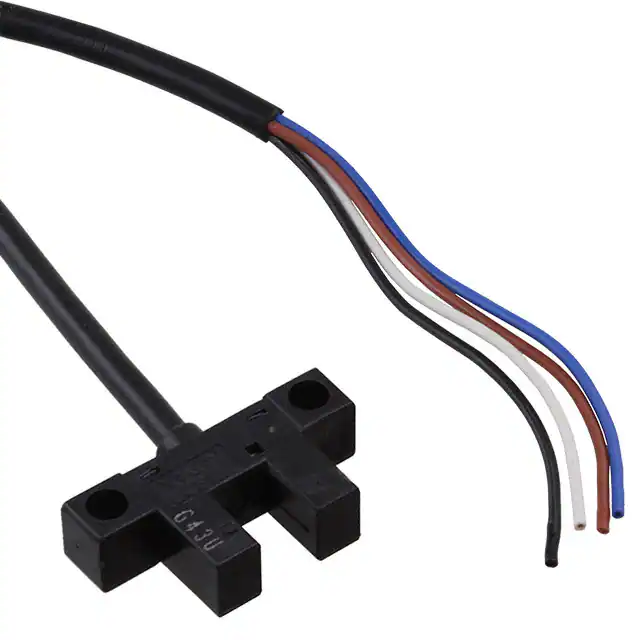

EE-SX950-R 1MSENS OPT SLOT NPN MOD 1M ROBOTIC |
3,484 |
|
数据手册 |
EE-SX95 | Module, Wire Leads, Slot Type | Bulk | Active | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 24 V | - | -25°C ~ 55°C | - | - | Chassis Mount |
|
EE-SX950-R 3MSENS OPT SLOT NPN MOD 3M ROBOTIC |
1,674 |
|
数据手册 |
EE-SX95 | Module, Wire Leads, Slot Type | Bulk | Active | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 24 V | - | -25°C ~ 55°C | - | - | Chassis Mount |
|
EE-SX676P-WR 1MSENSOR OPT SLOT PNP MODULE 1M CB |
3,234 |
|
数据手册 |
EE-SX67 | Module, Pre-Wired | Bulk | Active | 0.197" (5mm) | Through-Beam | PNP - Dark-ON/Light-ON - Selectable | - | 50 mA | - | - | -25°C ~ 55°C (TA) | - | - | Chassis Mount |
|

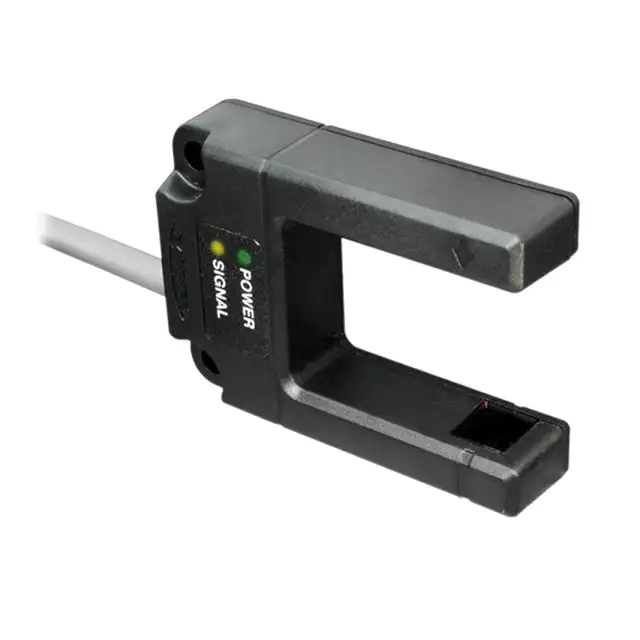

SLE30B6VSLE30 EXPERT SERIES: TEACH MODE |
3,933 |
|
数据手册 |
SLE30 | Module, Wire Leads, Slot Type | Box | Active | 1.181" (30mm) | Through-Beam | NPN/PNP - Dark-ON/Light-ON - Selectable | - | - | - | 500µs | -20°C ~ 70°C | - | - | Chassis Mount |
|
SL30VB6V W/30SLOT WIDTH: 30 MM; INPUT: 10-30V |
2,080 |
|
数据手册 |
SL30 | Module, Wire Leads, Slot Type | Box | Active | 1.181" (30mm) | Through-Beam | NPN/PNP - Dark-ON/Light-ON - Selectable | - | - | - | 1ms | -40°C ~ 70°C | - | - | Chassis Mount |
|

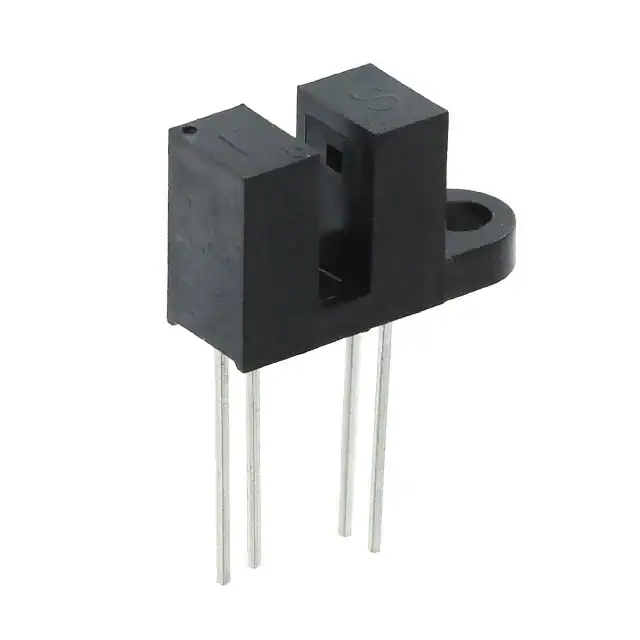

OPB870P55SENSOR OPT SLOT PHOTOTRANS MODUL |
1,750 |
|
数据手册 |
- | Module, Pre-Wired | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Chassis Mount |
|

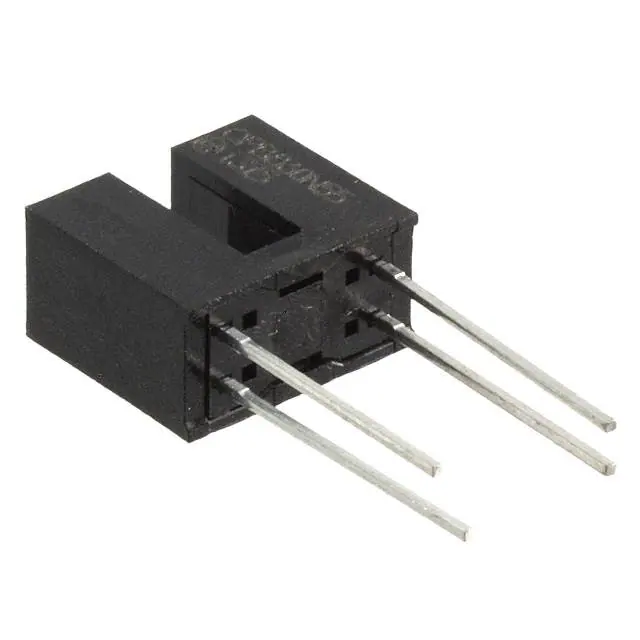

OPB871N51SENSOR OPT SLOT PHOTOTRANS MODUL |
3,161 |
|
数据手册 |
- | Module, Pre-Wired | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Chassis Mount |
