光电中断器 - 槽型 - 逻辑输出
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 感应距离 | 感应方法 | 输出配置 | 安装类型 | 电流 - 电源 | 电压 - 电源 | 响应时间 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XL-ITR9606OPTO INTERRUPTER |
2,000 |
|
数据手册 |
- | PCB Mount | Bag | Active | - | Optical Flag | Phototransistor | Through Hole | - | - | 15µs | -20°C ~ 85°C |
|
|
XL-ITR20403OPTO INTERRUPTER |
2,000 |
|
数据手册 |
- | PCB Mount | Tube | Active | - | Optical Flag | Phototransistor | Through Hole | - | - | 15µs | -20°C ~ 85°C |
|
|
XL-ITR1203OPTO INTERRUPTER |
10,000 |
|
数据手册 |
- | PCB Mount | Tube | Active | - | Optical Flag | Phototransistor | Through Hole | - | - | 15µs | -25°C ~ 85°C |
|
|
XL-ITR20005OPTO INTERRUPTER |
38,000 |
|
数据手册 |
- | PCB Mount | Bag | Active | - | Optical Flag | Phototransistor | Through Hole | - | - | 15µs | -20°C ~ 85°C |
|
H21A1Photointerrupter 3mm gap transis |
960 |
|
数据手册 |
- | Module, PC Pins, Slot Type | Tube | Active | - | Optical Flag | Phototransistor | Through Hole, Flange | - | - | 8µs, 50µs | -55°C ~ 100°C |
|
PM-F45SENSOR OPTICAL 6MM MODULE SLOT |
2,910 |
|
数据手册 |
PM-45 | Module, Wire Leads | Bulk | Active | 0.236" (6mm) | Through-Beam | NPN - Open Collector | Chassis Mount | 15 mA | 5V ~ 24V | 20µs, 80µs | -25°C ~ 55°C |
|
PM-L25-RSENSOR OPTICAL 6MM MOD CABLE 1M |
4,366 |
|
数据手册 |
PM-25 | Module, Wire Leads | Bulk | Active | 0.236" (6mm) | Through-Beam | NPN - Open Collector | Chassis Mount | 15 mA | 5V ~ 24V | 20µs | -25°C ~ 55°C |
|
EE-SX672ASENSOR OPTICAL 5MM MOD SLOT TYPE |
4,757 |
|
数据手册 |
- | Module, Connector | Tray | Active | 0.197" (5mm) | Through-Beam | NPN - Open Collector | Chassis Mount | 12 mA | 5V ~ 24V | 1ms | -25°C ~ 55°C |
|
EE-SX670-WR 1MSENSOR OPTICAL 5MM MOD SLOT TYPE |
3,053 |
|
数据手册 |
- | Module, Connector | Bulk | Active | 0.197" (5mm) | Through-Beam | NPN - Open Collector | Chassis Mount | 35 mA | 5V ~ 24V | 1ms | -25°C ~ 55°C |
|

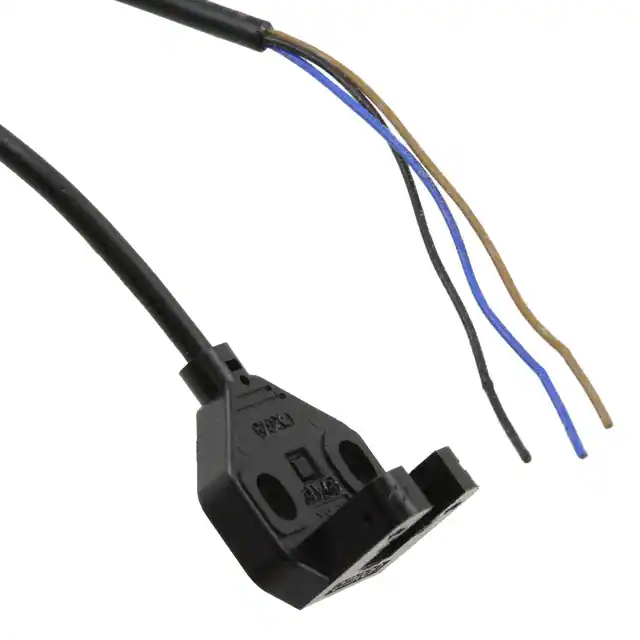

EE-SX871PSENSOR OPTICAL 5MM MOD WIRE LEAD |
4,514 |
|
数据手册 |
- | Module, Wire Leads | Tray | Active | 0.197" (5mm) | Through-Beam | PNP - Open Collector/Light-ON | Chassis Mount, M3 Screw | 30 mA | 5V ~ 24V | - | -25°C ~ 55°C |
|

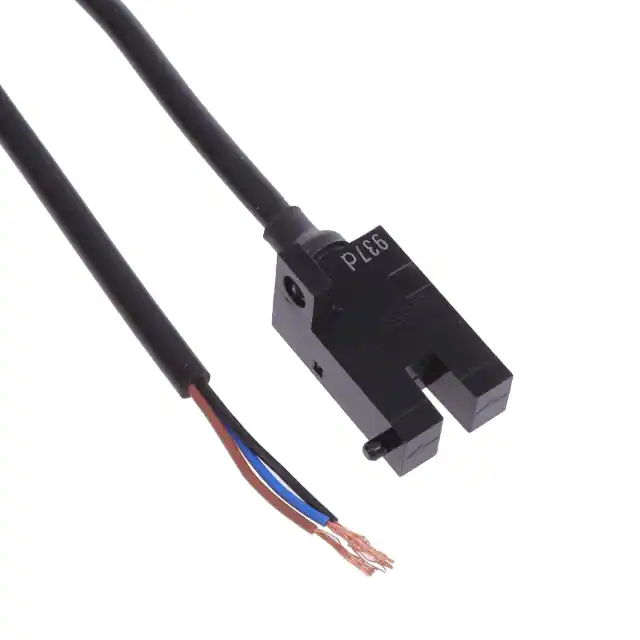

EE-SPX404-W2ASENSOR OPTICAL 3.6MM MODULE SLOT |
1,208 |
|
数据手册 |
- | Module, Wire Leads | Bulk | Active | 0.142" (3.6mm) | Through-Beam | NPN - Open Collector/Light-ON | Chassis Mount | - | 5V ~ 24V | - | -10°C ~ 55°C |
|
OPB982T51ZSENSOR OPTICAL 3.18MM MOD WIRE |
2,805 |
|
数据手册 |
Photologic® | Module, Wire Leads | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Totem Pole, Inverted | Chassis Mount | 15 mA | 4.75V ~ 5.25V | 70ns | -40°C ~ 70°C |
|
OPB993T51ZSENSOR OPTICAL 3.18MM MOD WIRE |
3,331 |
|
数据手册 |
Photologic® | Module, Wire Leads | Bulk | Active | 0.125" (3.18mm) | Through-Beam | NPN - Open Collector, Inverted | Chassis Mount | 15 mA | 4.75V ~ 5.25V | 70ns | -40°C ~ 70°C |
|
PM-R45SENSOR OPTICAL 6MM MODULE SLOT |
4,056 |
|
数据手册 |
PM-45 | Module, Wire Leads | Bulk | Active | 0.236" (6mm) | Through-Beam | NPN - Open Collector | Chassis Mount | 15 mA | 5V ~ 24V | 20µs, 80µs | -25°C ~ 55°C |
|
PM-T65-PSENSOR OPTICAL 6MM MOD SLOT TYPE |
4,374 |
|
数据手册 |
PM-65 | Module, Connector | Bulk | Active | 0.236" (6mm) | Through-Beam | PNP - Open Collector | Chassis Mount | 15 mA | 5V ~ 24V | 20µs | -25°C ~ 55°C |
|
|
PM-T65WSENSOR OPTICAL 6MM MOD SLOT TYPE |
3,857 |
|
数据手册 |
PM-65 | Module, Connector | Bulk | Active | 0.236" (6mm) | Through-Beam | NPN - Open Collector | Chassis Mount | 15 mA | 5V ~ 24V | 20µs | -25°C ~ 55°C |
|

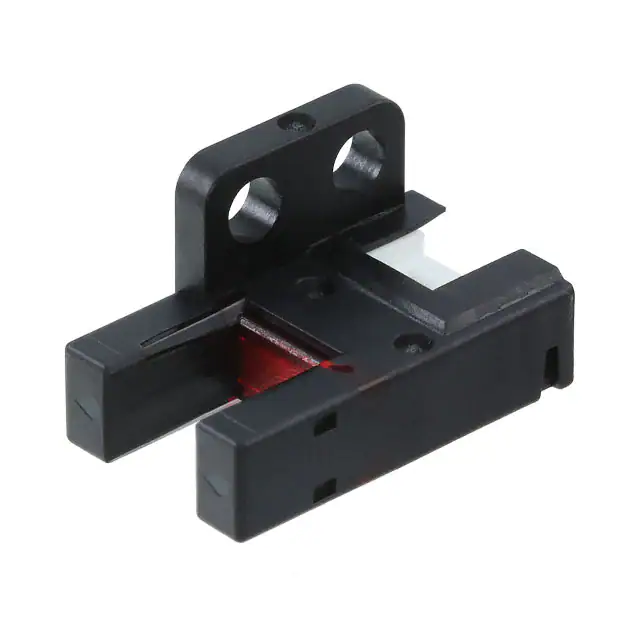

PM-R65W-PSENSOR OPTICAL 6MM MOD SLOT TYPE |
2,260 |
|
数据手册 |
PM-65 | Module, Connector | Bulk | Active | 0.236" (6mm) | Through-Beam | PNP - Open Collector | Chassis Mount | 15 mA | 5V ~ 24V | 20µs | -25°C ~ 55°C |
|
PM-R25-RSENSOR OPTICAL 6MM MOD CABLE 3M |
2,732 |
|
数据手册 |
PM-25 | Module, Wire Leads | Bulk | Active | 0.236" (6mm) | Through-Beam | NPN - Open Collector | Chassis Mount | 15 mA | 5V ~ 24V | 20µs | -25°C ~ 55°C |
|
PM-T45-P-C3SENSOR OPTICAL 6MM MOD CABLE 3M |
2,642 |
|
数据手册 |
PM-45 | Module, Wire Leads | Bulk | Active | 0.236" (6mm) | Through-Beam | PNP - Open Collector | Chassis Mount | 15 mA | 5V ~ 24V | 20µs, 80µs | -25°C ~ 55°C |
|
PM-Y45-C3SENSOR OPTICAL 6MM MOD CABLE 3M |
3,677 |
|
数据手册 |
PM-45 | Module, Wire Leads | Bulk | Active | 0.236" (6mm) | Through-Beam | NPN - Open Collector | Chassis Mount | 15 mA | 5V ~ 24V | 20µs, 80µs | -25°C ~ 55°C |
