多导体电缆
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 线规 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）直径 | 屏蔽类型 | 长度 | 护套颜色 | 额定值 | 特性 | 电压 | 工作温度 | 用途 | 护套（绝缘）厚度 | 导体绝缘 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78012 SL199CABLE 2COND 26AWG SLATE FEET |
1,631 |
|
数据手册 |
EcoCable® Mini | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 26 AWG | 19/38 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.102" (2.59mm) | - | Enter Number of Feet in Order Quantity | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - | |
|
9945 0601000CABLE 9COND 22AWG CHRM SHD |
1,000 |
|
数据手册 |
Classics | Spool | Active | Multi-Conductor | 9 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.280" (7.11mm) | Foil, Braid | 1000.0' (304.8m) | Chrome | UL Style 2464 | - | 300 V | -30°C ~ 80°C | Computer | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - | |
|
302006CABLE 6COND 20AWG GRAY FEET |
3,296 |
|
数据手册 |
Unitronic® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 6 | 20 AWG | - | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.308" (7.82mm) | - | Enter Number of Feet in Order Quantity | Gray | - | Drain Wire, Oil Resistant, UV Resistant | 300 V | - | Industrial, Signal, Control | - | Poly-Vinyl Chloride (PVC) | - | |
|
861604 SL005CABLE 4COND 16AWG SLATE |
300 |
|
数据手册 |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 4 | 16 AWG | 65/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.275" (6.99mm) | - | 100.0' (30.5m) | Slate | UL Style 2661 | Oil Resistant | 300 V | - | - | 0.0430" (1.092mm) | Poly-Vinyl Chloride (PVC) | - | |
|
9931 060100CABLE 6COND 24AWG CHROME SHLD |
300 |
|
数据手册 |
Classics | Spool | Active | Multi-Conductor | 6 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.254" (6.45mm) | Foil, Braid | 100.0' (30.5m) | Chrome | UL Style 2919 | Drain Wire | - | -30°C ~ 80°C | Computer | 0.0350" (0.889mm) | Foam Polyethylene (FPE) | - | |
|
CF240-02-08PVC300V 8C/24 AWG DATA CBL FEET |
364 |
|
数据手册 |
chainflex® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 8 | 24 AWG | - | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.276" (7.01mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Gray | UL Style 2464 | Flame Retardant, Oil Resistant | 300 V | - | Industrial | - | Thermoplastic Elastomer (TPE) | - | |
|
25012 BK199CABLE 2COND 24AWG BLACK FEET |
2,135 |
|
数据手册 |
Xtra-Guard® 2 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 24 AWG | 7/32 | Copper, Tinned | Polyurethane (PU) | 0.156" (3.96mm) | - | Enter Number of Feet in Order Quantity | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
|
78022 SL199CABLE 2COND 24AWG SLATE FEET |
1,058 |
|
数据手册 |
EcoCable® Mini | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 24 AWG | 19/36 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.112" (2.84mm) | - | Enter Number of Feet in Order Quantity | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - | |
|

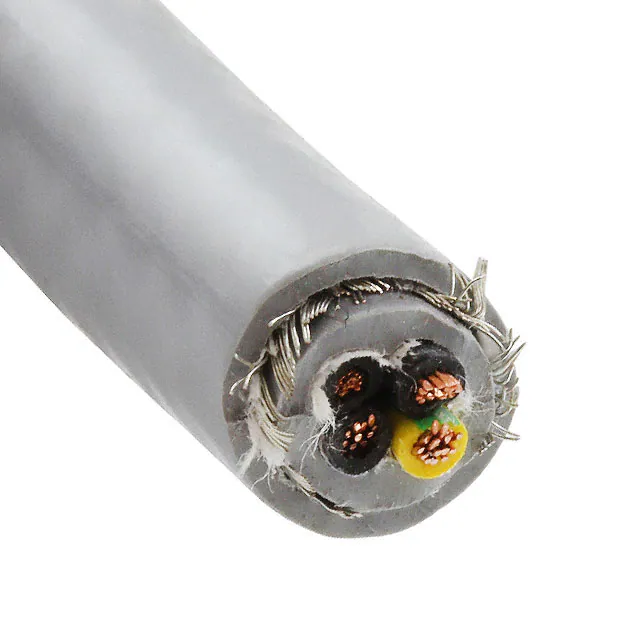

80134 SL005CABLE 4COND 18AWG SLATE SHLD |
400 |
|
数据手册 |
EcoFlex® PUR | Spool | Active | Multi-Conductor | 4 | 18 AWG | 41/34 | Copper, Tinned | Polyurethane (PU) | 0.249" (6.32mm) | Braid | 100.0' (30.5m) | Slate | - | - | 600 V | -50°C ~ 90°C | - | 0.0319" (0.810mm) | Polyphenylene Ether (PPE) | - | |
|
19401 010250CABLE 3COND 18AWG BLACK SHLD |
2,500 |
|
数据手册 |
Classics | Spool | Active | Multi-Conductor | 3 | 18 AWG | 42/34 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.270" (6.86mm) | Foil | 250.0' (76.2m) | Black | UL Style SVT | Drain Wire | 300 V | - | Cord and Cordset | 0.0430" (1.092mm) | Poly-Vinyl Chloride (PVC) | - | |
|
|
30-02666CBL 6CON 26AWG BLK BIO METER |
860 |
|
数据手册 |
- | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 6 | 26 AWG | 26/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.153" (3.89mm) | - | Enter Number of Meters in Order Quantity | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - | |
|
|
30-02354CBL 4CON 24AWG BLK TPU |
905 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 4 | 24 AWG | 26/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.173" (4.39mm) | - | Enter Number of Meters in Order Quantity | Black | UL Style 20280 | - | 300 V | -40°C ~ 80°C | - | 0.0299" (0.759mm) | Thermoplastic Elastomer (TPE) | - | |
|
78102 SL199CABLE 2CON 28AWG SLATE SHLD FEET |
516 |
|
数据手册 |
EcoCable® Mini | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 28 AWG | 19/40 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.098" (2.48mm) | Foil | Enter Number of Feet in Order Quantity | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - | |
|

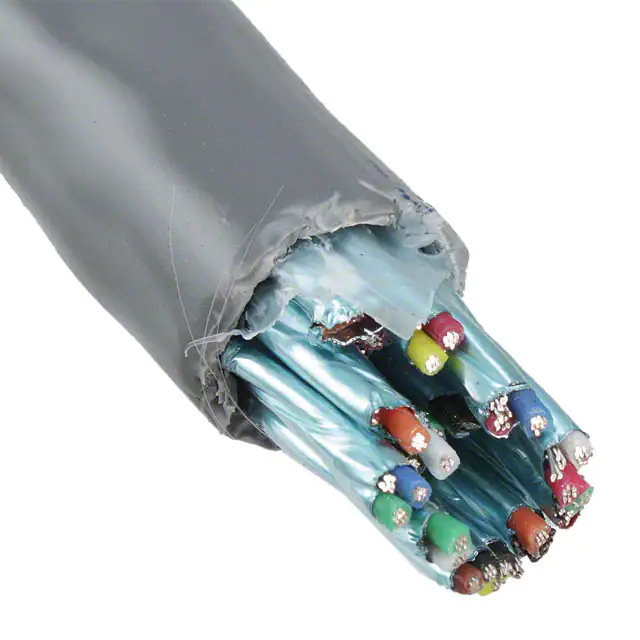

5480/15C SL002MULTI-PAIR 30COND 24AWG |
500 |
|
数据手册 |
- | Spool | Active | Multi-Pair | 30 (15 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.415" (10.54mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - | |
|
601804CYCABLE 4COND 18AWG GRAY SHLD FEET |
736 |
|
数据手册 |
ÖLFLEX® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 18 AWG | 32/0.0083" | Copper, Bare | Thermoplastic Polymer | 0.390" (9.91mm) | Braid | Enter Number of Feet in Order Quantity | Gray | - | - | - | - | - | - | Poly-Vinyl Chloride (PVC) | - | |
|
CF880-05-18PVC 18C/20AWG CONTROL 300V FEET |
550 |
|
数据手册 |
chainflex® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 18 | 20 AWG | - | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.453" (11.51mm) | - | Enter Number of Feet in Order Quantity | Black | UL Style 2464 | Flame Retardant | 300 V | - | Industrial | - | Poly-Vinyl Chloride (PVC) | - | |
|
|
11131004SJOOW UL/CSA 4C AWG10 FEET |
537 |
|
数据手册 |
HELUPOWER® SJOOW | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 10 AWG | - | Copper, Bare | Chlorinated Polyethylene (CPE) | 0.701" (17.81mm) | - | Enter Number of Feet in Order Quantity | Black | UL Style SJOOW | Flame Retardant, Oil Resistant, UV Resistant | 300 V | -40°C ~ 90°C | - | - | Ethylene-Propylene Rubber (EPR) | - | |
|
8458MN 008100CABLE 15COND 22AWG GRAY |
2,600 |
|
数据手册 |
SpaceMaker™ | Spool | Active | Multi-Conductor | 15 | 22 AWG | 19/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.267" (6.78mm) | - | 100.0' (30.5m) | Gray | - | - | - | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0160" (0.406mm) | Polypropylene (PP) | - | |
|
302408SCABLE 8COND 24AWG GRAY SHLD FEET |
1,123 |
|
数据手册 |
Unitronic® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 8 | 24 AWG | - | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.248" (6.30mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Gray | - | Drain Wire, Oil Resistant, UV Resistant | 300 V | - | Industrial, Signal, Control | - | Poly-Vinyl Chloride (PVC) | - | |
|
902012 SL001CABLE 12COND 20AWG SLATE FEET |
600 |
|
数据手册 |
Xtra-Guard® Flex | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 12 | 20 AWG | 10/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.453" (11.51mm) | - | Enter Number of Feet in Order Quantity | Slate | - | - | 600 V | -30°C ~ 90°C | Industrial | 0.0550" (1.397mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
