多导体电缆
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 线规 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）直径 | 屏蔽类型 | 长度 | 护套颜色 | 额定值 | 特性 | 电压 | 工作温度 | 用途 | 护套（绝缘）厚度 | 导体绝缘 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

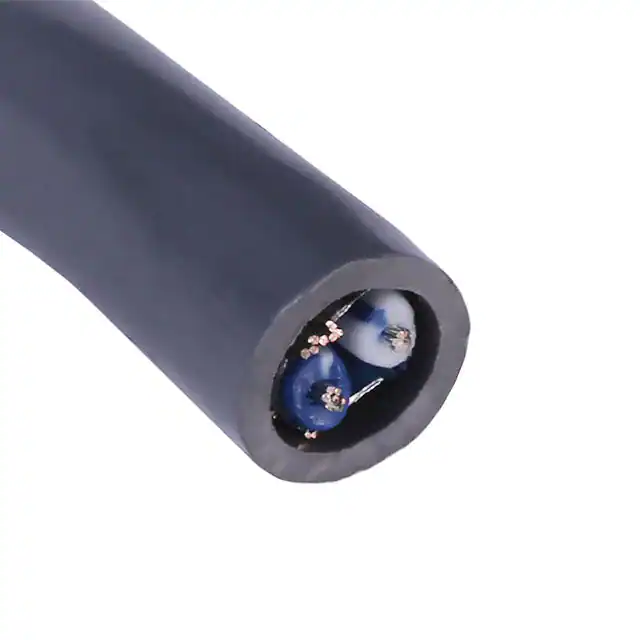

C4841A.41.10CABLE 2COND 24AWG GRAY SHLD Prysmian Group |
1,000 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.235" (5.97mm) | Foil, Braid | 1000.0' (304.8m) | Gray | UL Style 2919 | Low Capacitance | 300 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Polyethylene (PE) | - |
|

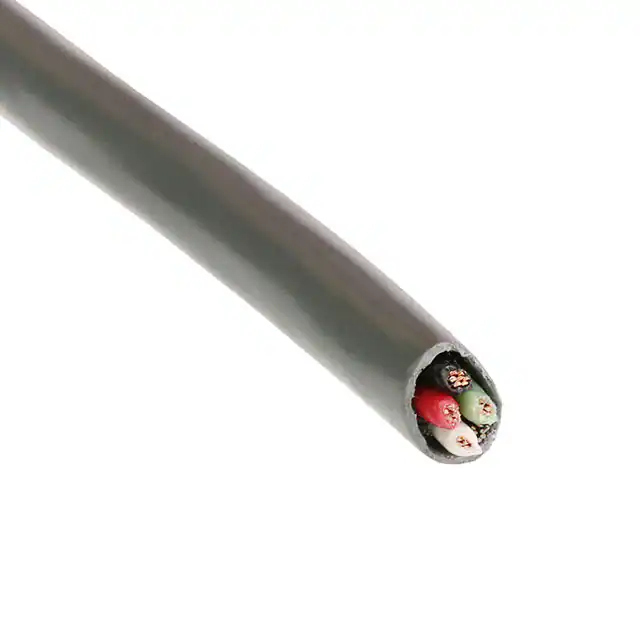

E2004S.30.10CABLE 4COND 22AWG GRAY SHLD Prysmian Group |
4,998 |
|
数据手册 |
- | Bulk | Active | Multi-Conductor | 4 | 22 AWG | 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.144" (3.66mm) | Foil | 1000.0' (304.8m) | Gray | - | Drain Wire, Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
89013.35.01CABLE 3COND 16AWG BLACK Prysmian Group |
2,760 |
|
数据手册 |
Ultra Flex® | Spool | Active | Multi-Conductor | 3 | 16 AWG | 26/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.338" (8.59mm) | - | 250.0' (76.2m) | Black | - | Oil Resistant | 300 V | -50°C ~ 105°C | Cord and Cordset | 0.0300" (0.762mm) | Thermoplastic Elastomer (TPE) | - |
|
|
E2004S.41.10CABLE 4COND 22AWG GRAY SHLD Prysmian Group |
3,537 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 4 | 22 AWG | 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.144" (3.66mm) | Foil | 1000.0' (304.8m) | Gray | - | Drain Wire, Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
02765.35T.01CABLE 3COND 16AWG BLACK Prysmian Group |
2,503 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 3 | 16 AWG | 26/30 | Copper, Annealed Bare | Carolprene | 0.390" (9.91mm) | - | 250.0' (76.2m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
C6348A.21.10CABLE 2COND 22AWG GRAY Prysmian Group |
4,699 |
|
数据手册 |
- | Bulk | Active | Multi-Conductor | 2 | 22 AWG | 7/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.130" (3.30mm) | - | 1000.0' (304.8m) | Gray | ASTM B-33 | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
C1352A.18.10MULTI-PAIR 4COND 22AWG GRAY Prysmian Group |
2,948 |
|
数据手册 |
- | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.160" (4.06mm) | Foil | 500.0' (152.4m) | Gray | - | Drain Wire | 300 V | -20°C ~ 80°C | Communication, Control | 0.0200" (0.508mm) | Polypropylene (PP) | - |
|
C2534A.38.10CABLE 2COND 18AWG GRAY SHLD Prysmian Group |
1,863 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.201" (5.11mm) | Foil | 500.0' (152.4m) | Gray | - | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0200" (0.508mm) | Polyethylene (PE) | - |
|

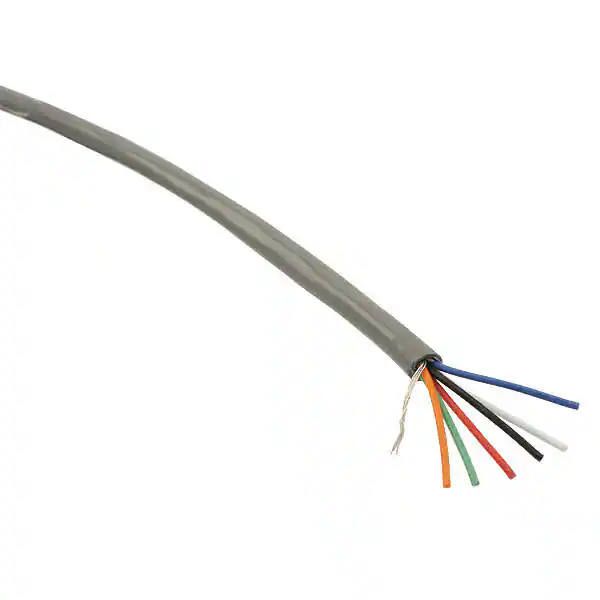

C0763A.18.10CABLE 6COND 22AWG GRAY SHLD Prysmian Group |
4,173 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 6 | 22 AWG | 7/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.219" (5.56mm) | Foil | 500.0' (152.4m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

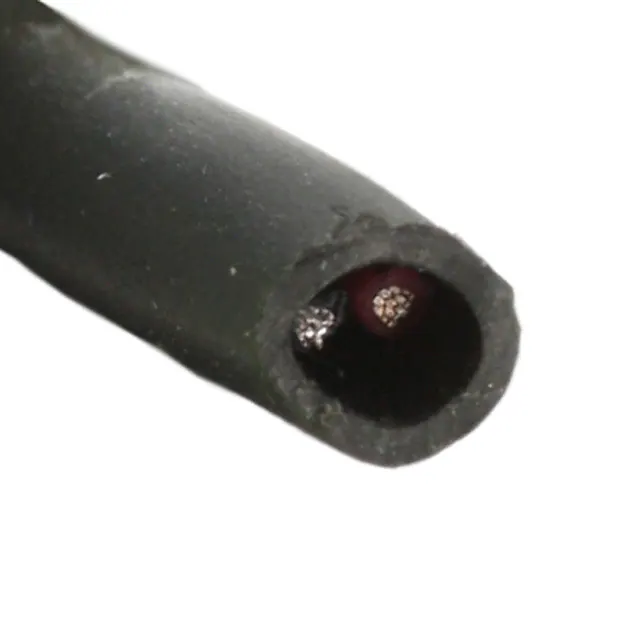

C1228A.21.01CABLE 2COND 24AWG BLACK SHLD Prysmian Group |
4,967 |
|
数据手册 |
- | Bulk | Active | Multi-Conductor | 2 | 24 AWG | 19/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.135" (3.43mm) | Foil | 1000.0' (304.8m) | Black | - | Drain Wire | 300 V | -20°C ~ 75°C | Audio-Video, Home | 0.0210" (0.533mm) | Polypropylene (PP) | - |
