多导体电缆
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 线规 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）直径 | 屏蔽类型 | 长度 | 护套颜色 | 额定值 | 特性 | 电压 | 工作温度 | 用途 | 护套（绝缘）厚度 | 导体绝缘 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9508 0601000MULTI-PAIR 16COND 24AWG |
2,000 |
|
数据手册 |
Classics | Spool | Active | Multi-Pair | 16 (8 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.324" (8.23mm) | Foil | 1000.0' (304.8m) | Chrome | UL Style 2464 | Drain Wire | 300 V | -30°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
8302 060100MULTI-PAIR 4COND 22AWG CHROME |
500 |
|
数据手册 |
Classics | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.280" (7.11mm) | Foil, Braid | 100.0' (30.5m) | Chrome | UL Style 2464 | - | - | -30°C ~ 80°C | Computer | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - | |
|

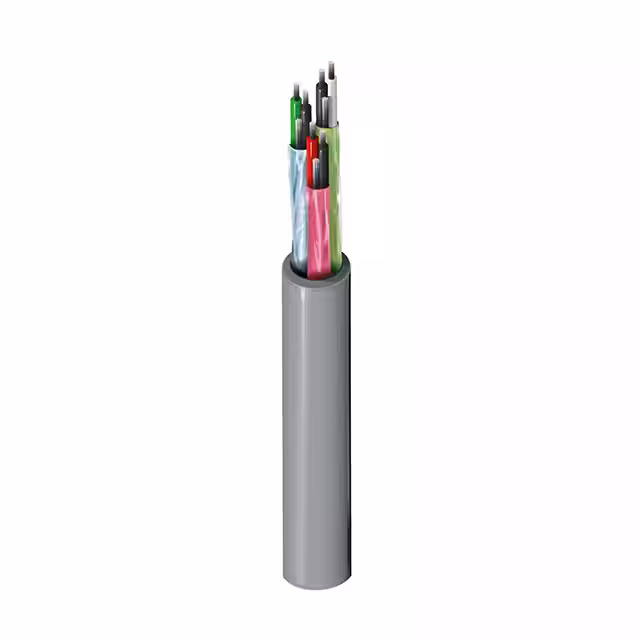

9773 060500MULTI-PAIR 6COND 18AWG CHROME |
1,500 |
|
数据手册 |
Classics | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 18 AWG | 19/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.404" (10.26mm) | Foil | 500.0' (152.4m) | Chrome | - | Drain Wire | - | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0350" (0.889mm) | Polypropylene (PP) | - | |
|

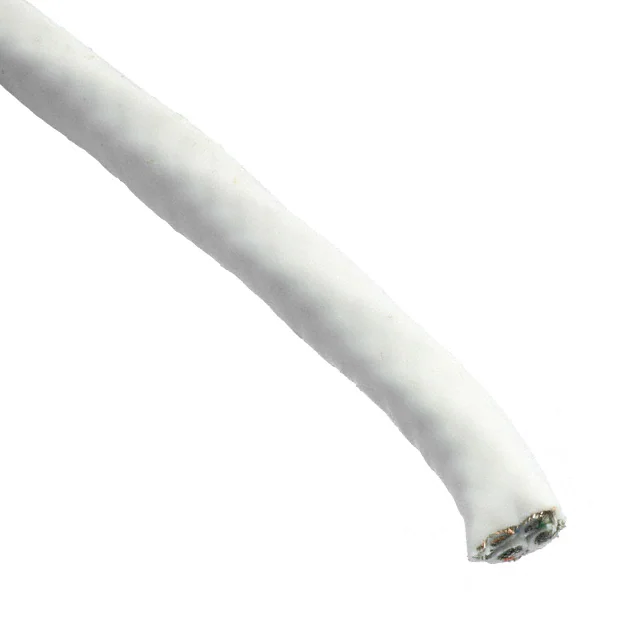

275002004 NA005CABLE 4COND 20AWG NATURAL SHLD |
2,600 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 4 | 20 AWG | 19/32 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.187" (4.75mm) | Braid | 100.0' (30.5m) | Natural | - | - | 600 V | -55°C ~ 150°C | - | 0.0098" (0.250mm) | Ethylene Tetrafluoroethylene (ETFE) | - | |
|
601404CABLE 4COND 14AWG GRAY FEET |
8,917 |
|
数据手册 |
ÖLFLEX® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 14 AWG | 50/0.0102" | Copper, Bare | Thermoplastic Polymer | 0.386" (9.80mm) | - | Enter Number of Feet in Order Quantity | Gray | - | Oil Resistant | - | - | Industrial | - | Poly-Vinyl Chloride (PVC) | - | |
|
5364C SL265CABLE 4CON 16AWG SLATE SHLD FEET |
1,493 |
|
数据手册 |
Xtra-Guard® 1 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.292" (7.42mm) | Foil | Enter Number of Feet in Order Quantity | Slate | - | Drain Wire, Oil Resistant, Rip Cord, UV Resistant | 300 V | -30°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
2170489CABLE CAT5E 8CON 26AWG TEAL FEET |
3,609 |
|
数据手册 |
ETHERLINE® | Digi-Spool®, Continuous Spool | Active | Multi-Pair, Cat5e | 8 (4 Pair Twisted) | 26 AWG | - | Copper, Bare | Polyurethane (PU) | 0.248" (6.30mm) | Braid | Enter Number of Feet in Order Quantity | Teal | UL Style 21576 | Abrasion Resistant, Oil Resistant | 1000 V | - | Industrial, Network | - | Polyolefin (PO) | - | |
|
3600B/40 100SFMULTI-PAIR 40CON 28AWG BEIGE |
300 |
|
数据手册 |
3600X | Spool | Active | Multi-Pair | 40 (20 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.300" (7.62mm) | Foil, Braid | 100.0' (30.5m) | Beige | - | Splice Free | 30 V | - | Communication, Computer, Control | 0.0260" (0.660mm) | Poly-Vinyl Chloride (PVC) | - | |
|
302004SCABLE 4COND 20AWG GRAY SHLD FEET |
4,000 |
|
数据手册 |
Unitronic® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 20 AWG | - | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.289" (7.34mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Gray | - | Drain Wire, Oil Resistant, UV Resistant | 300 V | - | Industrial, Signal, Control | - | Poly-Vinyl Chloride (PVC) | - | |
|

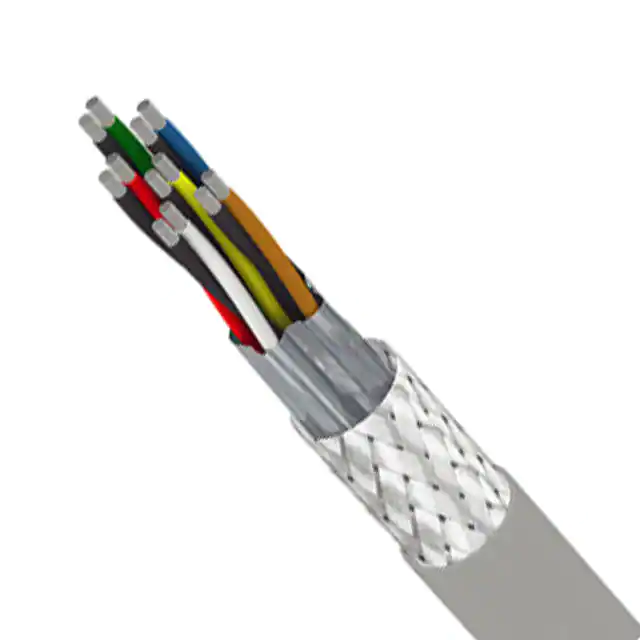

76706TS 008100MULTI-PAIR 12COND 22AWG GRAY |
2,100 |
|
数据手册 |
MachFlex™ | Spool | Active | Multi-Pair | 12 (6 Pair) | 22 AWG | 19/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.377" (9.58mm) | Foil, Braid | 100.0' (30.5m) | Gray | UL Style 20006 | Drain Wire, Oil Resistant | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - | |
|
30-00938CABLE 8COND 24AWG BLACK SHLD |
153 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 8 | 24 AWG | 26/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.236" (5.99mm) | Braid | 502.0' (153.0m) | Black | UL Style 20280 | Drain Wire | 300 V | -40°C ~ 80°C | - | 0.0335" (0.851mm) | Thermoplastic Elastomer (TPE) | - | |
|
302206SCABLE 6COND 22AWG GRAY SHLD FEET |
3,160 |
|
数据手册 |
Unitronic® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 6 | 22 AWG | - | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.252" (6.40mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Gray | - | Drain Wire, Oil Resistant, UV Resistant | 300 V | - | Industrial, Signal, Control | - | Poly-Vinyl Chloride (PVC) | - | |
|
|
9412 060500CABLE 2COND 12AWG CHROMEE |
500 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 (1 Pair) | 12 AWG | 65/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.370" (9.40mm) | - | 500.0' (152.4m) | Chrome | UL Style 2464 | Rip Cord | 300 V | -30°C ~ 105°C | Instrumentation | 0.0420" (1.067mm) | Poly-Vinyl Chloride (PVC) | - | |
|
1552210025CABLE 5COND 22AWG BLACK SHLD |
4,600 |
|
数据手册 |
Flamar 155221 | Spool | Active | Multi-Conductor | 5 | 22 AWG | 42/0.0039" | Copper, Bare | Weld-Slag Oil Resistant (WSOR) | 0.240" (6.10mm) | Braid | 328.1' (100.0m) | Black | UL Style 21215 | - | 600 V | -25°C ~ 80°C | Industrial, Signal, Control | - | Thermoplastic Elastomer (TPE) | - | |
|
|
601812CABLE 12COND 18AWG GRAY FEET |
9,776 |
|
数据手册 |
ÖLFLEX® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 12 | 18 AWG | 32/0.0083" | Copper, Bare | Thermoplastic Polymer | 0.471" (11.96mm) | - | Enter Number of Feet in Order Quantity | Gray | - | Oil Resistant | - | - | Industrial | - | Poly-Vinyl Chloride (PVC) | - | |
|
302210CABLE 10COND 22AWG GRAY FEET |
3,089 |
|
数据手册 |
Unitronic® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 10 | 22 AWG | - | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.289" (7.34mm) | - | Enter Number of Feet in Order Quantity | Gray | - | - | 300 V | - | - | - | Poly-Vinyl Chloride (PVC) | - | |
|

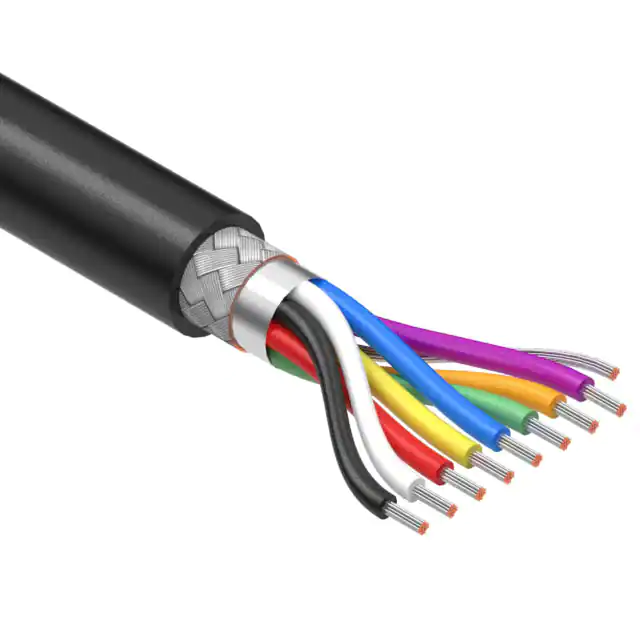

30-01077CABLE 8COND 22AWG BLACK SHLD |
3,978 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 8 | 22 AWG | 17/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.272" (6.91mm) | Foil, Braid | 502.0' (153.0m) | Black | UL Style 2464 | Drain Wire | 300 V | -25°C ~ 80°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - | |
|

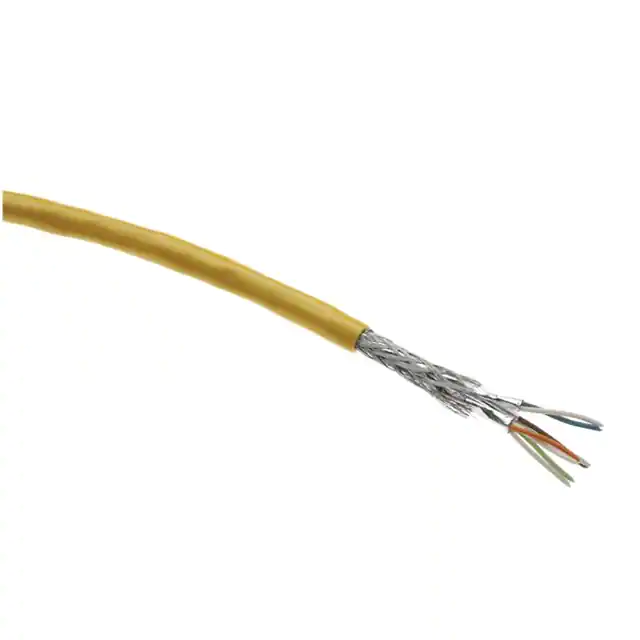

09456000620CABLE CAT6A 8CON 26AWG YELLOW |
16,500 |
|
数据手册 |
- | Spool | Active | Multi-Pair, Cat6a | 8 (4 Pair Twisted) | 26 AWG | 7/26 | - | Polyurethane (PU) | 0.272" (6.91mm) | Foil, Braid | 1640.4' (500.0m) | Yellow | - | - | - | -40°C ~ 80°C | Industrial Environments - IP65 | - | Polyethylene (PE) | - | |
|

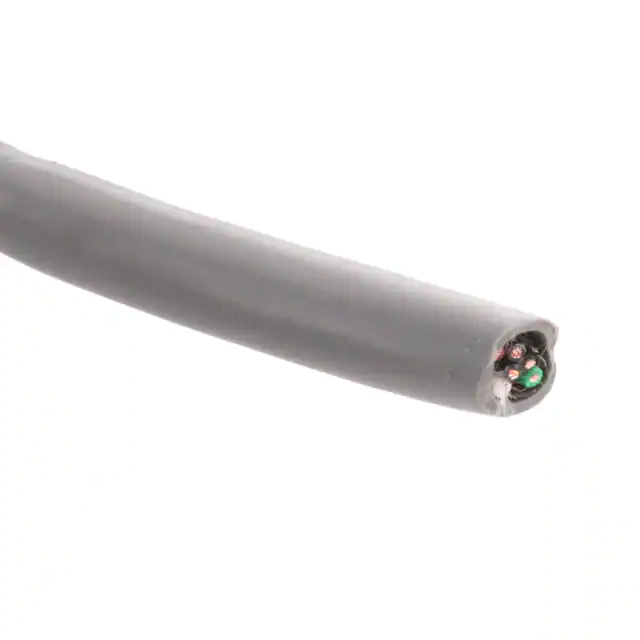

8303 060100MULTI-PAIR 6COND 22AWG CHROME |
2,100 |
|
数据手册 |
Classics | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.294" (7.47mm) | Foil, Braid | 100.0' (30.5m) | Chrome | UL Style 2464 | - | - | -30°C ~ 80°C | Computer | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - | |
|
M13149 SL005MULTI-PAIR 18COND 20AWG |
500 |
|
数据手册 |
- | Spool | Active | Multi-Pair | 18 (9 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.522" (13.26mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2919 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0470" (1.194mm) | Polyethylene (PE) | - |
