电机 - 交流、直流
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 功能 | 电机类型 | 额定电压 | 转速（RPM） | 额定扭矩（oz-in / mNm） | 额定功率 | 编码器类型 | 尺寸 / 尺寸 | 轴直径 | 轴和轴承长度 | 安装孔间距 | 端接样式 | 特性 | 齿轮减速比 | 最大瞬时扭矩（oz-in / mNm） | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PHUA8060-35A-33-000VIBRATION PIEZO MOTOR 24V HAPTIC |
1,252 |
|
数据手册 |
PiezoHapt™ | Box | Active | DC Motor | Vibration, Piezo (Haptic) | - | 24VDC | - | - | - | - | Rectangular - 3.150" x 2.362" (80.00mm x 60.00mm) | - | - | - | Solder Pad | - | - | - | -10°C ~ 60°C |
|
22V 28 208E 201STANDARD MOTOR 10000 RPM 24V |
3,289 |
|
数据手册 |
22V28 | Tray | Active | DC Motor | Standard | Brushed | 24VDC | 10000 RPM | 1.151 / 8.13 | 4.2W | - | Round - 0.866" Dia (22.00mm) | 0.079" (2.00mm) | 0.402" (10.20mm) | 0.669" (17.00mm) | Solder Tab | - | - | - | -30°C ~ 85°C |
|
82861018GEARMOTOR 108 RPM 24V |
4,962 |
|
数据手册 |
82861 | Bulk | Active | DC Motor | Gearmotor | Brushed | 24VDC | 108 RPM | 70.81 / 500 | 3.9W | - | Round - 1.268" Dia (32.20mm) | 0.157" (4.00mm) | - | 1.874" (47.60mm) | Solder Tab | - | 40 | - | - |
|
82800502STANDARD MOTOR 3070 RPM 24V |
382 |
|
数据手册 |
82800 | Bulk | Active | DC Motor | Standard | Brushed | 24VDC | 3070 RPM | 9.91 / 70 | 31W | - | Round - 1.654" Dia (42.00mm) | 0.236" (6.00mm) | 1.008" (25.60mm) | - | Solder Tab | - | - | - | - |
|
82869012GEARMOTOR 54 RPM 24V |
1,050 |
|
数据手册 |
82869 | Bulk | Active | DC Motor | Gearmotor | Brushed | 24VDC | 54 RPM | 283.3 / 2000 | 3.9W | - | Round - 1.268" Dia (32.20mm) | 0.236" (6.00mm) | 0.717" (18.20mm) | 1.874" (47.60mm) | Solder Tab | - | 80 | - | - |
|
89810008STANDARD MOTOR 2920 RPM 24V |
1,417 |
|
数据手册 |
DCmind, 89810 | Bulk | Active | DC Motor | Standard | Brushed | 24VDC | 2920 RPM | 7.08 / 50 | 15W | - | Round - 1.654" Dia (42.00mm) | 0.236" (6.00mm) | 0.984" (25.00mm) | - | Wire Leads | - | - | - | -30°C ~ 70°C |
|
8981A103GEARMOTOR 9.5 RPM 24V |
1,659 |
|
数据手册 |
DCmind, 8981A | Bulk | Active | DC Motor | Gearmotor | Brushed | 24VDC | 9.5 RPM | 1495 / 10555 | 15W | - | - | 0.315" (8.00mm) | 1.095" (27.80mm) | 1.260" (32.00mm), 1.417" (36.00mm) | Wire Leads | Key, Noise Filter | 301.68 | 2124 / 15000 | -20°C ~ 70°C |
|

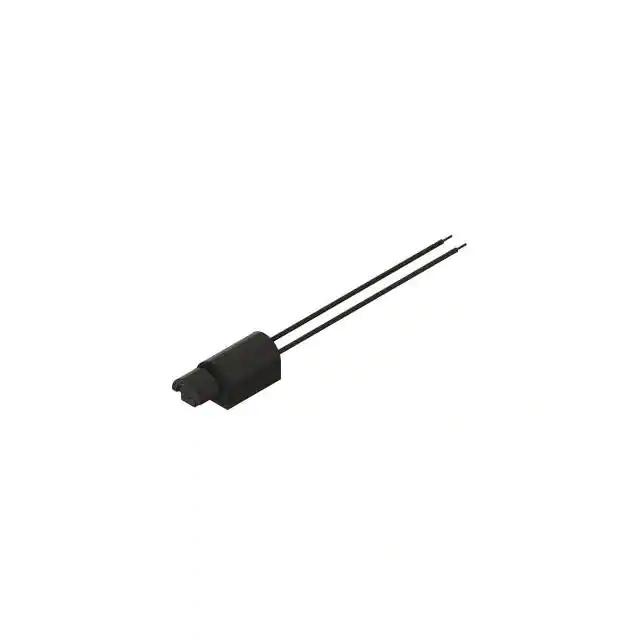

HD-EMB1205-LW30-RHD MOTOR 3VDC 30OHM 10000RPM |
1,964 |
|
数据手册 |
Haptics | Tray | Active | DC Motor | Vibration, ERM (Haptic) | - | 3VDC | 10000 RPM | - | - | - | Square - 0.197" x 0.197" (5.00mm x 5.00mm) | - | 0.157" (4.00mm) | - | Wire Leads | - | - | - | -20°C ~ 60°C |
|

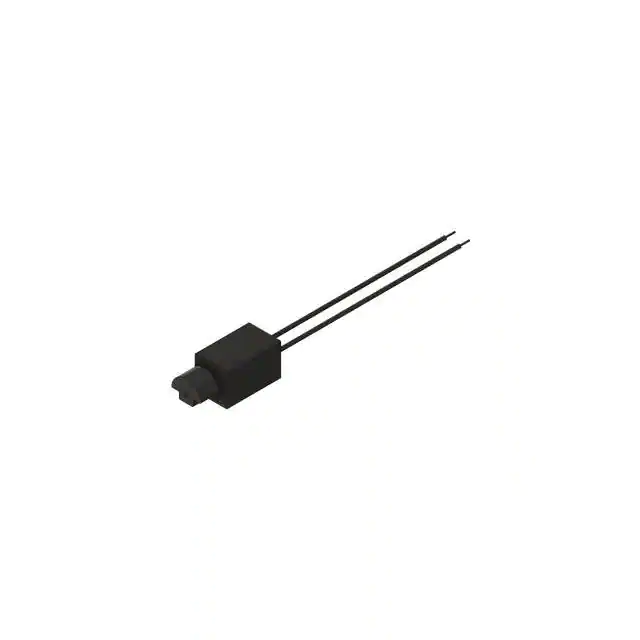

HD-EMB1205-2-LW30-RHD MOTOR 3VDC 30OHM 13000RPM |
481 |
|
数据手册 |
Haptics | Tray | Active | DC Motor | Vibration, ERM (Haptic) | - | 3VDC | 13000 RPM | - | - | - | Square - 0.197" x 0.197" (5.00mm x 5.00mm) | - | 0.150" (3.80mm) | - | Wire Leads | - | - | - | -20°C ~ 60°C |
|

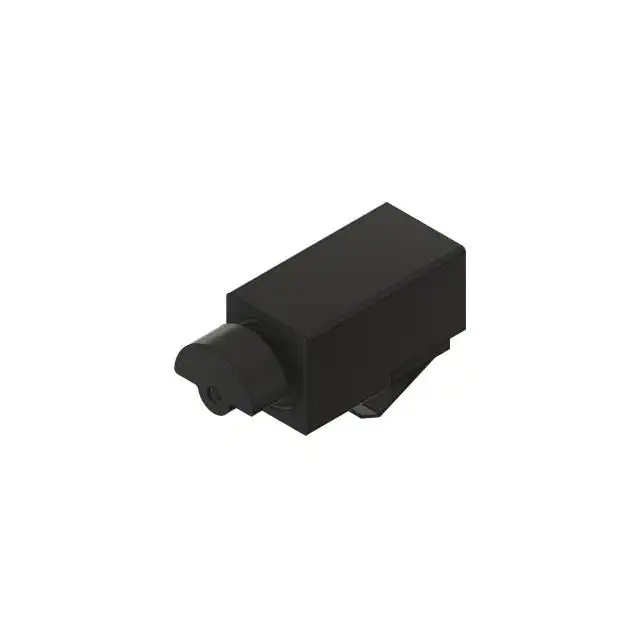

HD-EMB1205-SC-RHD MOTOR 3VDC 30OHM 12000RPM |
1,056 |
|
数据手册 |
Haptics | Tray | Active | DC Motor | Vibration, ERM (Haptic) | - | 3VDC | 12000 RPM | - | - | - | Rectangular - 0.189" x 0.181" (4.80mm x 4.60mm) | - | 0.110" (2.80mm) | - | Pressure Contact | - | - | - | -20°C ~ 60°C |
|

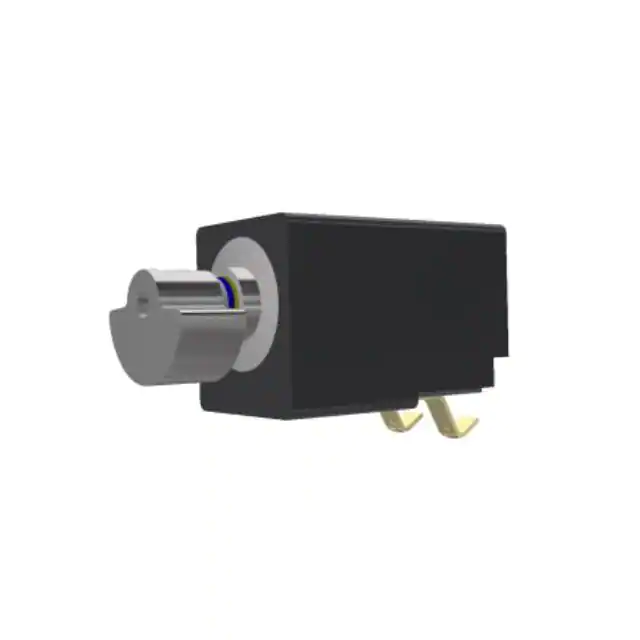

HD-EM1206-SC-RHD MOTOR 3VDC 30OHM 12000RPM |
2,440 |
|
数据手册 |
Haptics | Tray | Active | DC Motor | Vibration, ERM (Haptic) | - | 3VDC | 12000 RPM | - | - | - | Rectangular - 0.228" x 0.201" (5.80mm x 5.10mm) | - | 0.118" (3.00mm) | - | Pressure Contact | - | - | - | -20°C ~ 60°C |
|

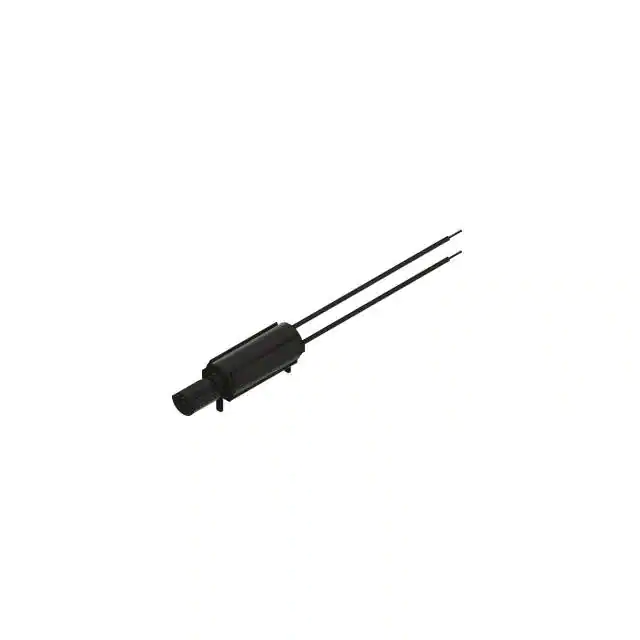

HD-EMB1604-LW26-RHD MOTOR 1.5VDC 14OHM 14000RPM |
1,052 |
|
数据手册 |
Haptics | Tray | Active | DC Motor | Vibration, ERM (Haptic) | - | 1.5VDC | 14000 RPM | - | - | - | Rectangular - 0.157" x 0.126" (4.00mm x 3.20mm) | - | 0.232" (5.90mm) | - | Wire Leads | - | - | - | -20°C ~ 60°C |
|

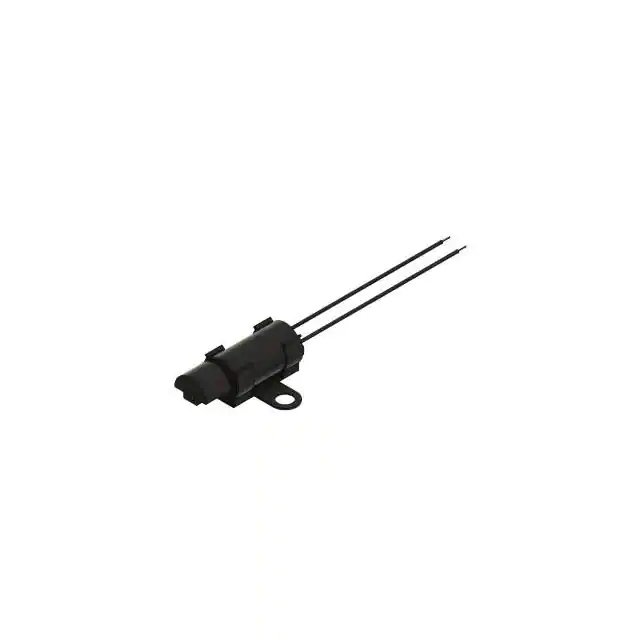

HD-EMB1806-LW32-RHD MOTOR 1.5VDC 4OHM 9000RPM |
2,932 |
|
数据手册 |
Haptics | Tray | Active | DC Motor | Vibration, ERM (Haptic) | - | 1.5VDC | 9000 RPM | - | - | - | - | - | 0.217" (5.50mm) | - | Wire Leads | - | - | - | -30°C ~ 70°C |
|
VQ4KL2BQ280001STANDARD MOTOR 19444 RPM 3V |
500 |
|
数据手册 |
- | Tray | Active | DC Motor | Standard | - | 3VDC | 19768 RPM | 0.003 / 0.022 | - | - | Round - 0.158" Dia (4.00mm) | 0.028" (0.70mm) | 0.165" (4.20mm) | - | Wire Leads | - | - | - | - |
|
HD-EM1204-LW20-RHD MOTOR 3VDC 30OHM 13000RPM |
1,835 |
|
数据手册 |
Haptics | Tray | Active | DC Motor | Vibration, ERM (Haptic) | - | 3VDC | 13000 RPM | - | - | - | Square - 0.154" x 0.154" (3.90mm x 3.90mm) | - | 0.169" (4.30mm) | - | Wire Leads | - | - | - | -30°C ~ 70°C |
|

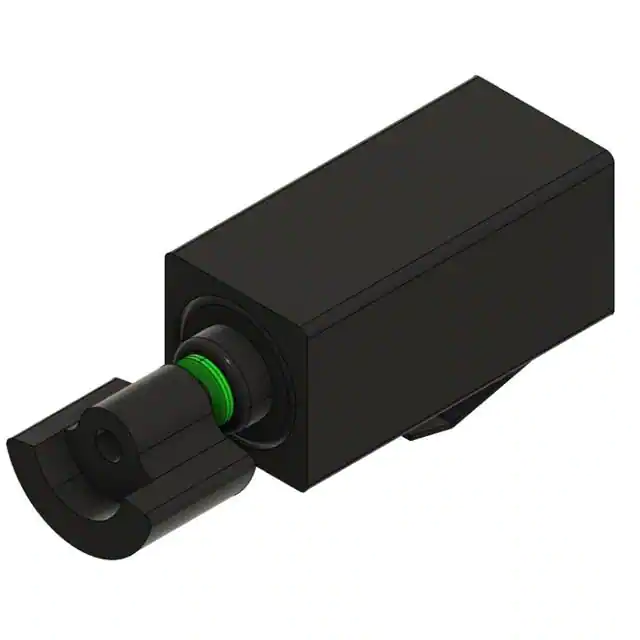

HD-EM1204-SC-RHD MOTOR 3VDC 30OHM 13000RPM |
1,753 |
|
数据手册 |
Haptics | Tray | Active | DC Motor | Vibration, ERM (Haptic) | - | 3VDC | 13000 RPM | - | - | - | Square - 0.150" x 0.150" (3.80mm x 3.80mm) | - | 0.150" (3.80mm) | - | Pressure Contact | - | - | - | -30°C ~ 70°C |
|

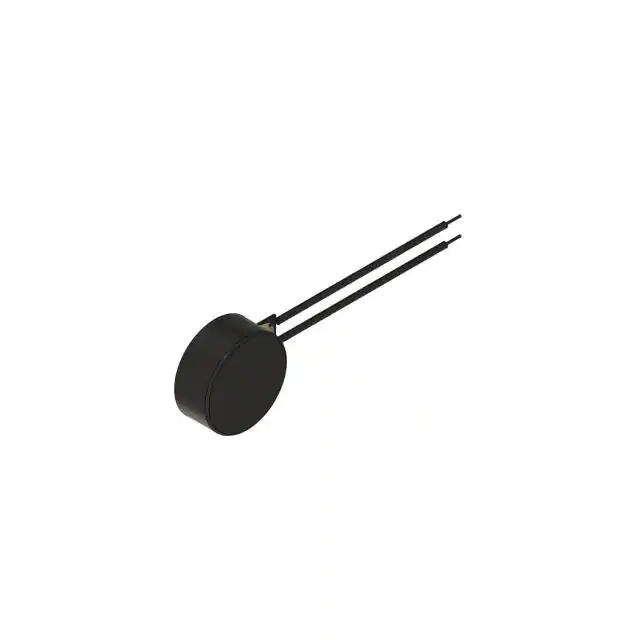

HD-EMC0803-LW20-2-RHD MOTOR 3VDC 32OHM 12000RPM |
315 |
|
数据手册 |
Haptics | Tray | Active | DC Motor | Vibration, ERM (Haptic) | - | 3VDC | 12000 RPM | - | - | - | Round - 0.315" Dia (8.00mm) | - | - | - | Wire Leads | - | - | - | -20°C ~ 60°C |
|

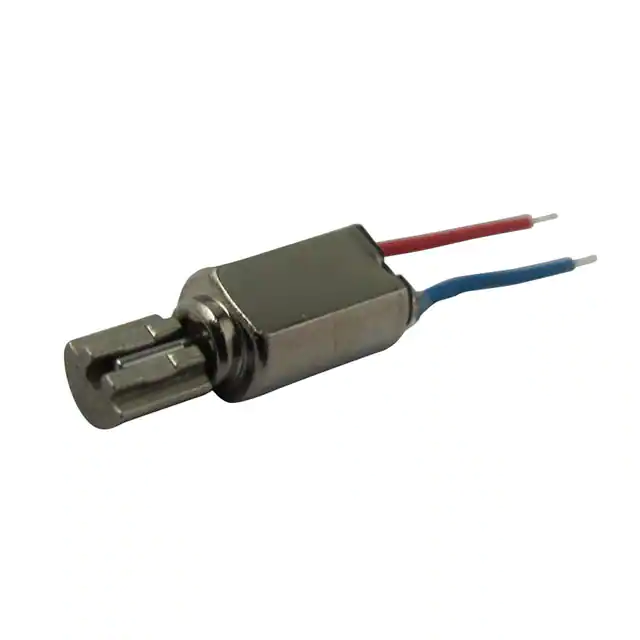

VZ30L4B8790008LVIBRATION ERM MTR 14K RPM 0.5G |
372 |
|
数据手册 |
- | Tray | Active | DC Motor | Vibration, ERM (Haptic) | - | 3VDC | 14000 RPM | - | - | - | Rectangular - 0.161" x 0.124" (4.10mm x 3.15mm) | - | 0.167" (4.25mm) | - | Wire Leads | - | - | - | -30°C ~ 70°C |
|
VC1034B846FVIBRATION ERM MOTOR 9K RPM 1G |
974 |
|
数据手册 |
- | Tray | Active | DC Motor | Vibration, ERM (Haptic) | - | 3VDC | 9000 RPM | - | - | - | Round - 0.394" Dia (10.00mm) | - | - | - | Wire Leads with Connector | - | - | - | -20°C ~ 60°C |
|
VG0832009LVIBRATION LRA MOTOR LINEAR 1G |
1,518 |
|
数据手册 |
VG | Tray | Active | AC Motor | Vibration, LRA (Haptic) | - | 1.8VAC | - | - | - | - | Round - 0.315" Dia (8.00mm) | - | - | - | Pressure Contact | - | - | - | -20°C ~ 60°C |
