光学运动传感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 传感器类型 | 感应距离 | 输出类型 | 电压 - 电源 | 触发类型 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

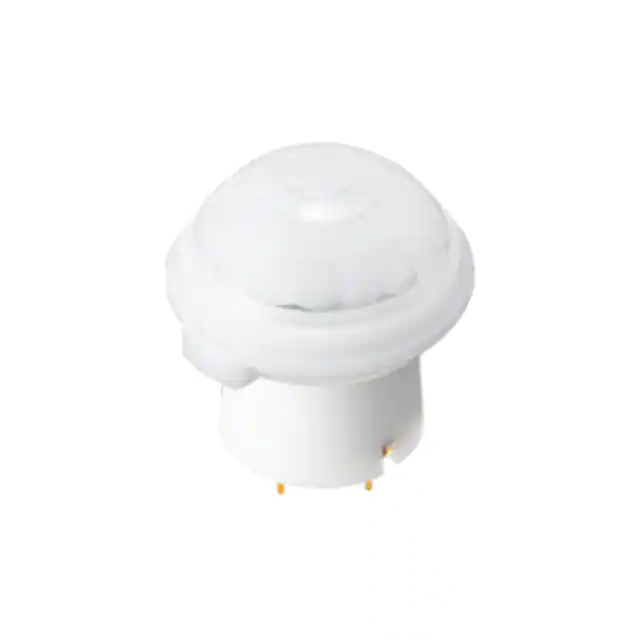

EKMB1209113SENSOR PIR 2UA DIGITAL PEARL |
3,337 |
|
数据手册 |
EKMB | Module | Tray | Active | Motion, Pyroelectric, PIR (Passive Infrared) | 161" (4.1m) 13.5' | Digital | 2.3V ~ 4V | Internal | Ultra Slight Motion Lens, Pearl White | -20°C ~ 60°C |
|
EKMB1208113SENSOR PIR 2UA DIGITAL PEARL |
1,814 |
|
数据手册 |
EKMB | Module | Tray | Active | Motion, Pyroelectric, PIR (Passive Infrared) | 232" (5.9m) 19.4' | Digital | 2.3V ~ 4V | Internal | Wide Area Lens, Pearl White | -20°C ~ 60°C |
|

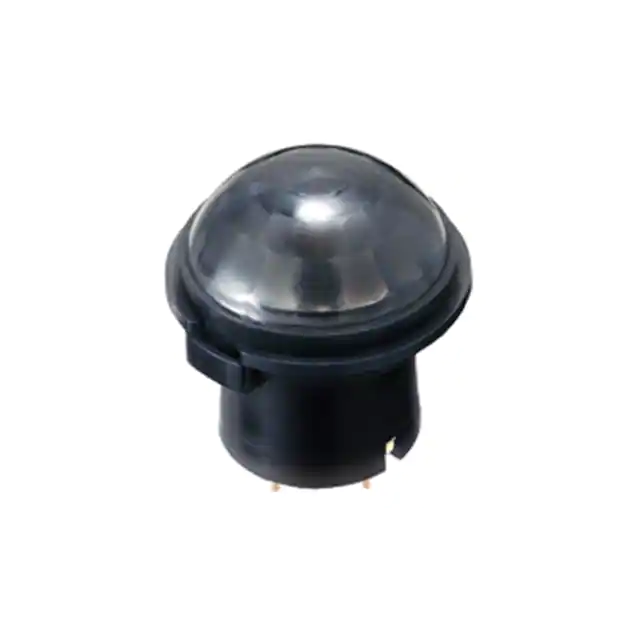

EKMB1209112SENSOR PIR 2UA DIGITAL BLACK |
2,060 |
|
数据手册 |
EKMB | Module | Tray | Active | Motion, Pyroelectric, PIR (Passive Infrared) | 161" (4.1m) 13.5' | Digital | 2.3V ~ 4V | Internal | Ultra Slight Motion Lens, Black | -20°C ~ 60°C |
|

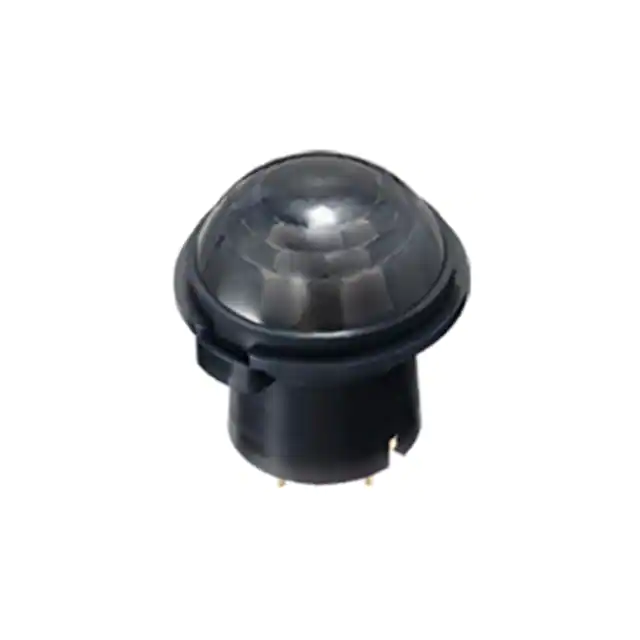

EKMB1208112SENSOR PIR 2UA DIGITAL BLACK |
3,857 |
|
数据手册 |
EKMB | Module | Tray | Active | Motion, Pyroelectric, PIR (Passive Infrared) | 232" (5.9m) 19.4' | Digital | 2.3V ~ 4V | Internal | Wide Area Lens, Black | -20°C ~ 60°C |
|
EKMB1374112KSensors |
4,108 |
|
数据手册 |
- | - | Bulk | Active | - | - | - | - | - | - | - |
|
|
EKMB4301114KSensors |
3,968 |
|
数据手册 |
- | - | Bulk | Active | - | - | - | - | - | - | - |
|
|
EKMB1211112ULUW LENS, 2UA, STD SENSITIVITY, |
2,517 |
|
数据手册 |
EKMB | Module | Tray | Active | PIR (Passive Infrared) | 590.55" (15m) 49.2' | Digital | 2.3V ~ 4V | Internal | Ultra Wide and Long Distance Lens, Black | -20°C ~ 60°C |
|
|
EKMB2611112ULUW LENS, 170UA, ADJUSTABLE SEN |
3,681 |
|
数据手册 |
EKMB | Module | Tray | Active | PIR (Passive Infrared) | 394" (10m) 32.8' | Analog | 4.5V ~ 5.5V | Internal | Ultra Wide and Long Distance Lens, Black | -20°C ~ 60°C |
|
|
EKMB1211113ULUW LENS, 2UA, STD SENSITIVITY, |
1,855 |
|
数据手册 |
EKMB | Module | Tray | Active | PIR (Passive Infrared) | 590.55" (15m) 49.2' | Digital | 2.3V ~ 4V | Internal | Ultra Wide and Long Distance Lens, Pearl White | -20°C ~ 60°C |
|
|
EKMB2611113ULUW LENS, 170UA, ADJUSTABLE SEN |
1,231 |
|
数据手册 |
EKMB | Module | Tray | Active | PIR (Passive Infrared) | 394" (10m) 32.8' | Analog | 4.5V ~ 5.5V | Internal | Ultra Wide and Long Distance Lens, Pearl White | -20°C ~ 60°C |
|
|
EKMB1211111ULUW LENS, 2UA, STD SENSITIVITY, |
3,591 |
|
数据手册 |
EKMB | Module | Tray | Active | PIR (Passive Infrared) | 590.55" (15m) 49.2' | Digital | 2.3V ~ 4V | Internal | Ultra Wide and Long Distance Lens, White | -20°C ~ 60°C |
|
|
EKMB2611111ULUW LENS, 170UA, ADJUSTABLE SEN |
1,261 |
|
数据手册 |
EKMB | Module | Tray | Active | PIR (Passive Infrared) | 394" (10m) 32.8' | Analog | 4.5V ~ 5.5V | Internal | Ultra Wide and Long Distance Lens, White | -20°C ~ 60°C |
|
EKMB4309111KSENSOR PIR 6UA DIGITAL WHITE |
2,534 |
|
数据手册 |
EKMB | Module | Tray | Active | Motion, Pyroelectric, PIR (Passive Infrared) | 144" (3.5m) 12' | Digital | 2.3V ~ 4V | Internal | Ultra Slight Motion Lens, White | -20°C ~ 60°C |
|
|
EKMB4308112KSENSOR PIR 6UA DIGITAL BLACK |
3,888 |
|
数据手册 |
EKMB | Module | Tray | Active | Motion, Pyroelectric, PIR (Passive Infrared) | 144" (3.5m) 12' | Digital | 2.3V ~ 4V | Internal | Wide Area Lens, Black | -20°C ~ 60°C |
|
|
EKMB4308113KSENSOR PIR 6UA DIGITAL PEARL |
2,839 |
|
数据手册 |
EKMB | Module | Tray | Active | Motion, Pyroelectric, PIR (Passive Infrared) | 144" (3.5m) 12' | Digital | 2.3V ~ 4V | Internal | Wide Area Lens, Pearl White | -20°C ~ 60°C |
|
|
EKMB4309113KSENSOR PIR 6UA DIGITAL PEARL |
1,532 |
|
数据手册 |
EKMB | Module | Tray | Active | Motion, Pyroelectric, PIR (Passive Infrared) | 144" (3.5m) 12' | Digital | 2.3V ~ 4V | Internal | Ultra Slight Motion Lens, Pearl White | -20°C ~ 60°C |
|
|
EKMB4309112KSENSOR PIR 6UA DIGITAL BLACK |
2,141 |
|
数据手册 |
EKMB | Module | Tray | Active | Motion, Pyroelectric, PIR (Passive Infrared) | 144" (3.5m) 12' | Digital | 2.3V ~ 4V | Internal | Ultra Slight Motion Lens, Black | -20°C ~ 60°C |
|

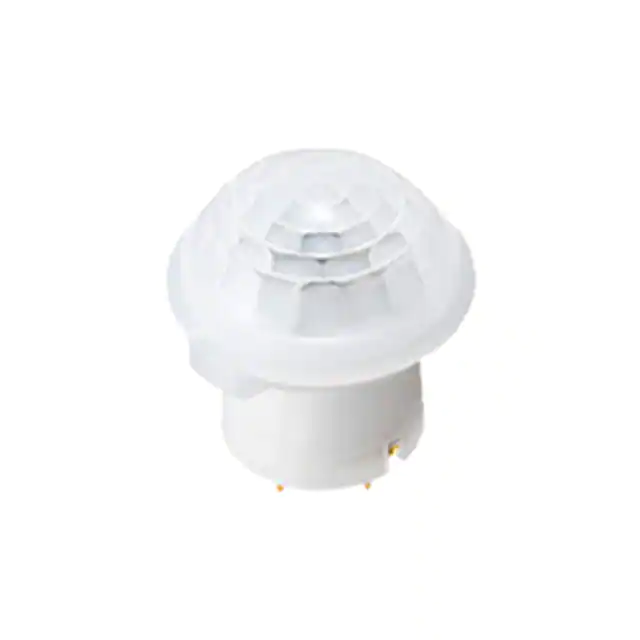

EKMB4308111KSENSOR PIR 6UA DIGITAL WHITE |
1,110 |
|
数据手册 |
EKMB | Module | Tray | Active | Motion, Pyroelectric, PIR (Passive Infrared) | 144" (3.5m) 12' | Digital | 2.3V ~ 4V | Internal | Wide Area Lens, White | -20°C ~ 60°C |
|
|
EKMB1374112Sensors |
2,130 |
|
数据手册 |
- | - | Bulk | Active | - | - | - | - | - | - | - |
|
EKMB1301112SENSOR MOTION PIR DIGITAL BLACK |
2,318 |
|
数据手册 |
EKMB | - | Tray | Obsolete | PIR (Passive Infrared) | 197" (5m) 16.4' | Digital | 2.3V ~ 4V | Internal | Standard Lens, Black | -20°C ~ 60°C |
