陀螺仪
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 轴向 | 范围 °/s | 灵敏度（LSB/(°/s)） | 灵敏度（mV/°/s） | 带宽 | 输出类型 | 电压 - 电源 | 电流 - 电源 | 特性 | 工作温度 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADXRS649BBGZ-RLIC GYROSCOPE YAW RATE 32CBGA |
2,149 |
|
数据手册 |
- | 32-BFCBGA | Tape & Reel (TR) | Active | Analog | Z (Yaw) | ±20000 | - | 0.1 | 2kHz | Analog Voltage | 4.75V ~ 5.25V | 3.5 mA | Temperature Sensor | -40°C ~ 105°C | - | - |
|
|
ADXRS646TBGZ-EP-RLIC GYROSCOPE YAW RATE 32CBGA |
1,955 |
|
数据手册 |
- | 32-BFCBGA | Tape & Reel (TR) | Active | Analog | Z (Yaw) | ±250 | - | 9 | 1kHz | Analog Voltage | 5.75V ~ 6.25V | 4 mA | Temperature Sensor | -55°C ~ 105°C | - | - |
|

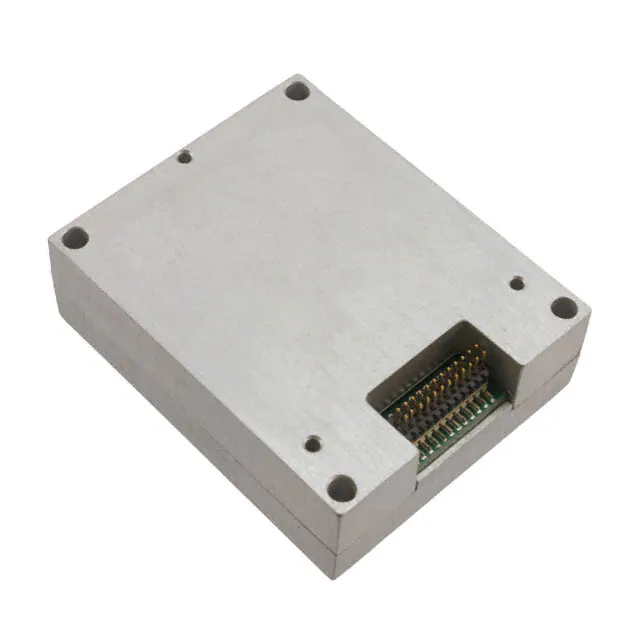

ADIS16133BMLZGYRO SENSOR 1200DEG/S 5V 335HZ |
2,329 |
|
数据手册 |
iSensor® | Module | Box | Obsolete | Digital | Z (Yaw) | ±1200 | 20 | - | 335Hz | SPI | 4.85V ~ 5.15V | 88 mA | Sleep Mode, Temperature Sensor | -40°C ~ 105°C | - | - |
|
ADXRS800WBEYZGYROSCOPE Z (YAW) SPI |
229 |
|
数据手册 |
- | 16-SOIC | Bulk | Obsolete | Digital | Z (Yaw) | ±300 | - | - | - | SPI | 3.3V ~ 5V | - | Temperature Sensor | -40°C ~ 105°C | Automotive | AEC-Q100 |
|
ADXRS622WBBGZAADXRS622 - YAW RATE GYROSCOPE |
1,881 |
|
数据手册 |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ADXRS622BBGZIC GYROSCOPE YAW RATE 32CBGA |
2,125 |
|
数据手册 |
- | 32-BFCBGA | Box | Active | Analog | Z (Yaw) | ±300 | - | 7 | 0.01Hz ~ 2.5kHz | Analog Voltage | 4.75V ~ 5.25V | 3.5 mA | Adjustable Bandwidth, Temperature Sensor | -40°C ~ 105°C | - | - |
|
ADXRS450BRGZSENS GYRO 300DEG/S DGTL 16SOIC |
4,782 |
|
数据手册 |
- | 16-SOIC (0.307", 7.80mm Width) | Tube | Active | Digital | Z (Yaw) | ±300 | 80 | - | 80Hz | SPI | 3.15V ~ 5.25V | 6 mA | Temperature Sensor | -40°C ~ 105°C | - | - |
|
|
ADXRS652BBGZIC GYROSCOPE YAW RATE 32-CBGA |
4,488 |
|
数据手册 |
- | 32-BFCBGA | Tray | Active | Analog | Z (Yaw) | ±250 | - | 7 | 0.01Hz ~ 2.5kHz | Analog Voltage | 4.75V ~ 5.25V | 3.5 mA | Adjustable Bandwidth, Temperature Sensor | -40°C ~ 105°C | - | - |
|
ADIS16260BCCZIC SENSOR GYRO PROGR 10MV 20LGA |
1,095 |
|
数据手册 |
- | 20-BFLGA | Bulk | Active | Digital | Z (Yaw) | ±80, 160, 320 | 13 ~ 54 | - | 50Hz ~ 330Hz | SPI | 4.75V ~ 5.25V | 41 mA | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 105°C | - | - |
|
ADIS16060BCCZIC GYROSCOPE YAW RATE SPI 16LGA |
2,848 |
|
数据手册 |
- | 16-BFLGA | Tray | Active | Digital | Z (Yaw) | ±80 | 81 | - | 1kHz | SPI | 4.75V ~ 5.25V | 4.3 mA | Adjustable Bandwidth, Temperature Sensor | -40°C ~ 105°C | - | - |
|
ADIS16135BMLZMODULE GYRO W/CONN |
4,024 |
|
数据手册 |
iSensor® | Module | Tray | Active | Digital | Z (Yaw) | ±300 | 80 | - | 335Hz | SPI | 4.85V ~ 5.25V | 88 mA | Sleep Mode, Temperature Sensor | -40°C ~ 105°C | - | - |
|
ADIS16136AMLZGYROSCOPE DIGITAL 24MSM |
1,703 |
|
数据手册 |
iSensor® | Module | Tray | Active | Digital | Z (Yaw) | ±450 | 14007 | - | 380Hz | SPI | 4.75V ~ 5.25V | 120 mA | Sleep Mode, Temperature Sensor | -40°C ~ 85°C | - | - |
|
|
ADXRS624BBGZIC GYROSCOPE YAW RATE 32CBGA |
1,102 |
|
数据手册 |
- | 32-BFCBGA | Tray | Active | Analog | Z (Yaw) | ±50 | - | 25 | 1Hz ~ 1kHz | Analog Voltage | 4.75V ~ 5.25V | 3.5 mA | Adjustable Bandwidth, Temperature Sensor | -40°C ~ 105°C | - | - |
|
|
SCR410T-K03-004GYROSCOPE X AXIS 300DPS |
4,686 |
|
数据手册 |
SCC400T | 16-SOIC (0.295", 7.50mm Width) | Bag | Active | Digital | X (Pitch) | ±300 | 80 | - | 13Hz ~ 300Hz | SPI | 3V ~ 3.6V | - | Temperature Sensor | -40°C ~ 110°C | - | - |
|
|
SCR410T-K03-05GYROSCOPE X AXIS 300DPS |
4,965 |
|
数据手册 |
SCC400T | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Digital | X (Pitch) | ±300 | 80 | - | 13Hz ~ 300Hz | SPI | 3V ~ 3.6V | - | Temperature Sensor | -40°C ~ 110°C | - | - |
|
ADXRS614BBGZIC SENSOR GYRO 25MV 50D/S 32CBGA |
2,935 |
|
数据手册 |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ADIS16305AMLZMODULE GYRO W/CONN |
3,920 |
|
数据手册 |
- | Module | Tray | Obsolete | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±75, 150, 300 | 20 ~ 80 | - | 330Hz | SPI | 4.75V ~ 5.25V | 42 mA | Adjustable Bandwidth, Sleep Mode, Temperature Sensor | -40°C ~ 85°C | - | - |
|
L20G20ISTRULTRA-COMPACT TWO-AXIS GYROSCOPE |
4,255 |
|
数据手册 |
- | 12-WFLGA | Tape & Reel (TR) | Obsolete | Digital | X (Pitch), Y (Roll) | ±100, 200 | 131 ~ 262 | - | 450Hz | I2C, SPI | 1.7V ~ 3.6V | 1.4 mA | Temperature Sensor | -40°C ~ 85°C | - | - |
|

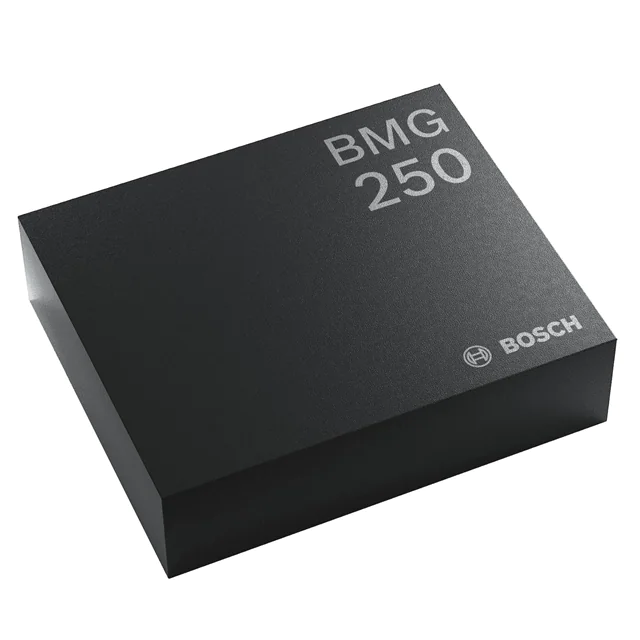

BMG250GYROSCOPE 3-AXIS SPI/I2C SMD |
4,515 |
|
数据手册 |
- | 14-LGA | Tape & Reel (TR) | Obsolete | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±125, 250, 500, 1000, 2000 | 16.4 ~ 262.4 | - | 25Hz ~ 3200Hz | I2C, SPI | 1.71V ~ 3.6V | 850 µA | Adjustable Bandwidth, Selectable Scale, Sleep Mode | -40°C ~ 85°C | - | - |
|
BMG160GYROSCOPE 3-AXIS SPI/I2C SMD |
4,809 |
|
数据手册 |
- | 12-VFLGA | Tape & Reel (TR) | Obsolete | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±125, 250, 500, 1000, 2000 | 16.4 ~ 262.4 | - | 12Hz ~ 230Hz | I2C, SPI | 2.4V ~ 3.6V | 5 mA | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 85°C | - | - |
