陀螺仪
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 轴向 | 范围 °/s | 灵敏度（LSB/(°/s)） | 灵敏度（mV/°/s） | 带宽 | 输出类型 | 电压 - 电源 | 电流 - 电源 | 特性 | 工作温度 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IAM-20380HTSENSOR ACCELEROMETER TDK InvenSense |
1,583 |
|
数据手册 |
- | 16-WFLGA Module | Tape & Reel (TR) | Active | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±250, 500, 1000, 2000 | 16.4 ~ 131 | - | 5Hz ~ 250Hz | I2C, SPI | 1.71V ~ 3.6V | 2.6 mA | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 85°C | Automotive | AEC-Q100 |
|
IAM-20380SENSOR GYROSCOPE TDK InvenSense |
19,014 |
|
数据手册 |
- | 16-WFLGA Module | Tape & Reel (TR) | Active | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±250, 500, 1000, 2000 | 16.4 ~ 131 | - | 27kHz | I2C, SPI | 1.71V ~ 3.6V | - | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 85°C | Automotive | AEC-Q100 |
|

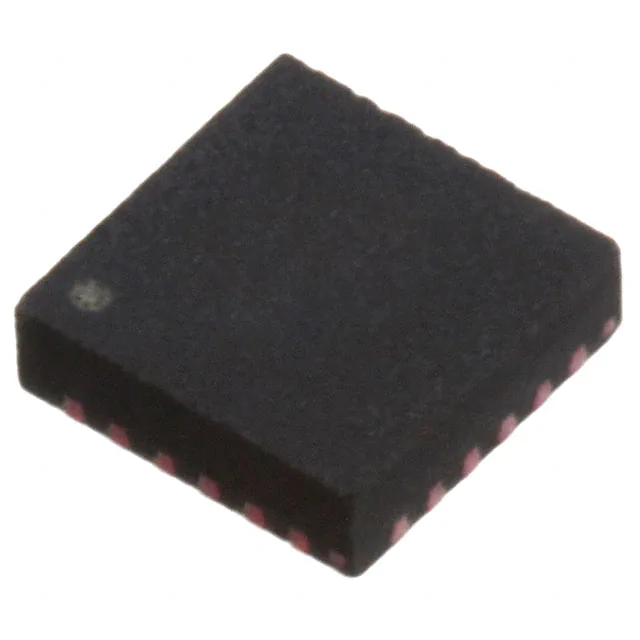

ITG-3400MEMS GYROSCOPE 3-AXIS 24QFN TDK InvenSense |
1,339 |
|
数据手册 |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±250, 500, 1000, 2000 | 16.4 ~ 131 | - | 4kHz | I2C, SPI | 1.71V ~ 3.45V | 3.2 mA | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 85°C | - | - |
|
|
MPU-3050GYRO/ACCELEROMETER 3-AXIS 24QFN TDK InvenSense |
3,036 |
|
数据手册 |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±250, 500, 1000, 2000 | 16.4 ~ 131 | - | 33kHz (X), 30kHz (Y), 27kHz (Z) | I2C | 2.1V ~ 3.6V | 6.1 mA | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 105°C | - | - |
|
|
IMU-30003-AXIS MOTION SENSOR GYROSCOPE TDK InvenSense |
4,550 |
|
数据手册 |
- | Module | Tape & Reel (TR) | Obsolete | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±250, 500, 1000, 2000 | 16.4 ~ 131 | - | 5Hz ~ 256Hz | I2C | 2.1V ~ 3.6V | 6.5 mA | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 105°C | - | - |
|
ITG-10103-AXIS GYROSCOPE; LOW POWER SOLU TDK InvenSense |
1,201 |
|
数据手册 |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±250, 500, 1000, 2000 | 16.4 ~ 131 | - | 16kHz | I2C, SPI | 1.71V ~ 3.6V | 3.2 mA | Adjustable Bandwidth, Selectable Scale, Temperature Sensor | -40°C ~ 85°C | - | - |
|
|
ICG-1020STHINNEST DUAL-AXIS OIS OPTIMIZED TDK InvenSense |
1,935 |
|
数据手册 |
- | 12-WFLGA | Tape & Reel (TR) | Obsolete | Digital | X (Pitch), Y (Roll) | ±46.5, 374 | - | - | 32kHz | SPI | 1.71V ~ 3.6V | - | Sleep Mode, Temperature Sensor | -40°C ~ 85°C | - | - |
|
|
MPU-3300GYROSCOPE 3-AXIS I2C 24QFN TDK InvenSense |
3,071 |
|
数据手册 |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±225, 450 | 7.28 ~ 145.6 | - | 33kHz (X), 30kHz (Y), 27kHz (Z) | I2C, SPI | 2.375V ~ 3.46V | 3.6 mA | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 125°C | - | - |
|
ISZ-2510MEMS GYROSCOPE 1-AXIS 16QFN TDK InvenSense |
3,259 |
|
数据手册 |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Digital | Z (Yaw) | ±250, 500, 1000, 2000 | 16.4 ~ 131 | - | 5Hz ~ 8.8kHz | I2C, SPI | 1.71V ~ 3.6V | 2.8 mA | Adjustable Bandwidth, Selectable Scale, Temperature Sensor | -40°C ~ 85°C | - | - |
|
IXZ-2510MEMS GYROSCOPE 2-AXIS 16QFN TDK InvenSense |
3,635 |
|
数据手册 |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Digital | X (Pitch), Z (Yaw) | ±250, 500, 1000, 2000 | 16.4 ~ 131 | - | 250Hz ~ 3.6kHz | I2C, SPI | 1.71V ~ 3.6V | 2.8 mA | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 85°C | - | - |
