单片晶体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 频率 - 中心 | 阻抗 | 插入损耗 | 带宽 | 纹波 | 极数 | 工作温度 | 安装类型 | 尺寸 / 尺寸 | 高度（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS-45K30BMONO XTAL 45MHZ 4P 3DB TH 2PC ECS Inc. |
3,074 |
|
数据手册 |
MCF | UM-1 | Bulk | Active | 45 MHz | 1.2 kOhms | 3dB | 35 kHz | 1dB | 4 | -20°C ~ 70°C | Through Hole | 0.287" L x 0.098" W (7.30mm x 2.50mm) | 0.315" (8.00mm) |
|
ECS-45K30AMONO XTAL 45MHZ 2P 3DB TH 1PC ECS Inc. |
1,018 |
|
数据手册 |
MCF | UM-1 | Bulk | Active | 45 MHz | 1.2 kOhms | 2dB | 15 kHz | 1dB | 2 | -20°C ~ 70°C | Through Hole | 0.287" L x 0.098" W (7.30mm x 2.50mm) | 0.315" (8.00mm) |
|
|
ECS-45K15BMONO XTAL 45MHZ 4P 3DB TH 2PC ECS Inc. |
3,895 |
|
数据手册 |
MCF | UM-1 | Bulk | Active | 45 MHz | 650 Ohms | 3dB | 30 kHz | 1dB | 4 | -20°C ~ 70°C | Through Hole | 0.287" L x 0.098" W (7.30mm x 2.50mm) | 0.315" (8.00mm) |
|
|
ECS-45K20BMONO XTAL 45MHZ 4P 3DB TH 2PC ECS Inc. |
4,600 |
|
数据手册 |
MCF | UM-1 | Bulk | Active | 45 MHz | 910 Ohms | 3dB | 35 kHz | 1dB | 4 | -20°C ~ 70°C | Through Hole | 0.287" L x 0.098" W (7.30mm x 2.50mm) | 0.315" (8.00mm) |
|
|
ECS-45K7.5AMONO XTAL 45MHZ 2P 3DB TH 1PC ECS Inc. |
4,522 |
|
数据手册 |
MCF | UM-1 | Bulk | Active | 45 MHz | 350 Ohms | 2dB | 10 kHz | 1dB | 2 | -20°C ~ 70°C | Through Hole | 0.287" L x 0.098" W (7.30mm x 2.50mm) | 0.315" (8.00mm) |
|

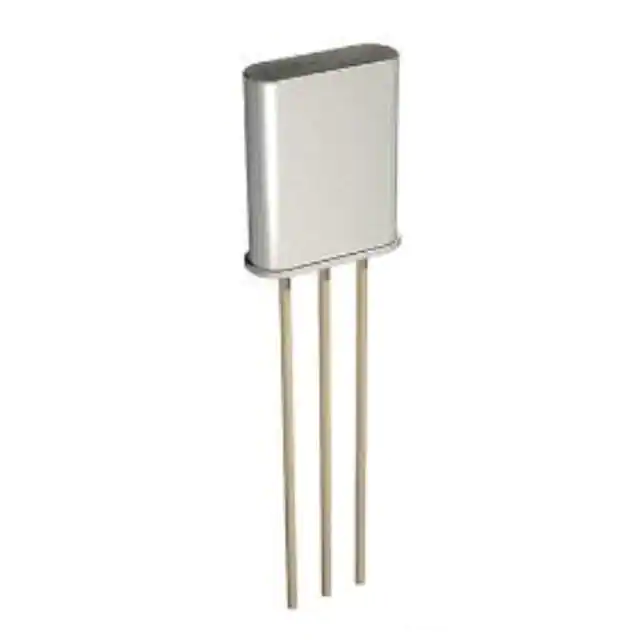

ECS-45K20AFILTER CHRYSTAL MONO 45MHZ 2POLE ECS Inc. |
4,531 |
|
数据手册 |
MCF | UM-1 | Bulk | Active | 45 MHz | 910 Ohms | 2dB | 20 kHz | 0.5dB | 2 | -20°C ~ 70°C | Through Hole | 0.287" L x 0.098" W (7.30mm x 2.50mm) | 0.315" (8.00mm) |
|
ECS-96SMF21A7.5MONO XTAL 21.4MHZ 2P 2DB SMD ECS Inc. |
1,420 |
|
数据手册 |
ECS-96SMF | 6-SMD, No Lead | Tape & Reel (TR) | Active | 21.4 MHz | 850 Ohms | 2dB | 7.5 kHz | 1dB | 2 | -30°C ~ 80°C | Surface Mount | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.059" (1.50mm) |
|

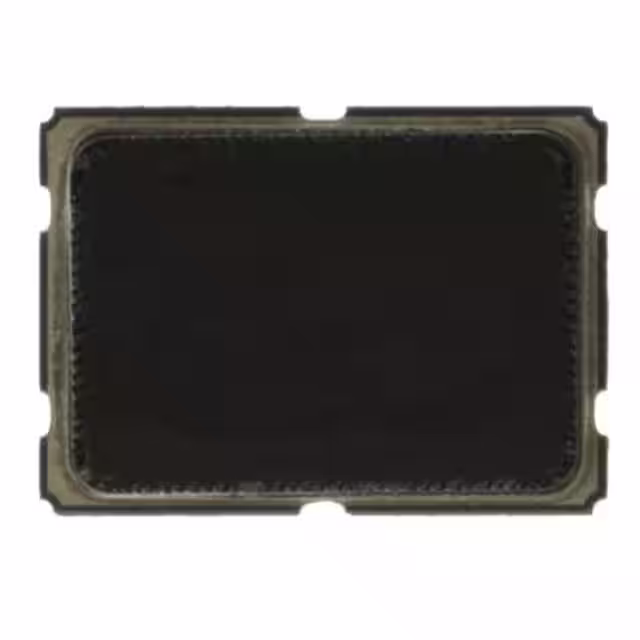

ECS-96SMF21A20MONO XTAL 21.4MHZ 2P 2DB SMD ECS Inc. |
1,294 |
|
数据手册 |
ECS-96SMF | 6-SMD, No Lead | Tape & Reel (TR) | Active | 21.4 MHz | 1.8 kOhms | 2dB | 20 kHz | 1dB | 2 | -30°C ~ 80°C | Surface Mount | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.059" (1.50mm) |
|

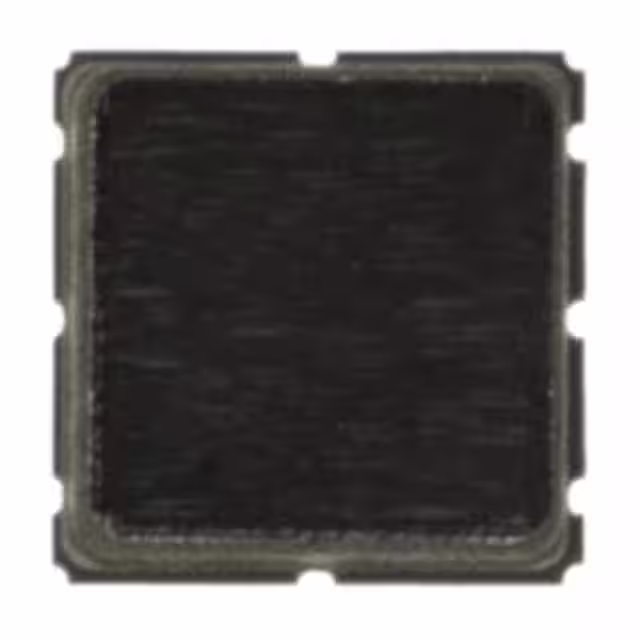

ECS-38SMF45A15MONO XTAL 45MHZ 2P 2DB SMD ECS Inc. |
1,199 |
|
数据手册 |
ECS-38SMF | 8-SMD, No Lead | Tape & Reel (TR) | Active | 45 MHz | 560 Ohms | 2dB | 15 kHz | 0.5dB | 2 | -30°C ~ 80°C | Surface Mount | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|

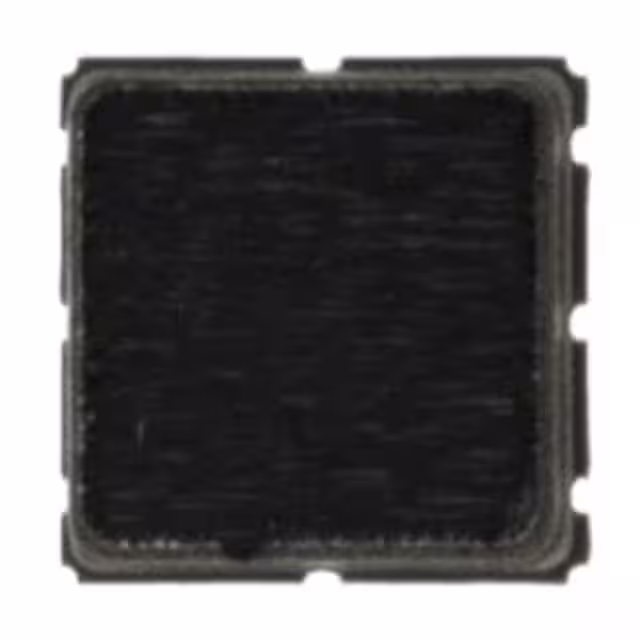

ECS-38SMF45A30MONO XTAL 45MHZ 2P 2.5DB SMD ECS Inc. |
1,498 |
|
数据手册 |
ECS-38SMF | 8-SMD, No Lead | Tape & Reel (TR) | Active | 45 MHz | 1.1 kOhms | 2.5dB | 30 kHz | 1dB | 2 | -30°C ~ 80°C | Surface Mount | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
