麦克风
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出类型 | 方向 | 频率范围 | 灵敏度 | 信噪比 (S/N) | 阻抗 | 额定电压 | 电压范围 | 电流 - 电源 | 端口位置 | 额定值 | 端接方式 | 尺寸 / 尺寸 | 高度（最大值） | 形状 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VEK-F-30470-000MIC COND ANLG OMNI -73DB 0.630"D |
1,723 |
|
数据手册 |
VEK-F | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -73dB ±3dB @ 74dB SPL | - | - | - | - | - | Bottom | Waterproof | PC Pins | 0.630" Dia (16.00mm) | 0.205" (5.20mm) | Circular | - | - |
|
|
VEK-F-30431-000WATERPROOF MICROPHONE&CABLE |
3,751 |
|
数据手册 |
VEF-K | Tray | Active | Boom | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -73dB ±3dB @ 94dB SPL | - | 2.2 kOhms | 1.3 V | - | - | Top | Waterproof | Wire Leads | 0.630" Dia (16.00mm) | 0.220" (5.59mm) | Circular | - | - |
|
|
TO-30453-P16MIC ANALOG OMNI |
4,588 |
|
数据手册 |
TO | Tray | Active | - | Analog | Omnidirectional | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VWP-H-30109-000MIC COND ANALOG OMNI 0.500"DIA |
2,685 |
|
数据手册 |
VWP | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | - | - | - | - | - | - | - | - | IP67 - Dust Tight, Waterproof | Wire Leads | 0.500" Dia (12.70mm) | - | Circular | - | - |
|
|
HM-31308-P137MICROPHONE |
2,664 |
|
数据手册 |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

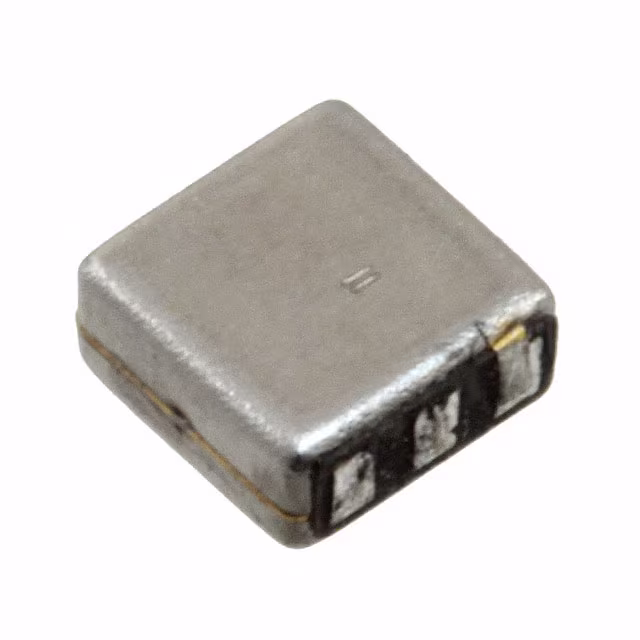

BXTM-26747-D53MIC COND ANALOG OMNI -55.5DB |
4,263 |
|
数据手册 |
BXTM | Tray | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 9.5 kHz | -55.5dB ±3dB @ 74dB SPL | - | 5.25 kOhms | 1.1 V | - | 75 µA | Top | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.070" (1.77mm) | Square | - | - |
|
|
FB-DW-32122-000MICROPHONE BOOM ASSEMBLY |
4,326 |
|
数据手册 |
FB | Box | Active | Boom | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FB-EI-31878-000MICROPHONE BOOM ASSEMBLY |
3,839 |
|
数据手册 |
FB | Box | Active | Boom | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FB-LW-31456-000MICROPHONE BOOM ASSEMBLY |
1,220 |
|
数据手册 |
FB | Box | Obsolete | Boom | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BTO-26732-D55MICROPHONE OMNI |
1,582 |
|
数据手册 |
BTO | Tray | Active | - | - | Omnidirectional | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TO-30186-S13MICROPHONE ASSEMBLY |
3,251 |
|
数据手册 |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FB-23891-000MICROPHONE BOOM ASSEMBLY |
2,508 |
|
数据手册 |
FB | Bulk | Obsolete | Boom | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WM-54BTMIC COND ANLG OMNI -44DB 0.382"D |
1,789 |
|
数据手册 |
WM-54B | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 20 Hz ~ 16 kHz | -44dB ±3dB @ 94dB SPL | 60dB | 2.2 kOhms | 2.5 V | 2.5 V ~ 10 V | 600 µA | Top | - | PC Pins | 0.382" Dia (9.70mm) | 0.177" (4.50mm) | Circular | - | - |
|
WM-60AYMIC COND ANLG OMNI -42DB 0.236"D |
4,421 |
|
数据手册 |
WM-60A | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 20 Hz ~ 20 kHz | -42dB ±3dB | 58dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.197" (5.00mm) | Circular | - | - |
|
WM-55A103MIC COND ANLG UNI -47DB 0.382"D |
3,740 |
|
数据手册 |
WM-55A103 | Bulk | Obsolete | Electret Condenser | Analog | Unidirectional | 100 Hz ~ 12 kHz | -47dB ±4dB @ 94dB SPL | 60dB | 680 Ohms | 1.5 V | 1.5 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.382" Dia (9.70mm) | 0.197" (5.00mm) | Circular | - | - |
|
|
WM-034CYMIC COND ANLG OMNI -42DB 0.382"D |
4,437 |
|
数据手册 |
WM-034C | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 20 Hz ~ 16 kHz | -42dB ±3dB | 60dB | 2.2 kOhms | 4.5 V | 4.5 V ~ 10 V | 800 µA | Top | - | Solder Pads | 0.382" Dia (9.70mm) | 0.264" (6.70mm) | Circular | - | - |
|

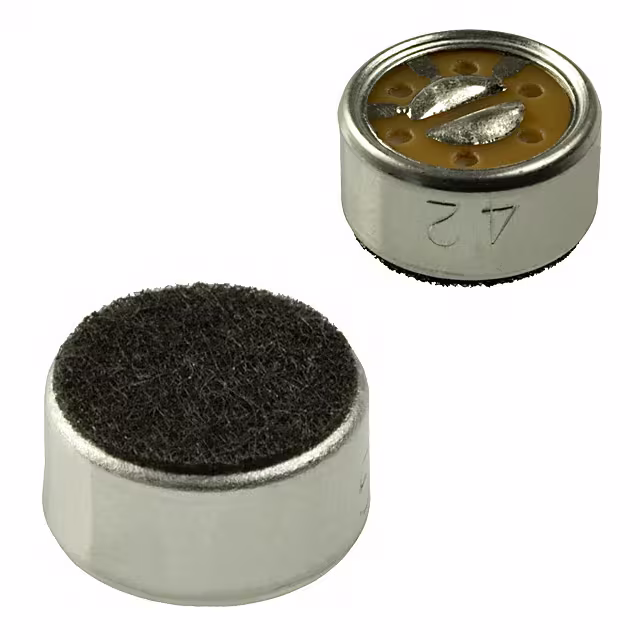

WM-56A103MIC COND ANLG UNI -47DB 0.382"D |
1,964 |
|
数据手册 |
WM-56A103 | Bulk | Obsolete | Electret Condenser | Analog | Unidirectional | 100 Hz ~ 16 kHz | -47dB ±4dB @ 94dB SPL | 60dB | 680 Ohms | 1.5 V | 1.5 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.382" Dia (9.70mm) | 0.197" (5.00mm) | Circular | - | - |
|
|

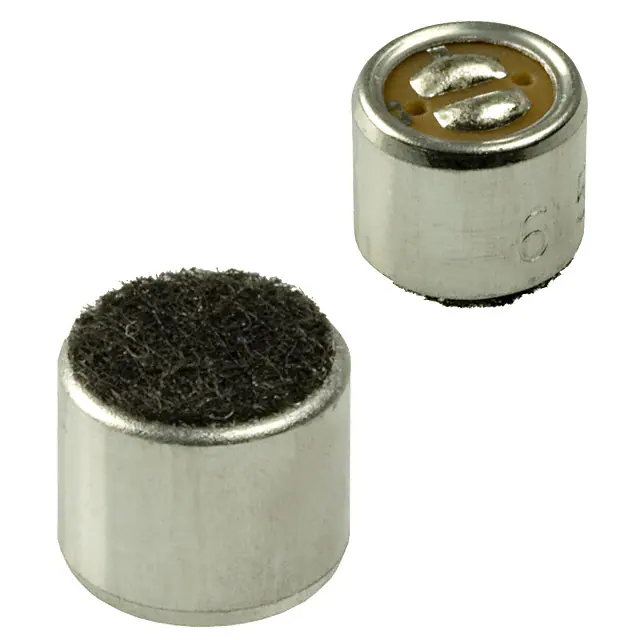

WM-65A103MIC COND ANLG UNI -50DB 0.236"D |
3,510 |
|
数据手册 |
WM-65A103 | Bulk | Obsolete | Electret Condenser | Analog | Unidirectional | 100 Hz ~ 12 kHz | -50dB ±4dB @ 94dB SPL | 55dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.197" (5.00mm) | Circular | - | - |
|

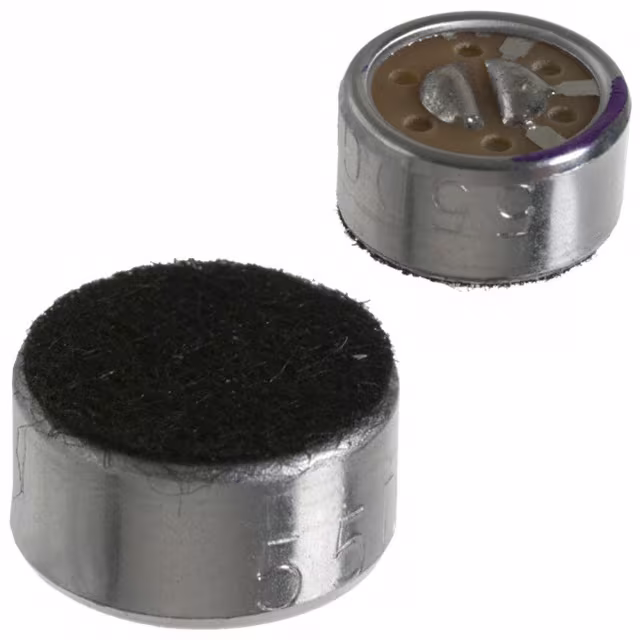

WM-55D103MIC COND ANLG NC -54DB 0.382"DIA |
2,658 |
|
数据手册 |
WM-55D103 | Bulk | Obsolete | Electret Condenser | Analog | Noise Cancelling | 100 Hz ~ 10 kHz | -54dB ±4dB @ 94dB SPL | 58dB | 680 Ohms | 1.5 V | 1.5 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.382" Dia (9.70mm) | 0.197" (5.00mm) | Circular | - | - |
|
|
WM-52BMMIC COND ANLG OMNI -44DB 0.382"D |
1,761 |
|
数据手册 |
WM-52B | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 20 Hz ~ 16 kHz | -44dB ±2dB @ 94dB SPL | 60dB | 3 kOhms | 1.5 V | 1.5 V ~ 10 V | 300 µA | Top | - | PC Pins | 0.382" Dia (9.70mm) | 0.177" (4.50mm) | Circular | - | - |
