上传BOM单
麦克风
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出类型 | 方向 | 频率范围 | 灵敏度 | 信噪比 (S/N) | 阻抗 | 额定电压 | 电压范围 | 电流 - 电源 | 端口位置 | 额定值 | 端接方式 | 尺寸 / 尺寸 | 高度（最大值） | 形状 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EM-25347-C23MIC COND ANALOG OMNI -56DB |
1,847 |
|
数据手册 |
EM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -56dB ±4dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|
|
EM-26596-C36MIC COND ANALOG OMNI -52DB |
2,019 |
|
数据手册 |
EM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 5 kHz | -52dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 1.6 V | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|
|
EM-27580-C36MIC COND ANALOG OMNI -57DB |
3,554 |
|
数据手册 |
EM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 300 Hz ~ 5.5 kHz | -57dB ±4dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 1.6 V | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|
|
EM-23056-000MIC COND ANALOG OMNI -56DB |
2,712 |
|
数据手册 |
EM | Tray | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 5 kHz | -56dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 10 V | 50 µA | Bottom | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|
|
EM-24346-P104MIC COND ANALOG OMNI |
1,899 |
|
数据手册 |
EM | Tray | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EM-24368-P104MICROPHONE COND ANALOG OMNI |
4,361 |
|
数据手册 |
EM | Tray | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | - | - | - | - | - | - | - | - | - | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | - | - | - |
|
|
EM-26886-C36MIC COND ANALOG OMNI -52DB |
3,109 |
|
数据手册 |
EM | Tray | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 5 kHz | -52dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 1.6 V | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|
|
EM-24346-P85MIC COND ANALOG OMNI |
1,463 |
|
数据手册 |
EM | Tray | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WP-25993-000MICROPHONE |
4,989 |
|
数据手册 |
WP | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NR-23159-000MIC ELECTRET NOISE CANCELLING |
3,555 |
|
数据手册 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NR-23158-000MIC COND ANALOG NC -49DB |
1,810 |
|
数据手册 |
NR | Bulk | Obsolete | Electret Condenser | Analog | Noise Cancelling | 100 Hz ~ 4 kHz | -49dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 1.3 V ~ 10 V | 50 µA | Bottom, Top | - | Solder Pads | 0.219" L x 0.157" W (5.56mm x 3.99mm) | 0.089" (2.26mm) | Rectangular | - | - |
|

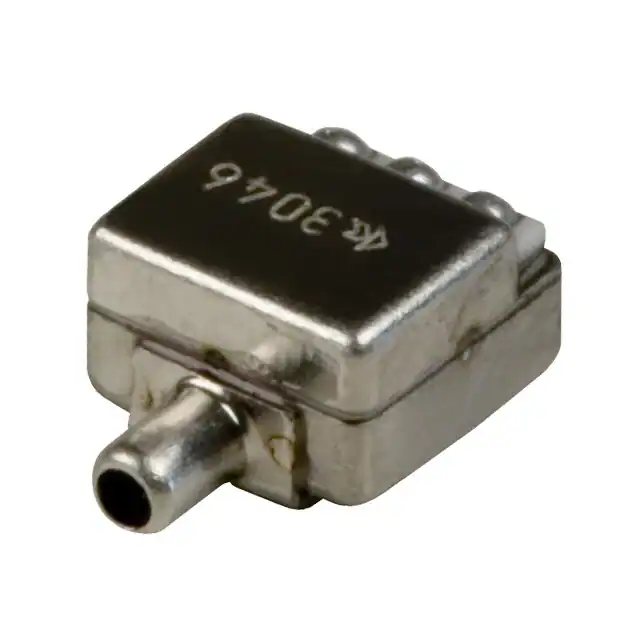

EM-23046-C36MIC COND ANALOG OMNI -56DB |
1,384 |
|
数据手册 |
EM | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 5 kHz | -56dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 10 V | 50 µA | Side | - | Screw Terminals | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|
EM-24346-C36MIC COND ANALOG OMNI -52DB |
4,490 |
|
数据手册 |
EM | Tray | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 5.5 kHz | -52dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|
|
EM-23346-C47MIC COND ANALOG OMNI -52DB |
1,298 |
|
数据手册 |
EM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -52dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|

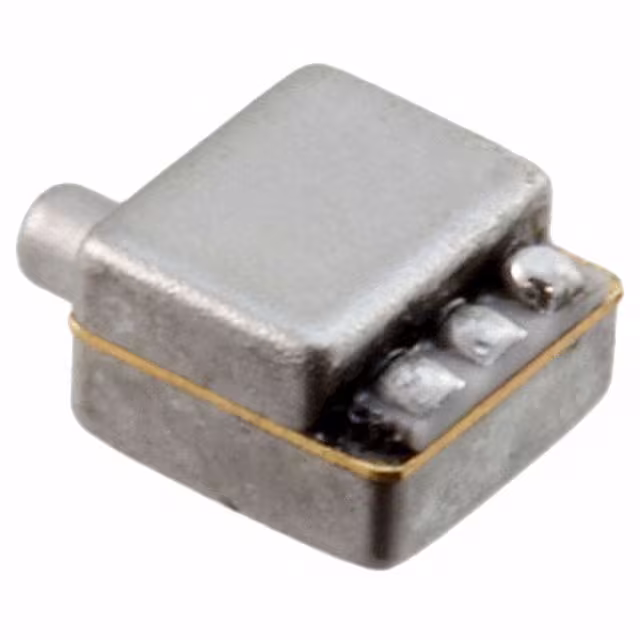

EM-23368-C36MIC COND ANALOG OMNI -52DB |
4,021 |
|
数据手册 |
EM | Tray | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -52dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|
|
EM-23446-C36MIC COND ANALOG OMNI -56DB |
3,210 |
|
数据手册 |
EM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 5 kHz | -56dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 1.6 V | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|
EM-24368-C36MIC COND ANALOG OMNI -52DB |
2,989 |
|
数据手册 |
EM | Tray | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 4.8 kHz | -52dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 1.6 V | 50 µA | Bottom | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|
|
EM-24446-C57MIC COND ANALOG OMNI -56.5DB |
4,316 |
|
数据手册 |
EM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -56.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|
|
EM-24446-G10MIC COND ANALOG OMNI -56.5DB |
3,615 |
|
数据手册 |
EM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -56.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|
|
EM-26392-C36MIC COND ANALOG OMNI -51DB |
4,125 |
|
数据手册 |
EM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -51dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
