限位开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
83229001SWITCH SNAP ACTION SPDT 5A 250V |
497 |
|
数据手册 |
83229 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Panel Mount | Solder Lug | - | - | 173gf | 41gf | 0.077" (1.95mm) | - | 0.005" (0.13mm) | 0.006" (0.15mm) | -55°C ~ 100°C |
|
NGCMA10AX01LSWITCH SNAP ACTION DPST 6A 120V |
1,707 |
|
数据手册 |
NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Cross Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1122gf | 306gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.047" (1.2mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|
SHL-Q2155SWITCH SNAP ACTION SPDT 10A 125V |
282 |
|
数据手册 |
SHL | Bulk | Active | SPDT | On-Mom | 10A (AC), 5A (DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1000gf | 200gf | 1.695" (43.05mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.079" (2.0mm) | -10°C ~ 80°C |
|
XCMD2115L1SWITCH LIMIT DPDT 1.5A 240V |
4,848 |
|
数据手册 |
XCMD | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Cable with Connector | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
NGCPB10AX24A1ASWITCH SNAP ACT 4PST 0.75A 250V |
3,054 |
|
数据手册 |
NGC | Bulk | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 750mA (AC), 100mA (DC) | 250 V | 250 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Nylon Roller | 17gfm | 2.189gfm | 26.5° | 26.5° | 16.5° | 65° | -25°C ~ 75°C |
|

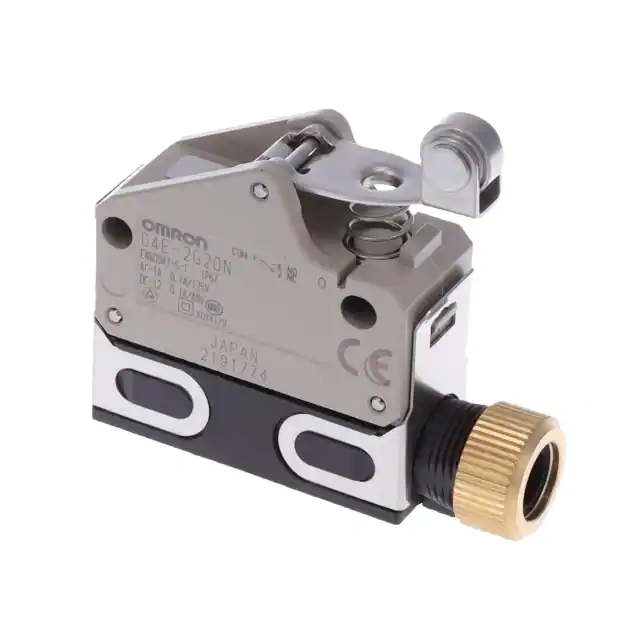

D4E-2G20NSWITCH SNAP ACT SPDT 0.1A 125V |
1,262 |
|
数据手册 |
D4E-xN | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 400gf | 80gf | 0.909" (23.1mm) | 0.080" (2.0mm) | 0.012" (0.3mm) | 0.158" (4.0mm) | -10°C ~ 80°C |
|

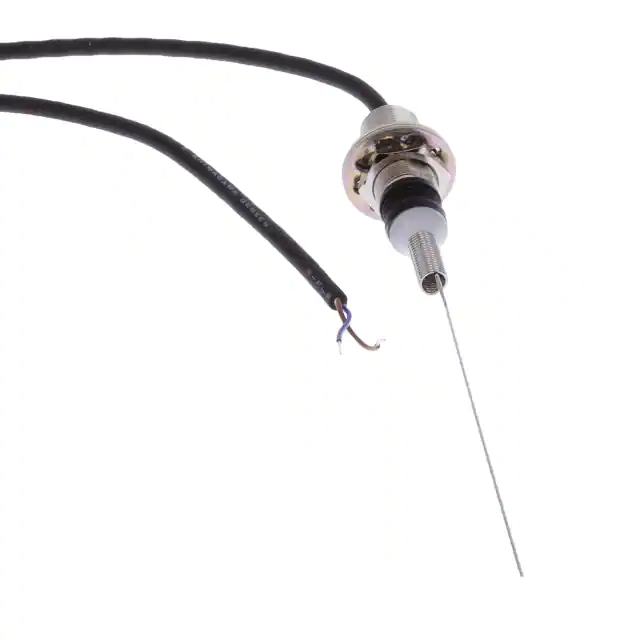

D5B-1513SWITCH SNP ACT SPST-NC 0.03A 30V |
2,662 |
|
数据手册 |
D5B | Bulk | Active | SPST-NC | On-Mom | 30mA (DC) | - | 30 V | Spring, Wire | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 5.000gf | - | - | 0.551" (14.0mm) | - | - | -10°C ~ 70°C |
|

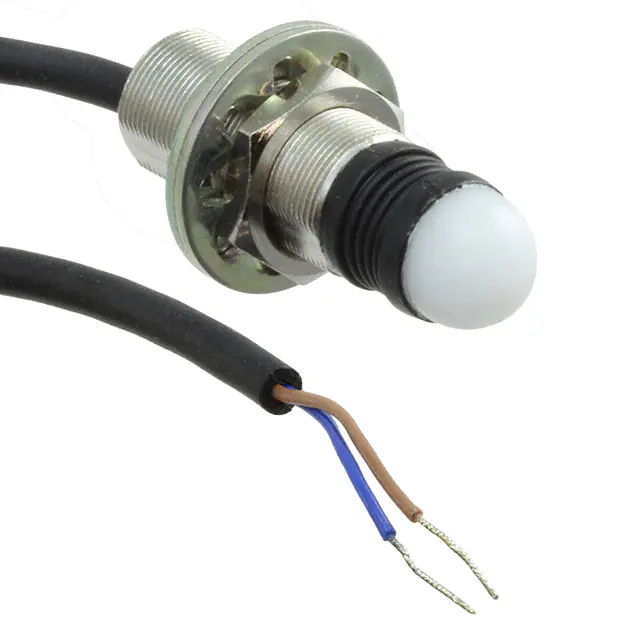

D5B-1013SWITCH SNP ACT SPST-NC 0.03A 30V |
4,110 |
|
数据手册 |
D5B | Bulk | Active | SPST-NC | On-Mom | 30mA (DC) | - | 30 V | Domed | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 100gf | - | - | 0.028" (0.7mm) | - | - | -10°C ~ 70°C |
|
XCKD2145N12SWITCH LIMIT DPDT 3A 240V |
4,874 |
|
数据手册 |
XCKD | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -25°C ~ 70°C |
|

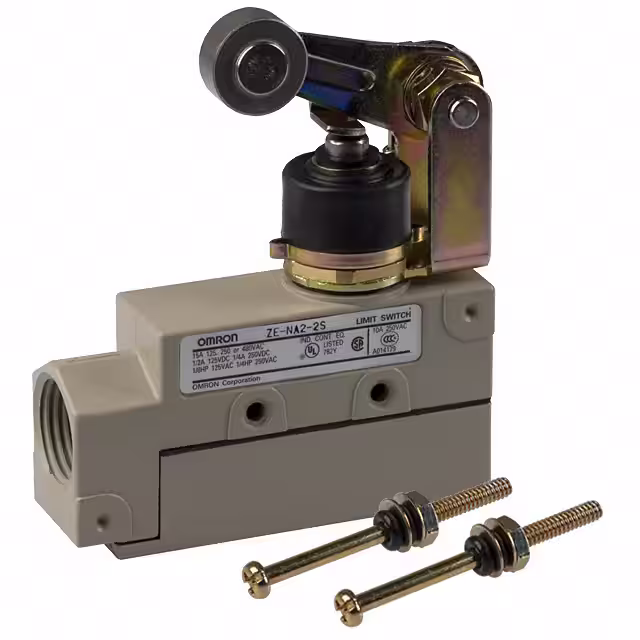

ZE-NA2-2SSWITCH SNAP ACTION SPDT 15A 125V |
1,948 |
|
数据手册 |
ZE | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 640gf | 230gf | - | 0.197" (5.0mm) | 0.016" (0.4mm) | 0.235" (6.0mm) | -10°C ~ 80°C |
|
D4B-4111N-NPTSWITCH SNAP ACTION SPDT 10A 120V |
4,664 |
|
数据手册 |
D4B-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 120 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 960gf | 150gf | 21° | 21° | 12° | 50° | -40°C ~ 80°C |
|
D5B-8013SWITCH SNP ACT SPST-NC 0.03A 30V |
2,464 |
|
数据手册 |
D5B | Bulk | Active | SPST-NC | On-Mom | 30mA (DC) | - | 30 V | Domed | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 75gf | - | - | 0.024" (0.6mm) | - | - | -10°C ~ 70°C |
|
D4C-1631SWITCH SNAP ACTION SPDT 5A 250V |
206 |
|
数据手册 |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 1800gf | 450gf | 0.980" (24.9mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
D4C-1220SWITCH SNAP ACTION SPDT 5A 250V |
215 |
|
数据手册 |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 250 V | 30 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 3m | 580gf | 150gf | - | 25° | - | 40° | -10°C ~ 70°C |
|

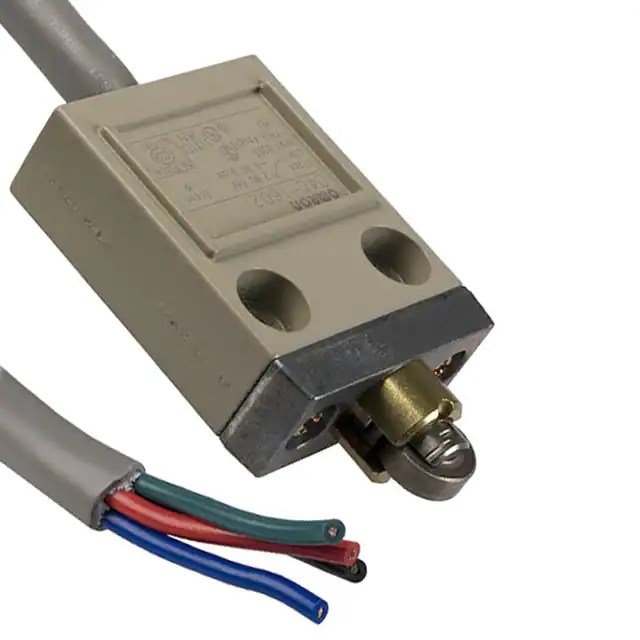

D4C-1602SWITCH SNAP ACTION SPDT 5A 250V |
201 |
|
数据手册 |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 250 V | 30 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
D4C-1601SWITCH SNAP ACTION SPDT 5A 250V |
105 |
|
数据手册 |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 1200gf | 450gf | 0.618" (15.7mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
D4C-1301SWITCH SNAP ACTION SPDT 5A 250V |
1,282 |
|
数据手册 |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 5m | 1200gf | 450gf | 0.618" (15.7mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
1LS19SWITCH SNAP ACTION SPDT 10A 120V |
2,625 |
|
数据手册 |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 120 V | - | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller, Front Mounted | 51gfm | 8.640gfm | 5° | 5° | - | 30° | -29°C ~ 71°C |
|

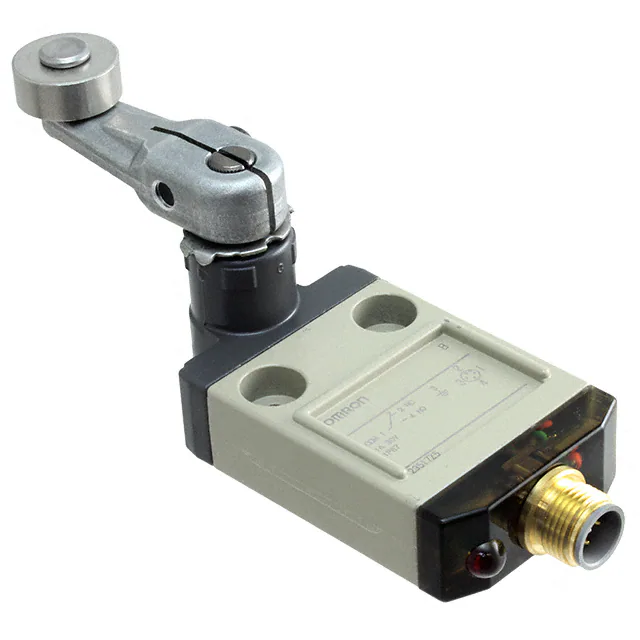

D4CC-4024SWITCH SNAP ACTION SPDT 1A 30V |
2,343 |
|
数据手册 |
D4CC | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 30 V | Side Rotary, Roller | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | Status Indicator | 580gf | 150gf | - | 10° | 3° | 50° | -10°C ~ 70°C |
|

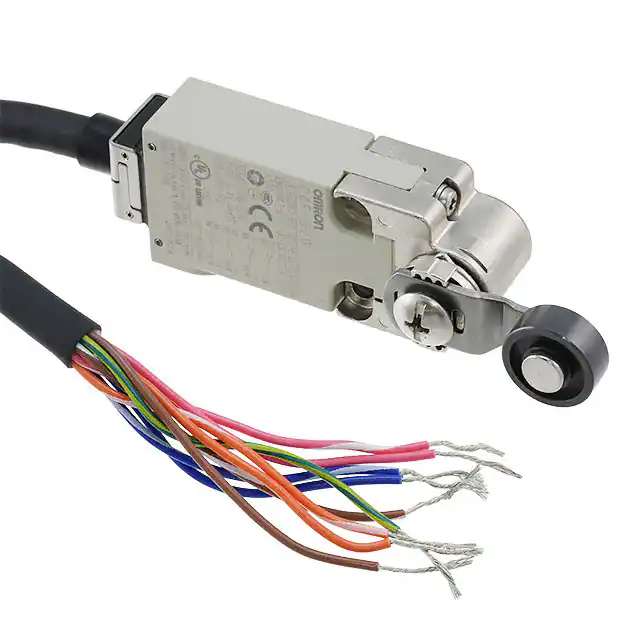

D4F-420-5DSWITCH SNAP ACT 4PST-NC 15A 120V |
3,539 |
|
数据手册 |
D4F | Bulk | Active | 4PST-NC | On-Mom | 15A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 5m | 510gf | 51gf | - | 12° | - | 40° | -30°C ~ 70°C |
