限位开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DM3CQF1003L04SWITCH LIMIT SPDT 3A 125V |
637 |
|
数据手册 |
DM3 | Bag | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 40gf | 15gf | 0.354" (9.0mm) | 0.071" (1.8mm) | 0.025" (0.6mm) | 0.035" (0.9mm) | -40°C ~ 85°C |
|
JJDVDUG305NOPMRQTRSWITCH DETECTOR SPST-NO 0.01A 5V |
11,468 |
|
数据手册 |
JJD | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | Board Guide | 40gf | - | 0.104" (2.65mm) | 0.015" (0.4mm) | - | - | -10°C ~ 60°C |
|
SS-01GL13PDSWITCH SNAP ACT SPDT 0.1A 125V |
5,993 |
|
数据手册 |
SS-P | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | 51gf | 5.099gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|
JJDVDUJ305NOPMRQTRSWITCH DETECTOR SPST-NO 0.01A 5V |
2,360 |
|
数据手册 |
JJD | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | Board Guide | 40gf | - | 0.104" (2.65mm) | 0.015" (0.4mm) | - | - | -10°C ~ 60°C |
|
JJLV0UG1070NOPPRTBSWITCH DETECT SPST-NO 0.005A 5V |
962 |
|
数据手册 |
JJL | Tube | Active | SPST-NO | Off-Mom | 5mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | - | 35gf | - | 0.392" (9.95mm) | 0.029" (0.75mm) | - | - | -20°C ~ 70°C |
|
JJLV0UG1070NOPPRTRSWITCH DETECT SPST-NO 0.005A 5V |
615 |
|
数据手册 |
JJL | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 5mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | - | 35gf | - | 0.392" (9.95mm) | 0.029" (0.75mm) | - | - | -20°C ~ 70°C |
|
JJLV0UG840NOPPRTBSWITCH DETECT SPST-NO 0.005A 5V |
409 |
|
数据手册 |
JJL | Tube | Active | SPST-NO | Off-Mom | 5mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | - | 35gf | - | 0.301" (7.65mm) | 0.029" (0.75mm) | - | - | -20°C ~ 70°C |
|

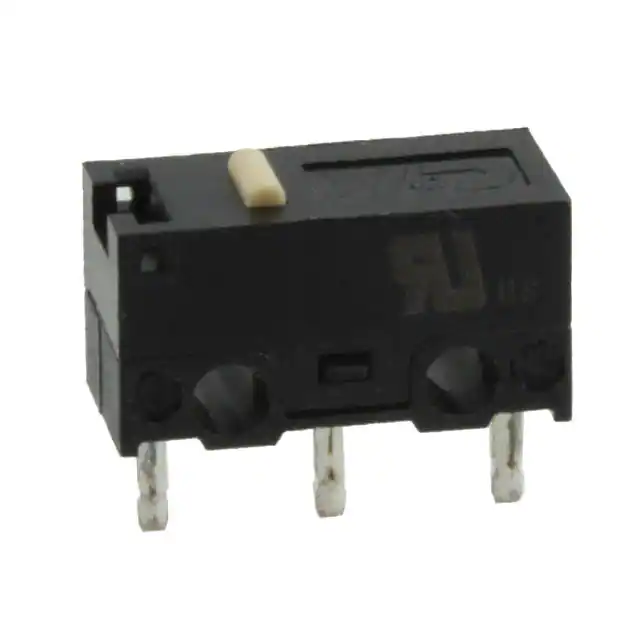

ZMA03A150P00PCSWITCH SNAP ACTION SPDT 3A 125V |
29,300 |
|
数据手册 |
ZMA | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 150gf | 35gf | 0.272" (6.9mm) | 0.024" (0.6mm) | - | 0.008" (0.2mm) | -40°C ~ 85°C |
|
SS-3GPTSWITCH SNAP ACTION SPDT 3A 125V |
8,649 |
|
数据手册 |
SS-P | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 153gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.006" (0.15mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
SAJ405XHL0N30SNCUPQSWITCH SNAP ACT SPST-NC 0.5A 30V |
917 |
|
数据手册 |
SAJ4 | Bulk | Active | SPST-NC | On-Mom | 500mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | 0.028" (0.7mm) | 0.011" (0.3mm) | -40°C ~ 85°C |
|
SAJ405XHL0N30SDTSRQSWITCH SNAP ACTION SPDT 0.5A 30V |
204 |
|
数据手册 |
SAJ4 | Bulk | Active | SPDT | On-Mom | 500mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | 0.028" (0.7mm) | 0.011" (0.3mm) | -40°C ~ 85°C |
|
SAJ405XHL0N30SNOSRQSWITCH SNAP ACT SPST-NO 0.5A 30V |
950 |
|
数据手册 |
SAJ4 | Bulk | Active | SPST-NO | Off-Mom | 500mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | 0.028" (0.7mm) | 0.011" (0.3mm) | -40°C ~ 85°C |
|
SAJ405XHL0N30SNCSLQSWITCH SNAP ACT SPST-NC 0.5A 30V |
790 |
|
数据手册 |
SAJ4 | Bulk | Active | SPST-NC | On-Mom | 500mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | 0.028" (0.7mm) | 0.011" (0.3mm) | -40°C ~ 85°C |
|
SAJ405XHL0N30SDTLLQSWITCH SNAP ACTION SPDT 0.5A 30V |
780 |
|
数据手册 |
SAJ4 | Bulk | Active | SPDT | On-Mom | 500mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | 0.028" (0.7mm) | 0.011" (0.3mm) | -40°C ~ 85°C |
|
SAJ405XHL0N30SDTLRQSWITCH SNAP ACTION SPDT 0.5A 30V |
309 |
|
数据手册 |
SAJ4 | Bulk | Active | SPDT | On-Mom | 500mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | 0.028" (0.7mm) | 0.011" (0.3mm) | -40°C ~ 85°C |
|
JJHH0UG200NCNMRTRSWITCH DETECTOR SPST-NC 0.01A 5V |
3,669 |
|
数据手册 |
JJH | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | - | 150gf | - | 0.134" (3.4mm) | 0.014" (0.35mm) | - | - | -40°C ~ 85°C |
|
SAJ405XHL0N30SNCLLQSWITCH SNAP ACT SPST-NC 0.5A 30V |
740 |
|
数据手册 |
SAJ4 | Bulk | Active | SPST-NC | On-Mom | 500mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | 0.028" (0.7mm) | 0.011" (0.3mm) | -40°C ~ 85°C |
|
SS0750303F030P1ASWITCH SNAP ACTION SPDT 3A 125V |
5,404 |
|
数据手册 |
SS | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 30gf | 10gf | 0.380" (9.7mm) | 0.053" (1.35mm) | - | - | -25°C ~ 75°C |
|
JJDVUUG305NOPMRTRSWITCH DETECTOR SPST-NO 0.01A 5V |
6,274 |
|
数据手册 |
JJD | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | Board Guide | 40gf | - | 0.063" (1.6mm) | 0.057" (1.45mm) | - | - | -10°C ~ 60°C |
|

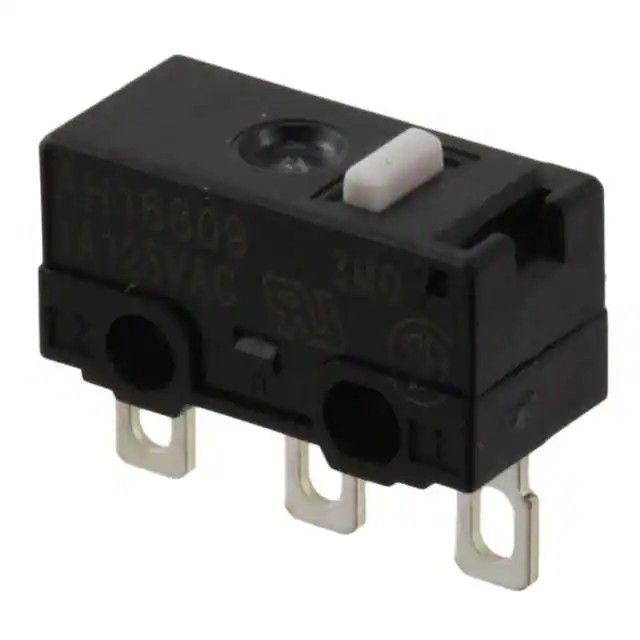

AH16809-ASWITCH SNAP ACTION SPDT 1A 125V |
1,466 |
|
数据手册 |
AH1 | Tube | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 74gf | 10gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -25°C ~ 85°C |
