限位开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AV635212643SWITCH SNAP ACTION |
4,207 |
|
数据手册 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AV6352643SWITCH SNAP ACTION |
3,101 |
|
数据手册 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AV635512643SWITCH SNAP ACTION |
1,886 |
|
数据手册 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AV6355643SWITCH SNAP ACTION |
3,125 |
|
数据手册 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
D3V-112-1C24-KSWITCH SNAP ACTION SPDT 11A 250V |
4,970 |
|
数据手册 |
D3V | Bulk | Obsolete | SPDT | On-Mom | 11A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 6.000gf | 0.598" (15.2mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
V-15G5-1A5-T-KSWITCH SNAP ACTION SPDT 21A 250V |
2,475 |
|
数据手册 |
V | Bulk | Obsolete | SPDT | On-Mom | 21A (AC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Solder Lug | IP40 | - | 240gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.79mm) | -25°C ~ 150°C |
|
|
D429-R1MD-G2SWITCH SNAP ACTION SPDT 3A 250V |
4,467 |
|
数据手册 |
D4 | Box | Obsolete | SPDT | On-Mom | 3A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 14gf | 3.059gf | 0.600" (15.2mm) | 0.200" (5.1mm) | 0.050" (1.3mm) | 0.141" (3.6mm) | -40°C ~ 85°C |
|
|
D429-R1ML-G2SWITCH SNAP ACTION SPDT 3A 250V |
1,908 |
|
数据手册 |
D4 | Box | Obsolete | SPDT | On-Mom | 3A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 6.118gf | 1.530gf | 0.600" (15.2mm) | 0.500" (12.7mm) | 0.098" (2.5mm) | 0.312" (7.9mm) | -40°C ~ 85°C |
|
|
ZV10E70F01SWITCH SNAP ACT SPDT 0.1A 125V |
3,140 |
|
数据手册 |
ZV | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | - | - | - | - | - | - | -40°C ~ 120°C |
|
|
ZV50D20S01-ASWITCH SNAP ACTION SPDT 6A 125V |
4,979 |
|
数据手册 |
ZV | Bulk | Obsolete | SPDT | On-Mom | 6A (AC) | 125 V | - | - | Through Hole | PC Pin | - | - | - | - | - | - | - | - | -40°C ~ 120°C |
|

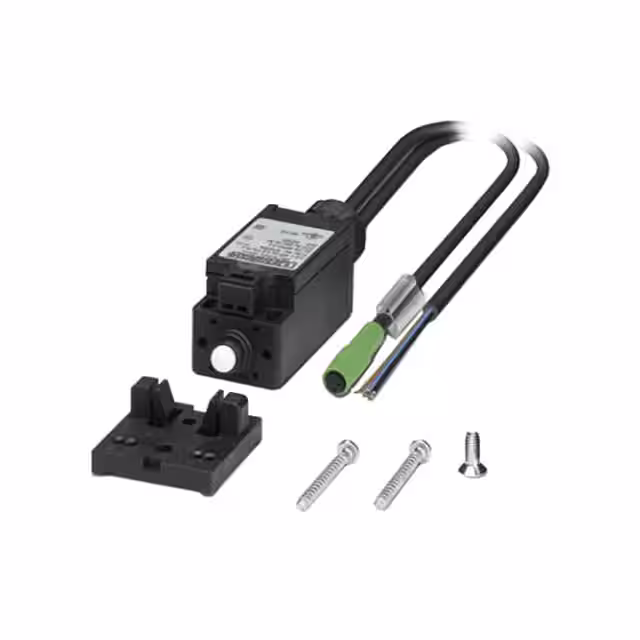

2702336SWITCH SNAP ACT SPST-NO 3A 24V |
2,473 |
|
数据手册 |
PLD | Bulk | Obsolete | SPST-NO | Off-Mom | 3A (DC) | - | 24 V | Round (Pin Plunger) | Chassis Mount | Cable with Connector | IP54 - Dust Protected, Water Resistant | Cable Length 3m | - | - | - | - | - | - | -30°C ~ 80°C |
|

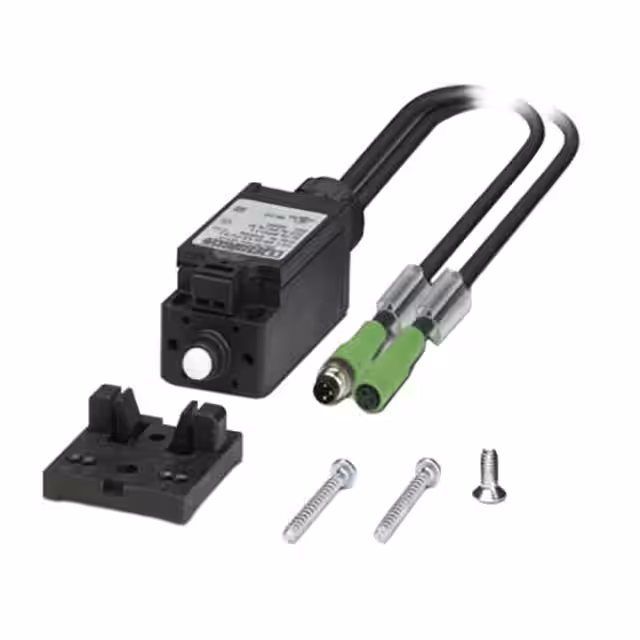

2702337SWITCH SNAP ACT SPST-NO 3A 24V |
4,429 |
|
数据手册 |
PLD | Bulk | Obsolete | SPST-NO | Off-Mom | 3A (DC) | - | 24 V | Round (Pin Plunger) | Chassis Mount | Cable with Connector | IP54 - Dust Protected, Water Resistant | Cable Length 1m | - | - | - | - | - | - | -30°C ~ 80°C |
|
|
WL01G12SWITCH LIMIT SPDT 0.1A 125V |
1,727 |
|
数据手册 |
WL | Bulk | Active | SPDT (DB/DM) | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -10°C ~ 80°C |
|
|
WL01G12-THSWITCH LIMIT SPDT 0.1A 125V |
2,347 |
|
数据手册 |
WL | Bulk | Active | SPDT (DB/DM) | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | 5°C ~ 120°C |
|
|
WL01G2-G1LDSWITCH LIMIT SPDT 0.1A 125V |
1,557 |
|
数据手册 |
WL | Bulk | Active | SPDT (DB/DM) | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1000gf | 100gf | - | 10° | 7° | 65° | -10°C ~ 80°C |
|
|
WL01G2-LD-M1JSWITCH LIMIT SPDT 0.1A 125V |
3,742 |
|
数据手册 |
WL | Bulk | Active | SPDT (DB/DM) | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Cable with Connector | IP67 - Dust Tight, Waterproof | - | 1000gf | 100gf | - | 10° | 7° | 65° | -10°C ~ 80°C |
|
|
WL01GCA2-LDSWITCH LIMIT SPDT 0.1A 125V |
1,042 |
|
数据手册 |
WL | Bulk | Active | SPDT (DB/DM) | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1360gf | 150gf | - | 5° | 3° | 40° | -10°C ~ 80°C |
|
|
WLG12-LESWITCH LIMIT SPDT 5A 125V |
4,982 |
|
数据手册 |
WL | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1000gf | 100gf | - | 10° | 7° | 65° | -10°C ~ 80°C |
|
|
WLG12-TCSWITCH LIMIT SPDT 5A 125V |
4,786 |
|
数据手册 |
WL | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1000gf | 100gf | - | 10° | 7° | 65° | -40°C ~ 40°C |
|
|
WLG2-139LD3 5MSWITCH LIMIT SPDT 5A 125V |
3,985 |
|
数据手册 |
WL | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1000gf | 100gf | - | 10° | 7° | 65° | -10°C ~ 80°C |
