限位开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM51665D63N-ASWITCH SNAP ACT SPST-NO 16A 125V |
1,774 |
|
数据手册 |
AM5 | Bulk | Obsolete | SPST-NO | Off-Mom | 16A (AC), 600mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | Cadmium Free | 320gf | 60gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.035" (0.9mm) | -25°C ~ 105°C |
|
|
AM51665D73N-ASWITCH SNAP ACT SPST-NO 16A 125V |
2,872 |
|
数据手册 |
AM5 | Bulk | Obsolete | SPST-NO | Off-Mom | 16A (AC), 600mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | Cadmium Free | 420gf | 80gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.035" (0.9mm) | -25°C ~ 105°C |
|
|
AM51666A53N-ASWITCH SNAP ACT SPST-NO 16A 125V |
4,039 |
|
数据手册 |
AM5 | Bulk | Obsolete | SPST-NO | Off-Mom | 16A (AC), 600mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | - | Cadmium Free | 120gf | 20gf | 0.815" (20.7mm) | 0.125" (3.2mm) | 0.040" (1.0mm) | 0.055" (1.4mm) | -25°C ~ 105°C |
|
|
AM51666C63N-ASWITCH SNAP ACT SPST-NO 16A 125V |
2,579 |
|
数据手册 |
AM5 | Bulk | Obsolete | SPST-NO | Off-Mom | 16A (AC), 600mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Cadmium Free | 180gf | 30gf | 0.815" (20.7mm) | 0.125" (3.2mm) | 0.040" (1.0mm) | 0.055" (1.4mm) | -25°C ~ 105°C |
|
|
AM51666C73N-ASWITCH SNAP ACT SPST-NO 16A 125V |
3,777 |
|
数据手册 |
AM5 | Bulk | Obsolete | SPST-NO | Off-Mom | 16A (AC), 600mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Cadmium Free | 240gf | 40gf | 0.815" (20.7mm) | 0.125" (3.2mm) | 0.040" (1.0mm) | 0.055" (1.4mm) | -25°C ~ 105°C |
|
|
AM51666D53N-ASWITCH SNAP ACT SPST-NO 16A 125V |
2,151 |
|
数据手册 |
AM5 | Bulk | Obsolete | SPST-NO | Off-Mom | 16A (AC), 600mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | Cadmium Free | 120gf | 20gf | 0.815" (20.7mm) | 0.125" (3.2mm) | 0.040" (1.0mm) | 0.055" (1.4mm) | -25°C ~ 105°C |
|
|
AM51666D63N-ASWITCH SNAP ACT SPST-NO 16A 125V |
2,426 |
|
数据手册 |
AM5 | Bulk | Obsolete | SPST-NO | Off-Mom | 16A (AC), 600mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | Cadmium Free | 180gf | 30gf | 0.815" (20.7mm) | 0.125" (3.2mm) | 0.040" (1.0mm) | 0.055" (1.4mm) | -25°C ~ 105°C |
|
|
AM51666D73N-ASWITCH SNAP ACT SPST-NO 16A 125V |
4,674 |
|
数据手册 |
AM5 | Bulk | Obsolete | SPST-NO | Off-Mom | 16A (AC), 600mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | Cadmium Free | 240gf | 40gf | 0.815" (20.7mm) | 0.125" (3.2mm) | 0.040" (1.0mm) | 0.055" (1.4mm) | -25°C ~ 105°C |
|
AV11753FSWITCH SNAP ACT 3PST-NO 10A 125V |
3,094 |
|
数据手册 |
AV1 | Bulk | Obsolete | 3PST-NO | Off-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | IP40 | - | 1000gf | - | 0.366" (9.3mm) | - | - | 0.083" (2.1mm) | -25°C ~ 85°C |
|
AV11853FSWITCH SNAP ACT 3PST-NO 10A 125V |
4,449 |
|
数据手册 |
AV1 | Bulk | Obsolete | 3PST-NO | Off-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | IP40 | Button Guard | 1000gf | - | 0.366" (9.3mm) | - | - | 0.083" (2.1mm) | -25°C ~ 85°C |
|
|
AV12753FSWITCH SNAP ACT DPST-NO 10A 125V |
3,965 |
|
数据手册 |
AV1 | Bulk | Obsolete | DPST-NO | Off-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | IP40 | - | 800gf | - | 0.366" (9.3mm) | - | - | 0.083" (2.1mm) | -25°C ~ 85°C |
|
|
AV12853FSWITCH SNAP ACT DPST-NO 10A 125V |
1,476 |
|
数据手册 |
AV1 | Bulk | Obsolete | DPST-NO | Off-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | IP40 | Button Guard | 800gf | - | 0.366" (9.3mm) | - | - | 0.083" (2.1mm) | -25°C ~ 85°C |
|
|
AV14653FSWITCH SNAP ACTION DPST 10A 125V |
2,484 |
|
数据手册 |
AV1 | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 600gf | - | 0.500" (12.7mm) | - | - | 0.083" (2.1mm) | -25°C ~ 85°C |
|
|
D423-R1TDSWITCH SNAP ACTION SPDT 3A 250V |
2,996 |
|
数据手册 |
D4 | Bulk | Obsolete | SPDT | On-Mom | 3A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 56gf | 15gf | 0.806" (20.5mm) | 0.200" (5.1mm) | 0.050" (1.3mm) | 0.141" (3.6mm) | -40°C ~ 85°C |
|
|
D429-R1LL-G2SWITCH SNAP ACTION SPDT 3A 250V |
2,526 |
|
数据手册 |
D4 | Box | Obsolete | SPDT | On-Mom | 3A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 10gf | 2.039gf | 0.600" (15.2mm) | 0.300" (7.6mm) | 0.065" (1.7mm) | 0.185" (4.7mm) | -40°C ~ 85°C |
|

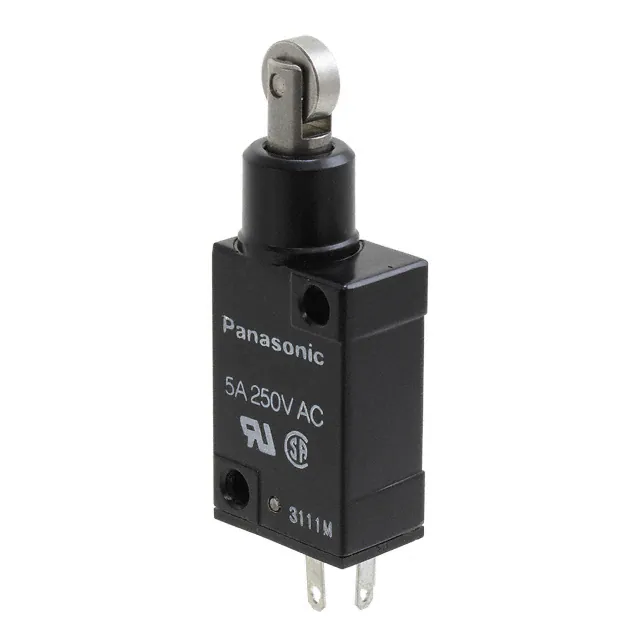

AZ40029SWITCH SNAP ACTION SPDT 5A 125V |
2,645 |
|
数据手册 |
AZ4 | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | IP64 - Dust Tight, Water Resistant | - | 700gf | 70gf | - | 0.040" (1.0mm) | 0.006" (0.15mm) | 0.158" (4.0mm) | -20°C ~ 60°C |
|
AZ46029SWITCH SNAP ACTION SPDT 5A 125V |
4,644 |
|
数据手册 |
AZ4 | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Plug In | IP64 - Dust Tight, Water Resistant | - | 700gf | 70gf | - | 0.040" (1.0mm) | 0.006" (0.15mm) | 0.158" (4.0mm) | -20°C ~ 60°C |
|
AZ47029SWITCH SNAP ACTION SPDT 5A 125V |
2,288 |
|
数据手册 |
AZ4 | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Cable Leads | IP64 - Dust Tight, Water Resistant | - | 700gf | 70gf | - | 0.040" (1.0mm) | 0.006" (0.15mm) | 0.158" (4.0mm) | -20°C ~ 60°C |
|
AZC11013YSWITCH SNAP ACT SPST-NO 5A 125V |
4,508 |
|
数据手册 |
AZC | Bulk | Obsolete | SPST-NO | Off-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | Magnet Safeguards | 350gf | 50gf | - | 0.071" (1.8mm) | 0.031" (0.8mm) | - | -20°C ~ 80°C |
|

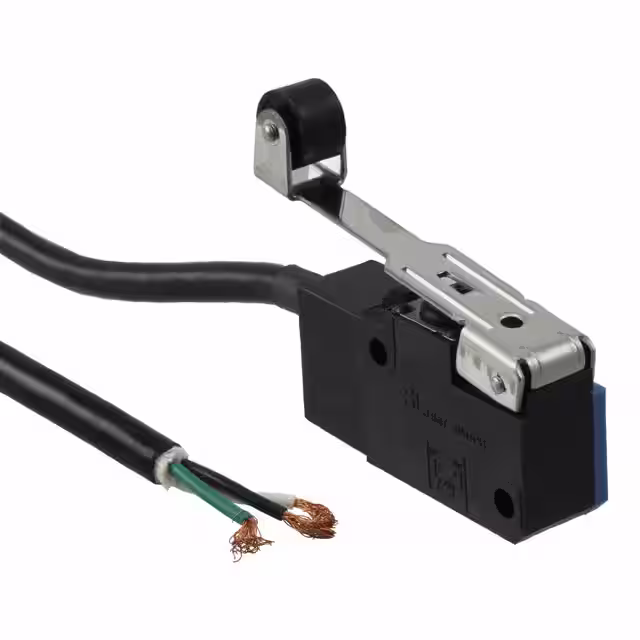

AZ37139SWITCH SNAP ACTION SPDT 4A 125V |
2,675 |
|
数据手册 |
AZ3 | Bulk | Obsolete | SPDT | On-Mom | 4A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Cable Leads | IP64 - Dust Tight, Water Resistant | - | 120gf | 25gf | 1.209" (30.7mm) | 0.120" (3.0mm) | 0.060" (1.5mm) | 0.235" (6.0mm) | -20°C ~ 60°C |
