限位开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESE-22MV21TSWITCH DETECTOR SPST-NO 0.01A 5V |
101,960 |
|
数据手册 |
ESE22 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.232" (5.9mm) | - | - | - | -10°C ~ 70°C |
|
ESE-11SV1SWITCH DETECTOR SPST-NO 0.01A 5V |
57,280 |
|
数据手册 |
ESE11 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Through Hole | PC Pin | - | - | 35gf | - | 0.305" (7.75mm) | - | - | - | -10°C ~ 70°C |
|
ESE-24MH1TSWITCH DETECTOR SPDT 0.01A 5V |
11,595 |
|
数据手册 |
ESE24 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 35gf | - | 0.132" (3.35mm) | - | - | - | -10°C ~ 70°C |
|
ESE-18R11BSWITCH DETECTOR SPST-NO 0.01A 5V |
11,861 |
|
数据手册 |
ESE18 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | Board Guide | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|
HDP001LSWITCH DETECTOR SPST-NO 1MA 5V |
42,149 |
|
数据手册 |
HDP | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | Board Guide | - | - | 0.117" (2.96mm) | 0.006" (0.15mm) | - | - | -20°C ~ 70°C |
|
ESE-13V01DSWITCH DETECTOR SPST-NO 0.01A 5V |
92,017 |
|
数据手册 |
ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
|
ESE-16J001SWITCH DETECTOR SPST-NO 0.01A 5V |
63,075 |
|
数据手册 |
ESE16 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | SMD (SMT) Tab | - | - | 25gf | - | 0.087" (2.2mm) | - | - | - | -10°C ~ 60°C |
|
D2F-01SWITCH SNAP ACTION SPDT 0.1A 30V |
2,094 |
|
数据手册 |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 150gf | 20gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|
ESE-24CMH9TSWITCH DETECTOR SPDT 0.01A 5V |
7,976 |
|
数据手册 |
ESE24 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 35gf | - | 0.132" (3.35mm) | - | - | - | -40°C ~ 85°C |
|
DS-080-C PASWITCH DETECTOR SPDT 100MA 30V |
85,778 |
|
数据手册 |
DS, COMAX | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Angled Toggle (Detector) | Through Hole | PC Pin | - | - | 30gf | - | 0.126" (3.2mm) | - | - | 0.079" (2.0mm) | -20°C ~ 70°C |
|
ESE-24MV1TSWITCH DETECTOR SPDT 0.01A 5V |
3,021 |
|
数据手册 |
ESE24 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | - | 36gf | - | 0.317" (8.05mm) | - | - | - | -10°C ~ 70°C |
|
D3C-1220SWITCH DETECTOR SPDT 0.1A 30V |
2,751 |
|
数据手册 |
D3C | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Angled Toggle (Detector) | Through Hole | PC Pin | IP00 | - | 40gf | 3.059gf | 0.138" (3.5mm) | - | - | - | -20°C ~ 80°C |
|
ESE-23F101SWITCH DETECTOR SPDT 0.01A 5V |
16,786 |
|
数据手册 |
ESE23 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.087" (2.2mm) | - | - | - | -10°C ~ 60°C |
|
SS-3GPSWITCH SNAP ACTION SPDT 3A 125V |
1,085 |
|
数据手册 |
SS-P | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 153gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.006" (0.15mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
SS-3GL13PTSWITCH SNAP ACTION SPDT 3A 125V |
56,704 |
|
数据手册 |
SS-P | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 51gf | 5.099gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|
SS0750301F040P1ASWITCH SNAP ACTION SPDT 3A 125V |
2,946 |
|
数据手册 |
SS | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 40gf | 15gf | 0.345" (8.8mm) | 0.063" (1.6mm) | - | - | -25°C ~ 75°C |
|
CL-DA-1BB4-A2TSWITCH DETECT SPST-NC 0.1A 12V |
9,584 |
|
数据手册 |
CL-DA | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 100mA (DC) | - | 12 V | Overtravel Plunger | Surface Mount, Right Angle | Gull Wing | - | - | 76gf | - | 0.134" (3.4mm) | 0.014" (0.35mm) | - | 0.079" (2.0mm) | -40°C ~ 85°C |
|

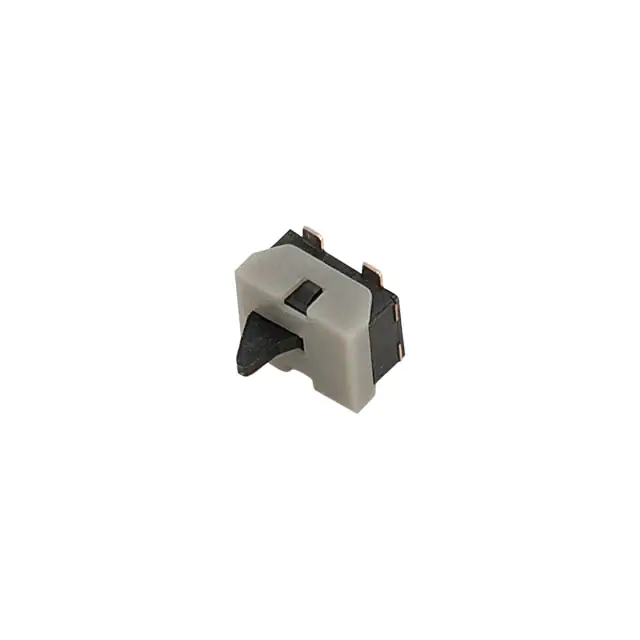

HDT0001SWITCH DETECTOR SPST-NO 1MA 5V |
36,887 |
|
数据手册 |
HDT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | SMD (SMT) Tab | - | Board Guide | 35gf | - | 0.120" (3.05mm) | 0.012" (0.3mm) | - | 0.039" (1.0mm) | -40°C ~ 85°C |
|
|
SSCM110100SWITCH DETECT SPST-NO 0.001A 5V |
1,642 |
|
数据手册 |
SSCM | Tape & Reel (TR) | Active | SPST-NO | Off-On | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | - | 36gf | - | - | - | - | - | -40°C ~ 85°C |
|

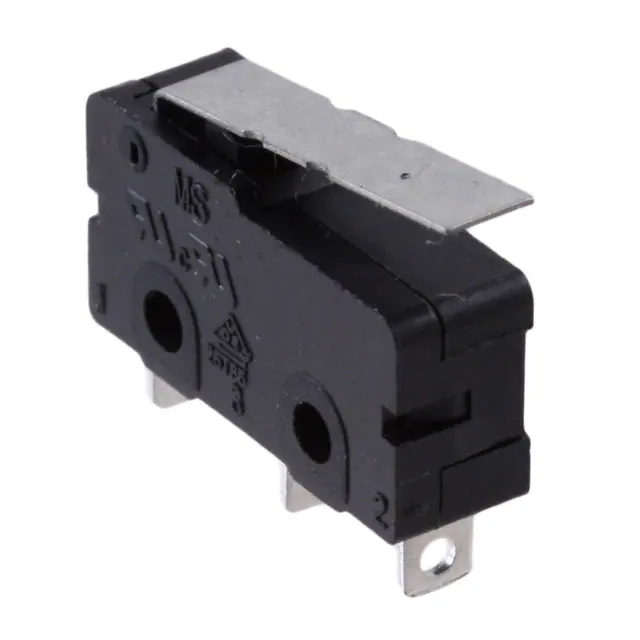

MS0850502F020S1ASWITCH SNAP ACTION SPDT 5A 125V |
5,431 |
|
数据手册 |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 20gf | 8.000gf | 0.358" (9.1mm) | 0.150" (3.8mm) | - | - | -25°C ~ 85°C |
