LED 点阵和簇
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 毫坎德拉等级 | 内部连接 | 尺寸 / 尺寸 | 颜色 | 配置 | 电压 - 正向 (Vf)（典型值） | 接口 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTP-1457AKRLED MATRIX 5X7 1.2" SUPER RED Lite-On Inc. |
2,679 |
|
数据手册 |
- | Tube | Active | 3.8mcd | Common Cathode Row, Common Anode Column | 0.90" L x 1.25" W x 0.32" H (22.90mm x 31.80mm x 8.00mm) | Red | 5 x 7 | 2.1V | - |
|
LTP-2057AKRLED MATRIX 5X7 2.0" SUPER RED Lite-On Inc. |
4,845 |
|
数据手册 |
- | Tube | Active | 3.5mcd | Common Cathode Row, Common Anode Column | 1.50" L x 2.09" W x 0.34" H (38.10mm x 53.10mm x 8.60mm) | Red | 5 x 7 | 2V | - |
|

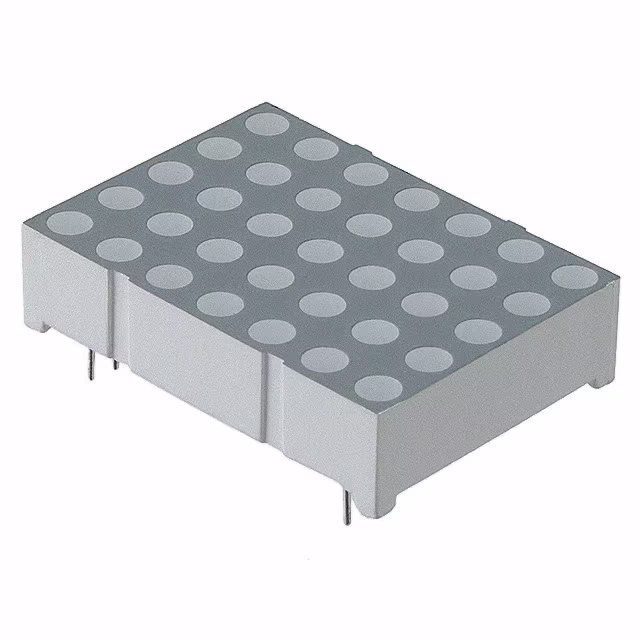

LTP-1257AA-01DISPLAY DOT MATRX O,G 1.2" 5X7 Lite-On Inc. |
3,461 |
|
数据手册 |
- | Tube | Active | 4.8mcd Green, 4.8mcd Orange-Red | Common Cathode Row, Common Anode Column | 0.90" L x 1.25" W x 0.32" H (22.90mm x 31.80mm x 8.00mm) | Green, Orange-Red | 5 x 7 | 2.1V Green, 2V Orange-Red | - |
|
LTP-2088ACDISPLAY DOT MATRX RED 2.3" 8X8 Lite-On Inc. |
4,634 |
|
数据手册 |
- | Tube | Active | 12mcd | Common Cathode Row, Common Anode Column | 2.37" L x 2.37" W x 0.36" H (60.20mm x 60.20mm x 9.10mm) | Red | 8 x 8 | 1.8V | - |
|
|
LTP-4157ACDISPLAY DOT MATRX RED LC 4" 5X7 Lite-On Inc. |
4,131 |
|
数据手册 |
- | Tube | Active | 20mcd | Common Anode Row, Common Cathode Column | 2.99" L x 4.20" W x 0.51" H (76.00mm x 106.55mm x 13.00mm) | Red | 5 x 7 | 3.6V | - |
|

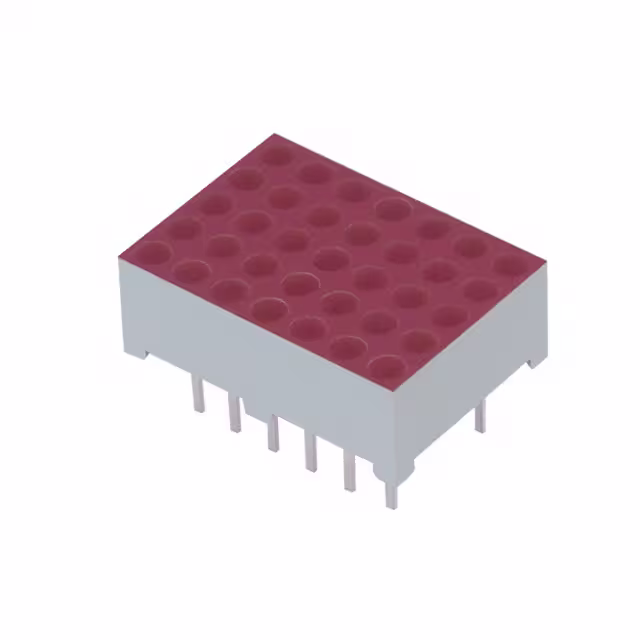

LTP-757HRLED MATRIX 5X7 0.7" HI-EFF RED Lite-On Inc. |
2,967 |
|
数据手册 |
LTP-757 | Tube | Obsolete | 2mcd | Common Anode Row, Common Cathode Column | 0.50" L x 0.70" W x 0.25" H (12.70mm x 17.70mm x 6.30mm) | Red | 5 x 7 | 2.1V | - |
|
|
LTP-1557AGLED MATRIX 5X7 1.2" GREEN Lite-On Inc. |
1,243 |
|
数据手册 |
- | Tube | Active | 4.8mcd | Common Anode Row, Common Cathode Column | 0.89" L x 1.25" W x 0.32" H (22.60mm x 31.80mm x 8.00mm) | Green | 5 x 7 | 2.1V | - |
|
|
LTP-1557AHRLED MATRIX 5X7 1.2" HI-EFF RED Lite-On Inc. |
4,315 |
|
数据手册 |
LTP-1557A | Tube | Obsolete | 3mcd | Common Anode Row, Common Cathode Column | 0.89" L x 1.25" W x 0.32" H (22.60mm x 31.80mm x 8.00mm) | Red | 5 x 7 | 2.1V | - |
|
|
LTP-2157AGLED MATRIX 5X7 2.0" GREEN Lite-On Inc. |
4,844 |
|
数据手册 |
- | Tube | Active | 4.8mcd | Common Anode Row, Common Cathode Column | 1.50" L x 2.09" W x 0.34" H (38.10mm x 53.10mm x 8.60mm) | Green | 5 x 7 | 2.1V | - |
|
|
LTP-2157AHRLED MATRIX 5X7 2.0" HI-EFF RED Lite-On Inc. |
2,278 |
|
数据手册 |
- | Tube | Active | 4.8mcd | Common Anode Row, Common Cathode Column | 1.50" L x 2.09" W x 0.34" H (38.10mm x 53.10mm x 8.60mm) | Red | 5 x 7 | 2V | - |
