LED 彩色照明

制造商	系列	封装/外壳	包装	产品状态	颜色	波长	电流 - 测试	电压 - 正向 (Vf)（典型值）	流明/瓦特 @ 电流 - 测试	电流 - 最大值	光通量 @ 电流/温度	测试温度	视角	安装类型	供应商设备封装	尺寸 / 尺寸	高度 - 安装后（最大值）
American Bright Optoelectronics Corporation American Opto Plus LED Corp. ams-OSRAM USA INC. APEM Inc. Broadcom Limited Cree LED Dialight Everlight Electronics Flip Electronics Galco Industrial Electronics Harvatek Corporation Inolux Kingbright Light-Avenue Lite-On Inc. Lumex Opto/Components Inc. Lumileds Luminus Devices Inc. Polymatech QT Brightek Quelighting Samsung Semiconductor, Inc. Seoul Semiconductor Inc. Sharp Microelectronics Solidlite Stanley Electric SunLED Tec Niq TT Electronics/Optek Technology VCC (Visual Communications Company) Vishay Semiconductor Opto Division Weilinsen Würth Elektronik XINGLIGHT	* - 1860 2525 3535 3570 5630 599 AA3529 AAD1-9090 AB-10T AB-EZD AB-EZP Advanced Power TOPLED® Advanced Power TOPLED® Plus ASM3-SxDx-xxxxH ASM6-Sxxx-xxxxH ASMT-Ax00 ASMT-Ax03 ASMT-Ax3x ASMT-Jx1x ASMT-Jx3x ASMT-QxBD-Axxx CERAMOS CP41A-PxS CSMW-Lx00 Cube-1616 Diamond Dragon DISPLIX Oval DURIS® E 2835 DURIS® P 5 DURIS® S 5 EAHP2835 EAHP3045 EAHP3535 EAHP5630 Envisium™ Golden DRAGON® Golden DRAGON® ARGUS® Golden DRAGON® Plus High Power Horticulture IN-505 IN-C33(X)TL(X) J LED ENGIN LuxiGen LH351H LH351H 2W Little Star® LOPL LR W5SM LTPL LUXEON 2835 LUXEON 2835 Color Line LUXEON 3528 RGB LUXEON 3535L LUXEON 3535L Color Line LUXEON 3735 RGB LUXEON C LUXEON C Color Line LUXEON CZ LUXEON M LUXEON MultiColor Module 2.5W LUXEON MZ LUXEON Neo PC-Amber 1 mm2 LUXEON Rebel LUXEON Rebel Color LUXEON Rebel Color ES LUXEON Rebel Color Line LUXEON Rubix LUXEON Rubix Color LUXEON SunPlus 20 Horticulture LUXEON SunPlus 2835 Horticulture LUXEON SunPlus 35 Horticulture LUXEON SunPlus HPE LUXEON SunPlus Series for Horticulture LUXEON T LUXEON Versat 3030 ST PCA 150 LUXEON Z LUXEON Z Color Line LUXEON Z ES LuxiGen™ LuxiGen™ LZ1 LuxiGen™ LZ4 LuxLED™ LZ1 LZ4 LZ7 LZC LZP Mini TOPLED Mini TOPLED® Moonstone™ MP-2835 Horticulture OSCONIQ® P 2226 OSCONIQ® P 3030 OSLON Signal 80 OSLON SSL OSLON® Black OSLON® Black Flat OSLON® Compact CL OSLON® Compact PL OSLON® Optimal OSLON® Optimal Horticulture OSLON® Pure 1010 OSLON® Pure 1414 OSLON® Signal OSLON® Square OSLON® Square Horticulture OSLON® SSL 120 OSLON® SSL 120 Horticulture OSLON® SSL 150 OSLON® SSL 150 Horticulture OSLON® SSL 80 OSLON® SX OSRAM OSTAR OSRAM OSTAR® OSRAM OSTAR® Projection Compact OSRAM OSTAR® Projection Cube OSRAM OSTAR® Projection Power OSRAM OSTAR® Stage Ostar OSTAR Projection Compact OVS5MxBCR4x Platinum DRAGON PLCC6 PointLED Power SIDELED® Power TOPLED® QBHP684U-XXU QBHP684U-XXV SBM-160 SBM-40 SBM-40-HC SBM-40-LC SBM-40-SC SBT-16 SBT-70 SBT-90 SFT-10 SFT-14 SFT-20 SHUEN SHWO SIDELED SignalSure 250 SignalSure 30 SST-10 Horticulture SST-10-DR Horticulture SST-10-G Horticulture SST-10-R Horticulture SST-10-SB Horticulture SST-20-B Horticulture SST-20-DR Gen 2 Horticulture SST-20-DR Horticulture SST-90 SYNIOS SYNIOS® P1515 SYNIOS® P2720 T1651NG--30C T1651USD-30C TitanBrite™ TOPLED TOPLED® TOPLED® E1608 WL-SMDC XI3030P XLamp® MC-E XLamp® ML-E XLamp® XB-D XLamp® XE-G XLamp® XM-L XLamp® XM-L® Gen 2 XLamp® XN-P XLamp® XP-C XLamp® XP-E XLamp® XP-E Horticulture XLamp® XP-E2 Xlamp® XP-G3 Xlamp® XP-G3 Horticulture XLamp® XP-L Xlamp® XQ-A XLamp® XQ-E XLamp® XQ-E Horticulture XLamp® XR-C XLamp® XR-E XLamp® XT-E XLamp® XT-E Horticulture Z Power Z Power P3-II Z Power P5-II Z-Power	- 0404 (1010 Metric) 0505 (1313 Metric) 0606 (1616 Metric) 0705 (1713 Metric) 0707 (1919 Metric) 0806 (2016 Metric) 1008 (2520 Metric) 1008 (2721 Metric) 1009 (2622 Metric) 1010 (2525 Metric) 1108 (2720 Metric) 1113 (2835 Metric) 1211 (3228 Metric) 1212 (3030 Metric) 1218 (3246 Metric) 1313 (3333 Metric) 1411 (3528 Metric) 1414 (3535 Metric) 1515 (3838 Metric) 1616 (4040 Metric) 1716 (4240 Metric) 1812 (4532 Metric) 1816 (4540 Metric) 2-PLCC 2-SMD, Boomerang 2-SMD, Flat Leads 2-SMD, Gull Wing 2-SMD, Gull Wing Exposed Pad 2-SMD, J-Lead 2-SMD, No Lead 2-SMD, No Lead Exposed Pad 2020 (5050 Metric) 2020 (5250 Metric) 2212 (5630 Metric) 2318 (5847 Metric) 24-SMD Module, No Lead 24-SMD, No Lead Exposed Pad 2420 (6050 Metric) 2424 (6060 Metric) 2824 (7260 Metric) 2828 (7070 Metric) 3-SMD Module 3-SMD, No Lead 3026 (7767 Metric) 3529 (9073 Metric) 3535 (9090 Metric) 4-DIP (0.200", 5.08mm) 4-PLCC 4-SMD, Flat Lead Exposed Pad 4-SMD, Gull Wing 4-SMD, J-Lead 4-SMD, J-Lead Exposed Pad 4-SMD, No Lead Exposed Pad 6-PLCC 6-SMD 6-SMD, Flat Lead Exposed Pad 6-SMD, Flat Leads 6-SMD, Flat Leads, Exposed Pad 6-SMD, Gull Wing 6-SMD, J-Lead 6-SMD, No Lead 6-SMD, No Lead Exposed Pad 8-SMD (7 Leads), Gull Wing 8-SMD Module 8-SMD, Gull Wing Exposed Pad 8-SMD, No Lead 8-SMD, No Lead Exposed Pad 8-SMD, No Lead, Exposed Pad Die Nonstandard SMD Radial Star Array TO-252-3, DPAK (2 Leads + Tab), SC-63	Bag Box Bulk Cut Tape (CT) Retail Package Strip Tape & Reel (TR) Tray Tube	Active Discontinued at BomKey Last Time Buy Not For New Designs Obsolete	- Amber Amber, Blue Amber, Blue, Cyan, Green, Lime, Red Amber, Blue, Cyan, Green, Red, Violet, White - Cool Amber, Blue, Green Amber, Blue, Green, Red Amber-Red Amber-Red, Blue Blue Blue, Green, Lime, Red Blue, Green, Red, Yellow Blue, Red Blue, Royal Cyan Cyan Blue Deep Red Far Red Green Lime Mint Orange Orange-Red Photo Red Pink Purple Purple, Ultraviolet (UV) Red Red, Green, Blue (RGB) Red, Green, Blue, White (RGBW) Red, Green, Blue, White - Cool (RGBW) Red, Green, Blue, White - Neutral (RGBW) Red, Green, Blue, White - Warm (RGBW) Red-Orange Royal Blue Ultraviolet Verde Violet White Yellow	- 1300K 1800K 359nm (252nm ~ 465nm) 366nm (365nm ~ 367nm) 398nm (395nm ~ 400nm) 405nm (Typ) 440nm (435nm ~ 445nm) 445nm (435nm ~ 455nm) 445nm (440nm ~ 450nm) 448nm (440nm ~ 455nm) 448nm (444nm ~ 452nm) 448nm (Typ) 449nm (445nm ~ 453nm) 449nm (Typ) 450nm 450nm (439nm ~ 461nm) 450nm (440nm ~ 460nm) 450nm (444nm ~ 457nm) 450nm (445nm ~ 455nm) 450nm (448nm ~ 452nm) 450nm (Typ) 451nm 451nm (444nm ~ 457nm) 451nm (448nm ~ 453nm) 451nm (Typ) 452.5nm (444nm ~ 461nm) 452nm (448nm ~ 455nm) 453nm 453nm (444nm ~ 461nm) 453nm (445nm ~ 455nm) 453nm (445nm ~ 460nm) 453nm (449nm ~ 457nm) 453nm (449nm ~ 458nm) 453nm (450nm ~ 455nm) 454nm 454nm (448nm ~ 460nm) 454nm (Typ) 454nm Blue, 525nm Green, 622nm Red 455nm 455nm (449nm ~ 461nm) 455nm (439nm ~ 457nm) 455nm (439nm ~ 461nm) 455nm (444nm ~ 464nm) 455nm (445nm ~ 465nm) 455nm (449nm ~ 461nm) 455nm (450nm ~ 460nm) 455nm (453nm ~ 458nm) 455nm (Typ) 456nm (452nm ~ 460nm) 456nm (453nm ~ 458nm) 457nm (448nm ~ 466nm) 457nm (453nm ~ 460nm) 457nm (455nm ~ 460nm) 457nm (Typ) 457nm Blue, 500nm Cyan, 525nm Green, 624nm Red, 395nm Violet, 6500K White 458nm 458nm (450nm ~ 465nm) 458nm (453nm ~ 463nm) 458nm (455nm ~ 460nm) 458nm (Typ) 458nm Blue, 528nm Green, 625nm Red 459nm 459nm (452nm ~ 465nm) 459nm (453nm ~ 465nm) 459nm (454nm ~ 465nm) 459nm (Typ) 460nm 460nm (454nm ~ 466nm) 460nm (455nm ~ 465nm) 460nm (457nm ~ 463nm) 460nm (458nm ~ 463nm) 460nm (Typ) 460nm Blue, 617nm Red 461nm 461nm (458nm ~ 463nm) 461nm (Typ) 463nm 463nm (450nm ~ 475nm) 463nm (455nm ~ 470nm) 463nm (460nm ~ 465nm) 464nm (458nm ~ 470nm) 464nm (459nm ~ 468nm) 465nm 465nm (455nm ~ 475nm) 465nm (460 ~ 470nm) 465nm (460nm ~ 470nm) 465nm (Typ) 465nm Amber, 617nm Blue 465nm Blue, 617nm Red 466nm 466nm (459nm ~ 472nm) 466nm (Typ) 467nm (Typ) 468nm (459nm ~ 476nm) 468nm (460nm ~ 475nm) 468nm (460nm ~ 476nm) 468nm (465nm ~ 470nm) 468nm (Typ) 468nm Blue, 528nm Green, 622nm Red 470nm 470nm (364nm ~ 476nm) 470nm (459nm ~ 480nm) 470nm (460nm ~ 480nm) 470nm (464nm ~ 476nm) 470nm (465nm ~ 475nm) 470nm (465nm ~ 485nm) 470nm (468nm ~ 472nm) 470nm (Typ) 472nm (468nm ~ 476nm) 473nm 473nm (465nm ~ 480nm) 474nm (468nm ~ 480nm) 475nm 475nm (465nm ~ 485nm) 475nm (469nm ~ 480nm) 475nm (470nm ~ 480nm) 475nm (Typ) 476nm (468nm ~ 484nm) 476nm (472nm ~ 480nm) 478nm 480nm 483nm (480nm ~ 485nm) 485nm 488nm 488nm (485nm ~ 500nm) 490nm 490nm (Typ) 491nm (489nm ~ 493nm) 495nm (490nm ~ 500nm) 498nm (490nm ~ 505nm) 500nm 500nm (490nm ~ 510nm) 500nm (495nm ~ 505nm) 500nm (Typ) 502.25nm (492nm ~ 512.5nm) 502nm (495nm ~ 510nm) 503nm (495nm ~ 510nm) 504nm 505nm 505nm (490nm ~ 520nm) 505nm (495nm ~ 515nm) 505nm (499nm ~ 511nm) 505nm (500nm ~ 510nm) 505nm (Typ) 506nm 508nm 515nm (510nm ~ 520nm) 520nm 520nm (515nm ~ 525nm) 522nm (Typ) 523nm 523nm (515nm ~ 530nm) 524nm (520nm ~ 528nm) 525nm 525nm (513nm ~ 537nm) 525nm (515nm ~ 535nm) 525nm (517nm ~ 537nm) 525nm (519nm ~ 531nm) 525nm (520nm ~ 530nm) 525nm (Typ) 526nm 526nm (523nm ~ 528nm) 527nm 527nm (519nm ~ 543nm) 527nm (Typ) 528nm 528nm (519nm ~ 543nm) 528nm (513nm ~ 537nm) 528nm (513nm ~ 543nm) 528nm (519nm ~ 537nm) 528nm (519nm ~ 543nm) 528nm (520nm ~ 535nm) 528nm (Typ) 529nm 529nm (519nm ~ 537nm) 529nm (521nm ~ 537nm) 530nm 530nm (520nm ~ 540nm) 530nm (525nm ~ 530nm) 530nm (525nm ~ 535nm) 530nm (Typ) 531nm (519nm ~ 543nm) 531nm (525nm ~ 537nm) 532nm (523nm ~ 541nm) 533nm (525nm ~ 540nm) 533nm (530nm ~ 536nm) 535nm (530nm ~ 540nm) 540nm 540nm (Typ) 543nm 547nm (543nm ~ 550nm) 548nm (540nm ~ 555nm) 550nm (500nm ~ 600nm) 555nm (545nm ~ 565nm) 555nm (Typ) 559nm (554nm ~ 563nm) 562nm (557nm ~ 566nm) 566nm (563nm ~ 568nm) 568nm (566nm ~ 569nm) 570nm (564nm ~ 576nm) 573nm 585nm (583nm ~ 586nm) 586nm (582nm ~ 590nm) 586nm (583nm ~ 589nm) 587.5nm (583nm ~ 592nm) 587nm 587nm (580nm ~ 595nm) 588nm 588nm (580nm ~ 595nm) 588nm (583nm ~ 592nm) 588nm (585nm ~ 590nm) 588nm (586nm ~ 589nm) 588nm (Typ) 589nm 589nm (582nm ~ 595nm) 589nm (583nm ~ 595nm) 589nm (585nm ~ 593nm) 589nm (586nm ~ 592nm) 589nm (586nm ~ 594nm) 589nm (Typ) 590nm 590nm (583nm ~ 592nm) 590nm (583nm ~ 595nm) 590nm (585nm ~ 594nm) 590nm (585nm ~ 595nm) 590nm (586nm ~ 595nm) 590nm (587nm ~ 597nm) 590nm (588nm ~ 592nm) 590nm (Typ) 590nm Amber, 451nm Blue, 500nm Cyan, 520nm Green, 623nm Red 591nm 591nm (583nm ~ 598nm) 591nm (585nm ~ 597nm) 591nm (586nm ~ 595nm) 591nm (587nm ~ 595nm) 591nm (588nm ~ 594nm), 590nm (588nm ~ 592nm) 591nm (588nm ~ 595nm) 591nm (589nm ~ 593nm) 591nm (Typ) 592nm 592nm (586nm ~ 598nm) 592nm (587nm ~ 596nm) 592nm (587nm ~ 597nm) 592nm (588nm ~ 595nm) 592nm (589nm ~ 595nm) 592nm (Typ) 593nm 593nm (585nm ~ 600nm) 593nm (588nm ~ 598nm) 593nm (590nm ~ 595nm) 593nm (Typ) 593nm Amber, 457nm Blue, 525nm Green, 624nm Red 594nm (586nm ~ 599nm) 594nm (589nm ~ 598nm) 594nm (590nm ~ 598nm) 595nm (590nm ~ 600nm) 595nm Amber, 457nm Blue, 497nm Cyan, 525nm Green, 624nm Red, 395nm Violet, 6500K White 598nm (Typ) 599nm 605nm (600nm ~ 609nm) 605nm (Typ) 606nm 606nm (Typ) 608nm (600nm ~ 615nm) 610nm 610nm (Typ) 612nm Amber-Red, 457nm Blue 613nm 613nm (605nm ~ 620nm) 613nm (609nm ~ 621nm) 613nm (610nm ~ 615nm) 613nm (Typ) 614.5nm (609nm ~ 620nm) 614nm (612nm ~ 616nm) 614nm (612nm ~ 618nm) 615nm 615nm (609nm ~ 620nm) 615nm (609nm ~ 621nm) 615nm (610nm ~ 620nm) 615nm (612nm ~ 618nm) 615nm (Typ) 616nm 616nm (610nm ~ 621nm) 616nm (611nm ~ 620nm) 616nm (612nm ~ 620nm) 617nm 617nm (609nm ~ 620nm) 617nm (609nm ~ 624nm) 617nm (612nm ~ 624nm) 617nm (624nm ~ 612nm) 617nm (Typ) 617nm Amber, 460nm Blue 617nm Amber, 460nm Blue, 525nm Green 617nm Amber, 464nm Green, 529nm Green 618nm 618nm (610nm ~ 625nm) 618nm (611nm ~ 625nm) 618nm (612nm ~ 624nm) 618nm (615nm ~ 620nm) 618nm (616nm ~ 620nm) 618nm (Typ) 619nm 619nm (611nm ~ 627nm) 619nm (614nm ~ 624nm) 619nm (615nm ~ 623nm) 619nm Amber, 464nm Blue, 524nm Green 620nm 620nm (610nm ~ 630nm) 620nm (612nm ~ 628nm) 620nm (615nm ~ 625nm) 620nm (616nm ~ 624nm) 620nm (Typ) 620nm Red, 525nm Green, 455nm Blue, 4600K White 620nm Red, 525nm Green, 465nm Blue 621nm (612nm ~ 630nm) 621nm (615nm ~ 627nm) 621nm (619nm ~ 623nm) 621nm (Typ) 622nm 622nm (613nm ~ 625nm) 622nm (616nm ~ 628nm) 622nm (618nm ~ 625nm) 622nm (620nm ~ 624nm) 622nm (620nm ~ 635nm) 622nm (Typ) 622nm Red, 525nm Green, 455nm Blue, 6100K White 622nm Red, 525nm Green, 470nm Blue 622nm Red, 527nm Green, 455nm Blue 622nm Red, 528nm Green, 463nm Blue 622nm Red, 528nm Green, 472nm Blue 622nm Red, 528nm Green, 473nm Blue 623nm 623nm (615nm ~ 630nm) 623nm (619nm ~ 627nm) 623nm (620nm ~ 625nm) 623nm (620nm ~ 629nm) 623nm (620nm ~ 630nm) 623nm (620nm ~ 632nm) 623nm (Typ) 623nm Red, 520nm Green, 451nm Blue 623nm Red, 523nm Green, 457nm Blue 623nm Red, 523nm Green, 457nm Blue, 6500K White 623nm Red, 524nm Green, 463nm Blue 623nm Red, 525nm Green, 454nm Blue 623nm Red, 525nm Green, 465nm Blue 623nm Red, 526nm Green, 460nm Blue 623nm Red, 527nm Green, 457nm Blue 623nm Red, 530nm Green, 458nm Blue 623nm Red, 530nm Green, 458nm Blue, 7100K White 624nm 624nm (612nm ~ 636nm) 624nm (616nm ~ 632nm) 624nm (618nm ~ 630nm) 624nm (620nm ~ 628nm) 624nm (Typ) 624nm Red, 525nm Green, 454nm Blue 624nm Red, 525nm Green, 454nm Blue, 6500K White 624nm Red, 525nm Green, 457nm Blue 624nm Red, 525nm Green, 457nm Blue, 6000K White 624nm Red, 525nm Green, 457nm Blue, 6100K White 624nm Red, 525nm Green, 457nm Blue, 6335K White 624nm Red, 525nm Green, 457nm Blue, 6450K White 624nm Red, 525nm Green, 457nm Blue, 6500K White 624nm Red, 525nm Green, 457nm Blue, 6658K White 624nm Red, 525nm Green, 457nm Blue, 7000K White 624nm Red, 528nm Green, 470nm Blue 625nm 625nm (617nm ~ 635nm) 625nm (618nm ~ 632nm) 625nm (619nm ~ 631nm) 625nm (620nm ~ 629nm) 625nm (620nm ~ 630nm) 625nm (Typ) 625nm Red, 515nm Green, 460nm Blue 625nm Red, 522nm Green, 451nm Blue 625nm Red, 522nm Green, 453nm Blue 625nm Red, 522nm Green, 454nm Blue 625nm Red, 525nm Green, 451nm Blue 625nm Red, 525nm Green, 453nm Blue 625nm Red, 525nm Green, 455nm Blue, 5700K White 625nm Red, 525nm Green, 456nm Blue 625nm Red, 525nm Green, 460nm Blue 625nm Red, 525nm Green, 463nm Blue, 6650K White 625nm Red, 527nm Green, 453nm Blue 625nm Red, 528nm Green, 451nm Blue 625nm Red, 528nm Green, 453nm Blue 625nm Red, 528nm Green, 458nm Blue 625nm Red, 528nm Green, 458nm Blue, 2950K 625nm Red, 528nm Green, 458nm Blue, 2950K White 625nm Red, 528nm Green, 458nm Blue, 3000K White 625nm Red, 528nm Green, 458nm Blue, 3200K White 625nm Red, 528nm Green, 458nm Blue, 4000K 625nm Red, 528nm Green, 458nm Blue, 4000K White 625nm Red, 528nm Green, 458nm Blue, 5700K White 625nm Red, 528nm Green, 458nm Blue, 6100K White 625nm Red, 528nm Green, 458nm Blue, 6350K White 625nm Red, 528nm Green, 458nm Blue, 6700K White 625nm Red, 528nm Green, 458nm Blue, 6850K 625nm Red, 528nm Green, 458nm Blue, 6850K White 625nm Red, 528nm Green, 470nm Blue 625nm Red, 530nm Green, 451nm Blue 625nm Red, 530nm Green, 453nm Blue 625nm Red, 530nm Green, 458nm Blue 625nm Red, 531nm Green, 453nm Blue 625nm Red, 533nm Green, 451nm Blue 626nm 626nm (620nm ~ 632nm) 626nm (Typ) 626nm Red, 525nm Green, 470nm Blue 626nm Red, 527nm Green, 453nm Blue 627nm (Typ) 628nm (620nm ~ 635nm) 628nm (620nm ~ 636nm) 628nm (624nm ~ 632nm) 628nm (625nm ~ 630nm) 629nm 629nm (624nm ~ 634nm) 630nm 630nm (620nm ~ 636nm) 630nm (620nm ~ 740nm) 630nm (Typ) 630nm Red, 520nm Green, 460nm Blue 631nm (620nm ~ 632nm) 631nm (627nm ~ 634nm) 632nm 632nm (627nm ~ 637nm) 632nm (628nm ~ 636nm) 632nm (Typ) 633nm 633nm (620nm ~ 645nm) 633nm (627nm ~ 639nm) 634nm (630nm ~ 637nm) 634nm (632nm ~ 636nm) 635nm 635nm (632nm ~ 638nm) 635nm (Typ) 636nm (Typ) 638nm 640nm 640nm (620nm ~ 635nm) 640nm (635nm ~ 645nm) 640nm (Typ) 642nm (Typ) 643nm (Typ) 645nm 645nm (Typ) 655nm (650nm ~ 670nm) 655nm (Typ) 656nm (646nm ~ 666nm) 656nm (650nm ~ 670nm) 656nm (Typ) 657nm 657nm (646nm ~ 666nm) 660nm 660nm (640nm ~ 670nm) 660nm (645nm ~ 675nm) 660nm (650nm ~ 670nm) 660nm (655nm ~ 665nm) 660nm (655nm ~ 670nm) 660nm Red, 740nm Red, 520nm Green, 450nm Blue 663nm (655nm ~ 670nm) 665nm (650nm ~ 680nm) 665nm Red, 730nm Red, 525nm Green, 400nm Blue, 450nm Blue, 590nm Amber 720nm (710nm ~ 730nm) 727nm (710nm ~ 740nm) 727nm (Typ) 730nm (715nm ~ 745nm) 730nm (720nm ~ 740nm) 730nm (Typ) 731nm (720nm ~ 745nm) 733nm (725nm ~ 740nm) 734nm (723nm ~ 745nm) 735nm (720nm ~ 745nm) 735nm (720nm ~ 750nm)	- 1.05A 1.05A Red, 1.05A Green, 1.05A Blue 1.2A 1.4A 1.4A Red, 1.4A Green, 1.4A Blue, 1.4A White 1.5A 10.5A 100mA 10mA 110mA 120mA 13.5A 140mA 140mA Red, 140mA Green, 140mA Blue 140mA Red, 160mA Green, 125mA Blue 150mA 150mA Red, 150mA Green, 150mA Blue 175mA 1A 1A Amber, 1A Blue, 1A Cyan, 1A Green, 1A Lime, 1A Red 1A Amber, 1A Blue, 1A Green, 1A Red 1A Blue, 1A Green, 1A Lime, 1A Red 1A Blue, 1A Green, 1A Red, 1A Yellow 1A Red, 1A Green, 1A Blue, 1A White 2.8A 200mA 20mA 20mA Amber, 20mA Blue, 20mA Green, 20mA Red 20mA Red, 20mA Green, 20mA Blue 20mA Red, 20mA Green, 20mA Blue, 20mA White 20mA Red, 25mA Green, 15mA Blue 250mA 2A 3.15A 300mA 300mA Red, 350mA Green, 350mA Blue 30mA 350mA 350mA Amber, 350mA Blue 350mA Amber, 350mA Blue, 350mA Green 350mA Blue, 350mA Red 350mA Deep Red, 350mA Red 350mA Red, 350mA Green, 350mA Blue 350mA Red, 350mA Green, 350mA Blue, 350mA White 38mA 400mA 450mA 4A 4A Red, 4A Green, 4A Blue, 4A White 500mA 50mA 600mA 60mA 65mA 700mA 700mA Amber, 700mA Blue, 700mA Cyan, 700mA Green, 700mA Red, 700mA Violet, 700mA White 700mA Amber, 700mA Blue, 700mA Green 700mA Amber, 700mA Blue, 700mA Green, 700mA Red 700mA Red, 700mA Green, 700mA Blue 700mA Red, 700mA Green, 700mA Blue, 700mA White 70mA 90mA 980mA	- 1.73V 1.75V 1.85V 1.87V 1.88V 1.8V 1.95V 1.97V 1.98V 1.99V 1.9V 10.2V 10.5V 10.8V 10V 11.2V 12.8V 12V 13.9V 14.2V 14.4V 15V Red, 20.9V Green, 19.2V Blue, 22.4V White 15V Red, 21.6V Green, 19.2V Blue, 22.4V White 18.8V Red, 8.2V Red, 14.4V Green, 25.6V Blue 2.02V 2.03V 2.03V Red, 2.73V Green, 2.81V Blue 2.05V 2.05V Red, 2.85V Green, 2.85V Blue, 2.75V White 2.05V Red, 3.3V Green, 3.3V Blue 2.06V 2.07V 2.09V 2.11V 2.125V 2.13V 2.15V 2.16V 2.17V 2.18V 2.1V 2.1V Red, 2.6V Green, 2.9V Blue, 2.9V White 2.1V Red, 2.8V Green, 3V Blue 2.1V Red, 3.15V Green, 3V Blue 2.1V Red, 3.2V Green, 3.2V Blue 2.1V Red, 3.4V Green, 3.2V Blue, 3.2V White 2.1V Red, 3.4V Green, 3.3V Blue 2.1V Red, 3.5V Green, 3.5V Blue 2.21V 2.225V 2.24V 2.24V Red, 3.65V Green, 3.5V Blue, 3.51V White 2.25V 2.25V Red, 3.3V Green, 3.1V Blue, 3.1V White 2.26V 2.275V 2.29V 2.2V 2.2V Amber, 3.4V Blue 2.2V Amber, 3.4V Blue, 3.5V Green 2.2V Amber-Red, 3V Blue 2.2V Red, 3.1V Green, 3.0V Blue 2.2V Red, 3.2V Green, 3.2V Blue, 3.2V White 2.2V Red, 3.35V Green, 3.2V Blue, 3.2V White 2.2V Red, 3.4V Green, 3.4V Blue 2.2V Red, 3.5V Green, 3V Blue, 3V White 2.2V Red, 7V Green, 3.5V Blue 2.325V 2.32V 2.35V 2.35V Red, 2.9V Green, 3V Blue, 3V White 2.35V Red, 3.48V Green, 3V Blue, 3V White 2.35V Red, 3.5V Green, 3.4V Blue 2.35V Red, 3.6V Green, 3V Blue, 3V White 2.375V 2.37V 2.3V 2.3V Red, 2.9V Green, 3.2V Blue, 3.2V White 2.3V Red, 3.2V Green, 3.2V Blue 2.3V Red, 3.2V Green, 3.2V Blue, 3.2V White 2.3V Red, 3.55V Green, 3.2V Blue, 3.2V White 2.3V Red, 3.6V Green, 3V Blue, 3.6V White 2.43V 2.45V 2.45V Amber, 3.3V Blue, 4.2V Green, 2.25V Red, 2.65V Red 2.4V 2.4V Red, 3.2V Green, 3.2V Blue 2.4V Red, 3.2V Green, 3.2V Blue, 3.2V White 2.4V Red, 3.5V Green, 3.1V Blue 2.4V Red, 3.6V Green, 3.05V Blue, 3.05V White 2.51V Red, 3.53V Green, 3.35V Blue, 3.34V White 2.52V 2.55V 2.57V 2.59V Red, 3.74V Green, 3.8V Blue, 3.79V White 2.5V 2.5V Amber, 3.3V Blue, 3.45V Cyan, 3.7V Green, 2.5V Red, 3.7V Violet, 3.3V White 2.5V Amber, 3.5V Blue, 3.5V Green, 2.2V Red 2.5V Amber, 3.6V Blue, 3.6V Green 2.5V Red, 3.2V Green, 3.05V Blue, 3.05V White 2.5V Red, 3.3V Green, 3.2V Blue 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White 2.5V Red, 3.6V Green, 3.45V Blue, 3.45V White 2.5V Red, 3.7V Green, 3.3V Blue, 3.3V White 2.5V Red, 3.8V Green, 3.6V Blue 2.5V Red, 4.5V Green, 3.4V Blue, 3.4V White 2.5V Red, 7.2V Green, 3.2V Blue 2.64V 2.65V 2.65V Red, 3.7V Green, 3.6V Blue, 3.6V White 2.67V 2.6V 2.6V Red, 4.6V Green, 3.8V Blue, 3.8V White 2.74V 2.75V 2.79V 2.7V 2.7V Red, 3.4V Green, 3.3V Blue, 3.3V White 2.82V 2.83V 2.84V 2.85V 2.86V 2.88V 2.89V 2.8V 2.92V 2.93V 2.94V 2.95V 2.95V Blue, 2.3V Red 2.95V Red, 3.45V Green, 3.45V Blue, 3.45V White 2.96V 2.97V 2.98V 2.9V 24V 2V 3.03V 3.04V 3.05V 3.075V 3.08V 3.095V 3.09V 3.125V 3.15V 3.16V 3.1V 3.1V, 3.2V 3.21V 3.25V 3.26V 3.28V 3.2V 3.2V Amber, 3.2V Blue, 2.9V Green, 2.3V Red 3.2V Amber, 3.3V Blue, 3.25V Green, 2.3V Red 3.2V Blue, 2.9V Green, 3.2V Lime, 2.3V Red 3.35V 3.3V 3.3V Amber, 3.05V Blue, 3.45V Cyan, 3.55V Green, 6.1V Lime, 2.3V Red 3.3V Amber, 3.3V Blue, 3.45V Cyan, 3.7V Green, 2.5V Red, 3.7V Violet, 3.3V White 3.45V 3.4V 3.4V Amber, 2.3V Blue 3.4V Blue, 2.3V Red 3.55V 3.5V 3.64V 3.67V 3.6V 3.6V Amber, 3.2V Blue, 3.8V Cyan, 3.5V Green, 6.4V Lime, 2.4V Red 3.75V 3.7V 3.8V 3.9V 36.3V 3V 3V Blue, 2.9V Green, 2.35V Red, 3V Yellow 3V Blue, 3.6V Green, 2.35V Red, 3V Yellow 3V Blue, 3V Green, 3V Lime, 2.2V Red 4.5V 4.6V 4.9V 4V 5.6V 6.25V 6.2V 6.4V 6.5V 6.6V 6.8V 6V 7.5V Red, 10.8V Green, 9.6V Blue, 9.6V White 7V 7V Amber, 10.5V Blue, 10.5V Green, 7V Red 7V Red, 10.5V Green, 10.5V Blue, 10.5V White 9.2V Red, 9.2V Green, 9.2V Blue 9.4V Red, 16.8V Green, 14V Blue 9.6V 9.9V 9V	- 1 lm/W 10 lm/W 100 lm/W 101 lm/W 102 lm/W 103 lm/W 104 lm/W 105 lm/W 106 lm/W 107 lm/W 108 lm/W 109 lm/W 109 lm/W Red, 170 lm/W Green, 23 lm/W Blue, 128 lm/W White 109 lm/W Red, 170 lm/W Green, 23 lm/W Blue, 143 lm/W White 109 lm/W Red, 170 lm/W Green, 23 lm/W Blue, 153 lm/W White 109 lm/W Red, 53 lm/W Green, 81 lm/W White 11 lm/W 110 lm/W 111 lm/W 112 lm/W 113 lm/W 114 lm/W 114 lm/W Green, 141 lm/W Lime, 61 lm/W Red 115 lm/W 116 lm/W 117 lm/W 118 lm/W 119 lm/W 12 lm/W 120 lm/W 121 lm/W 122 lm/W 123 lm/W 124 lm/W 125 lm/W 126 lm/W 127 lm/W 129 lm/W 129 lm/W Red, 187 lm/W Green, 41 lm/W Blue, 118 lm/W White 13 lm/W 130 lm/W 132 lm/W 133 lm/W 134 lm/W 135 lm/W 136 lm/W 136 lm/W Red, 198 lm/W Green, 43 lm/W Blue, 138 lm/W White 137 lm/W 138 lm/W 139 lm/W 14 lm/W 140 lm/W 141 lm/W 143 lm/W 144 lm/W 145 lm/W 146 lm/W 146 lm/W Amber, 46 lm/W Blue, 187 lm/W Green 147 lm/W 148 lm/W 15 lm/W 150 lm/W 151 lm/W 152 lm/W 153 lm/W 154 lm/W 155 lm/W 156 lm/W 158 lm/W 159 lm/W 16 lm/W 160 lm/W 161 lm/W 162 lm/W 163 lm/W 166 lm/W 167 lm/W 169 lm/W 17 lm/W 171 lm/W 172 lm/W 176 lm/W 177 lm/W 178 lm/W 18 lm/W 184 lm/W 185 lm/W 186 lm/W 187 lm/W 19 lm/W 191 lm/W 193 lm/W 195 lm/W 199 lm/W 2 lm/W 2.3 lm/W Red, 83 lm/W Green, 19 lm/W Blue 20 lm/W 20 lm/W Red, 26 lm/W Green, 41 lm/W White 20 lm/W Red, 31 lm/W Green, 37 lm/W White 200 lm/W 21 lm/W 211 lm/W 214 lm/W 22 lm/W 224 lm/W 228 lm/W 23 lm/W 236 lm/W 24 lm/W 24 lm/W Red, 31 lm/W Green, 9 lm/W Blue 25 lm/W 25 lm/W Red, 35 lm/W Green, 56 lm/W White 26 lm/W 27 lm/W 28 lm/W 28 lm/W Red, 35 lm/W Green, 64 lm/W White 29 lm/W 3 lm/W 30 lm/W 31 lm/W 31 lm/W Red, 31 lm/W Green, 31 lm/W Blue 31 lm/W Red, 40 lm/W Green, 7 lm/W Blue, 39 lm/W White 31 lm/W Red, 45 lm/W Green, 10 lm/W Blue, 48 lm/W White 32 lm/W 33 lm/W 33 lm/W Amber, 13 lm/W Blue, 83 lm/W Green 34 lm/W 34 lm/W Red, 29 lm/W Green, 7 lm/W Blue 34 lm/W Red, 43 lm/W Green, 18 lm/W Blue 35 lm/W 35 lm/W Red, 53 lm/W Green, 11 lm/W Green, 82 lm/W 36 lm/W 36 lm/W Red, 53 lm/W Green, 17 lm/W Blue 37 lm/W 38 lm/W 39 lm/W 39 lm/W Amber, 14 lm/W Blue, 42 lm/W Cyan, 54 lm/W Green, 44 lm/W Red, 91 lm/W White 39 lm/W Amber, 36 lm/W Cyan, 51 lm/W Green, 97 lm/W Lime, 40 lm/W Red 39 lm/W Red, 72 lm/W Green, 80 lm/W White 4 lm/W 40 lm/W 40 lm/W Red, 20 lm/W Green, 7 lm/W Blue 40 lm/W Red, 43 lm/W Green, 10 lm/W Blue 41 lm/W 42 lm/W 42 lm/W Amber, 10 lm/W Blue, 42 lm/W Cyan, 51 lm/W Green, 47 lm/W Red, 90 lm/W White 42 lm/W Amber, 14 lm/W Blue, 39 lm/W Cyan, 51 lm/W Green, 41 lm/W Red, 102 lm/W Lime 42 lm/W Red, 56 lm/W Green, 7 lm/W Blue, 71 lm/W White, Neutral 42 lm/W Red, 56 lm/W Green, 7 lm/W Blue, 89 lm/W White, Cool 42 lm/W Red, 67 lm/W Green, 13 lm/W Blue 42 lm/W Red, 67 lm/W Green, 13 lm/W Blue, 179 lm/W White 42 lm/W Red, 75 lm/W Green, 182 lm/W White 43 lm/W 43 lm/W Red, 63 lm/W Green, 75 lm/W White 43 lm/W Red, 91 lm/W Green, 105 lm/W White 44 lm/W 44 lm/W Red, 62 lm/W Green, 77 lm/W White 44.3 lm/W 45 lm/W 45 lm/W Amber, 12 lm/W Blue, 65 lm/W Green, 75 lm/W Red 45 lm/W Red, 54 lm/W Green, 75 lm/W White 46 lm/W 47 lm/W 47 lm/W Red, 51 lm/W Green, 10 lm/W Blue, 79 lm/W White 47 lm/W Red, 53 lm/W Green, 13 lm/W Blue, 93 lm/W White 47 lm/W Red, 57.75 lm/W Green, 80 lm/W White 47 lm/W Red, 61 lm/W Green, 51 lm/W White 48 lm/W 48 lm/W Red, 53 lm/W Green, 76 lm/W White 48 lm/W Red, 64 lm/W Green, 13 lm/W Blue 483 mw/W 49 lm/W 49 lm/W Amber 49 lm/W Amber, 12 lm/W Blue, 43 lm/W Green, 49 lm/W Red 49 lm/W Red, 106 lm/W White 49 lm/W Red, 122 lm/W White 49 lm/W Red, 36 lm/W Green, 12 lm/W Blue 49 lm/W Red, 64 lm/W Green 49 lm/W Red, 67 lm/W Green, 106 lm/W White 49 lm/W Red, 67 lm/W Green, 122 lm/W White 49 lm/W Red, 67 lm/W Green, 97 lm/W White 49 lm/W Red, 74 lm/W Green 49 lm/W Red, 74 lm/W Green, 126 lm/W White 49 lm/W Red, 84 lm/W White 49 lm/W Red, 97 lm/W White 5 lm/W 50 lm/W 50 lm/W Red, 62 lm/W Green, 93 lm/W White 50 lm/W Red, 64 lm/W Green, 97 lm/W White 51 lm/W 51 lm/W Red, 74 lm/W Green, 109 lm/W White 52 lm/W 52 lm/W Red, 67 lm/W Green, 13 lm/W Blue, 79 lm/W White 53 lm/W 54 lm/W 54 lm/W Red, 76 lm/W Green, 20 lm/W Blue 55 lm/W 55 lm/W Red, 63 lm/W Green, 13 lm/W Blue, 85 lm/W White 56 lm/W 56 lm/W Amber, 55 lm/W Green 57 lm/W 58 lm/W 58 lm/W Red, 57 lm/W Green, 12 lm/W Blue, 71 lm/W White 58 lm/W Red, 57 lm/W Green, 12 lm/W Blue, 74 lm/W White 58 lm/W Red, 57 lm/W Green, 12 lm/W Blue, 76 lm/W White 59 lm/W 6 lm/W 60 lm/W 60 lm/W Red, 86 lm/W Green, 127 lm/W White 61 lm/W 61 lm/W Red, 114 lm/W Green, 103 lm/W White 61 lm/W Red, 114 lm/W Green, 126 lm/W White 62 lm/W 63 lm/W 64 lm/W 64 lm/W Red, 100 lm/W Green, 138 lm/W White 65 lm/W 65 lm/W Red, 57 lm/W Green, 15 lm/W Blue, 89 lm/W White 66 lm/W 66 lm/W Red, 63 lm/W Green, 13 lm/W Blue, 85 lm/W White 67 lm/W 68 lm/W 68 lm/W Red, 74 lm/W Green, 17 lm/W Blue 69 lm/W 69 lm/W Red, 53 lm/W Green, 12 lm/W Blue, 71 lm/W White 7 lm/W 70 lm/W 71 lm/W 71 lm/W Red, 101 lm/W Green, 22 lm/W Blue 71 lm/W Red, 101 lm/W Green, 33 lm/W Blue 71 lm/W Red, 80 lm/W Green, 17 lm/W Blue 71 lm/W Red, 98 lm/W Green, 20 lm/W Blue, 94 lm/W White 72 lm/W 73 lm/W 73 lm/W Red, 105 lm/W Green, 17 lm/W Blue, 145 lm/W White 73 lm/W Red, 61 lm/W Green, 16 lm/W Blue, 102 lm/W White 73 lm/W Red, 63 lm/W Green, 17 lm/W Blue, 99 lm/W White 74 lm/W 74 lm/W Green, 49 lm/W Red, 70 lm/W Yellow 74 lm/W Red, 165 lm/W Green, 36 lm/W Blue 74 lm/W Red, 65 lm/W Green, 17 lm/W Blue 74 lm/W Red, 65 lm/W Green, 17 lm/W Blue, 107 lm/W White 75 lm/W 75 lm/W Red, 59 lm/W Green, 13 lm/W Blue 75 lm/W Red, 68 lm/W Green, 13 lm/W Blue, 85 lm/W White 76 lm/W 76 lm/W Red, 63 lm/W Green, 15 lm/W Blue, 104 lm/W White 77 lm/W 77 lm/W Red, 78 lm/W Green, 15 lm/W Blue, 80 lm/W White 77 lm/W Red, 78 lm/W Green, 15 lm/W Blue, 84 lm/W White 77 lm/W Red, 78 lm/W Green, 15 lm/W Blue, 89 lm/W White 78 lm/W 78 lm/W Amber, 114 lm/W Green, 61 lm/W Red 78 lm/W Amber, 23 lm/W Blue, 105 lm/W Green, 74 lm/W Red 78 lm/W Amber-Red 79 lm/W 79 lm/W Green, 49 lm/W Red, 77 lm/W Yellow 8 lm/W 8.3 lm/W 80 lm/W 80 lm/W Amber-Red 81 lm/W 82 lm/W 83 lm/W 84 lm/W 85 lm/W 85 lm/W Red, 87 lm/W Green, 25 lm/W Blue, 101 lm/W White 85 lm/W Red, 87 lm/W Green, 25 lm/W Blue, 83 lm/W White 86 lm/W 86 lm/W Red, 85 lm/W Green, 18 lm/W Blue 87 lm/W 88 lm/W 88 lm/W Red, 154 lm/W Green, 17 lm/W Blue, 118 lm/W White 88 lm/W Red, 154 lm/W Green, 17 lm/W Blue, 133 lm/W White 88 lm/W Red, 154 lm/W Green, 17 lm/W Blue, 138 lm/W White 89 lm/W 9 lm/W 90 lm/W 90 lm/W Green, 143 lm/W Lime, 59 lm/W Red 91 lm/W 92 lm/W 93 lm/W 94 lm/W 95 lm/W 96 lm/W 97 lm/W 98 lm/W 99 lm/W	- 1.02A 1.05A 1.05A Red, 1.05A Green, 1.05A Blue 1.225A 1.2A 1.3A 1.4A 1.4A Blue, 1.05A Amber-Red 1.5A 1.5A Amber, 3A Blue, 1A Cyan, 3A Green, 2.5A Lime, 2.5A Red 1.5A Red, 1.5A Green, 1.5A Blue, 1.5A White 1.75A Red, 1.75A Green, 1.75A Blue, 1.75A White 1.8A 10.5A 100mA 120mA 125mA 13.5A 14.0A 140mA 150mA 150mA Red, 150mA Green, 150mA Blue 15mA 160mA Red, 160mA Green, 160mA Blue 175mA 180mA 18A 1A 1A Amber, 1.5A Blue, 1A Cyan, 1.5A Green, 1.5A Red, 1A Violet, 1.5A White 1A Amber, 1A Blue, 1A Green 1A Amber, 1A Blue, 1A Green, 1A Red 1A Red, 1.5A Green, 1.5A Blue, 1.5A White 1A Red, 1A Blue, 1A Green, 1A White 1A Red, 1A Green, 1A Blue 1A Red, 1A Green, 1A Blue, 1A White 2.1A 2.2A 2.4A 2.5A 2.5A Red, 3A Green, 3A Blue, 1.5A White 2.5A Red, 3A Green, 3A Blue, 3A White 200mA 20mA 240mA 250mA 250mA Red, 240mA Green, 240mA Blue 250mA Red, 250mA Green, 250mA Blue 270mA 2A 2A Red, 2A Green, 2A Blue, 2A White 3 x 250mA 3.5A 300mA 300mA Red, 350mA Green, 350mA Blue 30mA 30mA Amber, 30mA Blue, 30mA Green, 30mA Red 30mA Red, 20mA Green, 20mA Blue 30mA Red, 30mA Green, 30mA Blue 340mA 350mA 350mA Red, 350mA Green, 350mA Blue 350mA Red, 350mA Green, 350mA Blue, 350mA White 375mA 3A 3A Amber, 3A Blue, 3A Green, 3A Red 3A Blue, 3A Green, 2.5A Red, 3A Yellow 3A Blue, 3A Green, 3A Lime, 3A Red 3A Red, 3A Green, 3A Blue, 3A White 3A Red, 4A Green, 4A Blue, 4A White 4.2A 4.5A 4.8A 400mA 400mA Red, 400mA Green, 400mA Blue 450mA 480mA 4A 4A Red, 4A Green, 4A Blue, 4A White 5.5A 5.6A 500mA 500mA Amber, 500mA Blue 500mA Amber, 500mA Blue, 500mA Green 500mA Blue, 500mA Red 50mA 50mA Red, 35mA Green, 35mA Blue 5A 5A Red, 5A Green, 5A Blue, 5A White 6.7A 600mA 60mA 60mA Red, 60mA Green, 60mA Blue 60mA Red, 60mA Green, 60mA Blue, 60mA White 65mA 6A 700mA 700mA Deep Red, 700mA Red 700mA Red, 700mA Green, 700mA Blue 700mA Red, 700mA Green, 700mA Blue, 700mA White 70mA 70mA, 75mA 750mA 75mA 7A 800mA 85mA 88mA 8A 900mA 90mA	- 0.02lm (0.01lm ~ 0.04lm) 0.03lm (0.02lm ~ 0.04lm) 0.05lm (0.03lm ~ 0.06lm) 0.20lm (0.09lm ~ 0.30lm) 0.30lm (0.15lm ~ 0.48lm) 0.40lm (0.20lm ~ 0.60lm) 0.50lm (0.30lm ~ 0.60lm) 1.5lm (1lm ~ 2lm) 1.6lm (1lm ~ 2lm) 1.6mW 10.95lm (8.9lm ~ 13lm) 100lm 100lm (90lm ~ 110lm) 100lm (Typ) 100lm Red, 180lm Green, 44lm Blue, 140lm White 100mW 100mW (40mW ~ 160mW) 100mW (Typ) 1018mW (960mW ~ 1075mW) 101lm (71lm ~ 130lm) 101lm (87lm ~ 114lm) 101lm (89lm ~ 112lm) 101mW (97mW ~ 104mW) 1025mW (800mW ~ 1250mW) 102lm (Typ) 1035mW 1040mW (960mW ~ 1120mW) 1040mW (Typ) 104lm (100lm ~ 107lm) 1050mW (1000mW ~ 1100mW) 1050mW (750mW ~ 1350mW) 1058mW (995mW ~ 1120mW) 105lm 105lm (100lm ~ 110lm) 105lm (87lm ~ 114lm) 105lm (97lm ~ 112lm) 105lm (Typ) 105mW (Typ) 106lm (82lm ~ 130lm) 106lm (96lm ~ 116lm) 107lm 107lm (Typ) 1080mW (995mW ~ 1165mW) 108lm (87lm ~ 130lm) 108lm (90lm ~ 125lm) 108lm Red, 220lm Green, 183lm White 109lm (97lm ~ 121lm) 10lm (5.3lm ~ 14.8lm) 10lm (6lm ~ 13lm) 10lm (8lm ~ 12lm) 10lm (9lm ~ 12lm) 10mW (Typ) 1100mW (1060mW ~ 1140mW) 1100mW (850mW ~ 1350mW) 1100mW (Typ) 1102mW (1020mW ~ 1185mW) 110lm (Typ) 110lm Red, 135lm Green, 27lm Blue, 165lm White 110lm Red, 135lm Green, 27lm Blue, 170lm White 110lm Red, 135lm Green, 27lm Blue, 175lm White 110mW (89mW ~ 130mW) 111lm (107lm ~ 114lm) 111lm (63lm ~ 159lm) 111lm (71lm ~ 150lm) 111lm (75lm ~ 146lm) 111mW (100mW ~ 122mW) 1120mW (1075mW ~ 1165mW) 1123mW (1060mW ~ 1185mW) 112lm 1130mW (960mW ~ 1300mW) 11350mW (9700mW ~ 13000mW) 114lm 114lm (97lm ~ 130lm) 1153mW (1095mW ~ 1210mW) 115lm (85lm ~ 145lm) 115lm (Typ) 115lm Red, 1310mW Blue, 318lm White 115lm Red, 1310mW Blue, 365lm White 115lm Red, 160lm Green, 30lm Blue, 190lm White 115lm Red, 202lm Green, 1310mW Blue, 290lm White 115lm Red, 202lm Green, 1310mW Blue, 318lm White 115lm Red, 220lm Green, 1250mW Blue, 298lm White 115lm Red, 230lm Green, 1310mW Blue 115lm Red, 230lm Green, 1550mW Blue, 365lm White 115lm Red, 248lm Green, 1200mW Blue, 278lm White 115lm Red, 252lm White 115lm Red, 268lm Green, 1310mW Blue 115lm Red, 268lm Green, 1460mW Blue, 337lm White 115lm Red, 268lm Green, 1460mW Blue, 377lm White 115lm Red, 290lm Green, 1310mW Blue, 290lm White 115lm Red, 290lm Green, 1550mW Blue, 365lm White 115lm Red, 290lm Green, 31lm Blue 115lm Red, 290lm White 115mW (85mW ~ 180mW) 115mW (Typ) 1168mW (1035mW ~ 1300mW) 116lm (82lm ~ 150lm) 116lm (Typ) 117lm (104lm ~ 130lm) 118lm (114lm ~ 122lm) 118lm (Typ) 11lm (6lm ~ 15lm) 11lm (7lm ~ 14lm) 11lm (7lm ~ 15lm) 11lm (8lm ~ 13lm) 11lm (9lm ~ 12lm) 11lm (9lm ~ 13lm) 11lm (Typ) 11mW (Typ) 120lm (95lm ~ 145lm) 120lm (Typ) 121lm (112lm ~ 130lm) 121lm (Typ) 122lm (63lm ~ 180lm) 122lm (Typ) 122lm Red, 216lm Green, 1321mW Blue, 302lm White 124lm (97lm ~ 150lm) 125lm (120lm ~ 130lm) 125lm (Typ) 125mW 125mW (Typ) 1260mW (1120mW ~ 1400mW) 126lm (112lm ~ 140lm) 126lm (122lm ~ 130lm) 126lm (71lm ~ 180lm) 126lm (72lm ~ 180lm) 126lm Red, 230lm Green, 1310mW Blue, 290lm White 127lm (95lm ~ 159lm) 128mW (125mW ~ 130mW) 12lm (10lm ~ 14lm) 12lm (10lm ~ 15lm) 12lm (11lm ~ 14lm) 12lm (8lm ~ 18lm) 12lm (9lm ~ 15lm) 12lm (Typ) 130lm Red, 165lm Green, 39lm Blue, 240lm White 130lm Red, 330lm Green, 39lm Blue 130mW (80mW ~ 180mW) 1310mW Blue, 230lm Green, 115lm Red, 230lm Yellow 1310mW Blue, 318lm White 131lm (112lm ~ 150lm) 131lm (114lm ~ 148lm) 131lm (121lm ~ 140lm) 131lm (82lm ~ 180lm) 132lm (Typ) 133lm Red, 160lm Green, 33lm Blue, 234lm White 134lm (Typ) 1350lm (Typ) 1350mW (1300mW ~ 1400mW) 1350mW (900mW ~ 1800mW) 1350mW Blue, 270lm Green, 430lm Lime, 130lm Red 135lm (130lm ~ 139lm) 135lm (90lm ~ 180lm) 135mW (Typ) 136lm (121lm ~ 150lm) 137lm (Typ) 137lm Red, 316lm Green, 1770mW Blue, 375lm White 138lm (Typ) 138lm Red, 290lm Green, 1450lm Blue, 320lm White 139lm 139lm (97lm ~ 180lm) 139lm (Typ) 13lm (10lm ~ 16lm) 13lm (11lm ~ 14lm) 13lm (12lm ~ 14lm) 13lm Red, 28lm Green, 8lm Blue 1400mW 140lm (100lm ~ 180lm) 140lm Amber, 135lm Cyan, 180lm Green, 620lm Lime, 95lm Red 140lm Amber, 42lm Blue, 135lm Cyan, 180lm Green, 620lm Lime, 95lm Red 140lm Red, 330lm Green, 1550mW Blue, 330lm White 140lm Red, 330lm Green, 1550mW Blue, 370lm White 140mW (100mW ~ 180mW) 1425lm (1210lm ~ 1640lm) 142lm (115lm ~ 169lm) 143.5lm (139lm ~ 148lm) 1430mW (1100mW ~ 1760mW) 143lm (106lm ~ 180lm) 143lm (121lm ~ 164lm) 143mW (121mW ~ 164mW) 143mW (130mW ~ 155mW) 144lm (130lm ~ 164lm) 144lm (139lm ~ 148lm) 145lm (127lm ~ 186lm) 145lm (Typ) 145lm Red, 185lm Green, 35lm Blue, 185lm White 145lm Red, 185lm Green, 35lm Blue, 195lm White 145lm Red, 185lm Green, 35lm Blue, 205lm White 1460mW Blue, 268lm Green, 115lm Red, 210lm Yellow 1467.5mW (1300mW ~ 1650mW) 146lm (112lm ~ 180lm) 146lm (140lm ~ 152lm) 1470mW (1300mW ~ 1640mW) 147lm (130lm ~ 164lm) 148lm 14lm 14lm (10lm ~ 19lm) 14lm (12lm ~ 15lm) 14lm (13lm ~ 16lm) 14lm (Typ) 1500mW 150lm (Typ) 150mW (125mW ~ 175mW) 1520mW (1400mW ~ 1640mW) 1525mW (1150mW ~ 1900mW) 152lm (148lm ~ 156lm) 152lm (80lm ~ 224lm) 154lm (97lm ~ 210lm) 1550mW (1500mW ~ 1600mW) 1550mW Blue, 330lm Green, 450lm Lime, 140lm Red 155lm (130lm ~ 180lm) 156lm 156mW 1570mW (1500mW ~ 1640mW) 157lm (90lm ~ 224lm) 157mW (112mW ~ 201mW) 158lm (125lm ~ 190lm) 15lm (11lm ~ 18l m) 15lm (12lm ~ 17lm) 15lm (13lm ~ 16lm) 15lm (13lm ~ 17lm) 15lm (14lm ~ 16lm) 15lm (8lm ~ 21lm) 15lm (8lm ~ 22lm) 15lm (Typ) 1600mW (1300mW ~ 1900mW) 160lm (140lm ~ 180lm) 160lm (156lm ~ 164lm) 160lm (Typ) 161lm (112lm ~ 210lm) 161lm (93lm ~ 228lm) 161mW (147mW ~ 175mW) 1625mW (1450mW ~ 1800mW) 164lm 1650mW (1500mW ~ 1800mW) 165mW (155mW ~ 175mW) 1675mW (1450mW ~ 1900mW) 168lm (112lm ~ 224lm) 168lm (164lm ~ 172lm) 168lm Red, 365lm Green, 1820mW Blue, 458lm White 16lm (12lm ~ 20lm) 16lm (13lm ~ 18l m) 16lm (13lm ~ 18lm) 16lm (14lm ~ 18lm) 16lm (Typ) 170lm (Typ) 172lm 172mW (150mW ~ 194mW) 173lm (117lm ~ 228lm) 175lm (125lm ~ 224lm) 175lm (Typ) 176lm (112lm ~ 240lm) 176lm (172lm ~ 180lm) 1770mW 17lm (11lm ~ 22lm) 17lm (15lm ~ 19lm) 17lm (16lm ~ 18lm) 17lm (Typ) 1800mW (1590mW ~ 2010mW) 180lm 180lm (160lm ~ 200lm) 180lm (Typ) 182lm (140lm ~ 224lm) 184lm (180lm ~ 188lm) 184lm (Typ) 185lm (150lm ~ 220lm) 185lm (180lm ~ 190lm) 185lm (Typ) 185mW (180mW ~ 190mW) 187lm (164lm ~ 210lm) 187mW (164mW ~ 210mW) 188lm 18lm (12lm ~ 24lm) 18lm (14lm ~ 22lm) 18lm (15lm ~ 21lm) 18lm (Typ) 18lm Red, 38lm Green, 12lm Blue 18lm Red, 38lm Green, 8lm Blue 19.1lm 190lm (180lm ~ 200lm) 190mW 192lm (159lm ~ 224lm) 193lm (165lm ~ 220lm) 193mW (175mW ~ 210mW) 195mW (190mW ~ 200mW) 196lm 196lm Red, 420lm Green, 2100mW Blue, 533lm White 198lm (Typ) 19lm 19lm (12lm ~ 26lm) 19lm (13lm ~ 24lm) 19lm (15lm ~ 22lm) 19lm (16lm ~ 21lm) 19lm (16lm ~ 22lm) 19lm (17lm ~ 20lm) 1lm (0.1lm ~ 1lm) 1lm (1lm ~ 2lm) 1lm (Typ) 1lm Red, 2lm Green, 0.59lm Blue 2.22lm 2.7mW (2.4mW ~ 3mW) 2000mW (1600mW ~ 2400mW) 200lm (Typ) 200mW 202lm (180lm ~ 224lm) 2045mW (1590mW ~ 2500mW) 205lm (130lm ~ 280lm) 205lm (200lm ~ 210lm) 2075mW (1400mW ~ 2750mW) 209lm (194lm ~ 224lm) 20lm (11lm ~ 28lm) 20lm (13lm ~ 27lm) 20lm (15lm ~ 24lm) 20lm (16lm ~ 25lm) 20lm (18lm ~ 21lm) 20lm (Typ) 21.5lm (Typ) 2100lm (Typ) 210lm (140lm ~ 280lm) 210lm (180lm ~ 240lm) 210lm (200lm ~ 220lm) 210lm (Typ) 210lm Red, 533lm Green, 2300mW Blue, 580lm White 210mW (190mW ~ 230mW) 2150mW (1550mW ~ 2750mW) 2150mW (1800mW ~ 2500mW) 215lm (145lm ~ 285lm) 215lm (150lm ~ 280lm) 215lm Red, 235lm Green, 56lm Blue, 360lm White 21lm (12lm ~ 30lm) 21lm (14lm ~ 28lm) 21lm (18lm ~ 24lm) 21lm (Typ) 21lm Red, 42lm Green, 9lm Blue 220lm 220lm (200lm ~ 240lm) 220mW (200mW ~ 240mW) 2250mW (1750mW ~ 2750mW) 225lm (210lm ~ 240lm) 225lm Amber, 1550mW Blue, 330lm Green, 140lm Red 225mW 226mW (201mW ~ 250mW) 22lm (14lm ~ 31lm) 22lm (19lm ~ 24lm) 22lm (20lm ~ 23lm) 22lm (21lm ~ 23lm) 22lm (Typ) 230lm (180lm ~ 280lm) 230lm (220lm ~ 240lm) 230lm (Typ) 230mW (210mW ~ 250mW) 23lm 23lm (13lm ~ 33lm) 23lm (14lm ~ 40lm) 23lm (15lm ~ 30lm) 23lm (18lm ~ 28lm) 23lm (21lm ~ 25.9lm) 23lm (21lm ~ 26lm) 23lm (22lm ~ 24lm) 23lm (Typ) 240lm 240lm (Typ) 240lm Amber, 89lm Blue, 315lm Green, 240lm Red 240mW (150mW ~ 280mW) 240mW (180mW ~ 330mW) 240mW (190mW ~ 290mW) 247lm (Typ) 24lm (15lm ~ 33lm) 24lm (16lm ~ 32lm) 24lm (17lm ~ 31lm) 24lm (18lm ~ 31lm) 24lm (20lm ~ 27lm) 24lm (21lm ~ 26lm) 24lm (Typ) 2500mW (2000mW ~ 3000mW) 250lm (225mW ~ 275mW) 250lm (240lm ~ 260lm) 250lm (Typ) 250mW (225mW ~ 275mW) 250mW (230mW ~ 270mW) 250mW (Typ) 252mW (224mW ~ 280mW) 255lm Amber, 116lm Blue, 470lm Green 259lm (Typ) 25lm 25lm (12lm ~ 38lm) 25lm (19lm ~ 30lm) 25lm (20lm ~ 30lm) 25lm (21lm ~ 28lm) 25lm (22lm ~ 28lm) 25lm (23lm ~ 26lm) 25lm (23lm ~ 27lm) 25lm (23lm ~ 32lm) 25lm (24lm ~ 27lm) 25lm (Typ) 25lm Red, 25lm Green, 8lm Blue 25lm Red, 35lm Green, 8lm Blue 260mW 260mW (19mW ~ 320mW) 260mW (Typ) 265mW (260mW ~ 270mW) 269mW (224mW ~ 315mW) 26lm (18lm ~ 33lm) 26lm (20.1lm ~ 31.8lm) 26lm (20lm ~ 32lm) 26lm (25lm ~ 27lm) 26lm (Typ) 275lm 275mW 275mW (250mW ~ 300mW) 27lm (15lm ~ 39lm) 27lm (18lm ~ 36lm) 27lm (21lm ~ 33lm) 27lm (23lm ~ 31lm) 27lm (24lm ~ 30lm) 27lm (24lm ~ 31lm) 27lm (Typ) 280lm 282lm (259lm ~ 304lm) 2850lm (2400lm ~ 3300lm) 285lm (260lm ~ 310lm) 285mW (230mW ~ 380mW) 288mW (275mW ~ 300mW) 28lm (25lm ~ 28lm) 28lm (Typ) 2900mW (2000mW ~ 3800mW) 2900mW (Typ) 290lm (280lm ~ 300lm) 290mW (270mW ~ 310mW) 29lm (18lm ~ 39lm) 29lm (18lm ~ 40lm) 29lm (22lm ~ 36lm) 29lm (24lm ~ 33lm) 29lm (25lm ~ 32lm) 29lm (27lm ~ 31lm) 29lm (28lm ~ 30lm) 29lm (Typ) 2lm (Typ) 2lm Red (1lm ~ 3lm), 5lm Green (3lm ~ 7lm), 0.57lm Blue (0.32lm ~ 0.82lm) 2mW (Typ) 300lm 300lm (210lm ~ 390lm) 300lm Red, 300lm Green, 300lm Blue 300mW Deep Red, 70lm Red 303mW (250mW ~ 355mW) 303mW (275mW ~ 330mW) 305mW (260mW ~ 350mW) 30lm (21lm ~ 39lm) 30lm (25lm ~ 35lm) 30lm (26lm ~ 33lm) 30lm (Typ) 30lm Red, 46lm Green, 10lm Blue 30lm Red, 50lm Green, 20lm Blue 3100mW (2400mW ~ 3800mW) 310lm (300lm ~ 320lm) 313mW (275mW ~ 350mW) 313mW (300mW ~ 325mW) 315mW (270mW ~ 360mW) 317mW (200mW ~ 440mW) 31lm 31lm (22lm ~ 40lm) 31lm (23lm ~ 39lm) 31lm (24lm ~ 52lm) 31lm (Typ) 31lm Red, 67lm Green, 8lm Blue, 100lm White 31lm Red, 67lm Green, 8lm Blue, 80lm White 320lm 320lm Red, 425lm Green, 120lm Blue 320lm Red, 740lm Green, 110lm Blue, 590lm White 320lm Red, 820lm Green, 150lm Blue, 730lm White 320mW 325mW (250mW ~ 400mW) 325mW (300mW ~ 350mW) 32lm (18lm ~ 45lm) 32lm (24lm ~ 39lm) 32lm (24lm ~ 40lm) 32lm (Typ) 330lm (Typ) 330mW 330mW (310mW ~ 350mW) 333lm (285lm ~ 380lm) 3350lm (2800lm ~ 3900lm) 337lm (224lm ~ 450lm) 338mW (325mW ~ 350mW) 33lm (21lm ~ 45lm) 33lm (31lm ~ 35lm) 33lm (Typ) 33mW (15mW ~ 50mW) 340lm Red, 390lm Green, 89lm Blue, 525lm White 340lm Red, 430lm Green, 100lm Blue, 600lm White 340mW (280mW ~ 400mW) 343lm (305lm ~ 380lm) 345lm (Typ) 34lm (26lm ~ 43lm) 34lm (28lm ~ 39lm) 34lm (28lm ~ 40lm) 34lm (30lm ~ 37lm) 34lm (Typ) 350lm 350lm (340lm ~ 360lm) 350mW (250mW ~ 450mW) 350mW (300mW ~ 400mW) 350mW (330mW ~ 430mW) 350mW (330mW ~ 480mW) 350mW (Typ) 355mW (330mW ~ 380mW) 358mW (315mW ~ 400mW) 35lm 35lm (24lm ~ 45lm) 35lm (25lm ~ 45lm) 35lm (27lm ~ 42lm) 35lm (30lm ~ 39lm) 35lm (31lm ~ 40lm) 35lm (Typ) 35lm Red, 57lm Green, 13lm Blue 35lm Red, 75lm Green, 15lm Blue 35lm Red, 75lm Green, 15lm Blue, 200lm Blue 3600mW (Typ) 360lm 363mW (350mW ~ 375mW) 3650mW (2800mW ~ 4500mW) 365lm (280lm ~ 450lm) 365lm (285lm ~ 445lm) 365mW (280mW ~ 450mW) 36lm (27lm ~ 45lm) 36lm (Typ) 370lm (360lm ~ 380lm) 370mW (350mW ~ 390mW) 375mW (Typ) 37lm 37lm (21lm ~ 52lm) 37lm (28lm ~ 45lm) 37lm (30lm ~ 48lm) 37lm (35lm ~ 39lm) 37lm (Typ) 380lm 383mW (315mW ~ 450mW) 386mW (Typ) 388mW (350mW ~ 425mW) 388mW (375mW ~ 400mW) 38lm (24lm ~ 52lm) 38lm (33lm ~ 42lm) 38lm (35lm ~ 40lm) 38lm (36lm ~ 40lm) 38lm (Typ) 390lm (280lm ~ 500lm) 390lm (Typ) 390mW (380mW ~ 480mW) 393mW (360mW ~ 425mW) 39lm (26lm ~ 52lm) 39lm (33lm ~ 45lm) 39lm (Typ) 3lm 3lm (2lm ~ 4lm) 3lm (3lm ~ 4lm) 3lm (Typ) 3lm Red, 6lm Green, 1lm Blue, 8lm White 3lm Red, 9lm Green, 2lm Blue 400lm 400lm (280lm ~ 520lm) 400mW (Typ) 403mW (355mW ~ 450mW) 40lm 40lm (28lm ~ 52lm) 40lm (33lm ~ 56lm) 40lm (Typ) 40lm Red, 85lm Green, 22lm Blue 40mW (Typ) 410lm (400lm ~ 420lm) 410lm (Typ) 410mW (280mW ~ 520mW) 410mW (390mW ~ 430mW) 413mW (400mW ~ 425mW) 41lm (21lm ~ 61lm) 41lm (Typ) 420lm 420mW (280mW ~ 560mW) 425mW (400mW ~ 450mW) 425mW (Typ) 42lm (24lm ~ 60lm) 42lm (39lm ~ 44lm) 42lm (39lm ~ 45lm) 42lm (Typ) 430lm (420lm ~ 440lm) 433mW (380mW ~ 485mW) 4350mW (4200mW ~ 4500mW) 435mW (355mW ~ 515mW) 438mW (425mW ~ 450mW) 43lm (24lm ~ 61lm) 43lm (33lm ~ 52lm) 43lm (40lm ~ 46lm) 43lm (Typ) 43lm Amber, 325mW Blue, 67lm Green 44lm (33lm ~ 54lm) 44lm (39lm ~ 48lm) 44lm (40lm ~ 48lm) 44lm (Typ) 44lm Amber-Red, 350mW Blue 450lm (440lm ~ 460lm) 450mW (430mW ~ 530mW) 455mW (430mW ~ 480mW) 456lm (356lm ~ 556lm) 458mW (355mW ~ 560mW) 458mW (400mW ~ 520mW) 45lm (28lm ~ 61lm) 45lm (33lm ~ 56lm) 45lm (39.1lm ~ 67.3lm) 45lm (Typ) 45mW (Typ) 463mW (450mW ~ 475mW) 46lm 46lm (36lm ~ 55lm) 46lm (36lm ~ 56lm) 46lm (39lm ~ 52lm) 46lm (40lm ~ 52lm) 46lm (Typ) 470lm (330lm ~ 610lm) 470lm (460lm ~ 480lm) 473mW (380mW ~ 565mW) 475lm 475mW (355mW ~ 595mW) 47lm (33lm ~ 60lm) 47lm (33lm ~ 61lm) 47lm (42lm ~ 52lm) 47lm (Typ) 480mW (400mW ~ 560mW) 488mW (475mW ~ 500mW) 48lm (24lm ~ 71lm) 48lm (40lm ~ 56lm) 48lm (42lm ~ 54lm) 48lm (Typ) 490lm (480lm ~ 500lm) 490mW (415mW ~ 565mW) 493lm Red, 800lm Green, 170lm Blue, 1453lm White 493mW (355mW ~ 630mW) 49lm (15lm ~ 83lm) 49lm (38lm ~ 60lm) 49lm (45lm ~ 52lm) 49lm (46lm ~ 52lm) 4lm (2lm ~ 5lm) 4lm (2lm ~ 6lm) 4lm (3lm ~ 5lm) 4lm (Typ) 500mW 500mW Blue, 58lm Red 505mW (450mW ~ 560mW) 505mW (480mW ~ 530mW) 506mW (480mW ~ 532mW) 508mW (450mW ~ 565mW) 50lm (39lm ~ 61lm) 50lm (40lm ~ 60lm) 50lm (Typ) 510lm (Typ) 513mW (500mW ~ 525mW) 515lm (400lm ~ 630lm) 515lm (430lm ~ 600lm) 515mW (Typ) 51lm (42lm ~ 59lm) 51lm (Typ) 520lm (Typ) 520mW (450mW ~ 610mW) 520mW (Typ) 522lm (Typ) 525mW 52lm (32lm ~ 71lm) 52lm (33lm ~ 71lm) 52lm (Typ) 530mW 530mW (400mW ~ 560mW) 530mW (510mW ~ 550mW) 531mW (262mW ~ 800mW) 533mW (355mW ~ 710mW) 538mW (525mW ~ 550mW) 538mW (538mW ~ 550mW) 53lm (45lm ~ 61lm) 53lm (Typ) 53mW (25mW ~ 80mW) 540lm (455lm ~ 625lm) 540mW (450mW ~ 630mW) 54lm (39lm ~ 71lm) 54lm (40lm ~ 62lm) 54lm (40lm ~ 67lm) 54lm (52lm ~ 57lm) 54lm (67lm ~ 74lm) 54lm (Typ) 550mW (500mW ~ 600mW) 558lm (490lm ~ 625lm) 55lm (39lm ~ 71lm) 55lm (45lm ~ 65lm) 55lm (48lm ~ 61lm) 55lm (52lm ~ 57lm) 55lm (Typ) 55lm Red, 110lm Green, 22lm Blue, 105lm White 55lm Red, 95lm Green, 20lm Blue 563mW (550mW ~ 575mW) 565mW (500mW ~ 630mW) 56lm (48lm ~ 64lm) 56lm (52lm ~ 60lm) 56lm (Typ) 570mW (550mW ~ 590mW) 575mW 578lm (530lm ~ 625lm) 57lm (42lm ~ 71lm) 580mW (450mW ~ 710mW) 580mW (530mW ~ 705mW) 588mW (575mW ~ 600mW) 58lm (33lm ~ 82lm) 58lm (43lm ~ 73lm) 58lm (45lm ~ 71lm) 58lm (52lm ~ 87lm) 58lm (56lm ~ 60lm) 58lm (Typ) 58lm Amber, 32lm Blue, 210lm Green 58lm Amber, 345mW Blue 595mW (Typ) 59lm (52lm ~ 66lm) 59lm (52lm ~ 67lm) 59lm (57lm ~ 62lm) 5lm (3lm ~ 7lm) 5lm (Typ) 5lm Amber, 1.5lm Blue, 6.8lm Green, 3.4lm Red 5mW (Typ) 600mW 600mW (515mW ~ 685mW) 60lm 60lm (50lm ~ 70lm) 60lm (52lm ~ 87lm) 60lm (57lm ~ 62lm) 60lm (Typ) 613mW (600mW ~ 625mW) 61lm (39lm ~ 82lm) 61lm (50lm ~ 71lm) 625mW 62lm (50lm ~ 78lm) 62lm (52lm ~ 71lm) 62lm (52lm ~ 87lm) 62lm (54lm ~ 70lm) 62lm (60lm ~ 64lm) 62lm (Typ) 62lm Red, 133lm Green, 24lm Blue, 183nm White 62mW (Typ) 637.5mW (625mW ~ 650mW) 638lm (625mW ~ 650mW) 638mW (625mW ~ 650mW) 63lm (Typ) 640lm (445lm ~ 868lm) 64lm (45lm ~ 82lm) 64lm (56lm ~ 71lm) 64lm (56lm ~ 72lm) 64lm (60lm ~ 67lm) 64lm (Typ) 64mW 650mW 650mW (600mW ~ 700mW) 650mW (630mW ~ 670mW) 656mW (512mW ~ 800mW) 657lm (445lm ~ 868lm) 658mW (635mW ~ 680mW) 65lm (33lm ~ 97lm) 65lm (51.7lm ~ 87.4lm) 65lm (51.7lm ~ 87lm) 65lm (60lm ~ 70lm) 65lm (62lm ~ 67lm) 65lm (Typ) 65lm Red, 140lm Green, 17lm Blue, 120lm White 65lm Red, 140lm Green, 17lm Blue, 135lm White 65lm Red, 140lm Green, 17lm Blue, 140lm White 660mW (600mW ~ 760mW) 660mW (610mW ~ 710mW) 662.2mW (650mW ~ 675mW) 663mW (650mW ~ 675mW) 668mW (600mW ~ 760mW) 66lm (61lm ~ 71lm) 66lm (Typ) 675mW (450mW ~ 900mW) 67lm (50lm ~ 83lm) 67lm (52lm ~ 82lm) 67lm (Typ) 67lm Red, 101lm Green, 27lm Blue, 110lm White 67lm Red, 101lm Green, 27lm Blue, 90lm White 680lm (560lm ~ 800lm) 687.5mW (675mW ~ 700mW) 688mW (675mW ~ 700mW) 68lm (39lm ~ 97lm) 68lm (56lm ~ 80lm) 68lm (61lm ~ 76lm) 68lm Red, 168lm Green, 765mW Blue, 182lm White 68lm Red, 168lm Green, 865mW Blue, 182lm White 690mW (670mW ~ 710mW) 69lm (47lm ~ 90lm) 69lm (61lm ~ 76lm) 69mW (61mW ~ 76mW) 6lm (3lm ~ 8lm) 6lm (4lm ~ 8lm) 6lm (5lm ~ 7lm) 6lm (5lm ~ 9lm) 6lm (6lm ~ 7lm) 6lm (Typ) 705mW (680mW ~ 730mW) 70lm (30lm ~ 110lm) 70lm (40lm ~ 100lm) 70lm (50lm ~ 90lm) 70lm (52lm ~ 87lm) 70lm (Typ) 70lm Amber, 33lm Blue, 101lm Cyan, 140lm Green, 80lm Red, 900mW Violet, 210lm White 70mW 70mW (40mW ~ 100mW) 711mW (658mW ~ 763mW) 712.5mW (700mW ~ 725mW) 71lm (45lm ~ 97lm) 71lm (66lm ~ 76lm) 71lm (67lm ~ 74lm) 71lm (Typ) 72lm (61lm ~ 82lm) 72lm (Typ) 72lm Red, 40lm Green, 9lm Blue 730lm (560lm ~ 900lm) 730mW (610mW ~ 930mW) 735mW (Typ) 73lm (45lm ~ 100lm) 73lm (Typ) 743mW (660mW ~ 825mW) 74lm 74lm (66lm ~ 82lm) 74lm (72lm ~ 76lm) 74lm (Typ) 755mW (730mW ~ 780mW) 75lm 75lm (52lm ~ 100lm) 75lm (52lm ~ 97lm) 75lm (70lm ~ 80lm) 75lm (71lm ~ 79lm) 75lm (Typ) 75lm Red, 155lm Green, 861mW Blue, 176lm White 765lm Red, 920lm Green, 230lm Blue, 1550lm White 767.5mW (710mW ~ 825mW) 768mW (710mW ~ 825mW) 76lm (24lm ~ 52lm) 76lm (39lm ~ 112lm) 76lm (52lm ~ 100lm) 76lm (61lm ~ 71lm) 76lm (Typ) 770lm Red, 925lm Green, 221lm Blue, 1605lm White 773mW (720mW ~ 825mW) 77lm (67lm ~ 87lm) 77lm (71lm ~ 82lm) 77lm (74lm ~ 81lm) 77lm (Typ) 78lm (66lm ~ 89lm) 78lm (74lm ~ 81lm) 78lm (Typ) 78lm Amber, 30lm Blue, 160lm Green, 115lm Red 79lm (45lm ~ 112lm) 79lm (61lm ~ 97lm) 79lm Red, 135lm Green, 765mW Blue, 182lm White 7lm (4.5lm ~ 9lm) 7lm (4lm ~ 9lm) 7lm (5lm ~ 8lm) 7lm (5lm ~ 9lm) 7lm (6lm ~ 8lm) 7lm (7lm ~ 8lm) 7lm (Typ) 8.15lm (6.6lm ~ 9.7lm) 8.75lm (7.1lm ~ 10.4lm) 800mW 805mW (755mW ~ 855mW) 80lm (64lm ~ 96lm) 80lm (71lm ~ 89lm) 80lm (75lm ~ 85lm) 80lm (Typ) 80lm Red, 155lm Green, 23lm Blue, 130lm White 80lm Red, 155lm Green, 23lm Blue, 145lm White 80lm Red, 155lm Green, 23lm Blue, 155lm White 80mW (130mW ~ 180mW) 80mW (Typ) 810mW (790mW ~ 830mW) 81lm 81lm (50lm ~ 112lm) 820mW (640mW ~ 1000mW) 825mW (800mW ~ 850mW) 82lm 82lm (52lm ~ 112lm) 82lm (76lm ~ 97lm) 82lm (Typ) 82lm Red, 133lm Green, 24lm Blue, 183lm White 83lm (61lm ~ 104lm) 83lm (67lm ~ 100lm) 83lm (Typ) 84lm (71lm ~ 97lm) 84lm (81lm ~ 87lm) 84lm Red, 168lm Green, 765mW Blue, 182lm White 84lm Red, 182lm Green, 1060mW Blue, 252lm White 85lm (73lm ~ 124lm) 85lm (80lm ~ 90lm) 85lm (Typ) 85lm Red, 148lm Green, 30lm Blue, 190lm White 85mW (75mW ~ 121mW) 87lm (61lm ~ 112lm) 87lm (76.3lm ~ 97lm) 87lm (76lm ~ 97lm) 88lm (50lm ~ 125lm) 88lm (80lm ~ 96lm) 890mW (870mW ~ 910mW) 89lm (59lm ~ 118lm) 8lm 8lm (4lm ~ 11lm) 8lm (5lm ~ 11lm) 8lm (6lm ~ 10lm) 8lm (6lm ~ 11lm) 8lm (6lm ~ 9lm) 8lm (Typ) 9025mW (7630mW ~ 10420mW) 90lm 90lm (82lm ~ 97lm) 90lm (Typ) 91lm (56lm ~ 125lm) 91lm (87lm ~ 94lm) 91lm (94lm ~ 87lm) 925mW (890mW ~ 960mW) 92lm (71lm ~ 112lm) 92lm Red, 182lm Green, 1125mW Blue, 290lm White 93lm (Typ) 94lm (Typ) 950mW (900mW ~ 1000mW) 95lm (90lm ~ 100lm) 95lm (Typ) 95lm Red, 170lm Green, 42lm Blue, 120lm White 95mW (65mW ~ 140mW) 965mW (900mW ~ 1030mW) 965mW (990mW ~ 1030mW) 96lm (61lm ~ 130lm) 96lm (80lm ~ 112 lm) 96lm (80lm ~ 112lm) 96lm Amber, 24lm Blue, 101lm Cyan, 133lm Green, 83lm Red, 900mW Violet, 208lm White 97lm (82lm ~ 112lm) 97lm (89lm ~ 104lm) 97lm (94lm ~ 100lm) 97lm Red (80lm ~ 114lm), 173lm Green (150lm ~ 195lm), 33lm Blue (25lm ~ 40lm), 200lm White (180lm ~ 220lm) 980mW (925mW ~ 1035mW) 98lm (84lm ~ 112lm) 98lm (Typ) 998mW (960mW ~ 1035mW) 99lm (Typ) 9lm (5lm ~ 13lm) 9lm (6lm ~ 11lm) 9lm (6lm ~ 12lm) 9lm (6lm ~ 24lm) 9lm (7lm ~ 11lm) 9lm (7lm ~ 12lm) 9lm (Typ)	- 25°C 40°C 85°C	- 100° 102° 105° 10° 110° 110° x 60° 113° 114° 115° 117° 118° 120° 120° Red, 120° Green, 120° Blue, 130° White 120° Red, 120° Green, 120° Blue, 130° Yellow 120°, 130° 121° 122° 123° 124° 125° 126° 127° 128° 129° 130° 134° Red, 130° Green, 120° Blue 135° 135° Red, 170° Green, 135° Blue 140° 143° 145° 148° 150° 155° 160° 161° 162° 165° 170° 20° 25° 28° 30° 40° 55° 60° 60°, 90°, 120° 70° 76° 80° 85° 90° 95°	- Surface Mount Surface Mount, Right Angle Through Hole	- 0404 0606 0705 0806 1009 1010 1108 1212 1411 1414 1515 1616 1812 2-PLCC 2-SMD 2020 2318 2525 2828 2835 3-SMD 3-SMT 3030 3045 3535 4-DIP 4-PLCC 4-SMD 5052 6-PLCC 6-SMD 6-SMT 8-SMD CSMD Die Radial SMD	- 0.007" L x 0.007" W (0.19mm x 0.19mm) 0.008" L x 0.008" W (0.20mm x 0.20mm) 0.008" L x 0.008" W (0.22mm x 0.22mm) 0.009" L x 0.009" W (0.23mm x 0.23mm) 0.010" L x 0.010" W (0.26mm x 0.26mm) 0.011" L x 0.009" W (0.27mm x 0.22mm) 0.011" L x 0.011" W (0.27mm x 0.27mm) 0.011" L x 0.011" W (0.28mm x 0.28mm) 0.012" L x 0.006" W (0.30mm x 0.15mm) 0.012" L x 0.012" W (0.30mm x 0.30mm) 0.013" L x 0.009" W (0.32mm x 0.24mm) 0.013" L x 0.013" W (0.34mm x 0.34mm) 0.019" L x 0.014" W (0.47mm x 0.35mm) 0.020" L x 0.020" W (0.50mm x 0.50mm) 0.028" L x 0.028" W (0.70mm x 0.70mm) 0.029" L x 0.029" W (0.73mm x 0.73mm) 0.037" L x 0.037" W (0.93mm x 0.93mm) 0.039" L x 0.039" W (0.98mm x 0.98mm) 0.039" L x 0.039" W (1.00mm x 1.00mm) 0.042" L x 0.042" W (1.08mm x 1.08mm) 0.043" L x 0.043" W (1.08mm x 1.08mm) 0.045" L x 0.045" W (1.14mm x 1.14mm) 0.046" L x 0.039" W (1.17mm x 1.00mm) 0.047" L x 0.039" W (1.19mm x 1.00mm) 0.055" L x 0.031" W (1.40mm x 0.80mm) 0.055" L x 0.055" W (1.40mm x 1.40mm) 0.056" L x 0.056" W (1.43mm x 1.43mm) 0.063" L x 0.053" W (1.59mm x 1.34mm) 0.063" L x 0.063" W (1.60mm x 1.60mm) 0.067" L x 0.051" W (1.70mm x 1.30mm) 0.075" Dia (1.90mm) 0.075" L x 0.059" W (1.90mm x 1.50mm) 0.079" L x 0.055" W (2.00mm x 1.40mm) 0.079" L x 0.071" W (2.00mm x 1.80mm) 0.079" L x 0.079" W (2.00mm x 2.00mm) 0.080" L x 0.065" W (2.04mm x 1.64mm) 0.081" L x 0.063" W (2.05mm x 1.60mm) 0.083" L x 0.065" W (2.10mm x 1.65mm) 0.087" L x 0.043" W (2.20mm x 1.10mm) 0.096" L x 0.096" W (2.45mm x 2.45mm) 0.098" L x 0.079" W (2.50mm x 2.00mm) 0.101" L x 0.101" W (2.57mm x 2.57mm) 0.102" L x 0.087" W (2.60mm x 2.20mm) 0.104" L x 0.087" W (2.65mm x 2.20mm) 0.106" L x 0.083" W (2.70mm x 2.10mm) 0.108" L x 0.079" W (2.75mm x 2.00mm) 0.108" L x 0.083" W (2.75mm x 2.10mm) 0.110" L x 0.110" W (2.80mm x 2.80mm) 0.110" L x 0.138" W (2.80mm x 3.50mm) 0.118" L x 0.118" W (3.00mm x 3.00mm) 0.120" L x 0.177" W (3.05mm x 4.50mm) 0.126" L x 0.110" W (3.20mm x 2.80mm) 0.126" L x 0.118" W (3.20mm x 3.00mm) 0.126" L x 0.126" W (3.20mm x 3.20mm) 0.130" L x 0.118" W (3.30mm x 3.00mm) 0.130" L x 0.130" W (3.30mm x 3.30mm) 0.134" L x 0.134" W (3.40mm x 3.40mm) 0.134" L x 0.138" W (3.40mm x 3.50mm) 0.136" L x 0.136" W (3.45mm x 3.45mm) 0.136" L x 0.136" W (3.46mm x 3.45mm) 0.138" L x 0.110" W (3.50mm x 2.80mm) 0.138" L x 0.124" W (3.50mm x 3.15mm) 0.138" L x 0.134" W (3.50mm x 3.40mm) 0.138" L x 0.138" W (3.50mm x 3.50mm) 0.142" L x 0.142" W (3.60mm x 3.60mm) 0.146" L x 0.138" W (3.70mm x 3.50mm) 0.146" L x 0.146" W (3.70mm x 3.70mm) 0.148" L x 0.148" W (3.75mm x 3.75mm) 0.152" L x 0.152" W (3.85mm x 3.85mm) 0.154" L x 0.144" W (3.90mm x 3.65mm) 0.156" L x 0.140" W (3.95mm x 3.55mm) 0.157" L x 0.142" W (4.00mm x 3.60mm) 0.157" L x 0.157" W (4.00mm x 4.00mm) 0.165" L x 0.157" W (4.20mm x 4.00mm) 0.173" L x 0.173" W (4.40mm x 4.40mm) 0.177" L x 0.049" W (4.50mm x 1.25mm) 0.177" L x 0.120" W (4.49mm x 3.05mm) 0.177" L x 0.120" W (4.50mm x 3.05mm) 0.177" L x 0.122" W (4.49mm x 3.10mm) 0.177" L x 0.122" W (4.50mm x 3.10mm) 0.181" L x 0.150" W (4.60mm x 3.80mm) 0.181" L x 0.181" W (4.60mm x 4.60mm) 0.184" L x 0.226" W (4.68mm x 5.75mm) 0.184" L x 0.228" W (4.68mm x 5.80mm) 0.197" Dia (5.00mm) 0.197" L x 0.197" W (5.00mm x 5.00mm) 0.204" L x 0.197" W (5.18mm x 5.00mm) 0.205" L x 0.118" W (5.20mm x 3.00mm) 0.209" L x 0.112" W (5.30mm x 2.75mm) 0.209" L x 0.118" W (5.30mm x 3.00mm) 0.213" L x 0.118" W (5.40mm x 3.00mm) 0.213" L x 0.197" W (5.40mm x 5.00mm) 0.220" L x 0.118" W (5.60mm x 3.00mm) 0.226" L x 0.184" W (5.75mm x 4.68mm) 0.226" L x 0.226" W (5.75mm x 5.75mm) 0.236" L x 0.197" W (6.00mm x 5.00mm) 0.236" L x 0.236" W (6.00mm x 6.00mm) 0.251" L x 0.226" W (6.38mm x 5.75mm) 0.256" L x 0.256" W (6.50mm x 6.50mm) 0.276" L x 0.236" W (7.00mm x 6.00mm) 0.276" L x 0.276" W (7.00mm x 7.00mm) 0.276" L x 0.295" W (7.00mm x 7.50mm) 0.291" Dia (7.40mm) 0.291" L x 0.291" W (7.40mm x 7.40mm) 0.299" L x 0.268" W (7.60mm x 6.80mm) 0.299" L x 0.299" W (7.60mm x 7.60mm) 0.300" L x 0.300" W (7.62mm x 7.62mm) 0.303" L x 0.264" W (7.70mm x 6.70mm) 0.315" Dia (8.00mm) 0.335" L x 0.335" W (8.50mm x 8.50mm) 0.354" L x 0.276" W (9.00mm x 7.00mm) 0.354" L x 0.285" W (9.00mm x 7.25mm) 0.354" L x 0.354" W (9.00mm x 9.00mm) 0.370" Dia (9.40mm) 0.374" Dia (9.50mm) 0.394" Dia (10.00mm) 0.394" L x 0.394" W (10.00mm x 10.00mm) 0.398" L x 0.398" W (10.10mm x 10.10mm) 0.433" L x 0.394" W (11.00mm x 10.00mm) 0.441" L x 0.614" W (11.20mm x 15.60mm) 0.472" L x 0.472" W (12.00mm x 12.00mm) 1.063" L x 0.610" W (27.00mm x 15.50mm) 1.148" L x 1.148" W (29.15mm x 29.15mm) 1.299" L x 1.299" W (33.00mm x 33.00mm)	- 0.003" (0.07mm) 0.004" (0.10mm) 0.005" (0.13mm) 0.005" (0.14mm) 0.006" (0.14mm) 0.006" (0.16mm) 0.007" (0.17mm) 0.007" (0.18mm) 0.007" (0.19mm) 0.008" (0.20mm) 0.008" (0.21mm) 0.009" (0.23mm) 0.011" (0.27mm) 0.011" (0.28mm) 0.012" (0.30mm) 0.013" (0.33mm) 0.018" (0.46mm) 0.020" (0.52mm) 0.024" (0.60mm) 0.024" (0.62mm) 0.026" (0.66mm) 0.027" (0.69mm) 0.028" (0.70mm) 0.029" (0.73mm) 0.029" (0.74mm) 0.030" (0.75mm) 0.030" (0.77mm) 0.031" (0.80mm) 0.032" (0.81mm) 0.032" (0.82mm) 0.033" (0.84mm) 0.033" (0.85mm) 0.034" (0.87mm) 0.035" (0.88mm) 0.035" (0.90mm) 0.036" (0.92mm) 0.037" (0.93mm) 0.037" (0.95mm) 0.038" (0.96mm) 0.038" (0.97mm) 0.039" (1.00mm) 0.040" (1.02mm) 0.041" (1.05mm) 0.042" (1.06mm) 0.044" (1.11mm) 0.044" (1.13mm) 0.046" (1.16mm) 0.047" (1.20mm) 0.048" (1.22mm) 0.048" (1.23mm) 0.049" (1.24mm) 0.049" (1.25mm) 0.050" (1.26mm) 0.051" (1.30mm) 0.051" (1.31mm) 0.052" (1.31mm) 0.052" (1.33mm) 0.053" (1.34mm) 0.053" (1.35mm) 0.054" (1.36mm) 0.054" (1.37mm) 0.054" (1.38mm) 0.055" (1.40mm) 0.057" (1.44mm) 0.057" (1.45mm) 0.059" (1.50mm) 0.059" (1.51mm) 0.061" (1.54mm) 0.061" (1.55mm) 0.062" (1.58mm) 0.063" (1.59mm) 0.063" (1.60mm) 0.063" (1.61mm) 0.064" (1.62mm) 0.065" (1.65mm) 0.067" (1.69mm) 0.067" (1.71mm) 0.068" (1.73mm) 0.069" (1.75mm) 0.069" (1.76mm) 0.069" (1.77mm) 0.070" (1.77mm) 0.071" (1.82mm) 0.072" (1.82mm) 0.072" (1.84mm) 0.073" (1.85mm) 0.073" (1.86mm) 0.075" (1.90mm) 0.077" (1.95mm) 0.077" (1.96mm) 0.078" (1.97mm) 0.078" (1.98mm) 0.079" (2.00mm) 0.080" (2.03mm) 0.081" (2.05mm) 0.082" (2.08mm) 0.083" (2.10mm) 0.083" (2.11mm) 0.083" (2.12mm) 0.084" (2.13mm) 0.084" (2.14mm) 0.085" (2.15mm) 0.086" (2.18mm) 0.086" (2.19mm) 0.087" (2.20mm) 0.087" (2.21mm) 0.088" (2.23mm) 0.088" (2.24mm) 0.089" (2.27mm) 0.090" (2.29mm) 0.091" (2.30mm) 0.091" (2.31mm) 0.092" (2.33mm) 0.092" (2.34mm) 0.093" (2.35mm) 0.093" (2.36mm) 0.094" (2.39mm) 0.094" (2.40mm) 0.095" (2.41mm) 0.096" (2.45mm) 0.097" (2.46mm) 0.099" (2.18mm) 0.100" (2.54mm) 0.100" (2.55mm) 0.102" (2.60mm) 0.106" (2.70mm) 0.110" (2.80mm) 0.113" (2.88mm) 0.114" (2.90mm) 0.115" (2.93mm) 0.118" (3.00mm) 0.122" (3.10mm) 0.124" (3.15mm) 0.130" (3.30mm) 0.130" (3.31mm) 0.134" (3.40mm) 0.138" (3.50mm) 0.146" (3.70mm) 0.150" (3.80mm) 0.152" (3.87mm) 0.154" (3.90mm) 0.156" (3.95mm) 0.157" (4.00mm) 0.161" (4.10mm) 0.165" (4.20mm) 0.173" (4.40mm) 0.175" (4.45mm) 0.178" (4.53mm) 0.181" (4.60mm) 0.183" (4.65mm) 0.184" (4.68mm) 0.185" (4.70mm) 0.187" (4.75mm) 0.189" (4.80mm) 0.191" (4.85mm) 0.192" (4.88mm) 0.193" (4.90mm) 0.201" (5.10mm) 0.208" (5.28mm) 0.213" (5.40mm) 0.215" (5.45mm) 0.220" (5.60mm) 0.244" (6.20mm) 0.249" (6.33mm) 0.250" (6.35mm) 0.257" (6.53mm) 0.260" (6.60mm) 0.262" (6.65mm) 0.266" (6.75mm) 0.267" (6.78mm) 0.272" (6.90mm) 0.278" (7.05mm) 0.287" (7.30mm) 0.299" (7.60mm) 0.315" (8.00mm) 0.333" (8.45mm) 0.341" (8.65mm) 0.843" (21.42mm) 1.024" (26.00mm)

全部应用

全部重置

结果

制造商型号	库存情况	价格	数量	数据手册	系列	封装/外壳	包装	产品状态	颜色	波长	电流 - 测试	电压 - 正向 (Vf)（典型值）	流明/瓦特 @ 电流 - 测试	电流 - 最大值	光通量 @ 电流/温度	测试温度	视角	安装类型	供应商设备封装	尺寸 / 尺寸	高度 - 安装后（最大值）
XPLDCL-H0-0000-0000HA3AAAE2 XLAMP Cree LED	1,000	-	询价单出售多余库存	数据手册	XLamp® XP-L	1414 (3535 Metric)	Bulk	Active	Red, Green, Blue, White - Cool (RGBW)	625nm Red, 528nm Green, 458nm Blue, 5700K White	700mA Red, 700mA Green, 700mA Blue, 700mA White	2.7V Red, 3.4V Green, 3.3V Blue, 3.3V White	58 lm/W Red, 57 lm/W Green, 12 lm/W Blue, 76 lm/W White	1A Red, 1A Green, 1A Blue, 1A White	110lm Red, 135lm Green, 27lm Blue, 175lm White	25°C	120°	Surface Mount	1414	0.136" L x 0.136" W (3.45mm x 3.45mm)	0.044" (1.13mm)
XPLDCL-H0-0000-0000HA3AAAE5 XLAMP Cree LED	994	-	询价单出售多余库存	数据手册	XLamp® XP-L	1414 (3535 Metric)	Bulk	Active	Red, Green, Blue, White - Neutral (RGBW)	625nm Red, 528nm Green, 458nm Blue, 4000K White	700mA Red, 700mA Green, 700mA Blue, 700mA White	2.7V Red, 3.4V Green, 3.3V Blue, 3.3V White	58 lm/W Red, 57 lm/W Green, 12 lm/W Blue, 74 lm/W White	1A Red, 1A Green, 1A Blue, 1A White	110lm Red, 135lm Green, 27lm Blue, 170lm White	25°C	120°	Surface Mount	1414	0.136" L x 0.136" W (3.45mm x 3.45mm)	0.044" (1.13mm)
XPLDCL-H0-0000-0000HA2AAAE7 XLAMP Cree LED	920	-	询价单出售多余库存	数据手册	XLamp® XP-L	1414 (3535 Metric)	Bulk	Active	Red, Green, Blue, White - Warm (RGBW)	625nm Red, 528nm Green, 458nm Blue, 3000K White	700mA Red, 700mA Green, 700mA Blue, 700mA White	2.7V Red, 3.4V Green, 3.3V Blue, 3.3V White	58 lm/W Red, 57 lm/W Green, 12 lm/W Blue, 71 lm/W White	1A Red, 1A Green, 1A Blue, 1A White	110lm Red, 135lm Green, 27lm Blue, 165lm White	25°C	120°	Surface Mount	1414	0.136" L x 0.136" W (3.45mm x 3.45mm)	0.044" (1.13mm)

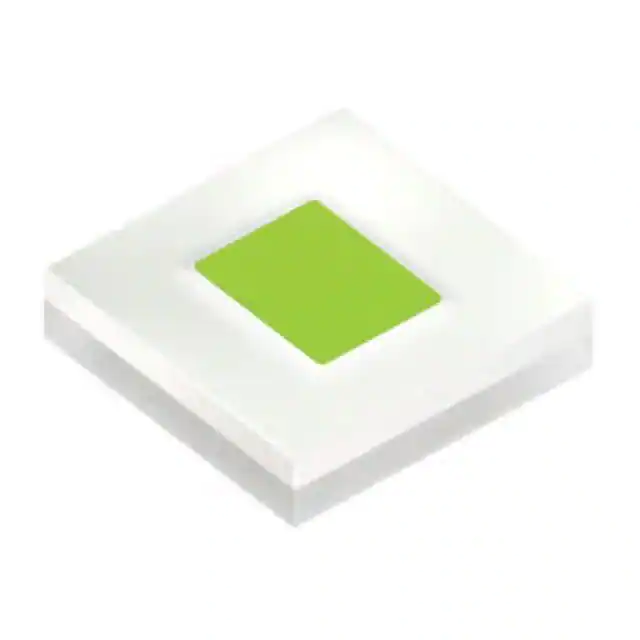

KP CSLPM1.F1-7P5Q-A LED OSRAM OSTAR GREEN SMD ams-OSRAM USA INC.	1,000	-	询价单出售多余库存	数据手册	OSRAM OSTAR	1212 (3030 Metric)	Tape & Reel (TR)	Active	Green	-	1.4A	3V	162 lm/W	5A	680lm (560lm ~ 800lm)	25°C	120°	Surface Mount	SMD	0.118" L x 0.118" W (3.00mm x 3.00mm)	0.033" (0.84mm)
LZ1-00UVH0-0000 LED ENGIN LUXIGENILLUMINATIONSPE ams-OSRAM USA INC.	490	-	询价单出售多余库存	数据手册	LuxiGen™ LZ1	-	Tape & Reel (TR)	Active	-	-	700mA	-	-	-	1430mW (1100mW ~ 1760mW)	-	-	-	-	-	-
LE B P1MS-EQET-23-0-D00 OSTAR PROJECTIONVISUALIZATIONLED ams-OSRAM USA INC.	462	-	询价单出售多余库存	数据手册	OSRAM OSTAR® Projection Power	3-SMD, No Lead	Tape & Reel (TR)	Active	Blue	456nm (452nm ~ 460nm)	4A	6.8V	-	6.7A	9025mW (7630mW ~ 10420mW)	25°C	120°	Surface Mount	SMD	0.299" L x 0.268" W (7.60mm x 6.80mm)	0.061" (1.55mm)
LE D P1MS-ETFQ-R-0-D00 OSTAR PROJECTIONVISUALIZATIONLED ams-OSRAM USA INC.	408	-	询价单出售多余库存	数据手册	OSRAM OSTAR® Projection Power	3-SMD, No Lead	Tape & Reel (TR)	Active	Blue	440nm (435nm ~ 445nm)	4A	6.6V	-	6.7A	11350mW (9700mW ~ 13000mW)	25°C	120°	Surface Mount	SMD	0.299" L x 0.268" W (7.60mm x 6.80mm)	0.061" (1.55mm)
LERTDUWS2WP-LAMB-1+NAPA-P+ABBB-PNBPB-BQ LED OSTAR RGBW 625/530/453NM SMD ams-OSRAM USA INC.	388	-	询价单出售多余库存	数据手册	OSRAM OSTAR®	8-SMD, No Lead Exposed Pad	Tape & Reel (TR)	Active	Red, Green, Blue, White (RGBW)	625nm Red, 530nm Green, 453nm Blue	1.4A Red, 1.4A Green, 1.4A Blue, 1.4A White	2.35V Red, 3.48V Green, 3V Blue, 3V White	60 lm/W Red, 86 lm/W Green, 127 lm/W White	5A Red, 5A Green, 5A Blue, 5A White	196lm Red, 420lm Green, 2100mW Blue, 533lm White	25°C	120° Red, 120° Green, 120° Blue, 130° White	Surface Mount	SMD	0.251" L x 0.226" W (6.38mm x 5.75mm)	0.054" (1.38mm)
T1651USD-30C000612U1930 3.5(L) X 2.8(W) X 0.7(H) MM Harvatek Corporation	3,529	-	询价单出售多余库存	数据手册	T1651USD-30C	1411 (3528 Metric)	Tape & Reel (TR)	Active	Red	623nm	30mA	2.4V	83 lm/W	50mA	6lm (4lm ~ 8lm)	25°C	120°	Surface Mount	1411	0.138" L x 0.110" W (3.50mm x 2.80mm)	0.031" (0.80mm)
T1651NG--30C000112U1930 3.5(L) X 2.8(W) X 0.7(H) MM Harvatek Corporation	1,349	-	询价单出售多余库存	数据手册	T1651NG--30C	1411 (3528 Metric)	Cut Tape (CT)	Active	Green	525nm	30mA	3.3V	121 lm/W	30mA	12lm (8lm ~ 18lm)	25°C	120°	Surface Mount	1411	0.138" L x 0.110" W (3.50mm x 2.80mm)	0.031" (0.80mm)
T53D1NB--A2C000152U1930 5.6(L)X3.0(W)X0.9(H) MM Harvatek Corporation	1,995	-	询价单出售多余库存	数据手册	-	4-SMD, Flat Lead Exposed Pad	Cut Tape (CT)	Active	Blue	470nm	150mA	3.3V	18 lm/W	150mA	9lm (6lm ~ 24lm)	25°C	120°	Surface Mount	-	0.205" L x 0.118" W (5.20mm x 3.00mm)	0.039" (1.00mm)
T53D1USD-A2C000152U1930 5.6(L)X3.0(W)X0.9(H) MM Harvatek Corporation	1,975	-	询价单出售多余库存	数据手册	-	4-SMD, Flat Lead Exposed Pad	Cut Tape (CT)	Active	Red	624nm	150mA	2.1V	73 lm/W	200mA	23lm (14lm ~ 40lm)	25°C	120°	Surface Mount	-	0.205" L x 0.118" W (5.20mm x 3.00mm)	0.039" (1.00mm)
T53D1NG--A2C000152U1930 5.6(L)X3.0(W)X0.9(H) MM Harvatek Corporation	1,885	-	询价单出售多余库存	数据手册	-	4-SMD, Flat Lead Exposed Pad	Cut Tape (CT)	Active	Green	525nm	150mA	3.3V	63 lm/W	150mA	31lm (24lm ~ 52lm)	25°C	120°	Surface Mount	-	0.205" L x 0.118" W (5.20mm x 3.00mm)	0.039" (1.00mm)

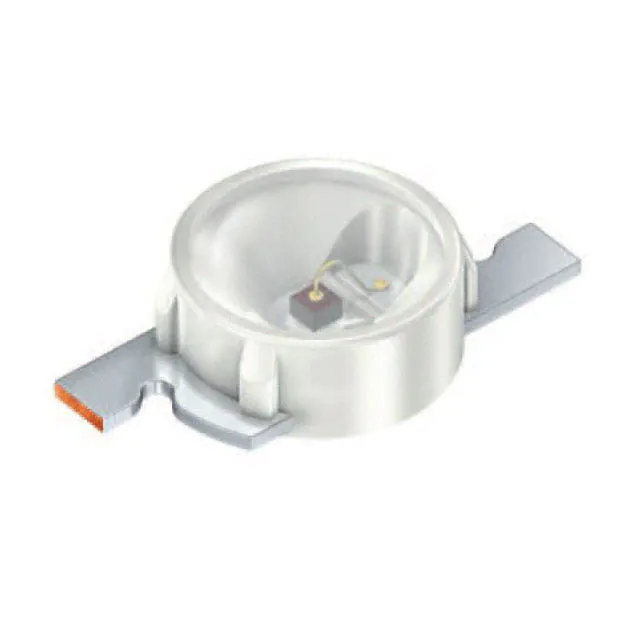

LS P476-Q1R2-1-0-20-R18-Z LED POINTLED RED 630NM SMD ams-OSRAM USA INC.	1,593	-	询价单出售多余库存	数据手册	PointLED	2-SMD, Flat Leads	Tape & Reel (TR)	Obsolete	Red	630nm (Typ)	20mA	2V	-	30mA	-	25°C	120°	Surface Mount	SMD	0.075" Dia (1.90mm)	0.035" (0.88mm)

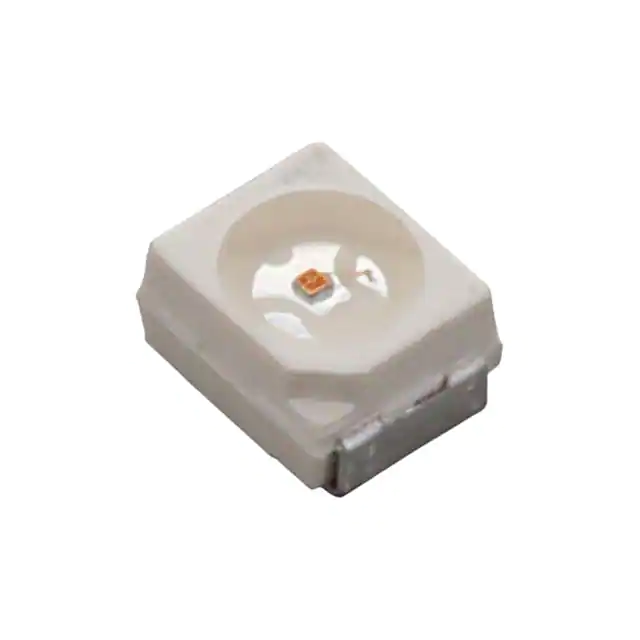

LP T67F-P1R2-35-1-20-R18-Z LED TOPLED GREEN 562NM 2PLCC ams-OSRAM USA INC.	5,295	-	询价单出售多余库存	数据手册	TOPLED	2-PLCC	Tape & Reel (TR)	Last Time Buy	Green	562nm (557nm ~ 566nm)	20mA	2.1V	7 lm/W	50mA	0.30lm (0.15lm ~ 0.48lm)	25°C	120°	Surface Mount	2-PLCC	0.126" L x 0.110" W (3.20mm x 2.80mm)	0.083" (2.10mm)
LA M67F-V1AB-24-1-20-R18-Z LED MINI TOPLED AMBER 618NM SMD ams-OSRAM USA INC.	12,209	-	询价单出售多余库存	数据手册	Mini TOPLED	2-SMD, J-Lead	Tape & Reel (TR)	Last Time Buy	Amber	618nm (612nm ~ 624nm)	20mA	2.15V	93 lm/W	30mA	4lm (2lm ~ 5lm)	25°C	120°	Surface Mount	SMD	0.079" L x 0.055" W (2.00mm x 1.40mm)	0.055" (1.40mm)
QLSP05PCAD LED AMBER 591NM 590NM 4PLCC Quelighting Corp	3,221	-	询价单出售多余库存	数据手册	-	1411 (3528 Metric)	Cut Tape (CT)	Active	Amber	591nm (588nm ~ 594nm), 590nm (588nm ~ 592nm)	50mA	3.1V, 3.2V	90 lm/W	70mA, 75mA	14lm	-	120°	Surface Mount	4-PLCC	0.138" L x 0.110" W (3.50mm x 2.80mm)	0.075" (1.90mm)
L963H-MPGC-TR LED GREEN 525NM 4SMD American Opto Plus LED	30,000	-	询价单出售多余库存	数据手册	-	4-SMD, J-Lead	Tape & Reel (TR)	Active	Green	525nm	150mA	3.3V	71 lm/W	150mA	35lm	25°C	120°	Surface Mount	4-SMD	0.213" L x 0.118" W (5.40mm x 3.00mm)	0.039" (1.00mm)
GY CS8PM1.23-KPKR-35-0-350-R18 67000 ams-OSRAM USA INC.	4,800	-	询价单出售多余库存	数据手册	OSLON® SSL 80	1212 (3030 Metric)	Tape & Reel (TR)	Active	Yellow	588nm (583nm ~ 592nm)	350mA	2.2V	104 lm/W	1A	80lm (71lm ~ 89lm)	25°C	80°	Surface Mount	1212	0.118" L x 0.118" W (3.00mm x 3.00mm)	0.091" (2.31mm)
QLSP04PCAU 3030 PACKAGE LED, TOP VIEW, PC A Quelighting Corp	4,607	-	询价单出售多余库存	数据手册	-	1212 (3030 Metric)	Cut Tape (CT)	Active	Amber	592nm (588nm ~ 595nm)	350mA	3.25V	104 lm/W	500mA	118lm (Typ)	25°C	120°	Surface Mount	3030	0.118" L x 0.118" W (3.00mm x 3.00mm)	0.028" (0.70mm)

共 5115 条记录«上一页 1... 24 25 26 272829 30 31...256 下一页»
