LED COB、引擎、模块、灯条
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 颜色 | 相关色温 (CCT)（K） | 波长 | 配置 | 光通量 @ 电流/温度 | 电流 - 测试 | 测试温度 | 电压 - 正向 (Vf)（典型值） | 流明/瓦特 @ 电流 - 测试 | 电流 - 最大值 | 显色指数 (CRI) | 视角 | 特性 | 尺寸 / 尺寸 | 高度 | 发光表面 (LES) | 透镜类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AB-FC02406-19700-XA2LED MOD AB-FC RGB LNR STRIP American Bright Optoelectronics Corporation |
1,135 |
|
数据手册 |
AB-FC | Tape & Reel (TR) | Active | LED Module | Red, Green, Blue (RGB) | - | 470nm (465nm ~ 475nm) | Linear Light Strip, Flexible | 90lm Red, 248lm Green, 56lm Blue | 840mA Red, 840mA Green, 840mA Blue | 25°C | 24V | 25 lm/W Red, 18 lm/W Green, 58 lm/W Blue | - | - | 120° | IP65 | 5000.00mm L x 10.00mm W (100.00mm L per Segment) | 2.50mm | - | Flat |
|

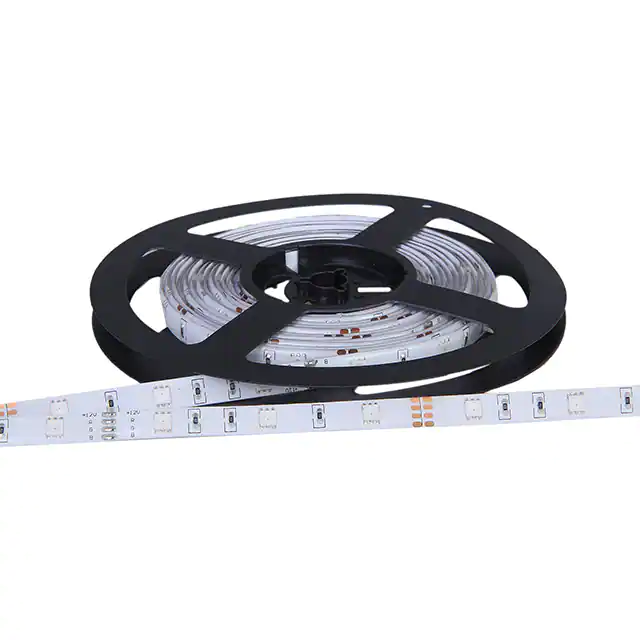

AB-FC01206-19712-XA2LED MOD AB-FC RGB LNR STRIP American Bright Optoelectronics Corporation |
1,528 |
|
数据手册 |
AB-FC | Bag | Active | LED Module | Red, Green, Blue (RGB) | - | 630nm Red, 528nm Blue, 470nm Green | Linear Light Strip, Flexible | 90lm Red, 248lm Green, 56lm Blue | 840mA | - | 12V | 9 lm/W Red, 25 lm/W Green, 6 lm/W Blue | - | - | 120° | IP65 | 5000.00mm L x 10.00mm W | 2.50mm | - | Flat |
|
|
AB-FC02406-19712-XA2LED MOD AB-FC RGB LNR STRIP American Bright Optoelectronics Corporation |
297 |
|
数据手册 |
AB-FC | Bag | Active | LED Module | Red, Green, Blue (RGB) | - | 630nm Red, 528nm Blue, 470nm Green | Linear Light Strip, Flexible | 90lm Red, 248lm Green, 56lm Blue | 420mA | - | 24V | 9 lm/W Red, 25 lm/W Green, 6 lm/W Blue | - | - | 120° | IP65 | 5000.00mm L x 10.00mm W | 2.50mm | - | Flat |
|
AB-FA01230-19700-8A1LED MOD AB-FA WH LNR STRP 3000K American Bright Optoelectronics Corporation |
2,309 |
|
数据手册 |
AB-FA | Tape & Reel (TR) | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip, Flexible | 720lm | 660mA | 25°C | 12V | 91 lm/W | - | 80 | 120° | IP20 | 5000.00mm L x 8.00mm W (25.00mm L per Segment) | 1.60mm | - | Flat |
|
AB-FA01250-19700-8A1LED MOD AB-FA WH LNR STRP 5000K American Bright Optoelectronics Corporation |
1,319 |
|
数据手册 |
AB-FA | Tape & Reel (TR) | Active | LED Module | White, Cool | 5000K | - | Linear Light Strip, Flexible | 720lm | 660mA | 25°C | 12V | 91 lm/W | - | 80 | 120° | IP20 | 5000.00mm L x 8.00mm W (25.00mm L per Segment) | 1.60mm | - | Flat |
|
AB-FA02465-19700-8A1LED MOD AB-FA WH LNR STRP 6500K American Bright Optoelectronics Corporation |
1,967 |
|
数据手册 |
AB-FA | Tape & Reel (TR) | Active | LED Module | White, Cool | 6500K | - | Linear Light Strip, Flexible | 760lm | 330mA | 25°C | 24V | 96 lm/W | - | 80 | 120° | IP20 | 5000.00mm L x 8.00mm W (50.00mm L per Segment) | 1.60mm | - | Flat |
|

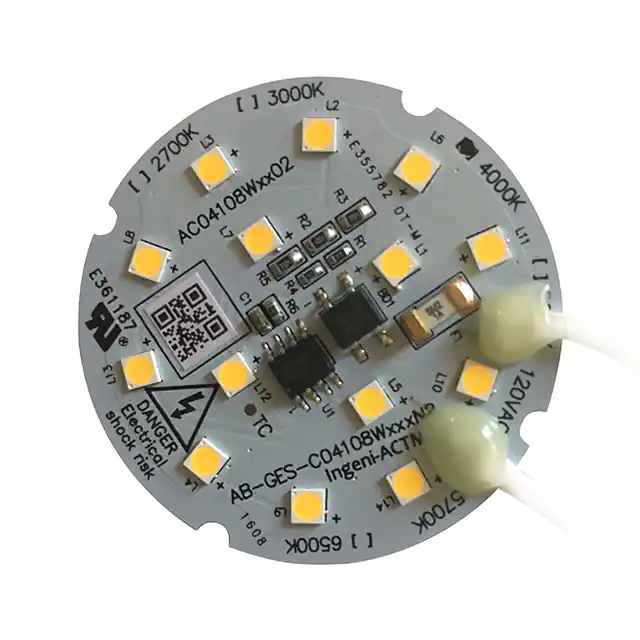

AB-GES-C04108W30BN2LED ENG AB-GES WH ROUND 3000K American Bright Optoelectronics Corporation |
182 |
|
数据手册 |
AB-GES | Bag | Active | LED Engine | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 830lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 45.00mm Dia | - | - | Flat |
|
AB-FC01240-19700-8A1LED MOD AB-FC WH LNR STRP 4000K American Bright Optoelectronics Corporation |
2,958 |
|
数据手册 |
AB-FC | Tape & Reel (TR) | Active | LED Module | White, Warm | 4000K | - | Linear Light Strip, Flexible | 334lm | 660mA | 25°C | 12V | 46 lm/W | - | 80 | 120° | IP65 | 5000.00mm L x 10.00mm W (25.00mm L per Segment) | 2.50mm | - | Flat |
|
AB-FC012BL-19700-XA1LED MOD AB-FC BLUE LNR STRIP American Bright Optoelectronics Corporation |
2,826 |
|
数据手册 |
AB-FC | Tape & Reel (TR) | Active | LED Module | Blue | - | 470nm (465nm ~ 475nm) | Linear Light Strip, Flexible | 168lm | 660mA | 25°C | 12V | 90 lm/W | - | - | 120° | IP65 | 5000.00mm L x 10.00mm W (25.00mm L per Segment) | 2.50mm | - | Flat |
|
AB-FC02450-19700-8A1LED MOD AB-FC WH LNR STRP 5000K American Bright Optoelectronics Corporation |
2,036 |
|
数据手册 |
AB-FC | Tape & Reel (TR) | Active | LED Module | White, Cool | 5000K | - | Linear Light Strip, Flexible | 334lm | 660mA | 25°C | 24V | 46 lm/W | - | 80 | 120° | IP65 | 5000.00mm L x 10.00mm W (50.00mm L per Segment) | 2.50mm | - | Flat |
