LED COB、引擎、模块、灯条
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 颜色 | 相关色温 (CCT)（K） | 波长 | 配置 | 光通量 @ 电流/温度 | 电流 - 测试 | 测试温度 | 电压 - 正向 (Vf)（典型值） | 流明/瓦特 @ 电流 - 测试 | 电流 - 最大值 | 显色指数 (CRI) | 视角 | 特性 | 尺寸 / 尺寸 | 高度 | 发光表面 (LES) | 透镜类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTM-14-RGBW-24-TW01LED CTM14 RGBW Luminus Devices Inc. |
164 |
|
数据手册 |
- | Tray | Active | LED Module | Red, Green, Blue, White (RGBW) | 2700K | 625nm, 530nm, 458nm | Rectangle | 94lm Red, 650lm Green, 115lm Blue, 436lm White | 200mA Red, 200mA Green, 200mA Blue, 200mA White | 85°C | 24V | 20 lm/W Red, 135 lm/W Green, 24 lm/W Blue, 91 lm/W White | 250mA | 90 | 130° | - | 24.00mm L x 20.00mm W | 1.58mm | 14.50mm Dia | Flat |
|
CXM-22-40-80-54-AC40-F5-3LED COB CXM-22 GEN4 WHT SQ 4000K Luminus Devices Inc. |
280 |
|
数据手册 |
CXM-22 Gen4 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 9155lm (Typ) | 1.05A | 85°C | 50V | 174 lm/W | 3.5A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|

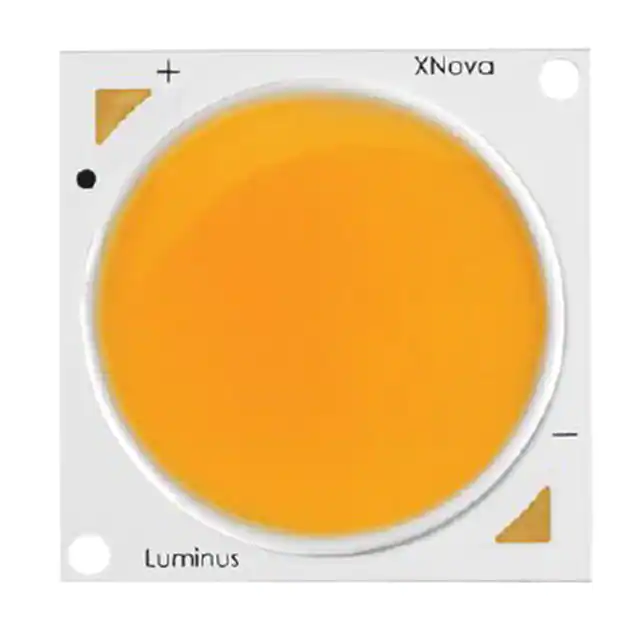

CXM-32-50-80-54-AC30-F4-3LED COB CXM-32 GEN3 WHT SQ 5000K Luminus Devices Inc. |
462 |
|
数据手册 |
CXM-32 Gen3 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 18170lm (Typ) | 2.2A | 85°C | 51V | 162 lm/W | 4.5A | 80 | 120° | - | 38.00mm L x 38.00mm W | - | 32.80mm Dia | Flat |
|
CBT-90-W65S-C11-NA102LED MOD CBT-90 CL WH RECT 6500K Luminus Devices Inc. |
1,685 |
|
数据手册 |
CBT-90 | Tray | Active | LED Module | White, Cool | 6500K | - | Rectangle | - | 9A | - | 3.6V | - | 18A | 70 (Typ) | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|
PT-39-G-L51-CD100-R2LED MOD PT-39 GREEN RECT Luminus Devices Inc. |
3,261 |
|
数据手册 |
PT-39 | Tray | Active | LED Module | Green | - | 520nm | Rectangle | 2700mW (2600mW ~ 2800mW) | - | 40°C | 5V | - | 12A | - | - | - | 21.85mm L x 15.00mm W | 3.70mm | - | Flat |
|

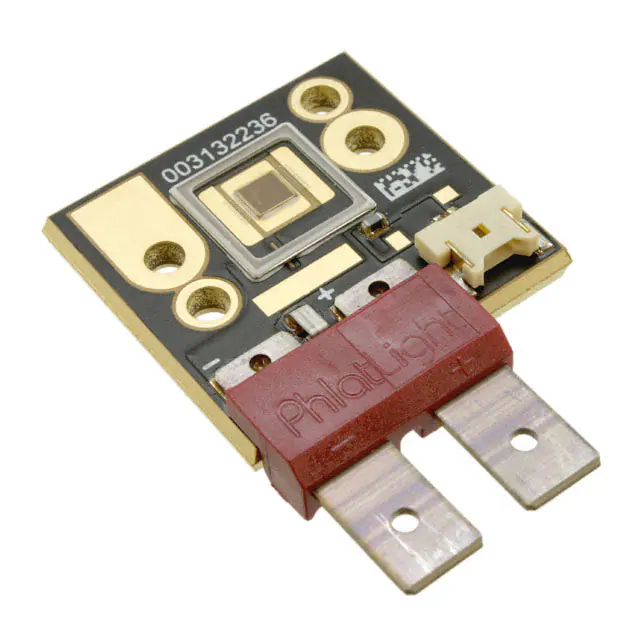

CBT-90-RX-L15-BN101LED MOD CBT-90 RED RECT Luminus Devices Inc. |
2,243 |
|
数据手册 |
CBT-90 | Tray | Active | LED Module | Red | - | 621nm (615nm ~ 627nm) | Rectangle | 1060lm (970lm ~ 1150lm) | 13.5A | 40°C | 2.8V | 28 lm/W | 27A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|

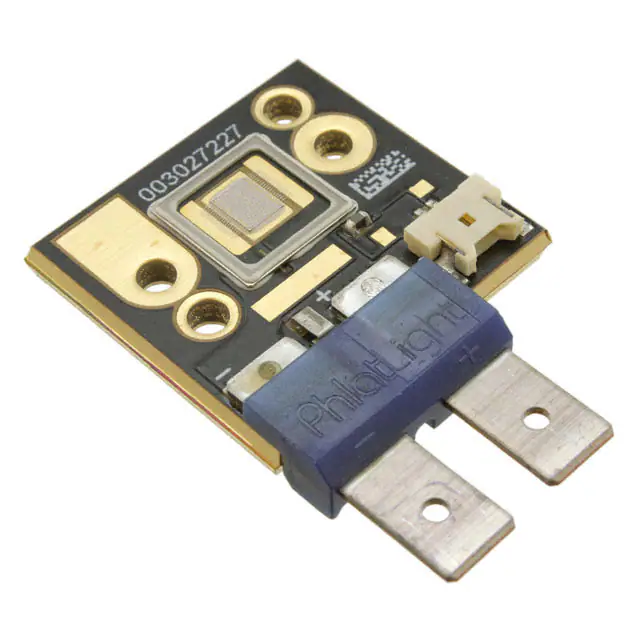

PT-121-B-L11-EPELED MOD PT-121 BLUE RECT Luminus Devices Inc. |
3,727 |
|
数据手册 |
PT-121 | Tray | Active | LED Module | Blue | - | 462nm | Rectangle | 980lm (815lm ~ 1145lm) | 18A | 40°C | 3.9V | 14 lm/W | 27A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 3.00mm L x 4.00mm W | Flat |
|
PT-121-G-L11-MPLLED MOD PT-121 GREEN RECT Luminus Devices Inc. |
1,530 |
|
数据手册 |
PT-121 | Tray | Active | LED Module | Green | - | 525nm | Rectangle | 5300lm (4400lm ~ 6200lm) | 18A | 40°C | 5.2V | 57 lm/W | 27A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 3.00mm L x 4.00mm W | Flat |
|
CBT-140-WDH-L16-RA220LED MOD CBT-140 WHT RECT 6020K Luminus Devices Inc. |
1,265 |
|
数据手册 |
CBT-140 | Tray | Active | LED Module | White, Cool | 5310K ~ 6020K | - | Rectangle | 2510lm (2420lm ~ 2600lm) | 21A | 85°C | 3.6V | 33 lm/W | 28A | 92 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia | Flat |
|
CXM-4-30-90-36-AC40-F5-3LED COB CXM-4 WARM WHT SQ 3000K Luminus Devices Inc. |
1,654 |
|
数据手册 |
CXM-4 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 470lm (Typ) | 120mA | 25°C | 33.8V | 116 lm/W | 400mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 4.50mm Dia | Flat |
