键盘开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 开关类型 | 按键数量 | 矩阵（列 x 行） | 照明 | 标记类型 | 按键类型 | 输出类型 | 标记 | 标记颜色 | 按键颜色 | 安装类型 | 端接样式 | 面板开孔尺寸 | 工作温度 | 防护等级 | 照明电压（额定值） | 触点额定值 @ 电压 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EZB6-530023SWITCH KEYPAD 6KEY ILLUM Storm Interface |
4,049 |
|
数据手册 |
Nav-Bar™ | Bulk | Active | Conductive Rubber | 6 | 6 x 1 | Illuminated | Fixed | Polymer | USB | Arrows, Help Button, Select | Black | Multiple | Panel Mount, Rear | USB Socket | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
|
EZ05-222013SWITCH KEYPAD 5KEY NON-ILLUM Storm Interface |
118 |
|
数据手册 |
NAV-Pad™ | Bulk | Obsolete | Conductive Rubber | 5 | - | Non-Illuminated | Fixed | Polymer | USB | Arrows, Help Button | Black, White | Multiple | Panel Mount, Front or Rear | Pin Header | Rectangular - 109.50mm x 95.50mm | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | - | - | Anti-Vandal |
|

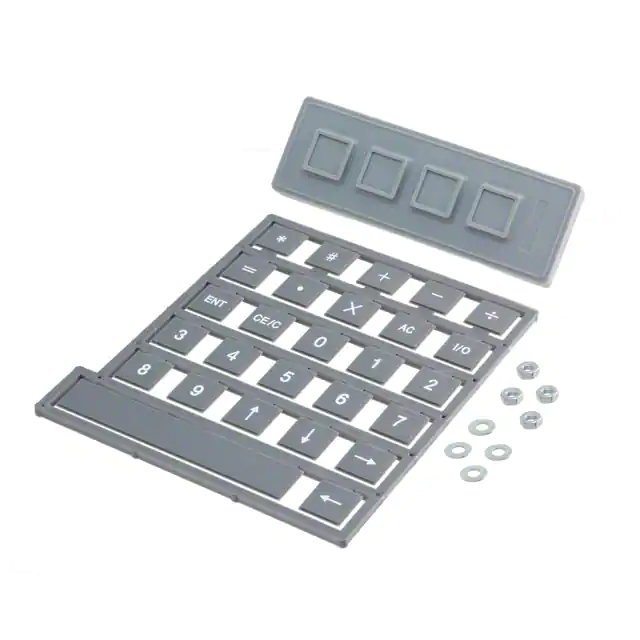

70040103SWITCH KEYPAD 4KEY 0.05A 24V Storm Interface |
4,310 |
|
数据手册 |
700 | Bulk | Active | Conductive Rubber | 4 | 1 x 4 | Non-Illuminated | Interchangeable | Rubber Overlay | Matrix | Customizable (Included) | White | Gray | Panel Mount, Front or Rear | Pin Header | - | -55°C ~ 125°C | IP67 - Dust Tight, Waterproof | - | 0.05A @ 24VDC | Gray Housing |
|

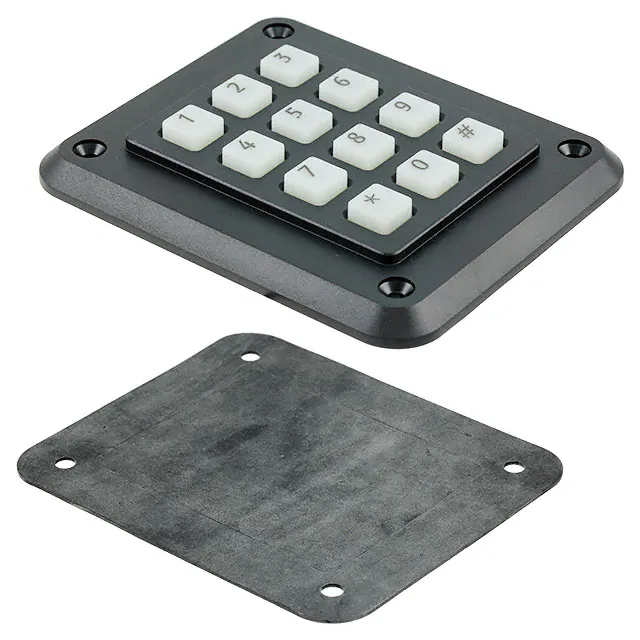

3K12T103SWITCH KEYPAD 12KEY 0.05A 24V Storm Interface |
2,063 |
|
数据手册 |
3000 | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.00mm x 64.00mm | -10°C ~ 85°C | IP54 - Dust Protected, Water Resistant | - | 0.05A @ 24VDC | - |
|

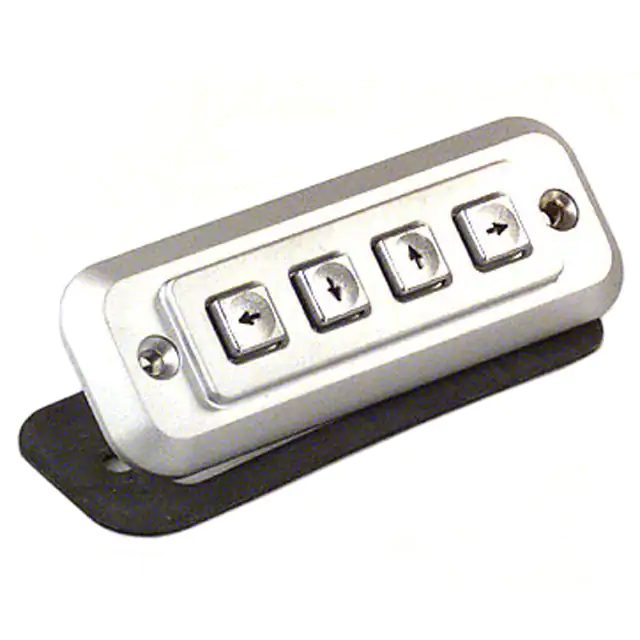

1K041103SWITCH KEYPAD 4KEY 0.05A 24V Storm Interface |
2,070 |
|
数据手册 |
1000 | Bulk | Active | Conductive Rubber | 4 | 1 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Arrows | Black | Silver | Panel Mount, Front or Rear | Pin Header | Rectangular - 82.50mm x 25.50mm | -40°C ~ 100°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|

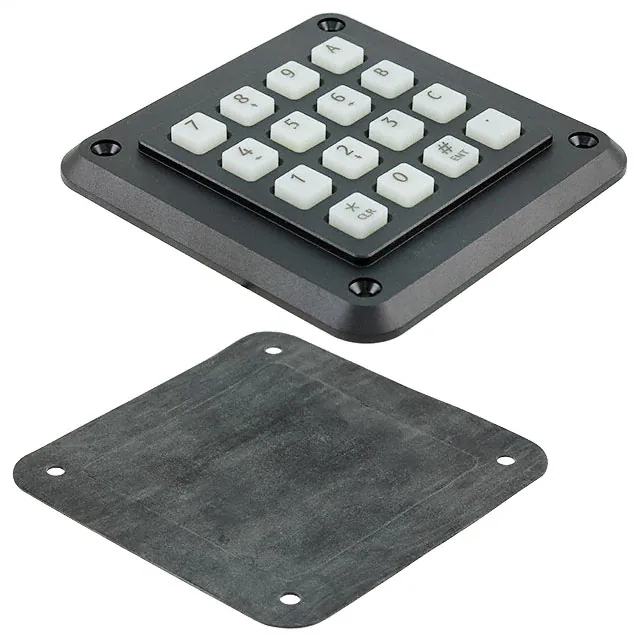

2K160103SWITCH KEYPAD 16KEY 0.05A 24V Storm Interface |
3,290 |
|
数据手册 |
2000 | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Calculator Format, A ~ C | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Square - 83.00mm² | -25°C ~ 85°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|
2K120103SWITCH KEYPAD 12KEY 0.05A 24V Storm Interface |
4,730 |
|
数据手册 |
2000 | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Calculator Format | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.00mm x 64.00mm | -25°C ~ 85°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|

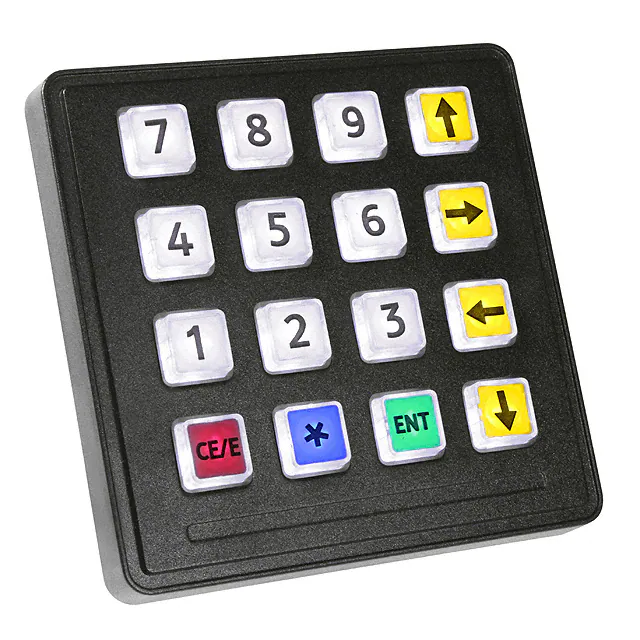

7207-161W203SWITCH KEYPAD 16KEY 0.05A 24V Storm Interface |
4,159 |
|
数据手册 |
720 GFX-i | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Illuminated - White | Interchangeable | Transparent Key Cap | Matrix | Customizable (Included) | Black | Multiple | Panel Mount, Front or Rear | Pin Header | - | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | 5 VDC | 0.05A @ 24VDC | - |
|

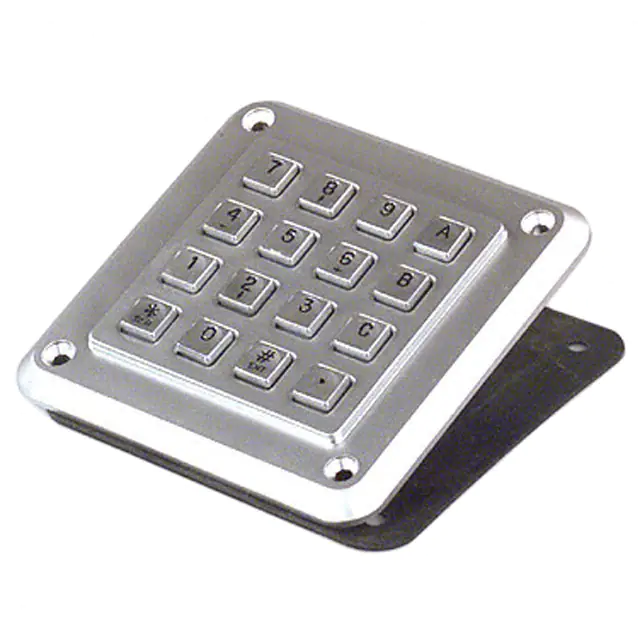

1K160103SWITCH KEYPAD 16KEY 0.05A 24V Storm Interface |
3,350 |
|
数据手册 |
1000 | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Calculator Format, A ~ C | Black | Silver | Panel Mount, Front or Rear | Pin Header | Square - 83.00mm² | -40°C ~ 100°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|

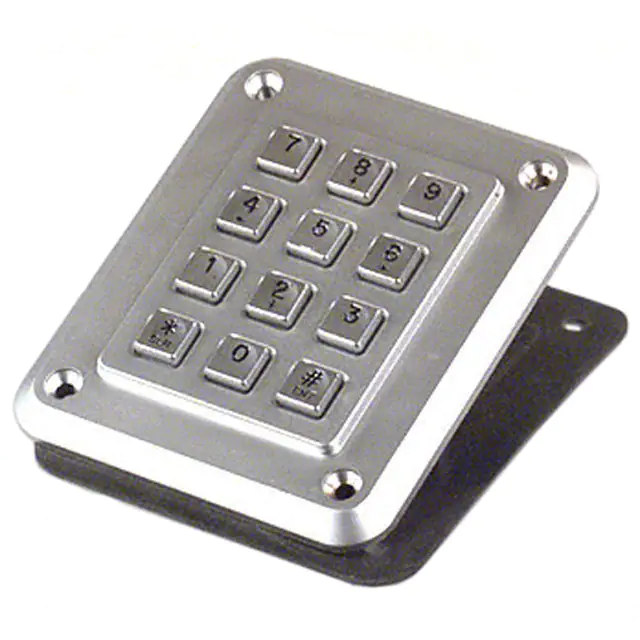

1K120103SWITCH KEYPAD 12KEY 0.05A 24V Storm Interface |
1,576 |
|
数据手册 |
1000 | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Calculator Format | Black | Silver | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.00mm x 64.00mm | -40°C ~ 100°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
