隔离器 - 栅极驱动器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 通道数 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 传播延迟 tpLH / tpHL（最大值） | 脉宽失真（最大值） | 上升/下降时间（典型值） | 电流 - 输出高、低 | 电流 - 峰值输出 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 输出电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IX3180GSOPTOISO 3.75KV 1CH GATE DVR 8SMD |
1,798 |
|
数据手册 |
- | 8-SMD, Gull Wing | Tube | Obsolete | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 200ns, 200ns | 65ns | 25ns, 25ns | 2A, 2A | 2.5A | 1.35V | 20 mA | 10V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | UR |
|
IX3180GSTROPTOISO 3.75KV 1CH GATE DVR 8SMD |
1,750 |
|
数据手册 |
- | 8-SMD, Gull Wing | Tube | Obsolete | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 200ns, 200ns | 65ns | 25ns, 25ns | 2A, 2A | 2.5A | 1.35V | 20 mA | 10V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | UR |
|
IX3180GOPTOISO 3.75KV 1CH GATE DVR 8DIP |
2,357 |
|
数据手册 |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 200ns, 200ns | 65ns | 25ns, 25ns | 2A, 2A | 2.5A | 1.35V | 20 mA | 10V ~ 20V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | UR |
|
|
EL3120OPTOISO 5KV 1CH GATE DVR 8DIP |
1,533 |
|
数据手册 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 300ns, 300ns | 100ns | 60ns, 60ns | 2A, 2A | 3A | 1.4V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | cUL, DEMKO, FIMKO, NEMKO, SEMKO |
|
TLP2451A(F)OPTOISO 3.75KV 1CH GATE DVR 8SO |
3,597 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 20kV/µs | 500ns, 500ns | 350ns | 50ns, 50ns | 400mA, 400mA | 600mA | 1.55V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO | CSA, cUL, UL |
|
VOL3120-X001TOPTOISO 5.3KV 1CH GATE DVR 5LSOP |
4,387 |
|
数据手册 |
- | 6-SOIC (0.295", 7.50mm Width), 5 Leads | Tape & Reel (TR) | Obsolete | Optical Coupling | 1 | 5300Vrms | 48kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2.5A, 2.5A | 2.5A | 1.36V | 25 mA | 15V ~ 32V | - | - | -40°C ~ 100°C | Surface Mount | 5-LSOP | CQC, cUR, UR, VDE |
|
SI8274AB1-IMDGTL ISO 2.5KV 2CH GT DVR 14LGA |
2,145 |
|
数据手册 |
Si827x | 14-VFLGA | Tube | Obsolete | RF Coupling | 2 | 2500Vrms | 150kV/µs | 75ns, 60ns | 19ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.6V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-LGA (5x5) | CQC, CSA, UR, VDE |
|
|
SI8274GB1-IMDGTL ISO 2.5KV 2CH GT DVR 14LGA |
4,564 |
|
数据手册 |
Si827x | 14-VFLGA | Tube | Obsolete | RF Coupling | 2 | 2500Vrms | 150kV/µs | 75ns, 60ns | 19ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-LGA (5x5) | CQC, CSA, UR, VDE |
|
|
SI8274GB4D-IMDGTL ISO 2.5KV 2CH GT DVR 14LGA |
3,385 |
|
数据手册 |
Si827x | 14-VFLGA | Tube | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 105ns, 75ns | 47ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-LGA (5x5) | CQC, CSA, UR, VDE |
|
|
SI8275AB-IMDGTL ISO 2.5KV 2CH GT DVR 14LGA |
2,233 |
|
数据手册 |
Si827x | 14-VFLGA | Tube | Obsolete | RF Coupling | 2 | 2500Vrms | 150kV/µs | 60ns, 60ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.6V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-LGA (5x5) | CQC, CSA, UR, VDE |
|

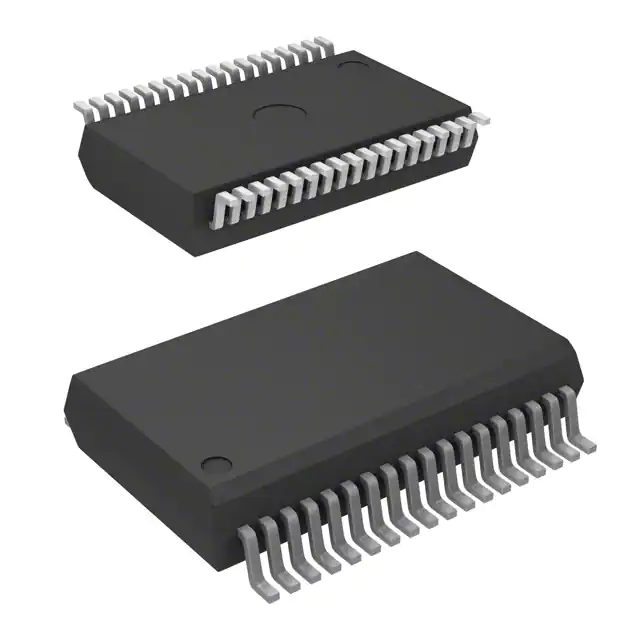

1EDI2001ASXUMA2DGT ISO 3.75KV 1CH GT DVR DSO36 |
4,013 |
|
数据手册 |
EiceDRIVER™ | 36-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | 3750Vrms | - | - | - | 30ns, 60ns | 1A, 1A | - | - | - | 13V ~ 18V | Automotive | AEC-Q100 | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-36-63 | - |
|
BM60210FV-CE2DIGITAL ISO 1CH GATE DVR 20SSOP |
4,363 |
|
数据手册 |
- | 20-SSOP (0.240", 6.10mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | - | 100kV/µs | 75ns, 75ns | - | 50ns, 50ns | 3A, 3A | 5A | - | - | 10V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 20-SSOP-BW | - |
|
|
5962-1223601HEAOPTOISO 1.5KV 1CH GT DVR 16CDIP |
4,780 |
|
数据手册 |
- | 16-CDIP (0.300", 7.62mm) | Bulk | Active | Optical Coupling | 1 | 1500VDC | 9kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | - | - | 15V ~ 30V | - | - | -55°C ~ 125°C | Through Hole | 16-CDIP | - |
|
|
VOL3120TOPTOISO 5.3KV 1CH GATE DVR 5LSOP |
1,810 |
|
数据手册 |
- | 6-SOIC (0.295", 7.50mm Width), 5 Leads | Tape & Reel (TR) | Obsolete | Optical Coupling | 1 | 5300Vrms | 48kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2.5A, 2.5A | 2.5A | 1.36V | 25 mA | 15V ~ 32V | - | - | -40°C ~ 100°C | Surface Mount | 5-LSOP | CQC, cUR, UR |
|
|
BM60016FV-CE2DGTL ISO 2.5KV 1CH GT DVR 10SSOP |
1,711 |
|
数据手册 |
- | - | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 2500Vrms | 100kV/µs | 75ns, 75ns | - | 50ns, 50ns | 3A, 3A | 5A | - | - | 10V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 10-SSOP | - |
|
|
BM60055FV-CE2DGTL ISO 2.5KV 1CH GT DVR 28SSOP |
2,126 |
|
数据手册 |
- | 28-SSOP (0.315", 8.00mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 2500Vrms | 100kV/µs | 250ns, 250ns | - | 30ns, 30ns | - | 5A | - | - | 9V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 28-SSOP | - |
|
1EDI2015ASXUMA1DIGITAL ISO 1CH GT DVR DSO36-63 |
4,496 |
|
数据手册 |
EiceDRIVER™ | 36-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | - | - | - | - | - | - | - | - | - | - | Automotive | AEC-Q100 | - | Surface Mount | PG-DSO-36-63 | - |
|
|
SI8236BB-D-IMRDIGITAL ISO 2CH GATE DVR 14LGA |
3,104 |
|
数据手册 |
- | 14-VFLGA | Tube | Obsolete | Capacitive Coupling | 2 | - | - | - | - | - | - | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-LGA (5x5) | CQC, CSA, UR, VDE |
|
|
SI8236BB-D-IMDIGITAL ISO 2CH GATE DVR 14LGA |
1,030 |
|
数据手册 |
- | 14-VFLGA | Tape & Reel (TR) | Obsolete | Capacitive Coupling | 2 | - | - | - | - | - | - | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-LGA (5x5) | CQC, CSA, UR, VDE |
|
SI8233AB-D-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN |
2,840 |
|
数据手册 |
- | 14-VDFN | Tape & Reel (TR) | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 45kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
